CCT13020102F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> CCT13020102F

CCT13020102F: DescriptionMains Power Connector, 15A, 125VAC, Female, Solder Terminal,; CategoryThe connector The connector; File Size45KB，1 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric Compare View All

CCT13020102F Overview

Mains Power Connector, 15A, 125VAC, Female, Solder Terminal,

CCT13020102F Parametric

Parameter Name	Attribute value
Maker	SMK
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: UL 94V-1
Connector type	MAINS POWER CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Power Connector Ratings	15A, 125VAC
Manufacturer's serial number	PS-2
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell material	POLYETHYLENE
Termination type	SOLDER
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

Power Connectors

19.5

12.5

5.5

22.5

19.5

Power Connectors

CCT1302-

01 : Horizontal

02 : Vertical

01 : Non-polarized (neutral)

02 : Polarized

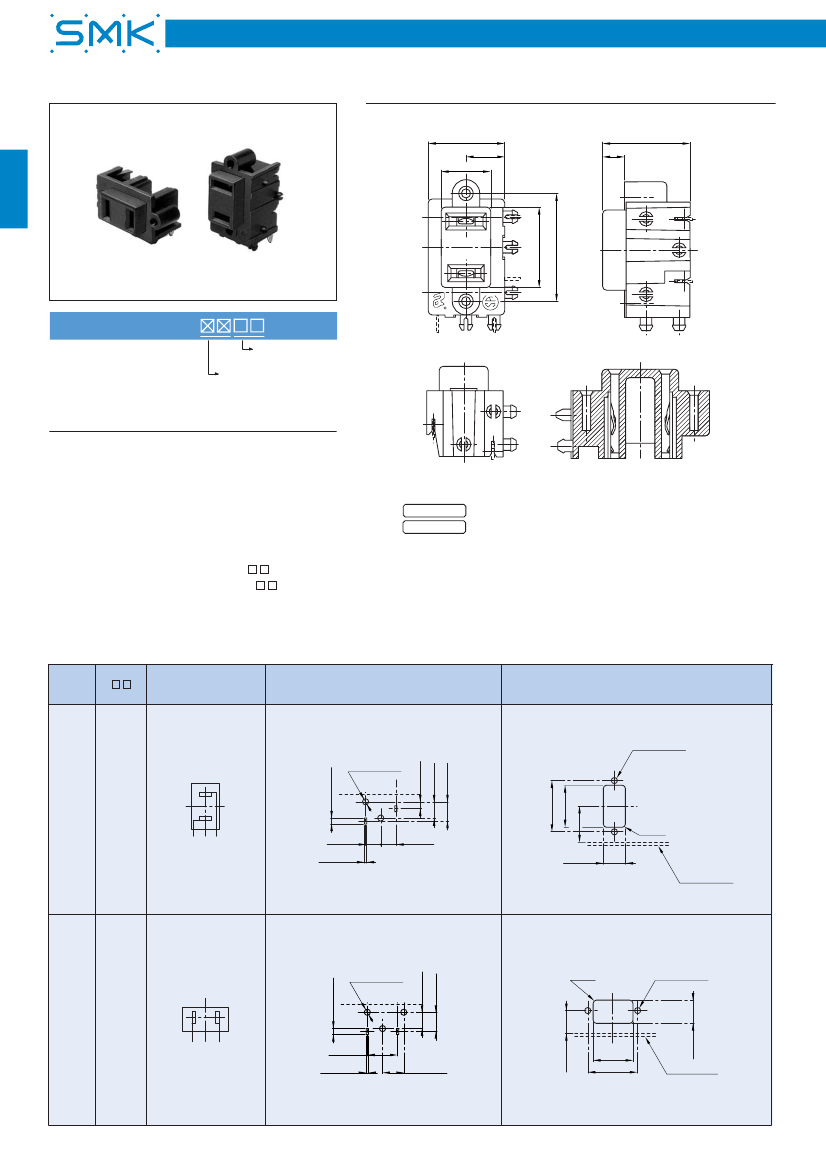

AC Outlet (PS-2 Series)

■

Specification

1. Rating : 15A, 125V AC

2. Contact Resistance : 50mΩ max.

3. Insulation Resistance : 300MΩ min. at 500V DC

4. Withstanding Voltage : 2000V AC (for one minute)

5. Operating Temperature Range : –20˚C to +80˚C

6. Main Unit Material : Thermoplastic Resin, Black,

94V-1

7. Catalog No. : IR35 (CCT1302-01

IR35-1(CCT1302-02

■

Note

1. Independent type from the printed circuit board.

2. Can be fixed to the chassis with two tapping

screws (3mm).

Mounting

Direction

Approval Standards:

CSA

(02 for polarized models only)

Terminal Layout

P.C. Board Dimension (Top View)

t=1.6mm

IR35-1

Mounting Holes for Panel

2-ø3.3

+ 0.1

+ 0.2

2-ø3.1

Horizontal

2-3.5

3.5

0.1

8.5

0.1

+ 0.1

17.5

0.1

7.5

0.1

2-1.2

+ 0.1

7.5

0.1

4-R1

0.1

P. C. Board

8.5

0.1

Vertical

2-3.5

+ 0.1

3-ø3.1

+ 0.1

4-R1

2-ø3.3

+ 0.2

15.5

0.1

2-1.2

+ 0.1

0.1

11.25

0.1

P.C. Board

0.1

CCT13020102F Related Products

	CCT13020102F	CCT1302-0102F	CCT1302-0202F	CCT13020202F	CCT1302-0101F	CCT1302-0201F
Description	Mains Power Connector, 15A, 125VAC, Female, Solder Terminal,	15A, 125 VAC, FEMALE, MAINS POWER CONNECTOR, SOLDER, LEAD FREE	15A, 125 VAC, FEMALE, MAINS POWER CONNECTOR, SOLDER, LEAD FREE	Mains Power Connector, 15A, 125VAC, Female, Solder Terminal,	Mains Power Connector, 15A, 125VAC, Female, Solder Terminal, LEAD FREE	Mains Power Connector, 15A, 125VAC, Female, Solder Terminal, LEAD FREE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	STANDARD: UL 94V-1	STANDARD: UL 94V-1	STANDARD: CSA; UL 94V-1, POLARIZED	STANDARDS: UL 94V-1; CSA	STANDARD: UL 94V-1	STANDARD: CSA; UL 94V-1, POLARIZED
Connector type	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Power Connector Ratings	15A, 125VAC	15A, 125VAC	15A, 125VAC	15A, 125VAC	15A, 125VAC	15A, 125VAC
Manufacturer's serial number	PS-2	PS-2	PS-2	PS-2	PS-2	PS-2
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYETHYLENE	THRMOPLASTIC	THRMOPLASTIC	POLYETHYLENE	THRMOPLASTIC	THRMOPLASTIC
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	2	2	2	2	2	2
Maker	SMK	SMK	-	SMK	SMK	SMK
package instruction	-	LEAD FREE	LEAD FREE	-	LEAD FREE	LEAD FREE
Contact to complete cooperation	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Coupling type	-	SNAP	SNAP	-	SNAP	SNAP
