Multi-Core MIPS64 Processors
R
OCTEON CN38XX/CN36XX 4 to 16-Core MIPS64 Based SoCs
Product Brief
The OCTEON
®
CN38XX and CN36XX family of Multi-core MIPS64 processors targets intelligent networking,
control plane, storage, and wireless applications in next-generation equipment from 1Gbps to 10Gbps performance.
The family includes 15 di erent software-compatible parts, with four to sixteen cnMIPS64 cores on a single chip
that integrate next-generation networking I/Os along with the most advanced security and application hardware
acceleration to deliver a 3x – 5x performance, power and real-estate value proposition over alternatives.
®
OVERVIEW
FEATURES
•
•
•
•
•
Custom CPU Cores Optimized for Networking
BENEFITS
Market Leading Performance
•
Up to 19.2 billion instructions per second
•
Up to 10Gbps application performance
-
Up to 20Mpps 64B IP forwarding
-
Up to 10+Gbps for TCP, IPsec, SSL
-
Up to 4Gbps for Regular Expression,
Compression/Decompression
4-16 cnMIPS™ CPU cores (MIPS64/32 compatible) with MMU
Available in 400 MHz to 600 MHz versions
Enhanced MIPS64 integer (Release 2) instruction set
Dual-issue, ve-stage pipeline, optimized latencies
Auto instruction pre-fetching and advanced data
pre-fetching features to minimize memory stalls
High Performance Coherent Memory Subsystem
•
1MB ECC protected 8-way set associative L2 cache with
locking, partitioning features for optimal performance
•
Integrated mainstream 128/144-bit DDR2 memory
controller with ECC, up to DDR2-800
•
Optional, additional, low-latency 2x18-bit or 4x9-bit
RLDRAM2 for content based processing, meta-data
and TCAM connectivity
•
Packet I/O processing, QoS, TCP acceleration
•
Support for IPsec, SSL, SRTP, WLAN security (includes
DES, 3DES, AES up to 256-bit, SHA1, SHA-2 up to
SHA-512, RSA, DH)
•
Regular expression, compression/decompression
Sophisticated Hardware Based QoS Support
•
Queuing, scheduling
•
Very low latency for real-time tra c
Reduced BOM cost with essential interfaces for
standalone routers/appliances, line-card and
Services-card Applications
Flexible Architecture allows Host and Co-processor
Implementations
Industry-Standard Programming Model without any need
for Proprietary Tools or Micro-coding
Fully Software Compatible with OCTEON CN31XX and
CN30XX to deliver 1- 16 CPU scalability
3x – 5x Advantage over Alternative System Architectures in
Performance and Power for L4-L7 Data and Security
Services
Integrated Coprocessors for Application Acceleration
Integrated High-Performance Networking Interfaces
•
Up to 2 sets of I/Os - each con gurable as 4x10/100/1000
Ethernet MACs (RGMII) or SPI-4.2
•
Integrated 64-bit, 133 MHz PCI-X host or slave
Comprehensive Development Environment with Linux,
VxWorks and C/C++ support
Optimized power consumption: 14W – 30W
Package: 1521 FCBGA
OCTEON
®
CN38XX
- Block Diagram
2315 N. First Street
San Jose, CA 95131
T
408-943-7100
F
408-577-1992
E
sales@cavium.com
www.cavium.com
Multi-Core MIPS64 Processors
R
OCTEON CN38XX/CN36XX 4 to 16-Core MIPS64 Based SoCs
Product Brief

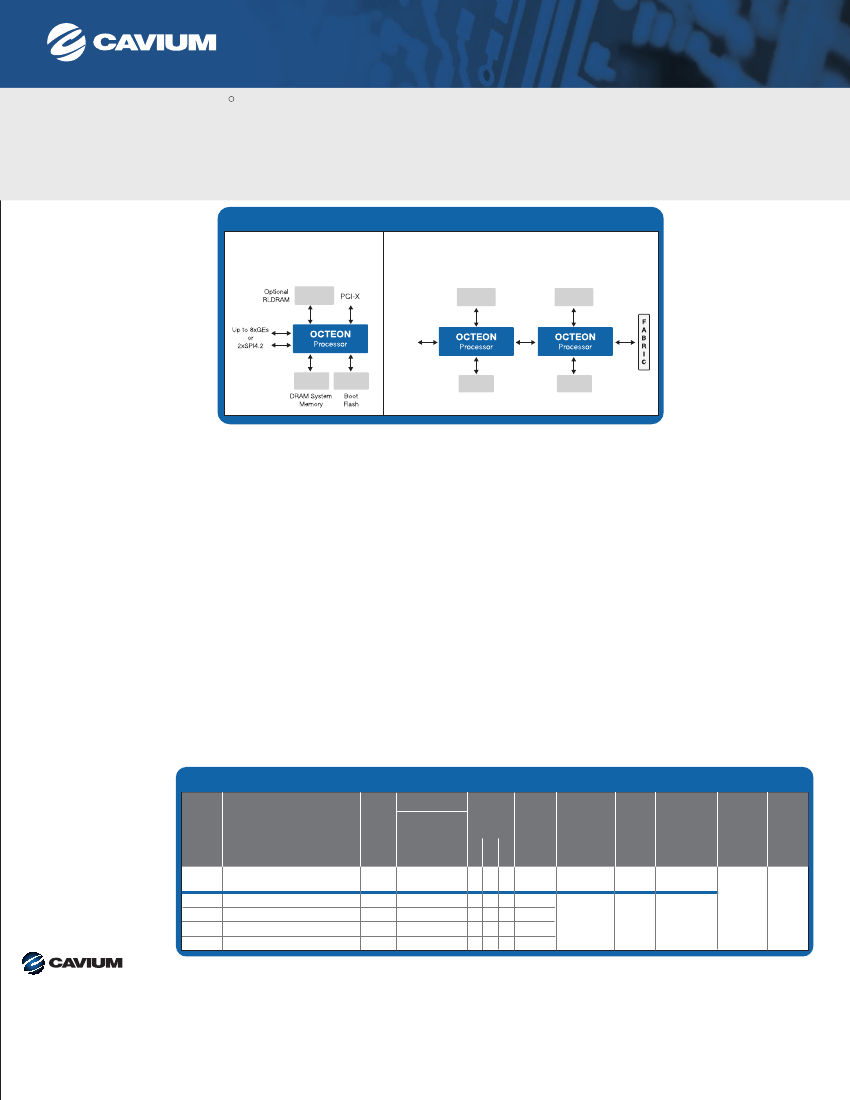

OCTEON -Based System Block Diagrams
OCTEON as 1Gbps to 4Gbps
Single-chip Network Appliance
OCTEON as 10Gbps Line Card
or Services Blade
®
®
Optional
TCAM
Optional
RLDRAM
Up to 4xGEs
or
SPI-4.2
SPI-4.2
System
Memory
System
Memory
OCTEON CN38XX/CN36XX APPLICATIONS
•
Next generation integrated, standalone routers and
appliances
•
Uni ed Threat Management (UTM) appliances with
Firewall, VPN (IPsec, SSL), IDS, IPS and Anti-virus
scanning
•
Application aware/L4+ content processing and
switching
•
Network acceleration cards for security, TCP,
content processing, compression
•
Integrated management and route processor cards
•
Switch/router line card and services card control
and datapath processing
•
TCP, iSCSI, RDMA, compression processing for
storage applications
•
Wireless LAN switch/appliance security and packet
processing
OCTEON SOFTWARE SUPPORT
•
Cavium SDK includes:
-
Up to 16-way SMP LINUX support
-
Cavium Simple Executive for data plane applications
-
Complete GNU tool-chain, GDB, DDD and viewzilla
for tuning
-
Optimized C libraries for security, regular expression,
de/compression processing o oad
-
Support for run-to-completion or pipelined software
models
•
Complete production quality development toolkits for IP,
IPsec, SSL, TCP, SSL-VPN available
•
Comprehensive ecosystem support
-
Popular third-party Operating systems and toolchains,
including MontaVista Linux, WindRiver VxWorks,
ENEA OSE
-
Broad range of third-party application software vendors,
including 6Wind, Intoto and D2 Technologies
•
MIPS64/32 support enables thousands of MIPS and other
C/C++ applications to be easily ported to OCTEON
OCTEON CN38XX and CN36XX - Product Family
Performance
®
Device
Part Number
*
cnMIPS
cores
Max. Available
Instructions
Per Second
Option
N
S
P
Y
Y
Y
Y
Y
E
X
P
Y
Y
Y
Y
Y
S
C
P
Y
Y
Y
Y
Y
L2 Cache
Interfaces
PCI/
PCI-X
Memory IO
w/ECC
DFA
Package
Memory IO
w/ECC
CN3630
CN3830
CN3840
CN3850
CN3860
CN3630-XXXBG1521- Option Code
CN3830-XXXBG1521- Option Code
CN3840-XXXBG1521- Option Code
CN3850-XXXBG1521- Option Code
CN3860-XXXBG1521- Option Code
4
4
8
12
16
4.8G
4.8G
9.6G
14.4G
19.2G
512KB
1MB
1MB
1MB
1MB
4x RGMII or
SPI-4.2
2x
[4x RGMII or
1x SPI-4.2]
64-bit/
133 MHz
64-bit/
133 MHz
DDR II - 72-bit
DDR II - 72-bit
or
DDR II - 144-bit
2x 18-bit
RLDRAM2
(optional)
1521 pins
2315 N. First Street
San Jose, CA 95131
T
408-943-7100
F
408-577-1992
E
sales@cavium.com
www.cavium.com
* (Part Number Options):
XXX = Device Speed Grade (400 = 400 MHz, 500 = 500 MHz, 550 = 550 MHz, 600 = 600 MHz)
Option Code = Device Family Listed Below:
NSP = Network Services Processor: Includes, encryption, reg-ex acceleration, decompression, networking, TCP acceleration and QoS
EXP = Extreme Processor: Includes reg-ex acceleration, decompression, networking, TCP acceleration and QoS
SCP = Secure Communications Processor: Includes, encryption, networking, TCP acceleration and Qos
2011 Cavium, Inc. All Rights reserved. NITROX and OCTEON are registered trademarks of Cavium, Inc.
All other brands and product names are registered trademarks of their respective owners.
CN38XX_36XX-PB-1.3 Printed in the USA
