74F543DCQR datasheet, PDF - EEWORLD Datasheet

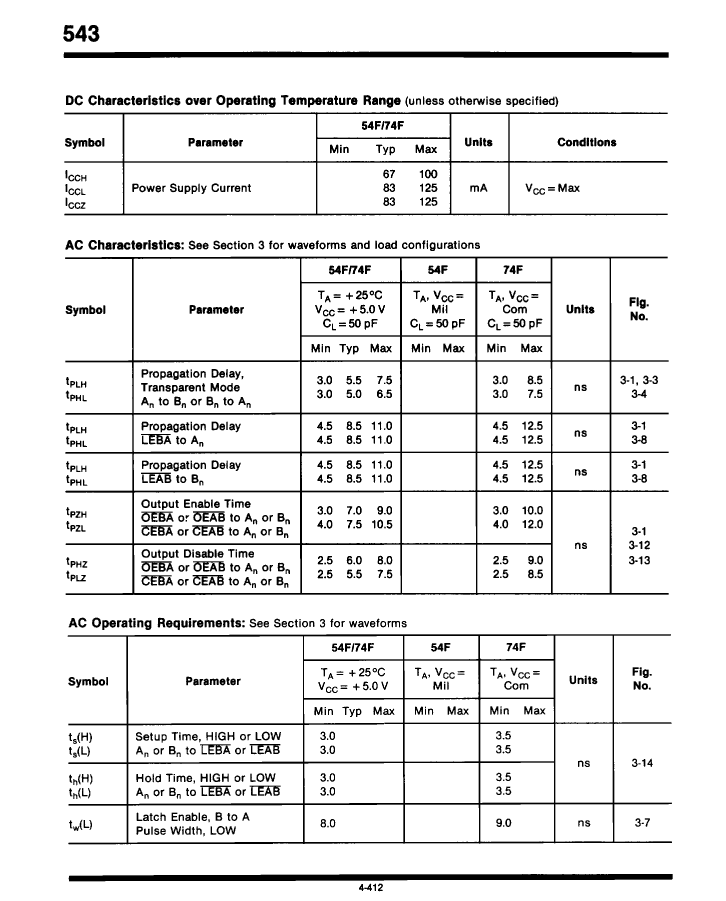

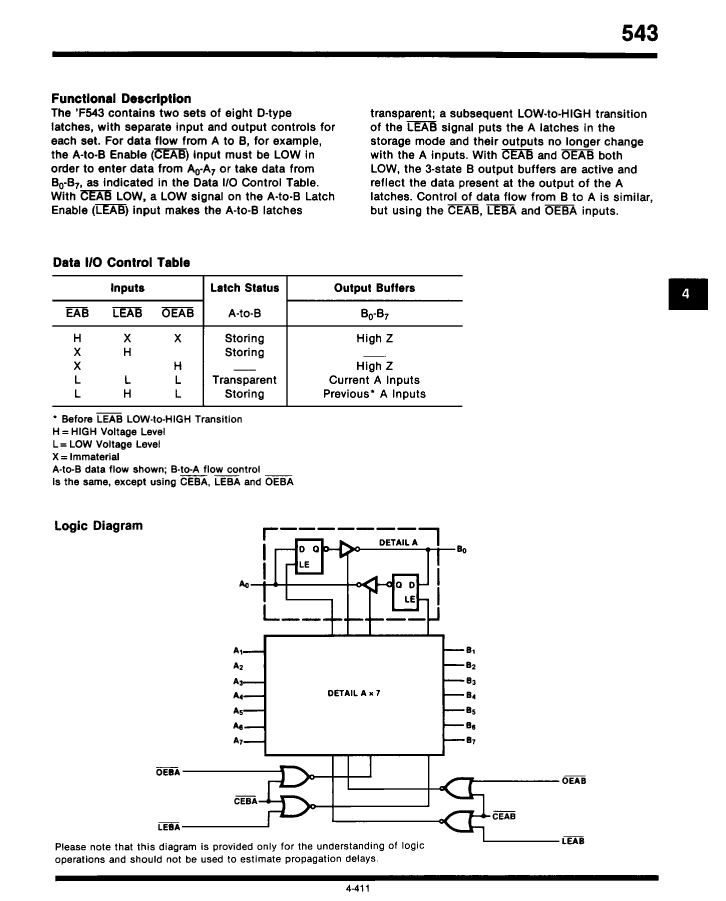

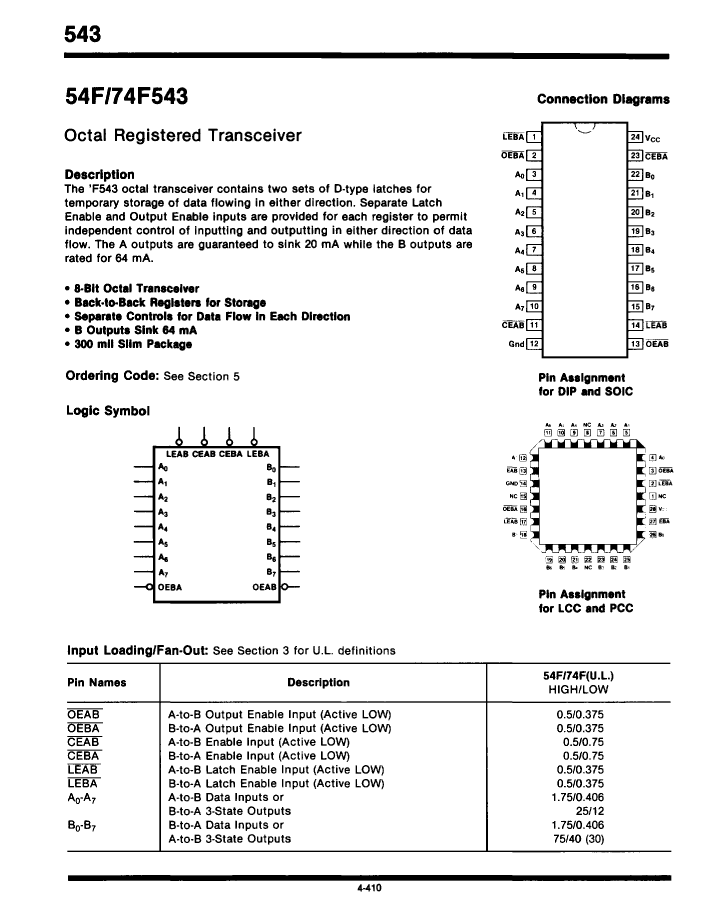

74F543DCQR: DescriptionRegistered Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDIP24, CERAMIC, DIP-24; Categorylogic logic; File Size79KB，3 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

74F543DCQR Overview

Registered Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDIP24, CERAMIC, DIP-24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	DIP
package instruction	CERAMIC, DIP-24
Contacts	24
Reach Compliance Code	unknown
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
series	F/FAST
JESD-30 code	R-GDIP-T24
JESD-609 code	e0
length	32.77 mm
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
propagation delay (tpd)	12.5 ns
Certification status	Not Qualified
Maximum seat height	5.72 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
translate	N/A
width	15.24 mm
Base Number Matches	1
