54ABT374J-QML

Description
D Flip-Flop, 8-Func, Positive Edge Triggered, CDIP20
Categorylogic    logic
File Size445KB,11 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric Compare View All

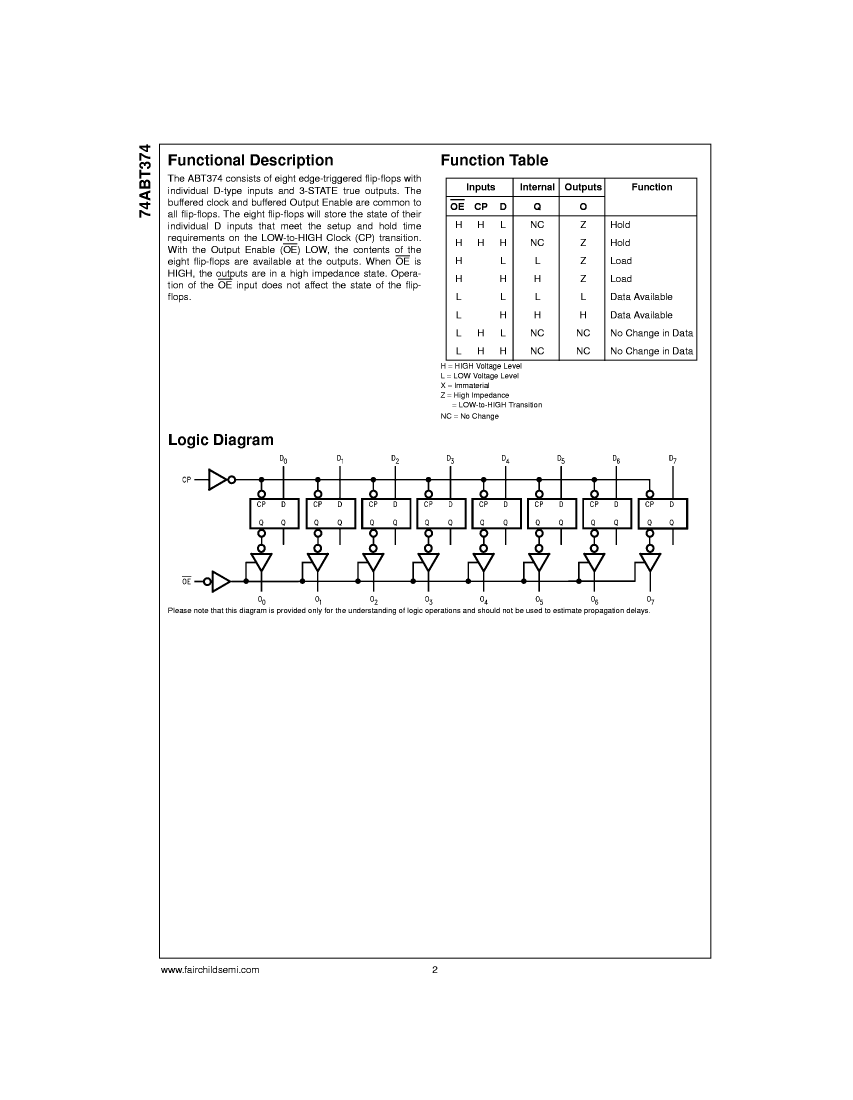

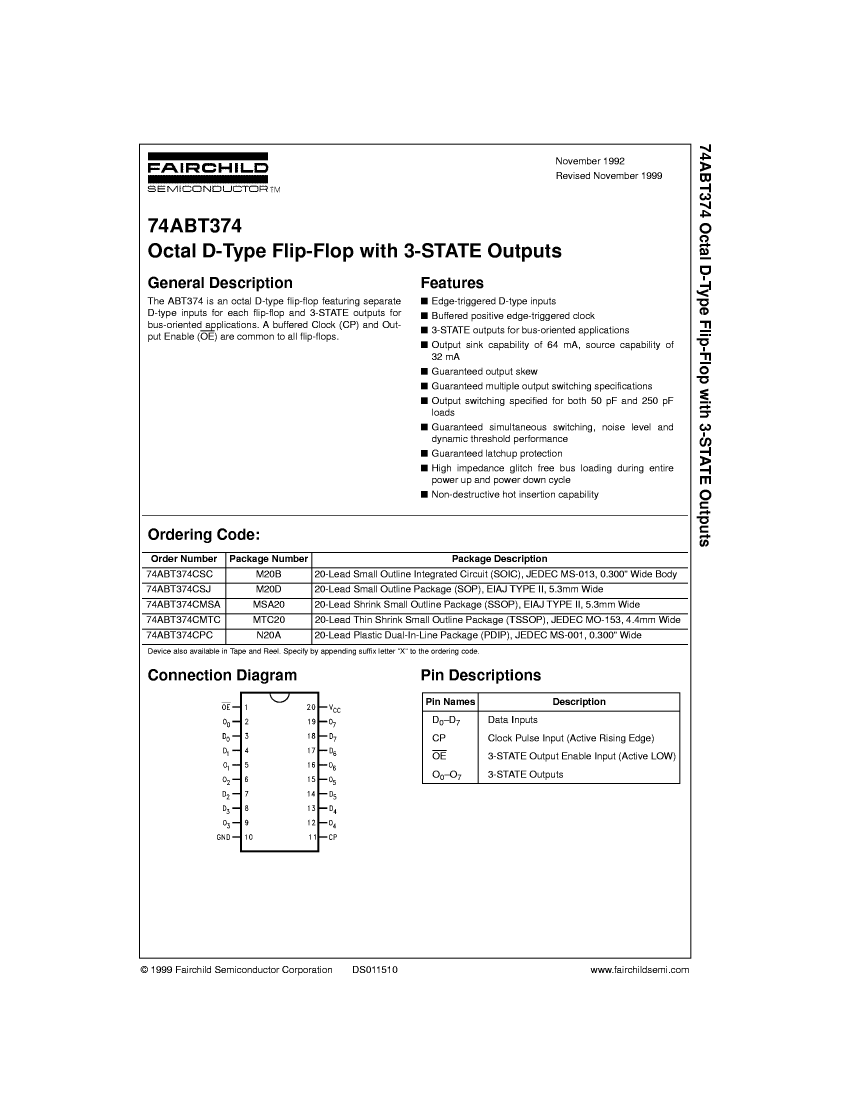

54ABT374J-QML Overview

D Flip-Flop, 8-Func, Positive Edge Triggered, CDIP20

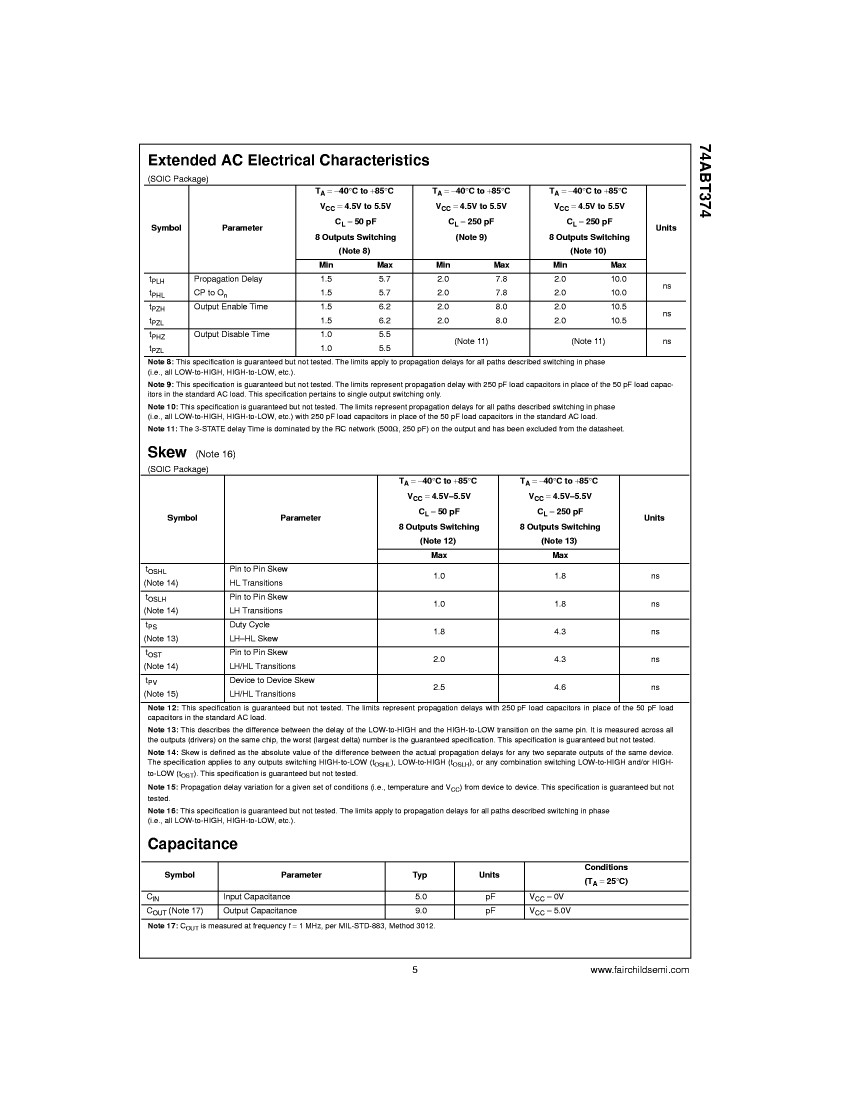

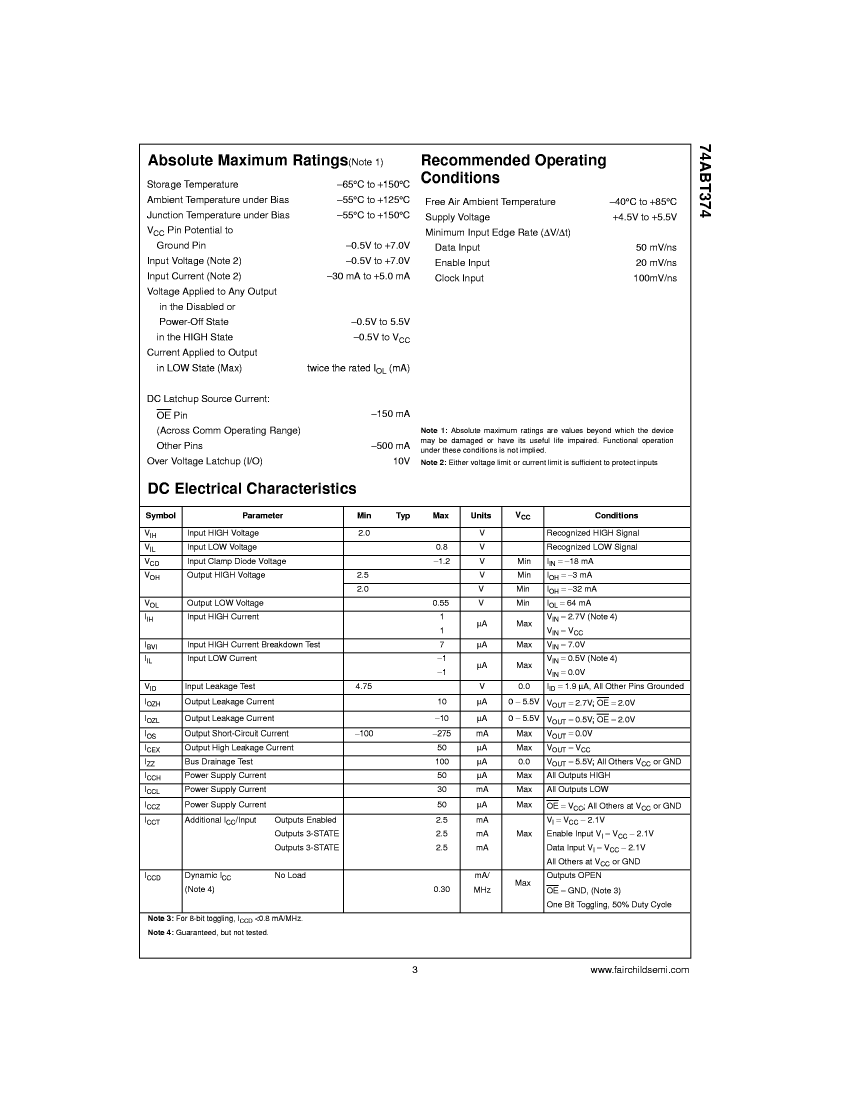

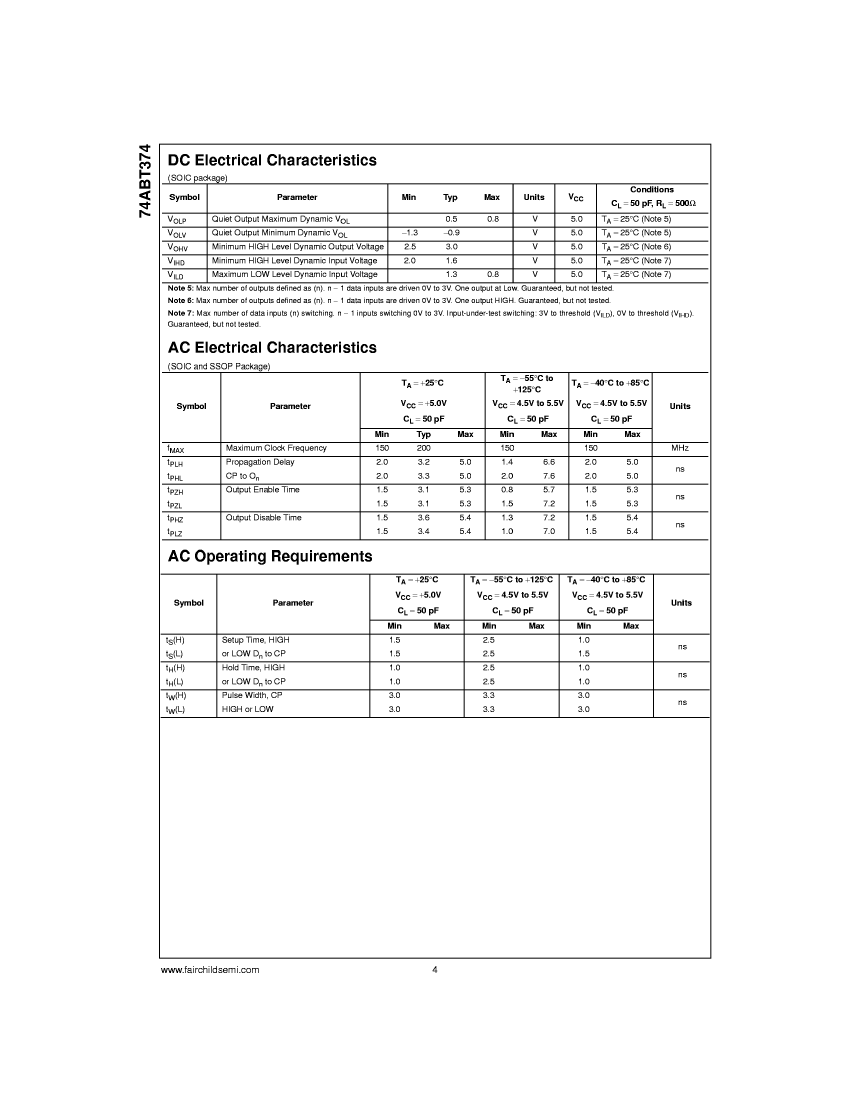

54ABT374J-QML Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instructionDIP, DIP20,.3
Reach Compliance Codeunknow
JESD-30 codeR-XDIP-T20
JESD-609 codee0
Load capacitance (CL)50 pF
Logic integrated circuit typeD FLIP-FLOP
Maximum Frequency@Nom-Su150000000 Hz
MaximumI(ol)0.048 A
Number of functions8
Number of terminals20
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Package body materialCERAMIC
encapsulated codeDIP
Encapsulate equivalent codeDIP20,.3
Package shapeRECTANGULAR
Package formIN-LINE
power supply5 V
Prop。Delay @ Nom-Su7.6 ns
Certification statusNot Qualified
Nominal supply voltage (Vsup)5 V
surface mountNO
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Trigger typePOSITIVE EDGE
Base Number Matches1

54ABT374J-QML Related Products

54ABT374J-QML 54ABT374W-QML 54ABT374E-QML
Description D Flip-Flop, 8-Func, Positive Edge Triggered, CDIP20 D Flip-Flop, 8-Func, Positive Edge Triggered, CDFP20 D Flip-Flop, 8-Func, Positive Edge Triggered, CQCC20
Is it Rohs certified? incompatible incompatible incompatible
package instruction DIP, DIP20,.3 DFP, FL20,.3 QCCN, LCC20,.35SQ
Reach Compliance Code unknow unknown unknown
JESD-30 code R-XDIP-T20 R-XDFP-F20 S-XQCC-N20
JESD-609 code e0 e0 e0
Load capacitance (CL) 50 pF 50 pF 50 pF
Logic integrated circuit type D FLIP-FLOP D FLIP-FLOP D FLIP-FLOP
MaximumI(ol) 0.048 A 0.048 A 0.048 A
Number of functions 8 8 8
Number of terminals 20 20 20
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Output characteristics 3-STATE 3-STATE 3-STATE
Package body material CERAMIC CERAMIC CERAMIC
encapsulated code DIP DFP QCCN
Encapsulate equivalent code DIP20,.3 FL20,.3 LCC20,.35SQ
Package shape RECTANGULAR RECTANGULAR SQUARE
Package form IN-LINE FLATPACK CHIP CARRIER
power supply 5 V 5 V 5 V
Certification status Not Qualified Not Qualified Not Qualified
Nominal supply voltage (Vsup) 5 V 5 V 5 V
surface mount NO YES YES
Temperature level MILITARY MILITARY MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE FLAT NO LEAD
Terminal pitch 2.54 mm 1.27 mm 1.27 mm
Terminal location DUAL DUAL QUAD
Trigger type POSITIVE EDGE POSITIVE EDGE POSITIVE EDGE
Base Number Matches 1 1 1
Maker - Fairchild Fairchild
Maximum Frequency@Nom-Sup - 150000000 Hz 150000000 Hz
Prop。Delay @ Nom-Sup - 7.6 ns 7.6 ns
