5962R9661801VCC datasheet, PDF

Datasheet> All Categories > logic> logic> 5962R9661801VCC

5962R9661801VCC: Description4000/14000/40000 SERIES, TRIPLE 1-INPUT INVERT GATE, CDIP14; Categorylogic logic; File Size213KB，9 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962R9661801VCC Overview

4000/14000/40000 SERIES, TRIPLE 1-INPUT INVERT GATE, CDIP14

5962R9661801VCC Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	unknow
Other features	DUAL COMPLEMENTARY PAIR PLUS INVERTER
series	4000/14000/40000
JESD-30 code	R-GDIP-T14
JESD-609 code	e4
length	19.43 mm
Logic integrated circuit type	INVERTER
Number of functions	3
Number of entries	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/15 V
propagation delay (tpd)	149 ns
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class V
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
width	7.62 mm
Base Number Matches	1

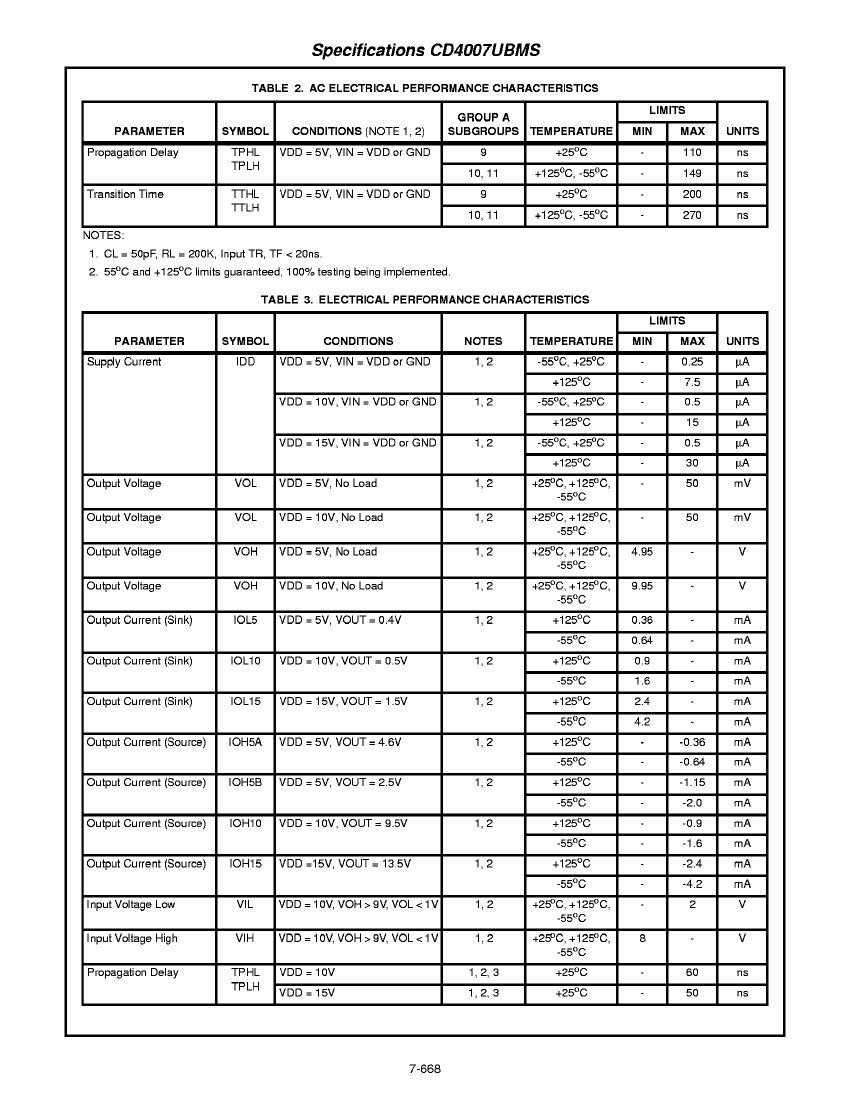

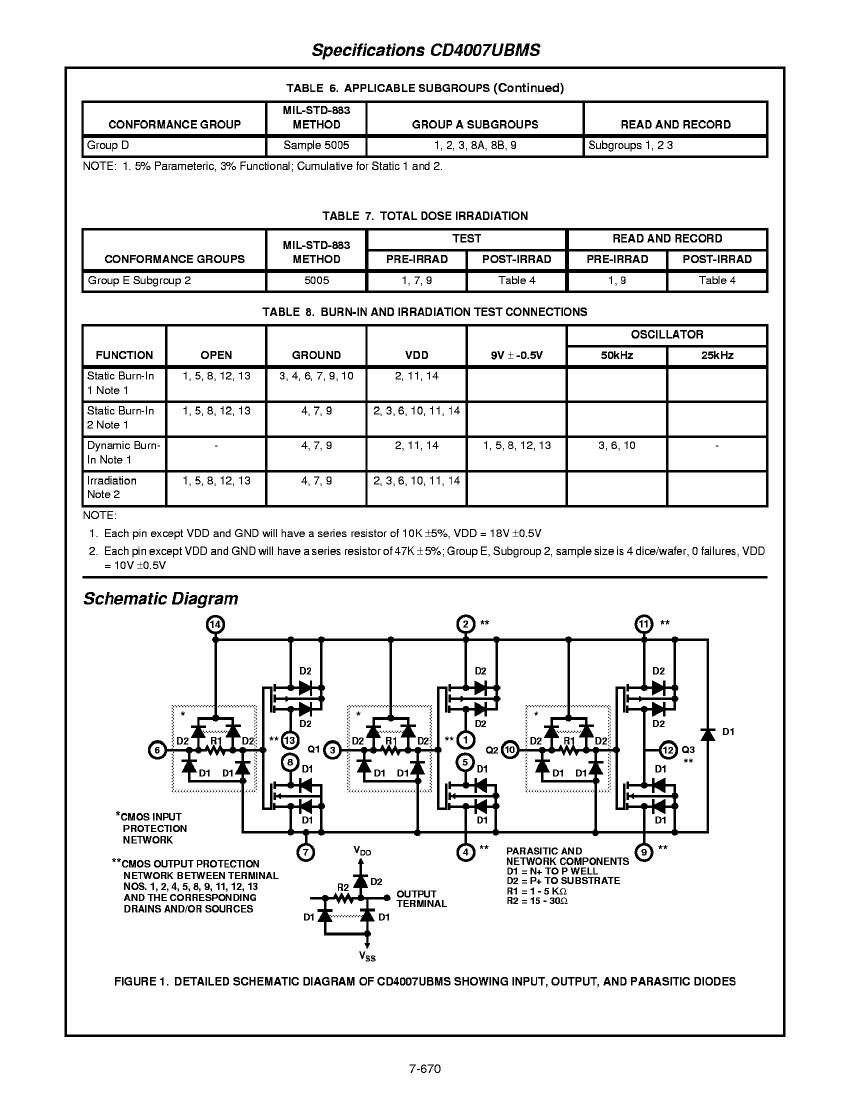

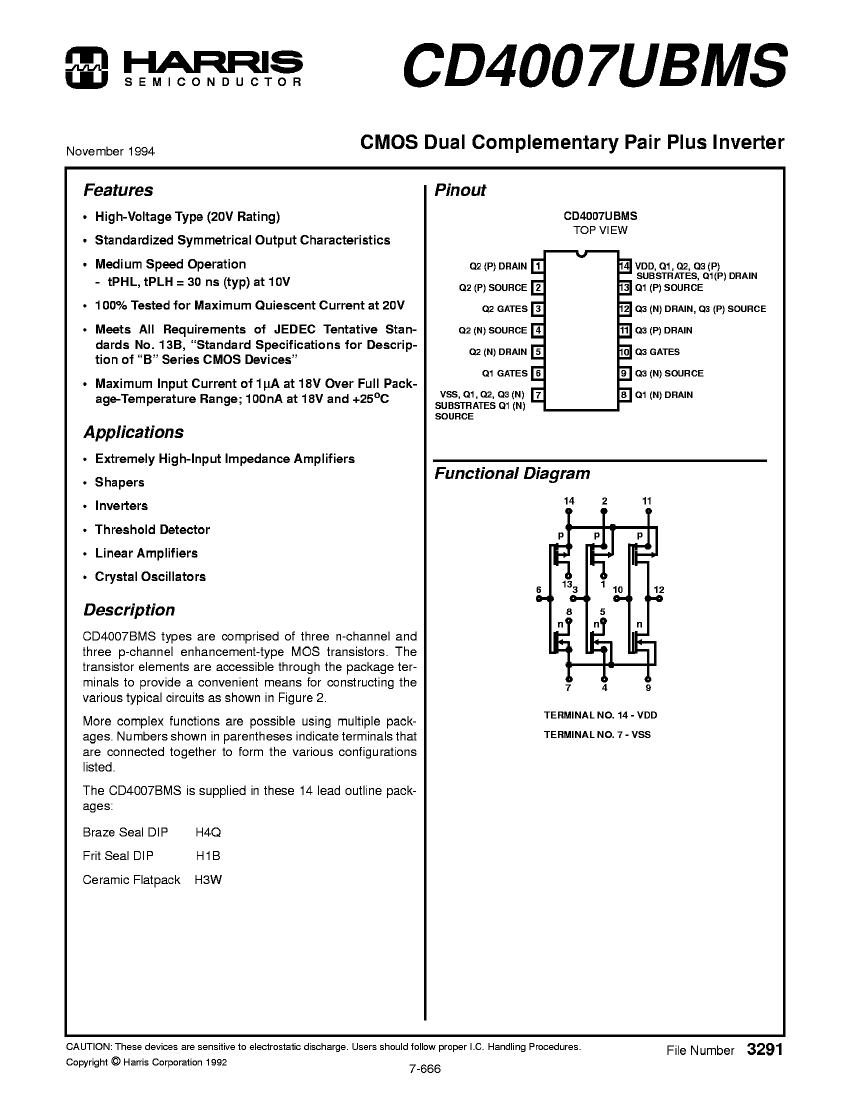

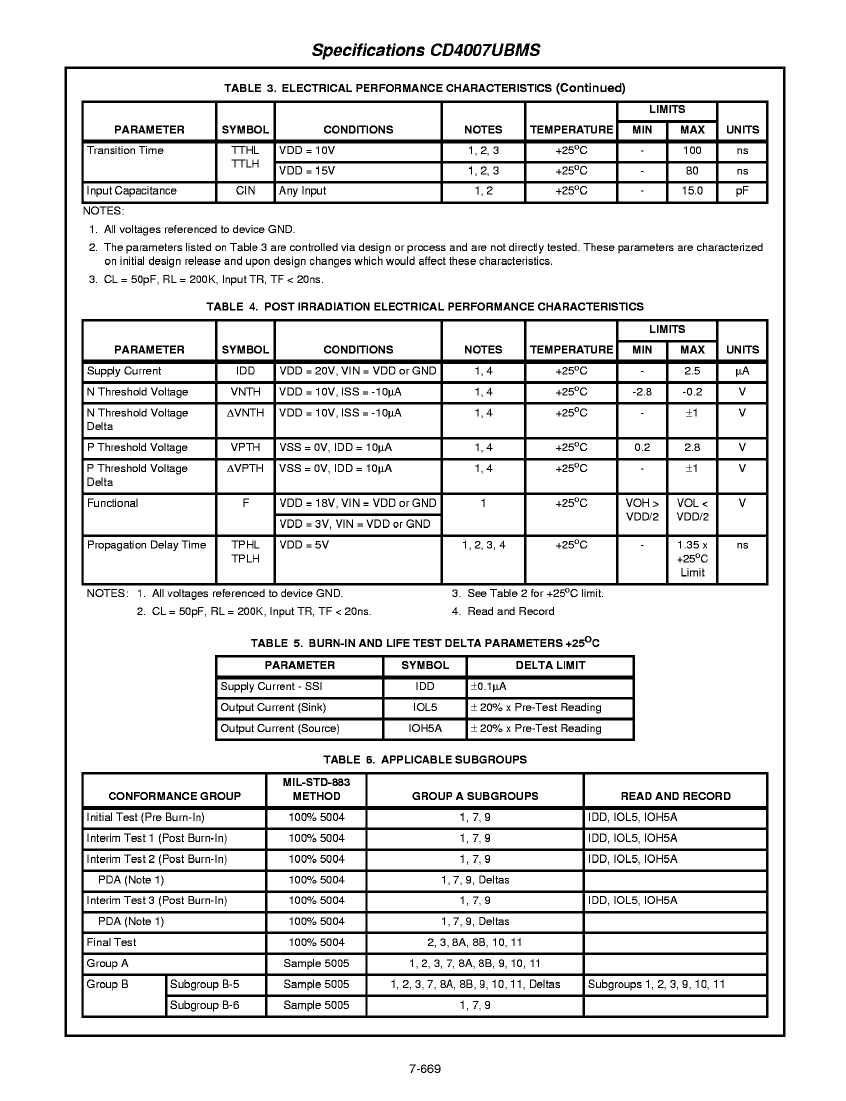

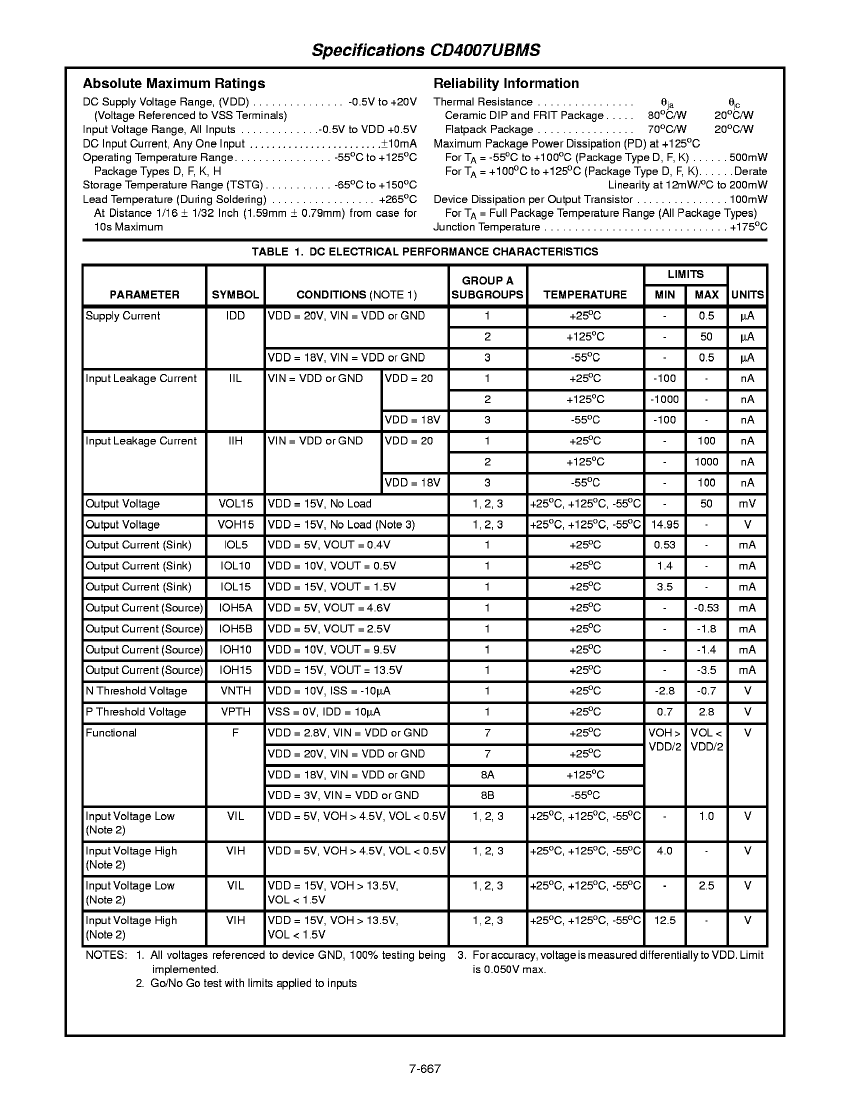

Preview

Download Datasheet

View All

5962R9661801VCC Related Products

	5962R9661801VCC	5962R9661801VXC	CD4007UBHMSR
Description	4000/14000/40000 SERIES, TRIPLE 1-INPUT INVERT GATE, CDIP14	4000/14000/40000 SERIES, TRIPLE 1-INPUT INVERT GATE, CDFP14	4000/14000/40000 SERIES, TRIPLE 1-INPUT INVERT GATE, UUC14
package instruction	DIP, DIP14,.3	DFP, FL14,.3	DIE,
Reach Compliance Code	unknow	unknown	unknown
Other features	DUAL COMPLEMENTARY PAIR PLUS INVERTER	DUAL COMPLEMENTARY PAIR PLUS INVERTER	DUAL COMPLEMENTARY PAIR PLUS INVERTER
series	4000/14000/40000	4000/14000/40000	4000/14000/40000
JESD-30 code	R-GDIP-T14	R-CDFP-F14	X-XUUC-N14
Logic integrated circuit type	INVERTER	INVERTER	INVERTER
Number of functions	3	3	3
Number of entries	1	1	1
Number of terminals	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED
encapsulated code	DIP	DFP	DIE
Package shape	RECTANGULAR	RECTANGULAR	UNSPECIFIED
Package form	IN-LINE	FLATPACK	UNCASED CHIP
propagation delay (tpd)	149 ns	149 ns	148.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	FLAT	NO LEAD
Terminal location	DUAL	DUAL	UPPER
Base Number Matches	1	1	1
Parts packaging code	DIP	DFP	-
Contacts	14	14	-
JESD-609 code	e4	e4	-
length	19.43 mm	9.525 mm	-
Encapsulate equivalent code	DIP14,.3	FL14,.3	-
power supply	5/15 V	5/15 V	-
Filter level	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V	-
Maximum seat height	5.08 mm	2.92 mm	-
Maximum supply voltage (Vsup)	18 V	18 V	-
Minimum supply voltage (Vsup)	3 V	3 V	-
Nominal supply voltage (Vsup)	5 V	5 V	-
Terminal surface	GOLD	GOLD	-
Terminal pitch	2.54 mm	1.27 mm	-
total dose	100k Rad(Si) V	100k Rad(Si) V	-
width	7.62 mm	6.285 mm	-
