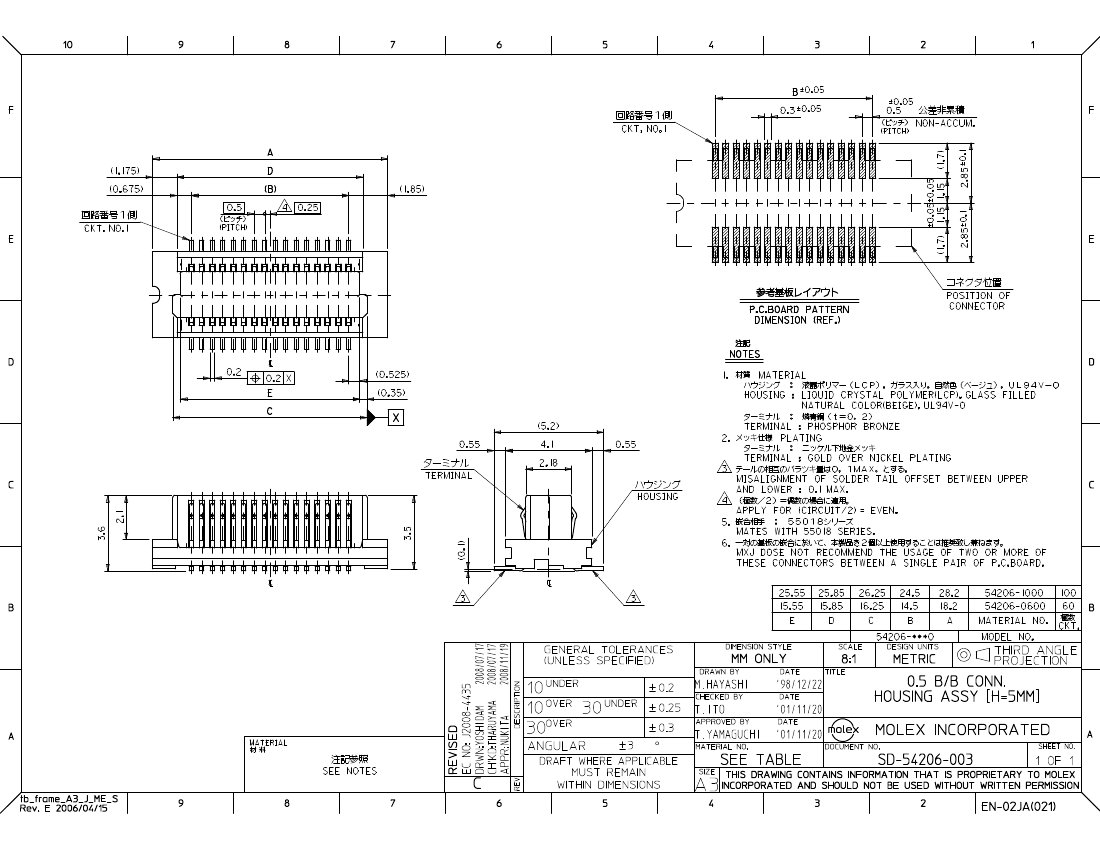

Board Stacking Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator, Receptacle,
| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | POLARIZED |
| body width | 0.161 inch |
| subject depth | 0.138 inch |
| body length | 1.11 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD STACKING CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | GOLD OVER NICKEL |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 80 mΩ |
| Contact style | BELLOWED TYPE |
| DIN compliance | NO |
| Dielectric withstand voltage | 500VAC V |
| Durability | 30 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 500000000 Ω |
| Insulator color | BEIGE |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER |
| MIL compliance | NO |
| Manufacturer's serial number | 54206 |
| Plug contact pitch | 0.02 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABELE |
| Mixed contacts | NO |
| Installation option 1 | LOCKING MECH |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 3.9878 mm |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 0.4 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | |
| Terminal pitch | 0.5 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 100 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 54206-1000 | 54206-0600 | |
|---|---|---|
| Description | Board Stacking Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator, Receptacle, | Board Stacking Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator, Receptacle, |
| Maker | Molex | Molex |
| Reach Compliance Code | unknown | unknown |
| ECCN code | EAR99 | EAR99 |
| Other features | POLARIZED | POLARIZED |
| body width | 0.161 inch | 0.161 inch |
| subject depth | 0.138 inch | 0.138 inch |
| body length | 1.11 inch | 0.717 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD STACKING CONNECTOR | BOARD STACKING CONNECTOR |
| Contact to complete cooperation | AU ON NI | AU ON NI |
| Contact completed and terminated | GOLD OVER NICKEL | GOLD OVER NICKEL |
| Contact point gender | MALE | MALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR |
| Contact resistance | 80 mΩ | 80 mΩ |
| Contact style | BELLOWED TYPE | BELLOWED TYPE |
| DIN compliance | NO | NO |
| Dielectric withstand voltage | 500VAC V | 500VAC V |
| Durability | 30 Cycles | 30 Cycles |
| Filter function | NO | NO |
| IEC compliance | NO | NO |
| Insulation resistance | 500000000 Ω | 500000000 Ω |
| Insulator color | BEIGE | BEIGE |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER |
| MIL compliance | NO | NO |
| Manufacturer's serial number | 54206 | 54206 |
| Plug contact pitch | 0.02 inch | 0.02 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABELE | MULTIPLE MATING PARTS AVAILABELE |
| Mixed contacts | NO | NO |
| Installation option 1 | LOCKING MECH | LOCKING MECH |
| Installation method | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD |
| Number of connectors | ONE | ONE |
| PCB row number | 2 | 2 |
| Number of rows loaded | 2 | 2 |
| Maximum operating temperature | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 3.9878 mm | 3.9878 mm |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 0.4 A | 0.4 A |
| Guideline | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 0.5 mm | 0.5 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 100 | 60 |
| UL Flammability Code | 94V-0 | 94V-0 |
| Base Number Matches | 1 | 1 |
