54204UF

Description
Ring Terminal, ROHS COMPLIANT
CategoryThe connector    terminals
File Size41KB,2 Pages
ManufacturerThomas & Betts Corporation
Websitehttp://www.tnb.com/
Download Datasheet Parametric Compare View All

54204UF Overview

Ring Terminal, ROHS COMPLIANT

54204UF Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codecompli
ECCN codeEAR99
terminal genderFEMALE
Terminal and terminal strip typesRING TERMINAL
Wire gauge8 AWG
Base Number Matches1
T&B Catalog Number:
UPC Number:
Description:

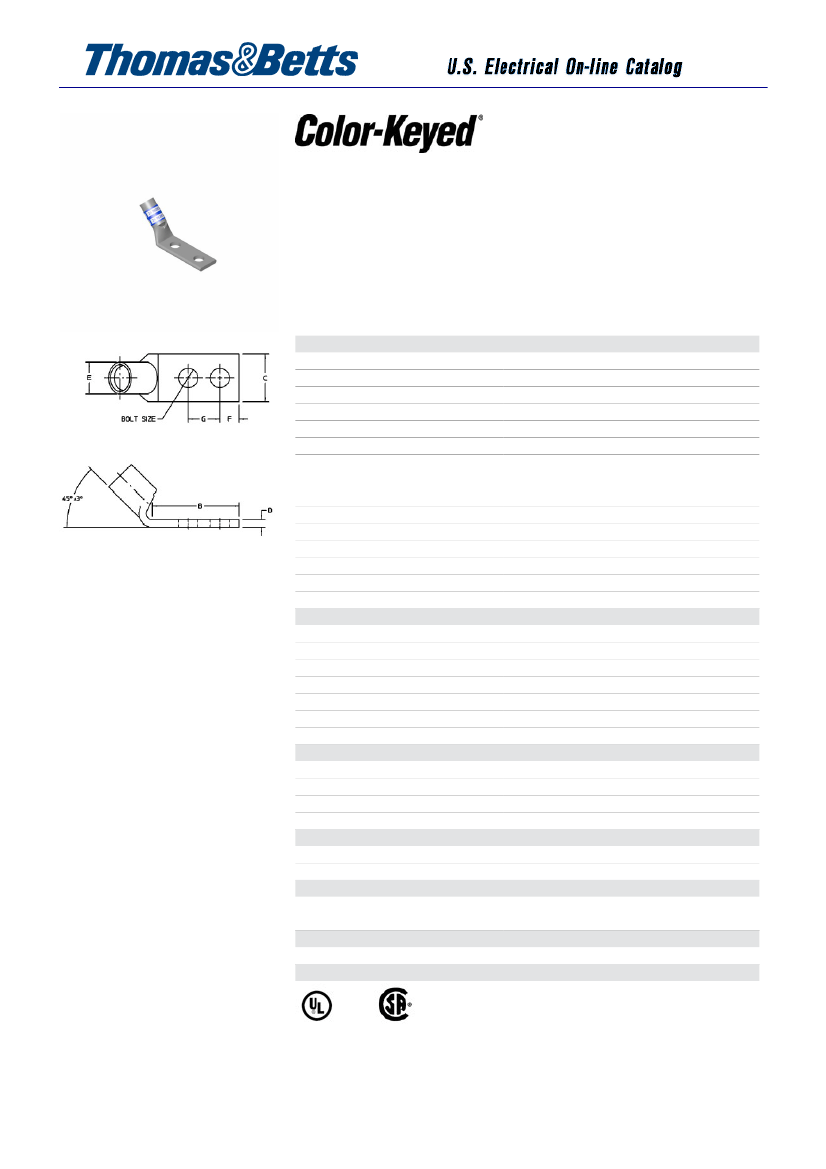

54204UF
78621006177
Copper Two-Hole Lug - 45 degree Stan-
dard Barrel - max 35KV, #8 AWG Wire,
#10 Bolt Size, 5/8" Hole Spacing, Tin Plat-
ed with Inspection Hole, Red 21
I
Status:
General
Material
Finish
Wire Size
Number of Studs
Stud Size
Bolt Hole Spacing
Tongue Angle
Barrel Length
Barrel Shape
Tongue Width
Peep Hole
Marking
Hole Shape
Die Color
Die Code
Copper
Tin Plated
#8 AWG
2
#10
5/8
45
Standard
Standard
Standard
Y
Standard
Round
Red
21
1.531
1.063
0.406
0.078
0.25
0.219
0.625
50
500
Each
1.8 lbs. per 100
Available on Website
Available on Website
Dimensions given for reference only. Dimensions
may vary up to +/- .030.
Dimension Information
A (inches)
B (inches)
C (inches)
D (inches)
E (inches)
F (inches)
G (inches)
Packaging
T&B Inner Pack
Package in Units
T&B Sold in UOM
T&B Weight Per UOM
Application Support
Overview
Connector & Tooling Chart
Notes
Certifications
RoHS Compliance
Yes
Certifications
File Nbr:
E9809

54204UF Related Products

54204UF
Description Ring Terminal, ROHS COMPLIANT
package instruction ROHS COMPLIANT
Reach Compliance Code compli
ECCN code EAR99
terminal gender FEMALE
Terminal and terminal strip types RING TERMINAL
Wire gauge 8 AWG
Base Number Matches 1
