180LD07NS: DescriptionRESISTOR, VOLTAGE DEPENDENT, 14V, 1.2J, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components The resistor; File Size126KB，6 Pages; ManufacturerMicro Commercial Components (MCC)

Download Datasheet Parametric View All

180LD07NS Overview

RESISTOR, VOLTAGE DEPENDENT, 14V, 1.2J, THROUGH HOLE MOUNT, RADIAL LEADED

180LD07NS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1727901753
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Circuit maximum DC voltage	14 V
Circuit RMS maximum voltage	11 V
Maximum energy absorption capacity	1.2 J
JESD-609 code	e0
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	DISK PACKAGE
method of packing	BULK; TR
Rated power dissipation(P)	0.02 W
Rated temperature	85 °C
Resistor type	VARISTOR
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	RADIAL
Terminal shape	WIRE
Operating Voltage	14 V

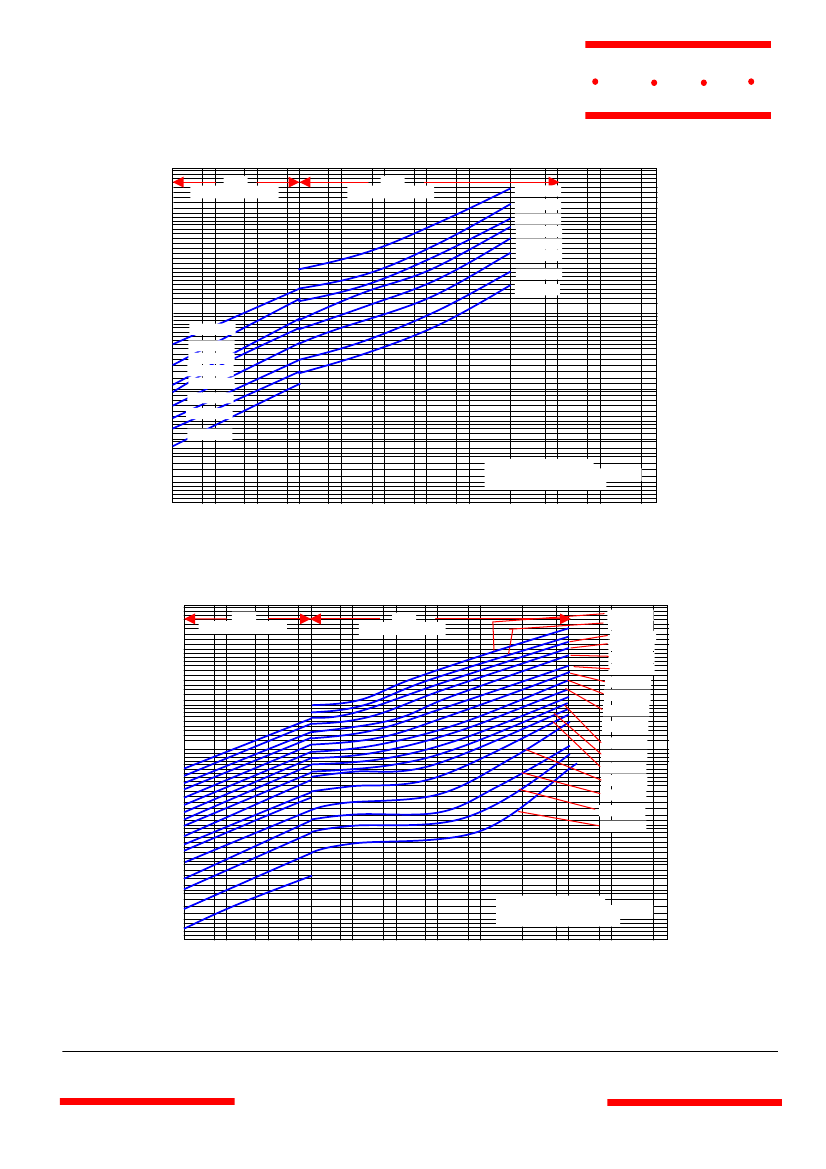

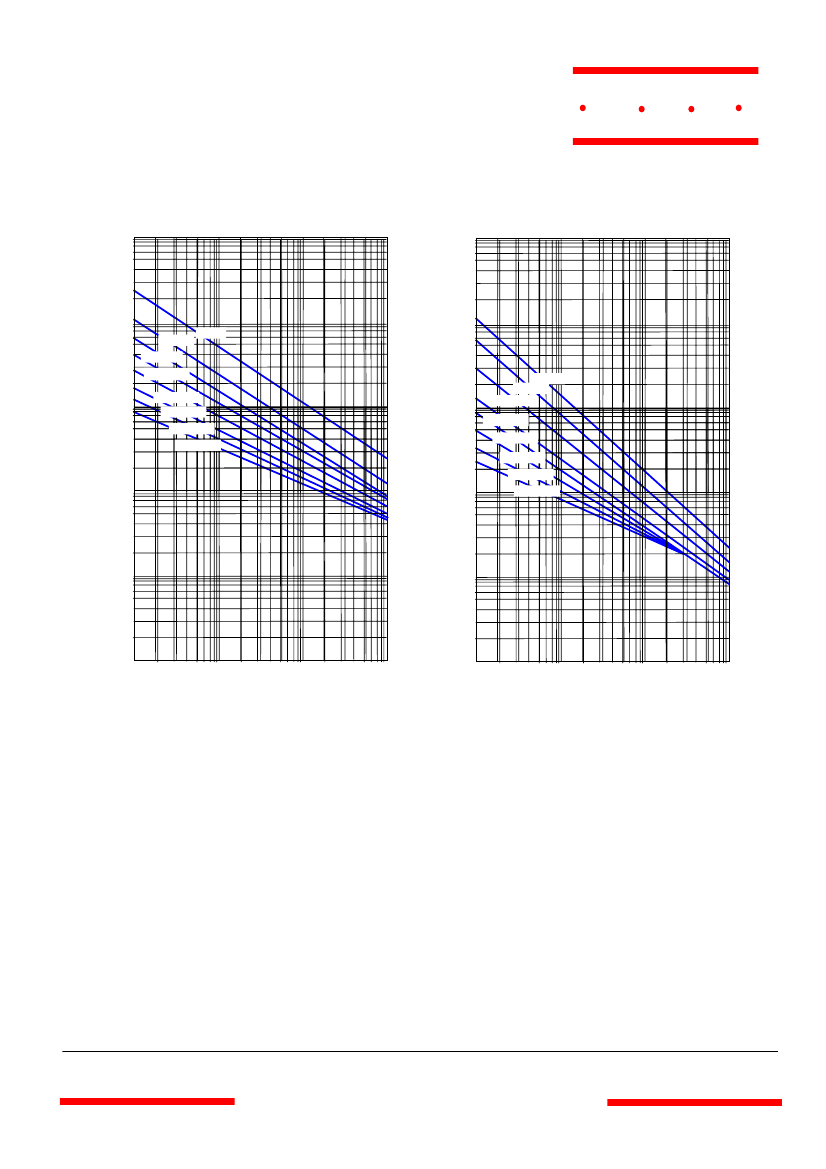

Preview

Download Datasheet

View All

MCC

Micro Commercial Components

omponents

20736 Marilla Street Chatsworth

!"#

$ % !"#

821KD07NX*

thru

8R0MD07NX*

4 to 510 Volts

Varistor

0.8 to 47 Joule

Features

•

Radial-Lead Varistor

Designed to be Operated Continuously Across AC Power Lines

No Derating Up to 85 Ambient

Available in Tape and Reel or Bulk Pack

UL Recognized File # E306895(UL1449) and E306942(UL1414)

Maximum Ratings

•

Operating Ambient Temperature Range: -55 to +85

Storage Temperature Range: -55 to +125

Temperature Coefficient ( V) of Clamping Voltage (V

) at

Specified Test Current:<0.05%/

Varistor voltage temperature coefficient:

Vb at 25 - Vb at 85

Vb at 25

x(100/

)

120

100

L: 20mm Min.

DIMENSIONS

Unit: mm

Size D max

Lead

05D

07D

-55

100

120

140

160

H max

C/I/Y

19.5

D±

0.05

All

0.6

0.8

E±

1.0

All

7.5

All

7.5

12.5

16.5

10D

14D

20D

AMBIENT TEMPERATURE (°C)

PERCENT OF RATED VALUE

CURRENT, ENERGY AND POWER DERATING

CURVE

Note :

'X' can be S, C, I or Y .

'S'

'C'

'I'

'Y'

denotes

straight lead

out crimped lead

inner crimped lead

kink lead

www.mccsemi.com

Revision: 2

1 of 6

2006/09/08
