BUS-66106 datasheet, PDF - EEWORLD Datasheet

BUS-66106: DescriptionSerial IO/Communication Controller, Hybrid; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，12 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric Compare View All

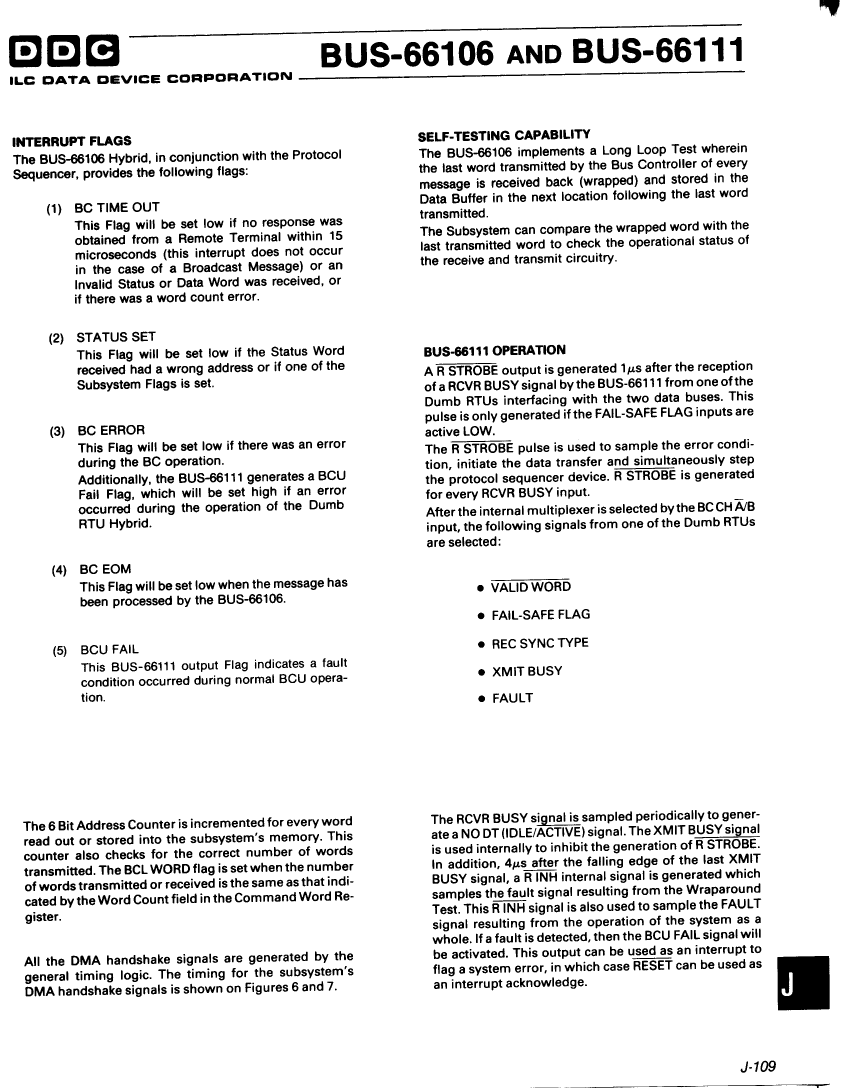

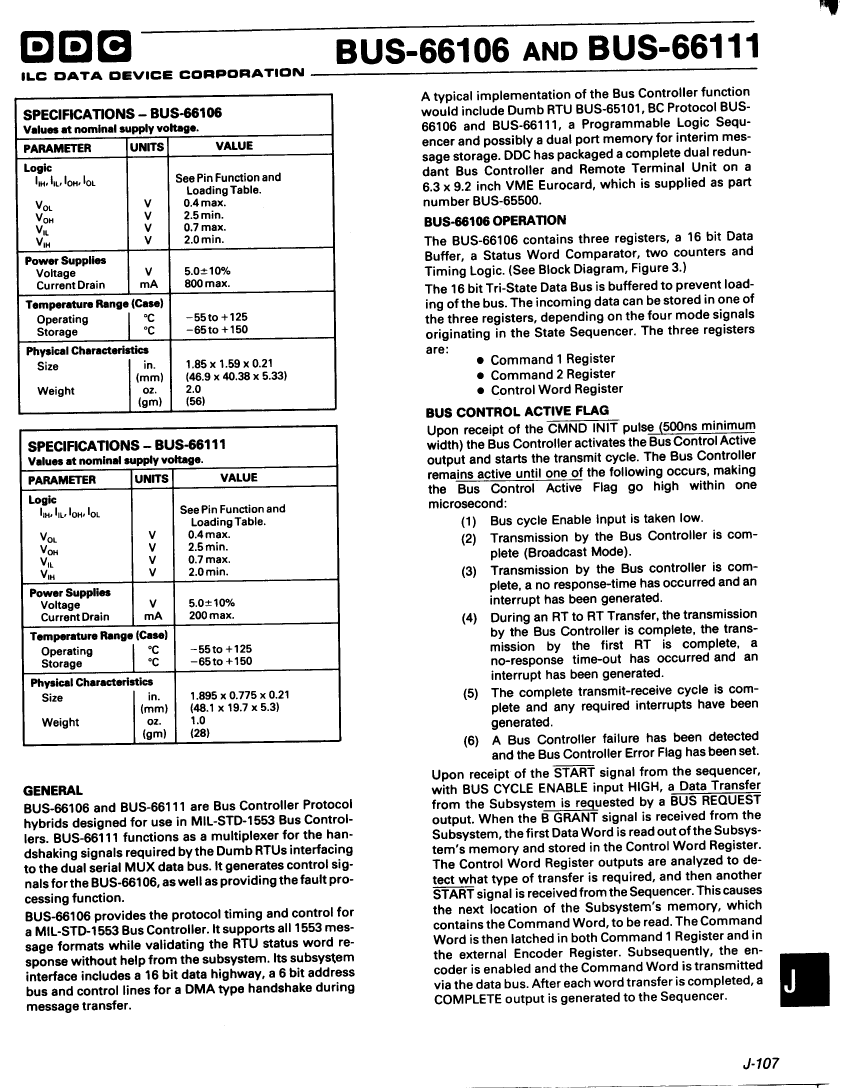

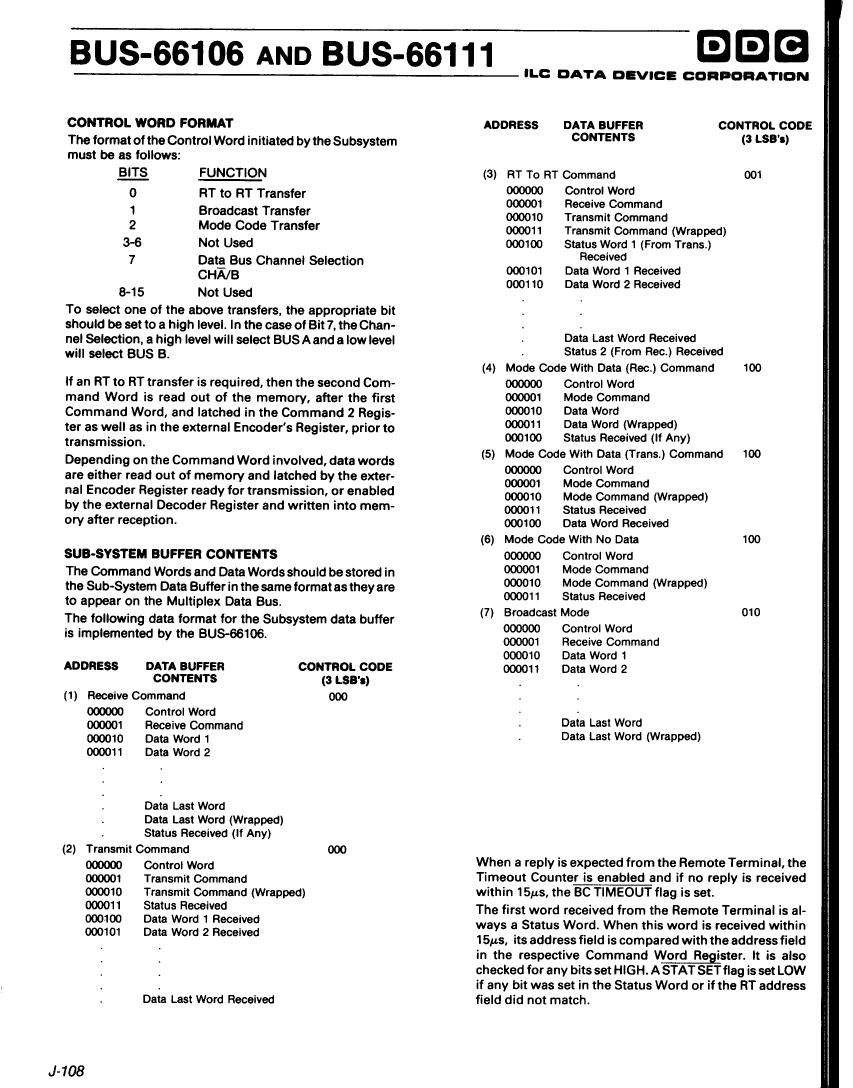

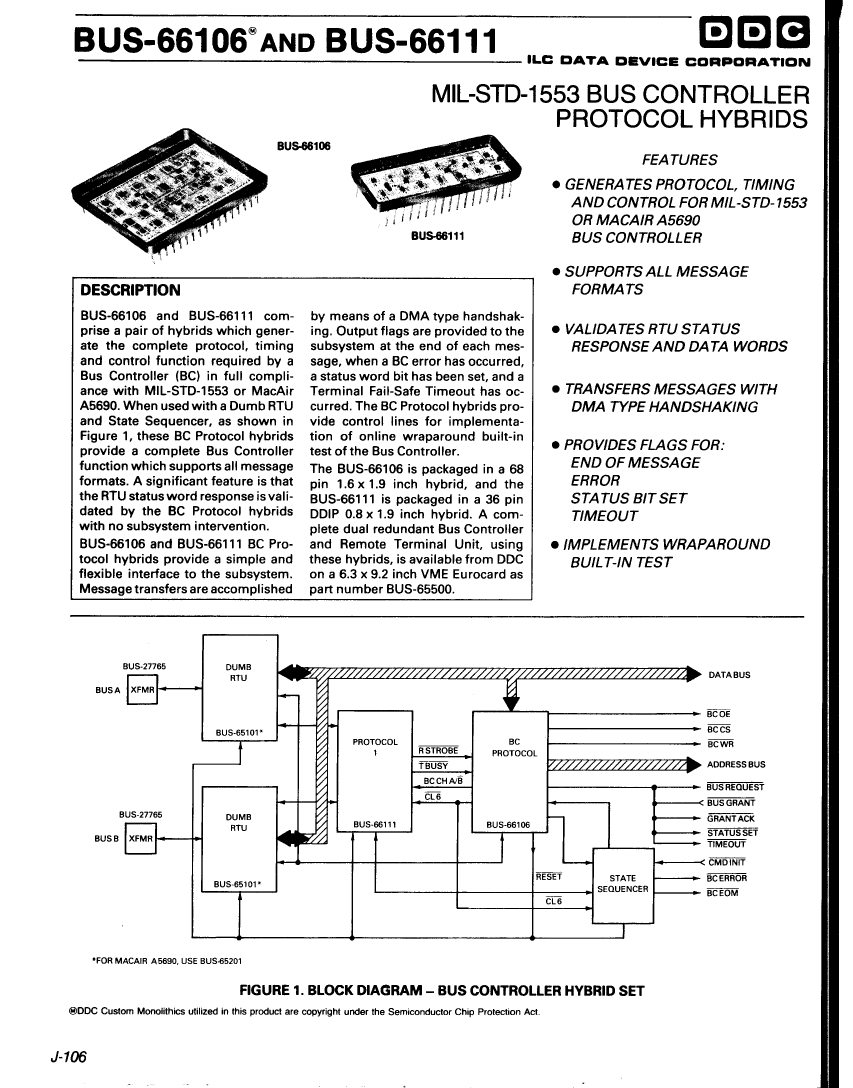

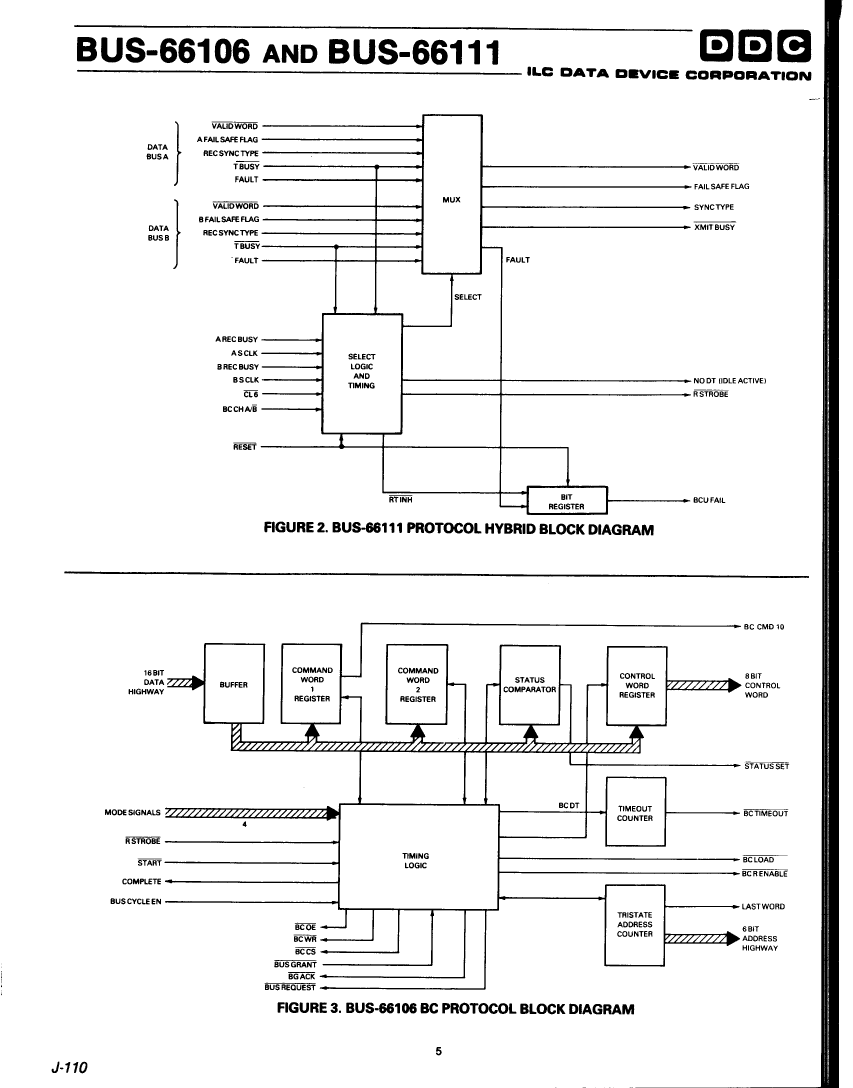

BUS-66106 Overview

Serial IO/Communication Controller, Hybrid

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Data Device Corporation
package instruction	QIP, QUIP68B,1.2/1.4
Reach Compliance Code	compliant
JESD-30 code	R-XQIP-P68
JESD-609 code	e0
Number of terminals	68
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
encapsulated code	QIP
Encapsulate equivalent code	QUIP68B,1.2/1.4
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	800 mA
Nominal supply voltage	5 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	1.27 mm
Terminal location	QUAD
Base Number Matches	1

	BUS-66106	BUS-66106-B	BUS-66111	BUS-66111-B
Description	Serial IO/Communication Controller, Hybrid	Serial IO/Communication Controller, Hybrid	Serial IO/Communication Controller, Hybrid, MDIP36	Serial IO/Communication Controller, Hybrid, MDIP36
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	QIP, QUIP68B,1.2/1.4	QIP, QUIP68B,1.2/1.4	DIP, DIP36,.6	DIP, DIP36,.6
Reach Compliance Code	compliant	compliant	compliant	compliant
JESD-30 code	R-XQIP-P68	R-XQIP-P68	R-MDIP-T36	R-MDIP-T36
JESD-609 code	e0	e0	e0	e0
Number of terminals	68	68	36	36
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
encapsulated code	QIP	QIP	DIP	DIP
Encapsulate equivalent code	QUIP68B,1.2/1.4	QUIP68B,1.2/1.4	DIP36,.6	DIP36,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	800 mA	800 mA	200 mA	200 mA
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	QUAD	QUAD	DUAL	DUAL
Base Number Matches	1	1	1	1
