4420T-2-75R0DCA datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> 4420T-2-75R0DCA

4420T-2-75R0DCA: DescriptionArray/Network Resistor, Bussed, Thin Film, 0.1W, 75ohm, 50V, 0.5% +/-Tol, -25,25ppm/Cel, 5130,; CategoryPassive components The resistor; File Size219KB，1 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric View All

4420T-2-75R0DCA Overview

Array/Network Resistor, Bussed, Thin Film, 0.1W, 75ohm, 50V, 0.5% +/-Tol, -25,25ppm/Cel, 5130,

4420T-2-75R0DCA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	913851977
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Chip
Network Type	Bussed
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	2.65 mm
Package length	12.95 mm
Package form	SMT
Package width	7.493 mm
Rated power dissipation(P)	0.1 W
resistance	75 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	4400T(BUSSED)
size code	5130
technology	THIN FILM
Temperature Coefficient	25 ppm/°C
Tolerance	0.5%
Operating Voltage	50 V

Preview

Download Datasheet

View All

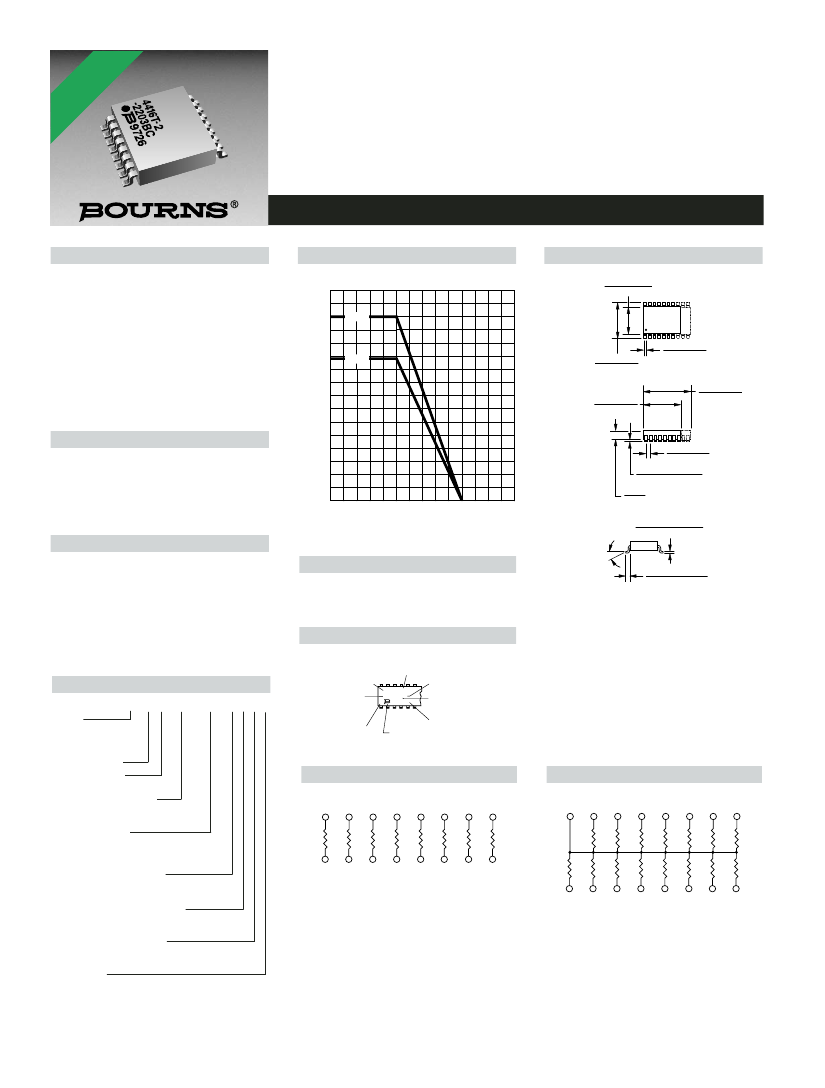

Features

■

RoHS compliant*

Increased lead density

Custom circuits available per factory

For information on thin film applications,

download Bourns’

Thin Film Application

Note.

4400T - Thin Film Wide Body Gull Wing

Product Characteristics

Resistance Range ........10 to 150K ohms

Resistance Tolerance

..........................±0.1 %, ±0.5 %, ±1 %

Temperature Coefficient

..................±100 ppm/°C, ±50 ppm/°C,

±25 ppm/°C

Temperature Range

.................................-55 °C to +125 °C

Insulation Resistance

..................10,000 megohms minimum

TCR Tracking .........................±5 ppm/°C

Maximum Operating Voltage............50 V

Environmental Characteristics

TESTS PER MIL-STD-202 .........∆R MAX

Thermal Shock .............................. 0.1 %

Short Time Overload ..................... 0.1 %

Resistance to Soldering Heat ....... 0.1 %

Moisture Resistance ..................... 0.5 %

Life ............................................... 0.5 %

Physical Characteristics

Lead Frame Material

..........................Copper, solder coated

Body Material Flammability

...........................Conforms to UL94V-0

Body Material ..................Novolac Epoxy

Package Power Temp. Derating Curve

Product Dimensions

7.493

.076

(.295

.003)

2.00

1.75

4416T

WATTS

1.50

1.25

1.00

.75

.50

4420T

10.34

.25

(.407

.010)

.406

.025

(.016

.001)

10.41

.05

(.410

.002)

12.95

.05

(.510

.002)

125

150

AMBIENT TEMPERATURE (

C )

1.27

.076

TYP.

(.050

.003*)

.127 + .127/ - .000

(.005 + .005/ - .000)

2.65

MAX.

(.104)

.305 + .000/ - .076

(.012 + .000/ - .003)

8° MAX.

.94 + .33/ - .35

(.037 + .013/ - .014)

Governing dimensions are in metric. Dimensions in parentheses

are inches and are approximate.

*Terminal centerline to centerline measurements made at point of

emergence of the lead from the body.

Package Power Ratings at 70 °C

4416T ......................................1.60 watts

4420T ......................................2.00 watts

Typical Part Marking

Represents total content. Layout may vary.

CIRCUIT

TC CODE

4416T-2

-2203BC

•

YYWW

How To Order

PART

NUMBER

RESISTANCE

CODE (4 DIGIT)

PIN ONE

INDICATOR

44 16 T - 2 - 2222 F A B L

Model

(44 = SOL Wide

Body Gull

Wing)

Number of Pins

Physical Config.

•T = Thin Film

Electrical Configuration

•2 = Bussed

•1 = Isolated

Resistance Code

•First 3 digits are significant

•Fourth digit represents the

number of zeros to follow.

Absolute Tolerance Code

•B = ±0.1%

•F = ±1%

•D = ±0.5%

Temperature Coefficient Code

•A = ±100ppm/°C •C = ±25ppm/°C

•B = ±50ppm/°C

Ratio Tolerance (Optional)

•A = ±0.05% to R1 •D = ±0.5% to R1

•B = ±0.1% to R1

Termination

L = Tin-plated (RoHS compliant)

ABSOLUTE

TOLERANCE CODE

DATE CODE

MANUFACTURER'S

TRADEMARK

Isolated Resistors (1 Circuit)

Available in 16 and 20 Pin

Bussed Resistors (2 Circuit)

Available in 16 and 20 Pin

These models incorporate 8 or 10

thin-film resistors of equal value, each

connected between a separate pin.

Power Rating per Resistor........0.15 watt

Resistance Range .......10 to 150K ohms

These models incorporate 15 or 19

thin-film resistors of equal value, each

connected by a common pin.

Power Rating per Resistor........0.10 watt

Resistance Range .........10 to 75K ohms

Consult factory for other available options.

REV. 12/06

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.
