V
DRM
V
RRM
I
PULSE
V
Dcmax
=
=
=
=
4.5
18
150
2.8
kV
V
kA
kV

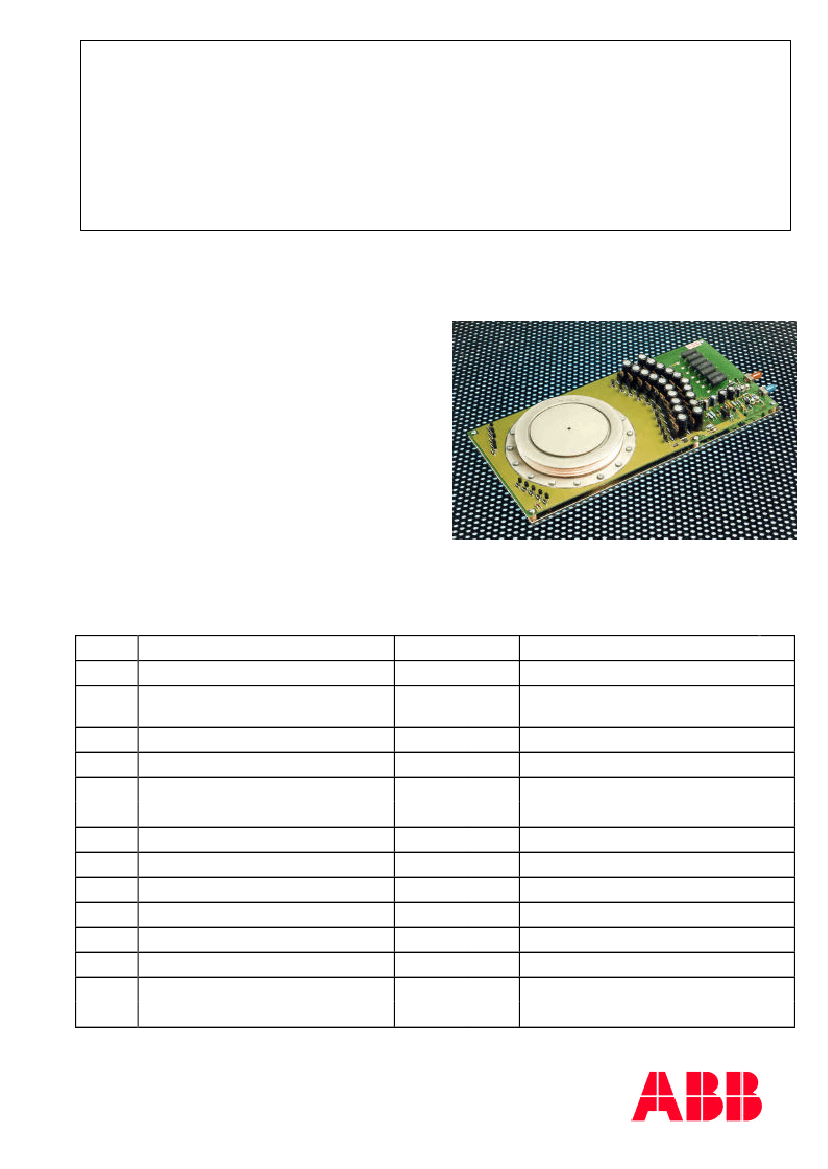

High Current High di/dt Switch
for Pulsed Power Applications
5SPY 36L4502
Doc. No. 5SYA 09PP-01 Oct. 01
Features
• • • • • • • • •
Asymmetric Design
For Non Repetitive Pulse Applications
Very High di/dt Capability
Free Floating Silicon Technology
Glazed Ceramic Presspack Housing
High Interdigitated Gate Structure
Optimized as Discharge Switch
Integrated Self Powered Driver Unit
Optical Triggering
Electrical Data
V
DRM
V
RRM
V
DC
I
PULSE
di/dt
f
Repetitive peak of-state voltage
Repetitive reverse blocking voltage
Permanent DC voltage for 100
FIT failure rate
Max. Pulse Current
Max. Current rate of rise
Pulse repetition rate
Limiting load integral
Threshold voltage
Slope resistance
Turn on delay time
Optical Receiver for Trigger Input
Optical Transmitter for Status
Driver Unit Charge Voltage
4.5 kV
18 V
2.8 kV
150 kA
Tj = 125°C
Tj = 125°C
At T
j
≤
125 °C. Ambient cosmic
radiation at sea level in open air.
Half sine wave, Tj
≤
50°C, tp
≤
100
µs
Depending on driver charging time
and pulse energy
20 kA/µs 1 Hz
I
2
t
V
T0
r
T
T
Don
Input
Output
V
CH
1.13 x10
6
A
2
s
1.18 V
1.72 mΩ
0,9
µs
Tp = 100
µs,
Tj = 50 °C
Tj = 50°C
Tj = 50°c
Light on 90%, V
D
10%
HFD 3022-002-ABA (Honeywell)
HFE 1011-001-ABA (Honeywell)
≤
3 kV
1 kV
Charging time at 3 kV = 16 sec.
Charging time at 1 kV = 50 sec.
ABB Semiconductors AG reserves the right to change specifications without notice
Pulse Power Device
5SPY 36L4502

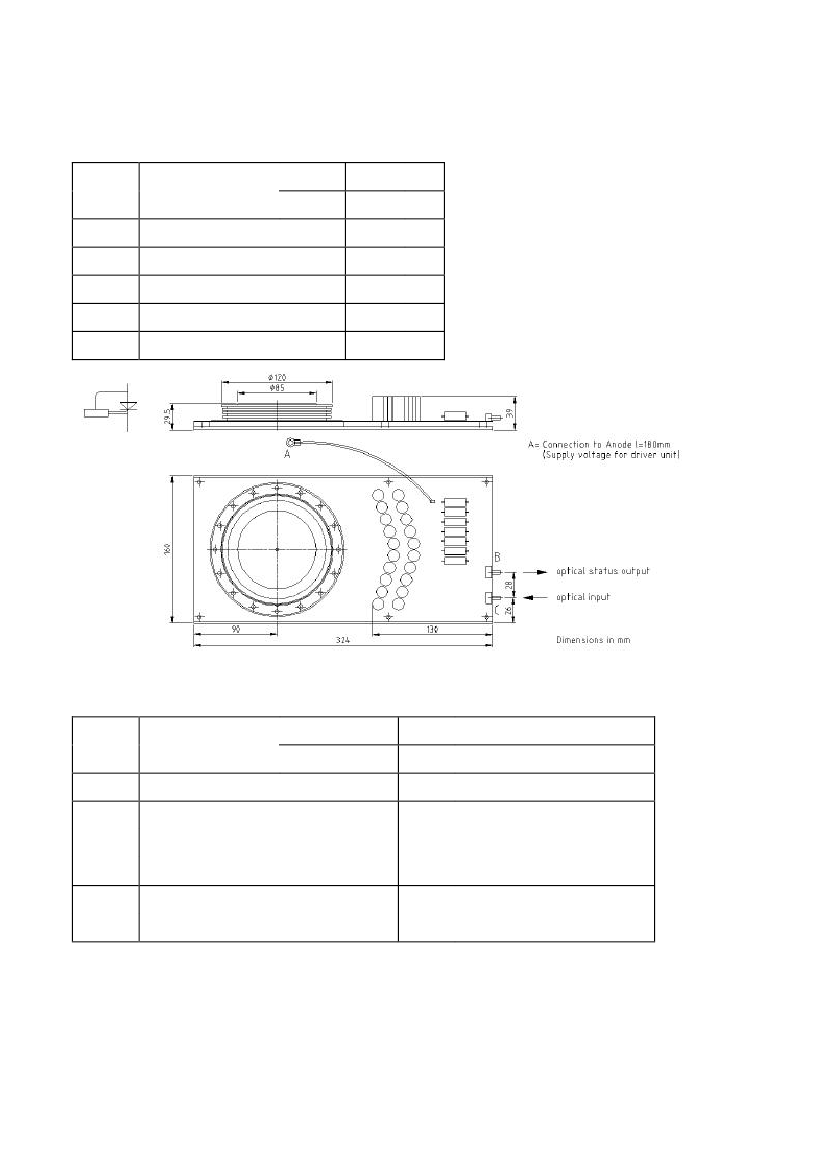

Mechanical Data
F
M
D
p
H
M
D
S
D
a
Mounting force
Pole-piece diameter
Housing thickness
Weight
Surface creepage distance
Air strike distance
min.
max.
36 kN
44 kN
85 mm
29 mm
3,0 kg
33 mm
15 mm
Thermal Data
T
A
T
vjm
R
thJC
Ambient Temp.
Max. Junction Temperature
Thermal resistance junction - case
min.
max.
- 40 °C
125 °C
125 °C
0.022 K/W (anode side cooling)
0.027 K/W (cathode side cooling)
0.012 K/W (double side cooling)
R
thCH
Thermal resistance case – heatsink
0.006 K/W (one side cooled)
0.003 K/W (double side cooled)
1)
2)
If an electrical trigger signal is offered, ABB can supply an optical interface to convert the electrical signal into
an optical signal.
In case devices are stacked in series connection, a light distribution box is available with multiple (up to 12)
optical outputs for simultaneous triggering of the switches.
ABB
ABB Semiconductors AG
Department for Pulsed Power
Fabrikstrasse 3
CH-5600 Lenzburg, Switzerland
Tel.:
+41-79-540-9381
Fax:
+41-62 888 6310
E-Mail: pulsepower.abbsem@ch.abb.com
Internet: www.abbsem.com
Doc. No. 5SYA 09PP-01
Oct. 01
