B084-1800-1120-Z

Description
Board Connector
CategoryThe connector    The connector
File Size330KB,1 Pages
ManufacturerSMP Technology Inc.
Download Datasheet Parametric View All

B084-1800-1120-Z Overview

Board Connector

B084-1800-1120-Z Parametric

Parameter NameAttribute value
Objectid1350421369
Reach Compliance Codeunknown
Connector typeBOARD CONNECTOR
Manufacturer's serial numberB084
No.
2*02
2*03
2*04
2*05
2*06
2*07
2*08
2*09
2*10
2*11
2*12
2*13
2*14
2*15
2*16
2*17
2*18
2*19
2*20
2*21
2*22
2*23
2*24
2*25
2*26
2*27
2*28
2*29
2*30
2*31
2*32
2*33
2*34
2*35
2*36
2*37
2*38
2*39
2*40
2*41
2*42
2*43
2*44
2*45
2*46
2*47
2*48
2*49
2*50
A
2.99
4.26
5.53
6.80
8.07
9.34
10.61
11.88
13.15
14.42
15.69
16.96
18.23
19.50
20.77
22.04
23.31
24.58
25.85
27.12
28.39
29.66
30.93
32.20
33.47
34.74
36.01
37.28
38.55
39.82
41.09
42.36
43.63
44.90
46.17
47.44
48.71
49.98
51.25
52.52
53.79
55.06
56.33
57.60
58.87
60.14
61.41
62.68
63.95
B
1.27
2.54
3.81
5.08
6.35
7.62
8.89
10.16
11.43
12.70
13.97
15.24
16.51
17.78
19.05
20.32
21.59
22.86
24.13
25.40
26.67
27.94
29.21
30.48
31.75
33.02
34.29
35.56
36.83
38.10
39.37
40.64
41.91
43.18
44.45
45.72
46.99
48.26
49.53
50.80
52.07
53.34
54.61
55.88
57.15
58.42
59.69
60.96
62.23
Type 1
Type 1
Type 2
A + 0.35
-
Type 2

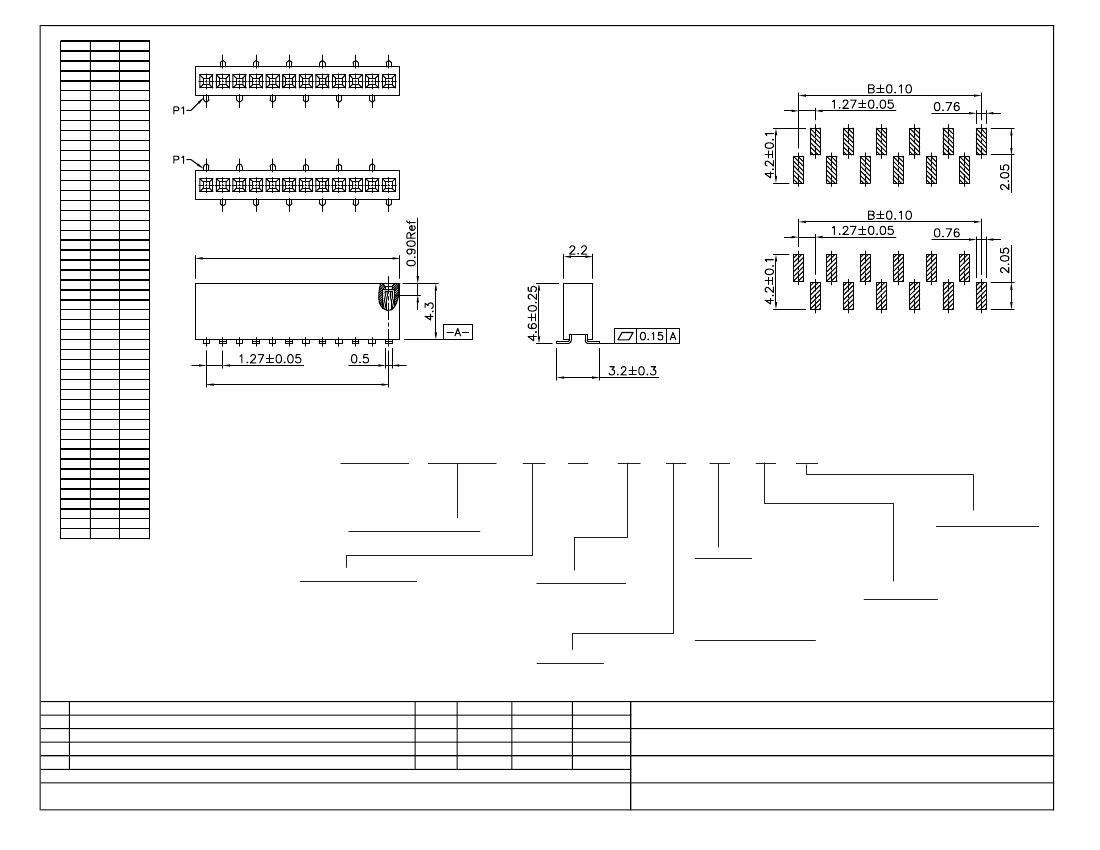

Recommended PCB Layout
B + 0.2
-
HOW TO ORDER:
B 0 8 4
-
0
0
0
0
-
1
X
X
X
-
Z
NUMBER OF CONTACTS:
04 - 50
CONTACT TYPE:
1 - Cantilever Beam
RoHS COMPLIANT
PLATING:
0 - Full Tin
1 - Full Au
2 - 10u"
3 - 15u" Au
4 - 30u" Au
SELECTIVE PLATING:
5 - Au - Contact / Tin Tail
6 - 10u" Au
7 - 15u" Au
8 - 30u" Au
ELECTRICAL:
CURRENT: 2.0 A
INSULATOR HEIGHT:
CONTACT RESISTANCE: < 20m
0 - 4.3mmm
INSULATOR RESISTANCE: > 1000M
DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.
OPERATING TEMPERATURE: - 40° C TO +125° C
MATERIAL:
INSULATOR: Nylon 6T (UL94V-0) (260° C - 10 Seconds)
CONTACT: PHOSPHOR BRONZE
Rev
0
Issued
FOOTPRINT:
1 - Type 1
2 - Type 2
Drawn Checked Approved
Date
B.S.
S.M.
S.M.
12/12/07
PACKAGING:
0 - Tube
1 - Clip Cap in Tube
2 - Film in Tube
3 - Cap in Tape / Reel
4 - Film in Tape / Reel
5 - Tray
SMP TECHNOLOGY, INC.
Receptacle Assembly, 1.27mm Pitch, Surface Mount,
SCALE
TOL. DEC.
.X +/- 0.30
.XX +/- 0.20
.XXX +/- 0.15
ANGLE +/- 5°
UNIT: mm
Single Row, 4.3mm Height
P/N: B084-0000-1XXX-Z
Pg: 1
