54ABT244W/883 datasheet, PDF - EEWORLD Datasheet

54ABT244W/883: DescriptionBus Driver, 2-Func, 4-Bit, True Output, CDFP20,; Categorylogic logic; File Size595KB，14 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

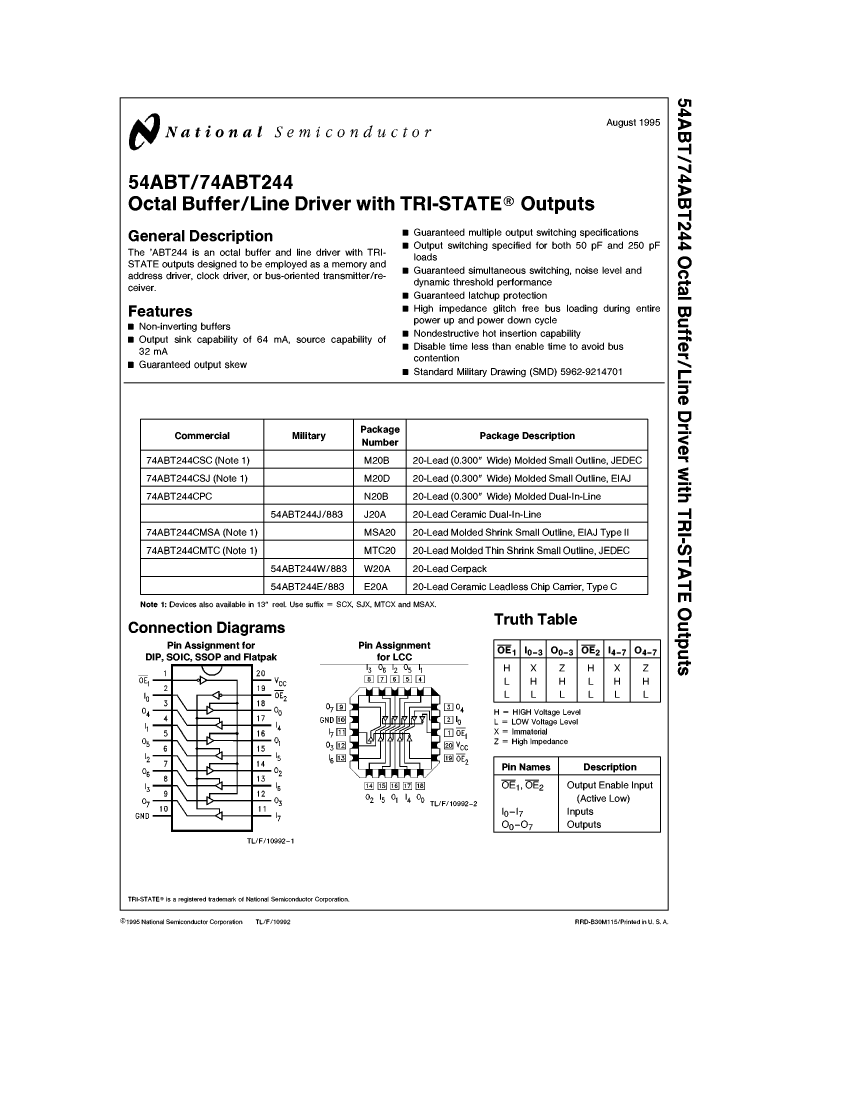

54ABT244W/883 Overview

Bus Driver, 2-Func, 4-Bit, True Output, CDFP20,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DFP, FL20,.3
Reach Compliance Code	unknown
Control type	ENABLE LOW
JESD-30 code	R-XDFP-F20
JESD-609 code	e0
Logic integrated circuit type	BUS DRIVER

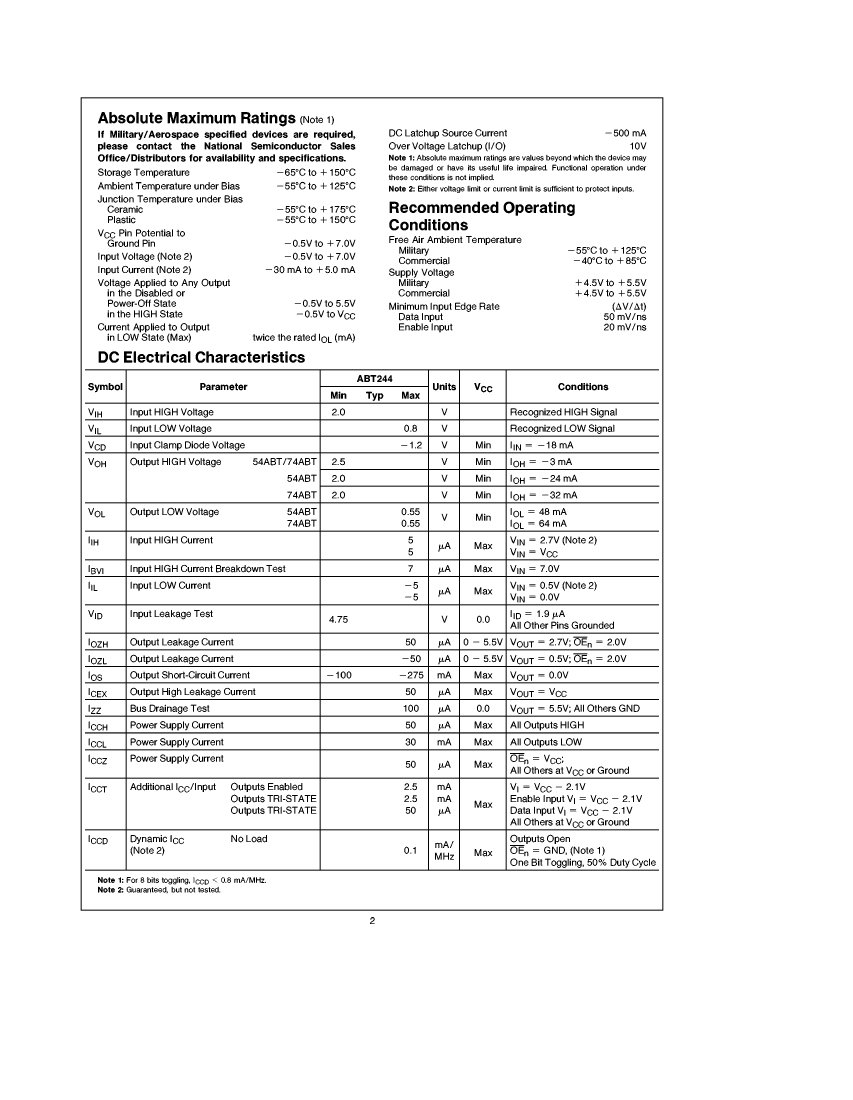

MaximumI(ol)	0.048 A
Number of digits	4
Number of functions	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL20,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V

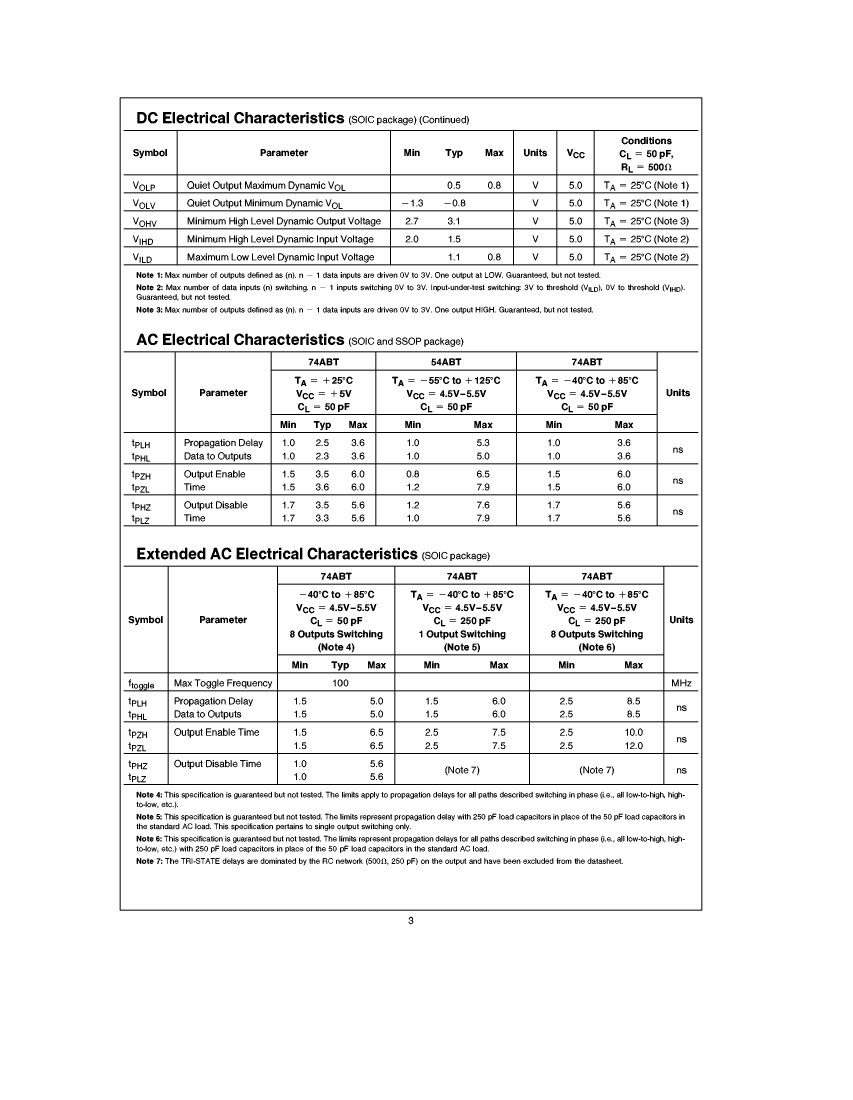

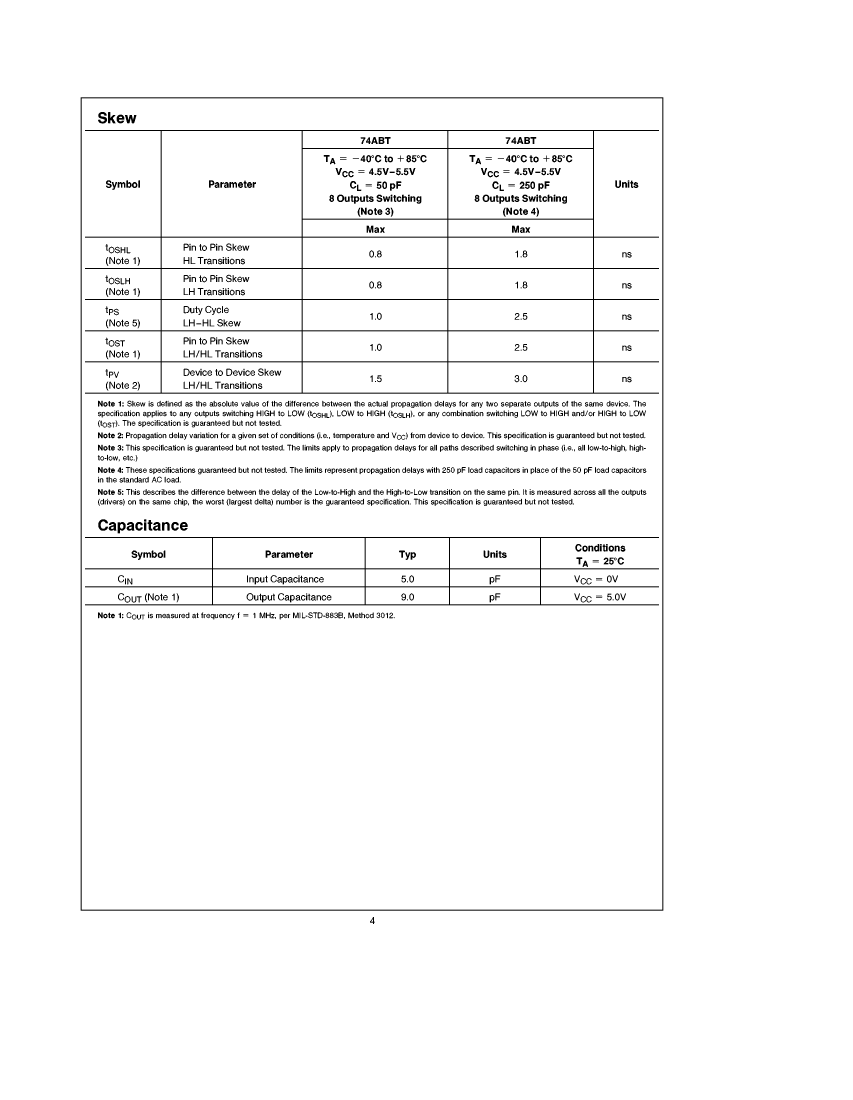

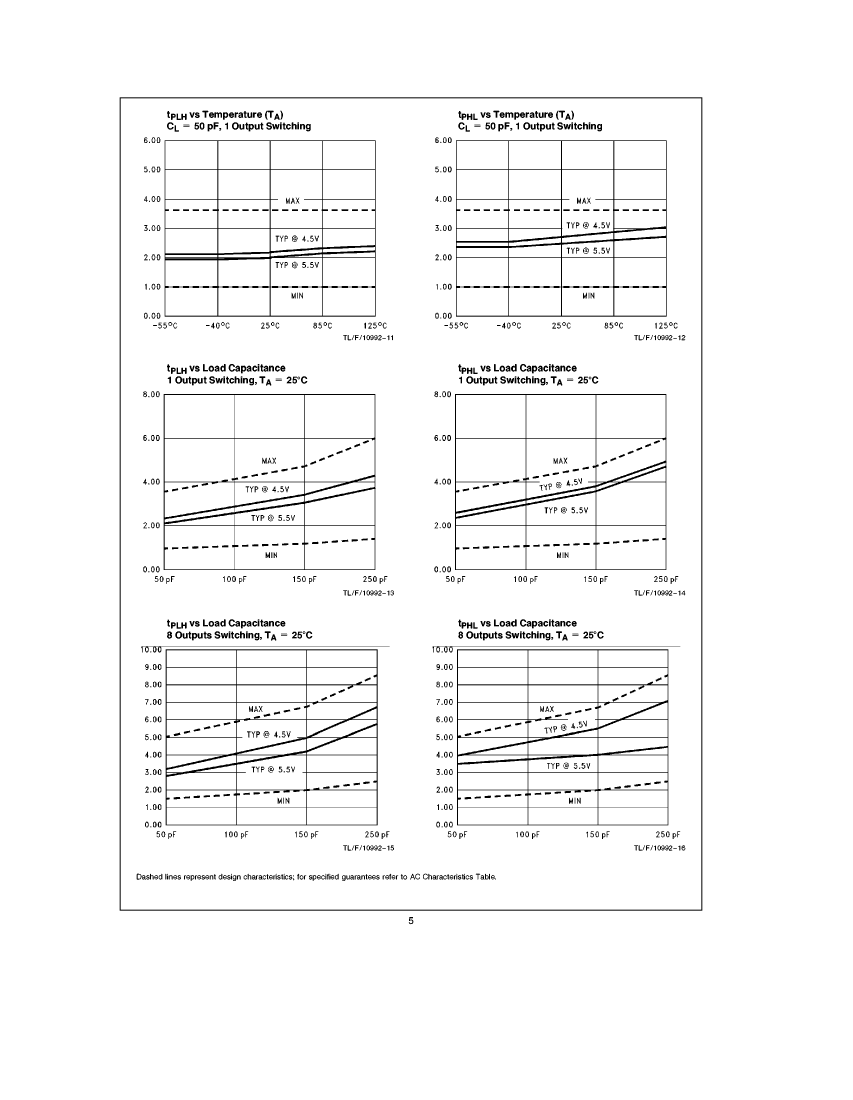

Prop。Delay @ Nom-Sup	5.3 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

	54ABT244W/883	54ABT244E/883	54ABT244J/883
Description	Bus Driver, 2-Func, 4-Bit, True Output, CDFP20,	Bus Driver, 2-Func, 4-Bit, True Output, CQCC20,	Bus Driver, 2-Func, 4-Bit, True Output, CDIP20,
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild
package instruction	DFP, FL20,.3	QCCN, LCC20,.35SQ	DIP, DIP20,.3
Reach Compliance Code	unknown	unknown	unknown
Control type	ENABLE LOW	ENABLE LOW	ENABLE LOW
JESD-30 code	R-XDFP-F20	S-XQCC-N20	R-XDIP-T20
JESD-609 code	e0	e0	e0
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.048 A	0.048 A	0.048 A
Number of digits	4	4	4
Number of functions	2	2	2
Number of terminals	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE
Package body material	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DFP	QCCN	DIP
Encapsulate equivalent code	FL20,.3	LCC20,.35SQ	DIP20,.3
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	FLATPACK	CHIP CARRIER	IN-LINE
power supply	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	5.3 ns	5.3 ns	5.3 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL
Base Number Matches	1	1	1
