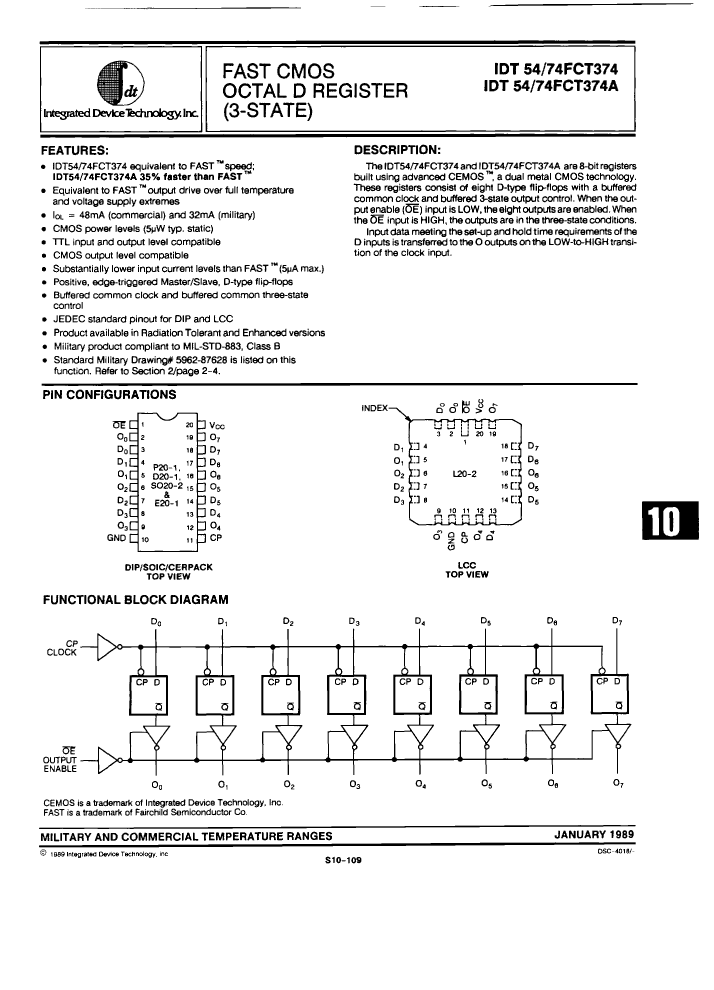

Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20, CERPACK-20

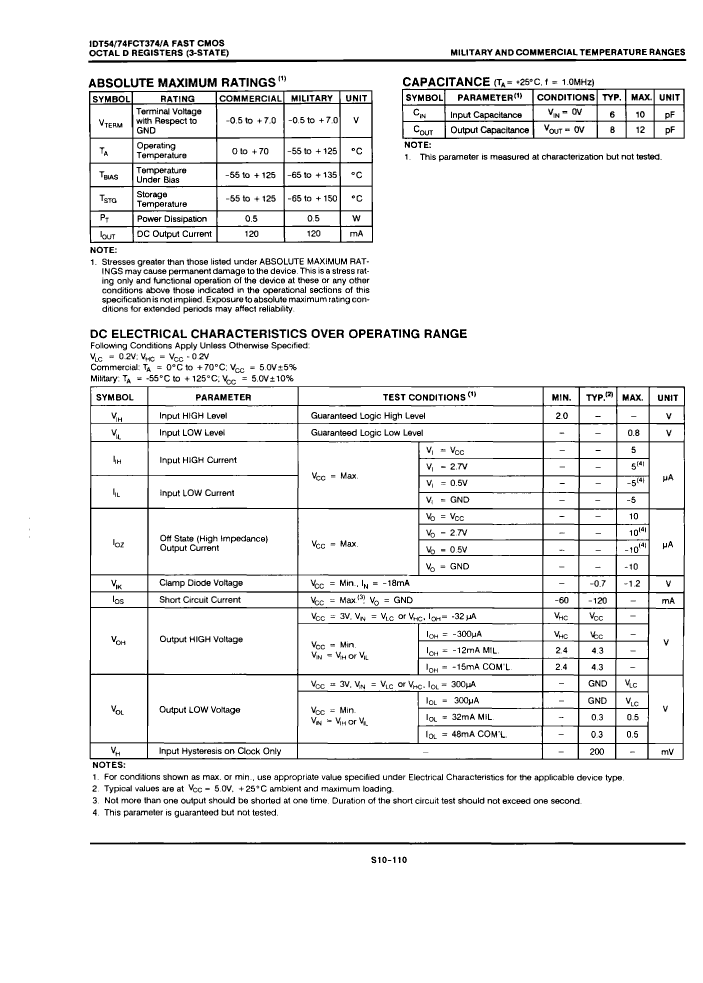

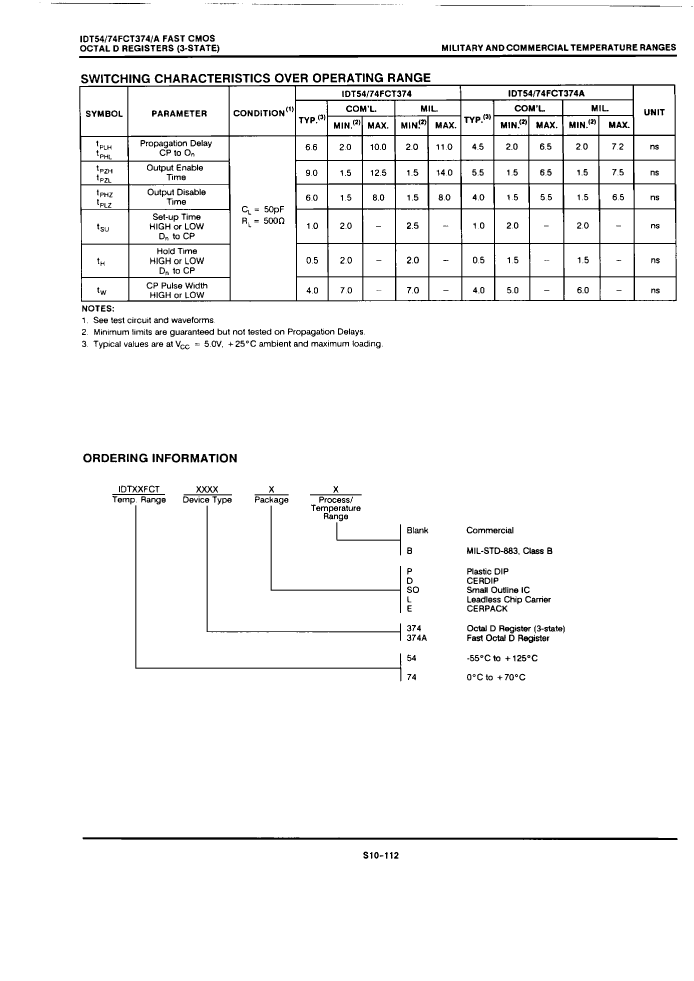

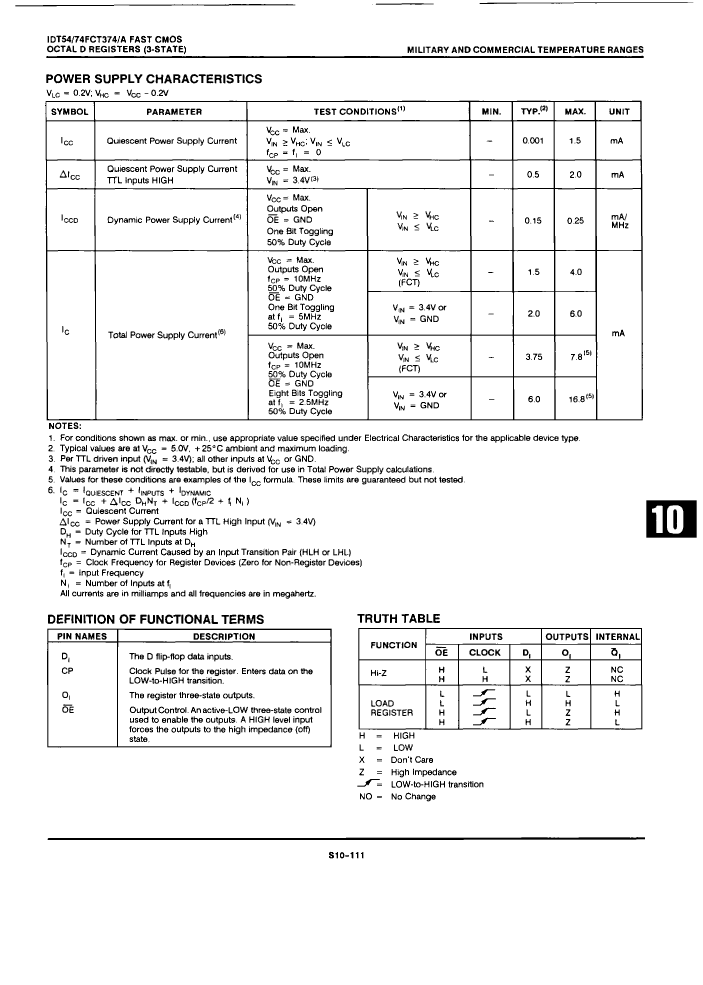

| Parameter Name | Attribute value |
| Parts packaging code | DFP |
| package instruction | DFP, |
| Contacts | 20 |
| Reach Compliance Code | unknow |
| Other features | IOH = 0.3MA @ VOH = 4.3V; IOL = 0.3MA @ VOL = 0.2V |
| series | FCT |
| JESD-30 code | R-GDFP-F20 |
| JESD-609 code | e0 |
| Logic integrated circuit type | BUS DRIVER |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DFP |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| propagation delay (tpd) | 7.2 ns |
| Certification status | Not Qualified |
| Maximum seat height | 2.3368 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | TIN LEAD |
| Terminal form | FLAT |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| width | 6.9215 mm |
| Base Number Matches | 1 |
| 5962-8762802SX | IDT74FCT374SOT/R | 5962-8762802RX | 5962-87628022X | |
|---|---|---|---|---|
| Description | Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20, CERPACK-20 | Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, SOIC-20 | Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20, 0.300 INCH, CERDIP-20 | Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CQCC20, LCC-20 |
| Parts packaging code | DFP | SOIC | DIP | QLCC |
| package instruction | DFP, | SOP, SOP20,.4 | DIP, | QCCN, |
| Contacts | 20 | 20 | 20 | 20 |
| Reach Compliance Code | unknow | not_compliant | unknown | unknown |
| series | FCT | FCT | FCT | FCT |
| JESD-30 code | R-GDFP-F20 | R-PDSO-G20 | R-GDIP-T20 | S-CQCC-N20 |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of ports | 2 | 2 | 2 | 2 |
| Number of terminals | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 125 °C | 70 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | - | -55 °C | -55 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE |
| Package body material | CERAMIC, GLASS-SEALED | PLASTIC/EPOXY | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DFP | SOP | DIP | QCCN |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | SQUARE |
| Package form | FLATPACK | SMALL OUTLINE | IN-LINE | CHIP CARRIER |
| propagation delay (tpd) | 7.2 ns | 10 ns | 7.2 ns | 7.2 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 2.3368 mm | 2.65 mm | 5.08 mm | 2.54 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.25 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.75 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO | YES |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | COMMERCIAL | MILITARY | MILITARY |
| Terminal form | FLAT | GULL WING | THROUGH-HOLE | NO LEAD |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | QUAD |
| width | 6.9215 mm | 7.5 mm | 7.62 mm | 8.89 mm |
| Base Number Matches | 1 | 1 | 1 | 1 |
| JESD-609 code | e0 | e0 | - | e0 |
| Terminal surface | TIN LEAD | Tin/Lead (Sn85Pb15) | - | TIN LEAD |
| length | - | 12.8 mm | 25.3365 mm | 8.89 mm |
