1175-2-16-1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 1175-2-16-1

Preview

1175-2-16-1: DescriptionBoard Connector, 16 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Crimp Terminal, Locking; CategoryThe connector The connector; File Size72KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1175-2-16-1 Overview

Board Connector, 16 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Crimp Terminal, Locking

1175-2-16-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307312355
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.142 inch
subject depth	0.228 inch
body length	0.866 inch
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	250VAC V
Durability	25 Cycles
maximum insertion force	2.9468 N
Insulation resistance	500000000 Ω
insulator material	NYLON
Manufacturer's serial number	1175
Plug contact pitch	0.049 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	16
Evacuation force-minimum value	.5838 N

Preview

Download Datasheet

View All

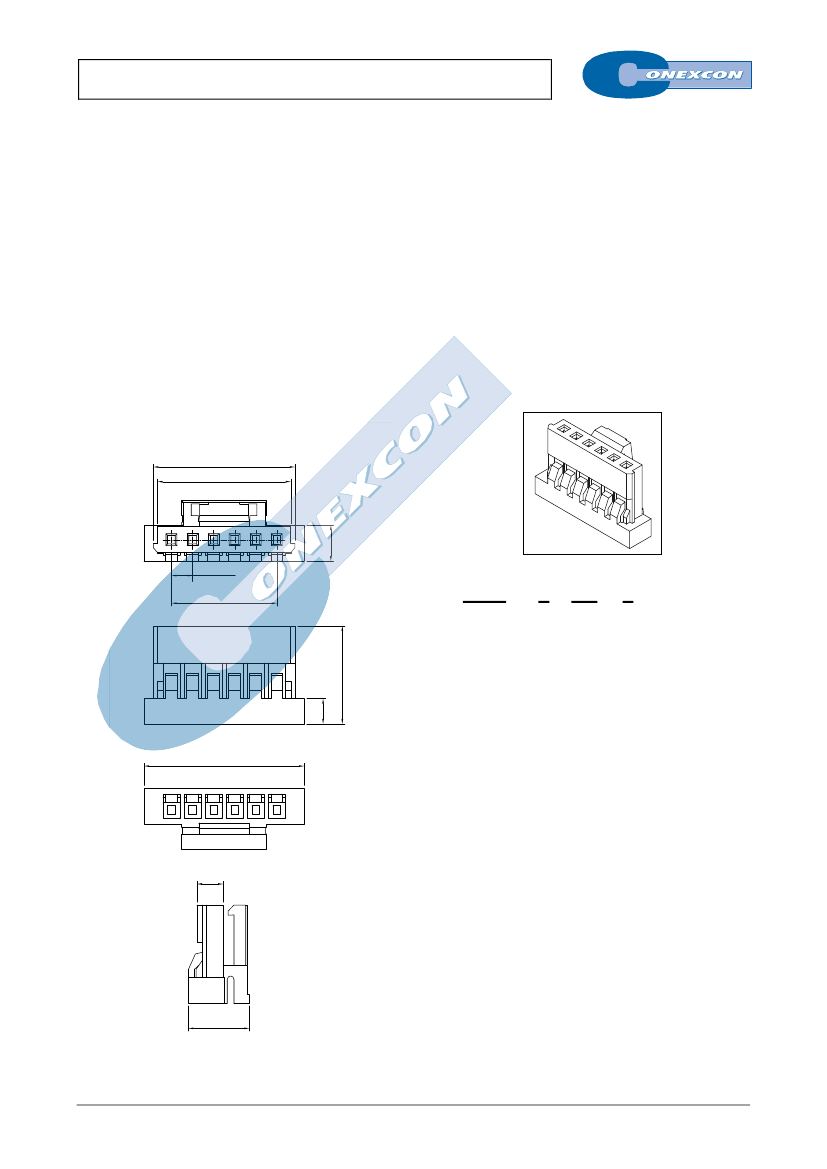

SINGLE ROW CRIMP CONNECTOR HOUSING

1175 SERIES.

1.25 mm. (0.049”) Pitch.

General Features

Electrical Features



Available in 2 through 20 circuits

Mates with 1.25 mm header 1179 series

Latch housing secure terminal in housing and

provide extra terminal retention. Positive lock

Use crimp terminal 1176



Voltage Rating: < 125 V

.Current Rating: < 1 A

Contact resistance: < 30 mΩ

Dielectric Withstanding Voltage: 250 V AC/minute

Insulation Resistance: >500 MΩ

Materials

Insulator: Nylon 6/6 UL 94 V-0

Operating temperature. -25ºC to +85ºC

RoHS compliant

Mechanical features

Insertion force: < 0.30 Kgf/pin

Extraction force: > 0.060 Kgf/pin

Contact retention force to the housing: > 0.50 Kgf

Durability: 25 cycles

Dimensional Information

D±0.10

C±0.10

1.25±0.05

.046±.002

A±0.10

2.15

.085

1175 -

1

2- XX- 1

2

3

5.8

.228

1. Connector Serie

3. (XX) Number of circuits

.059

1.5



Available in

2 through 20 circuits



B±0.20

Dimensions:

A

= 1.25 x (XX-1)

B

= 1.25 x (XX)+2

C

= 1.25 x (XX)+0.40

D

= 1.25 x (XX)+0.90

1.55

.061

(XX) = Number of circuits

3.6

.142

A-XX
