1330-2-16-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1330-2-16-1

1330-2-16-1: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Locking, Plug; CategoryThe connector The connector; File Size120KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

1330-2-16-1 Overview

Board Connector, 16 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Locking, Plug

1330-2-16-1 Parametric

Parameter Name	Attribute value
Objectid	307180836
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.276 inch
subject depth	0.248 inch
body length	0.899 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	IDC
Dielectric withstand voltage	500VAC V
Durability	25 Cycles
maximum insertion force	4.8928 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	1330
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	1.2 A
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	16
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	.973 N

Preview

Download Datasheet

View All

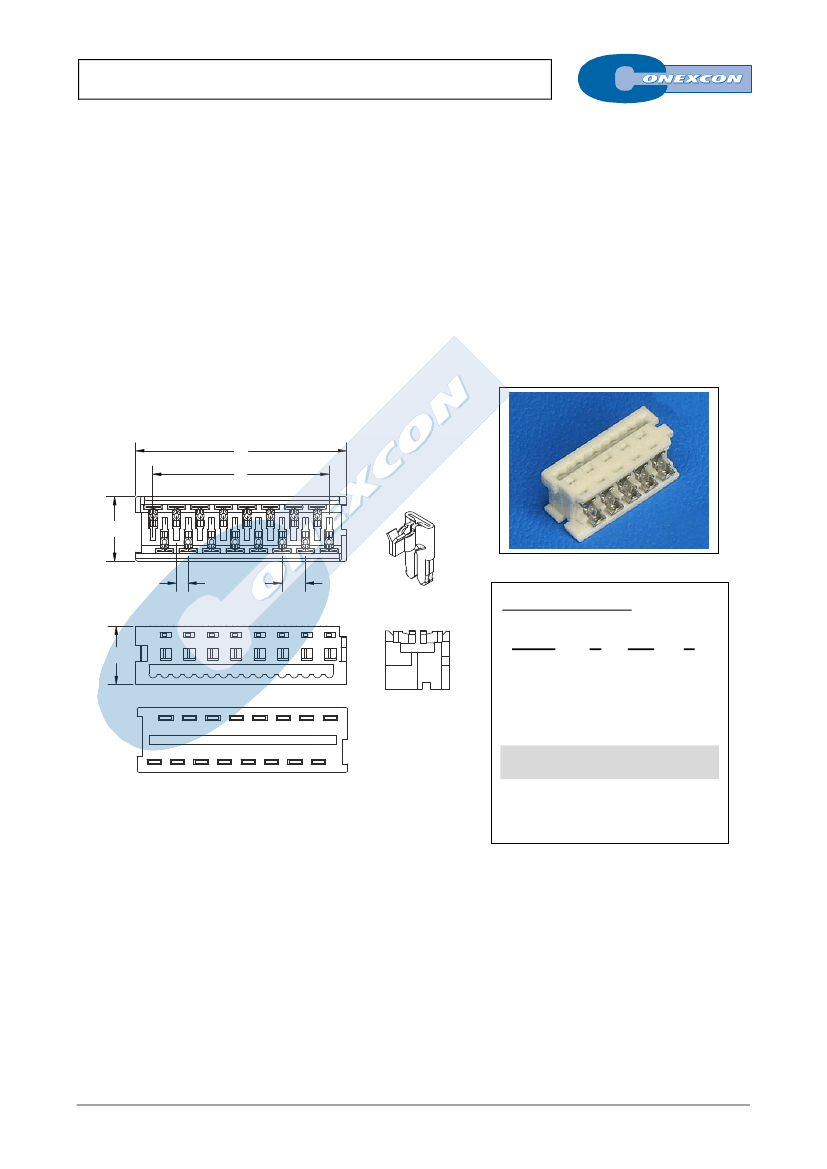

FLAT CABLE IDC SOCKET CONNECTOR

1330 SERIES.

2.54 mm. (0.100”) pitch.

General Features

Electrical Features



Available in 4 through 26 circuits

Mates with PCB connectors 1332 and 1333 series

Wires range : 28 AWG O.D max. 0.85 mm

Accept cable 1.27 mm pitch 9127 Series



Voltage rating: < 250V

Current rating: < 1.20 A

Contact resistance: < 15 mΩ

Dielectric withstanding Voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features

Mating force: > 0,50 Kgf/per contact

Unmating force: > 0,10 Kgf/per contact

Cable retention force: > 1.00 Kgf per contact

Durability: 25 Cycles



Insulator: GF polyester UL 94V-0

Terminal: Phosphor bronze

Operating temperature. -40ºC to +105ºC

RoHS compliant

Dimension Information

7.0

1.27

2.54

Ordering Information:

6.3

1330 -

T-

XX-

1. Connector Series

2. (T) Contact Plating



T =

Tin plated

Recommended Finish

3. (XX) Number of circuits



Available in 4 through 26 circuits

Dimensions:

(In mm.)

= 1.27 x (XX*-1)

= 1.27 x (XX*)+2.51

* XX

(Number of circuits)

A-XX
