1331-2-12-2: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Solder Kinked Leads Terminal, Locking, Plug; CategoryThe connector The connector; File Size137KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1331-2-12-2 Overview

Board Connector, 12 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Solder Kinked Leads Terminal, Locking, Plug

1331-2-12-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307299399
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.276 inch
subject depth	0.248 inch
body length	0.6 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	FEMALE
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	IDC
Dielectric withstand voltage	500VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	1331
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1.2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.22 inch
Terminal pitch	2.54 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	12

Preview

Download Datasheet

View All

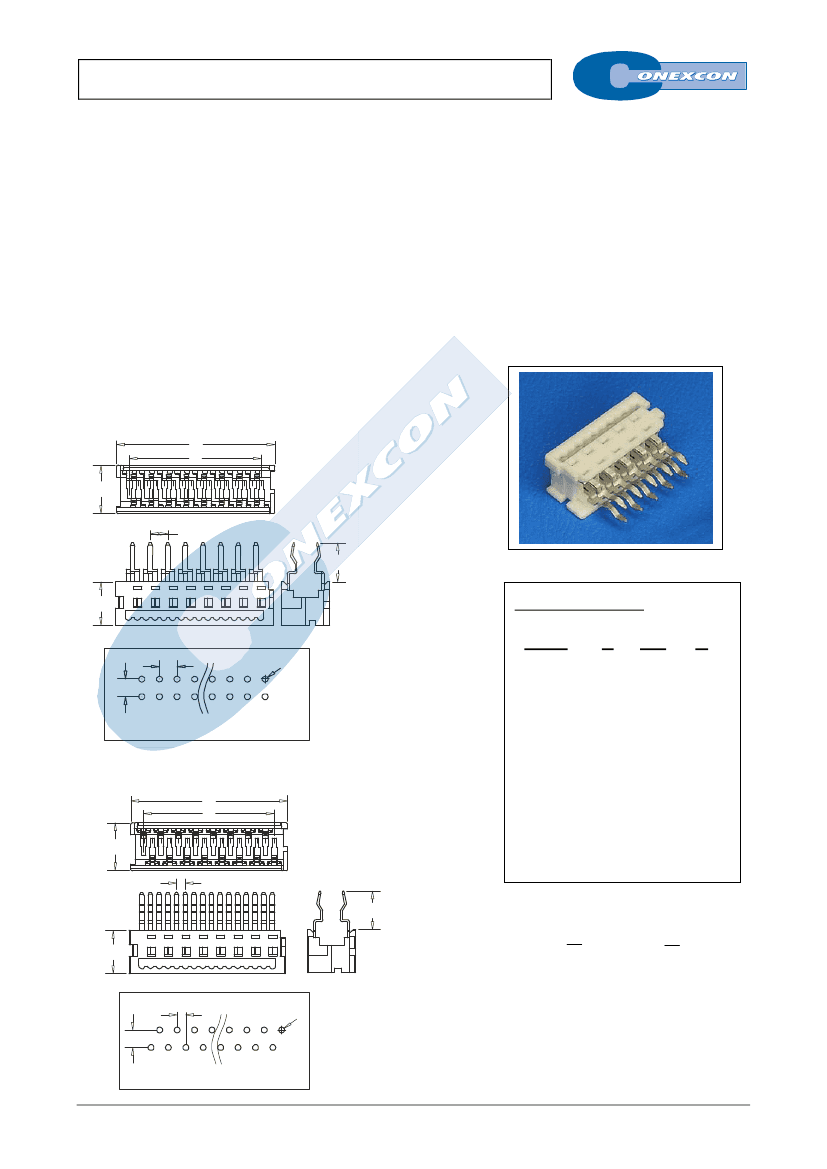

FLAT CABLE IDC SOCKET CONNECTOR

1331 SERIES.

2.54 mm. (0.100”) pitch.

General Features

Electrical Features



Available in 4 through 26 circuits

Allows to solder the flat cable to the PCB

Wires range : 28 AWG O.D max. 0.85 mm

Accept cable 1.27 mm pitch 9127 Series



Voltage rating: < 250V

Current rating: < 1.20 A

Contact resistance: < 15 mΩ

Dielectric withstanding Voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features

Cable retention force: > 1.00 Kgf per contact

Durability: 25 Cycles



Insulator: GF polyester UL 94V-0

Terminal: Phosphor bronze

Operating temperature. -40ºC to +105ºC

RoHS compliant

Dimension Information

Type A

B

A

7.0

2.54

5.6

6.3

Ordering Information:

1331 -

2.54

ø 0.9

2.54

T-

2

XX-

3

S

4

1

1. Connector Series

RECOMMENDED HOLE PATTERN

2. (T) Contact Plating



T =

2.

Tin plated

Type B

B

A

3. (XX) Number of circuits



Available in 4 through 26 circuits

4. (S) Connector Type

S =

1.

Type A

S =

2.

Type B

7.0

1.27

5.6

Dimensions Type A:

(In mm.)

A

½

2.54





XX



2

6.3



1









XX



B

½

2.54



2

 

0.80







(XX) = Number of circuits

1.27

ø0.9

2.54

Dimensions Type B:

(In mm.)

A

= 1.27 x (XX*-1)

B

= 1.27 x (XX*)

RECOMMENDED HOLE PATTERN

A-XX
