S232-8P8C-GAB3-L datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> S232-8P8C-GAB3-L

Preview

S232-8P8C-GAB3-L: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size206KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

S232-8P8C-GAB3-L Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Jack

S232-8P8C-GAB3-L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305192115
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	PEG
body width	0.65 inch
subject depth	0.665 inch
body length	0.634 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact style	TELCOM, MODULAR
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	S232
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
PCB contact pattern	STAGGERED
Plating thickness	6u inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRONZE
Terminal pitch	3.048 mm
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

M

odular Jack

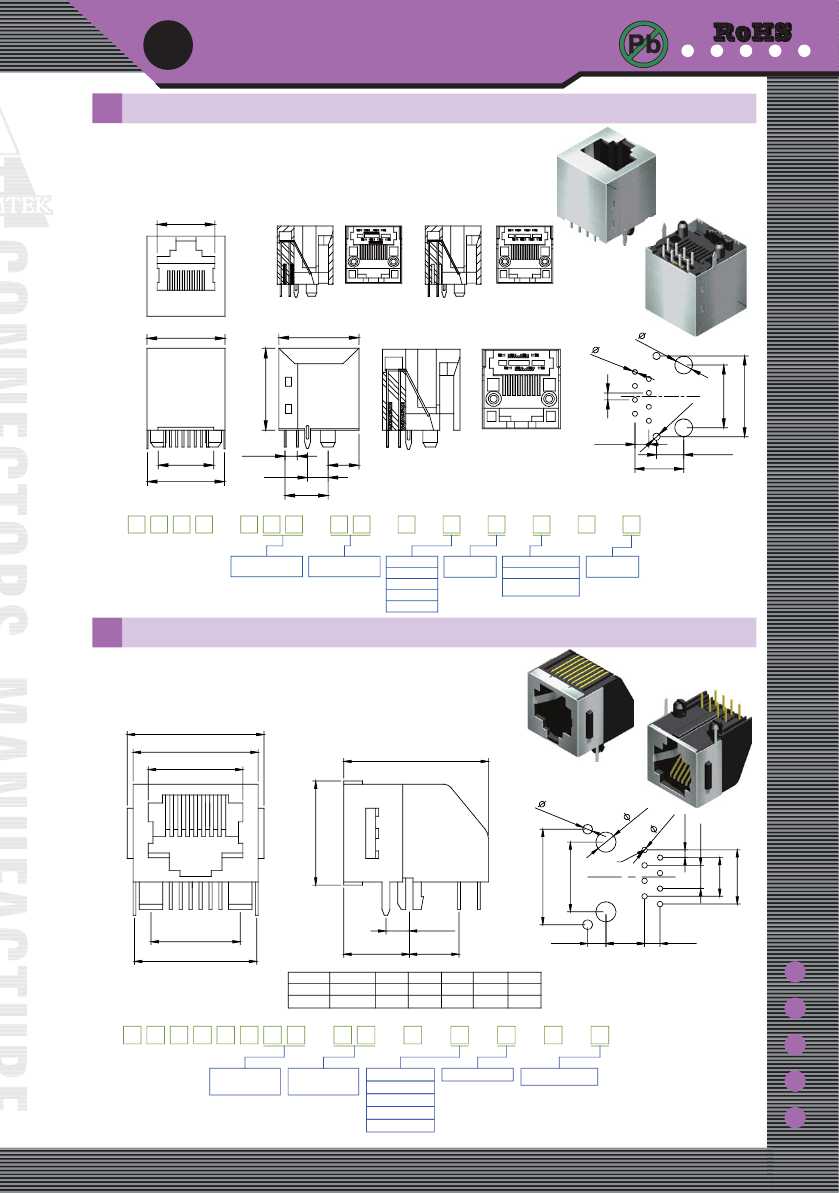

Modular Jack Shielded Side Entry H=16.9 W=16.5 For C6

Material&Finish

Housing:P.B.T, UL 94V-0, Black

Contact :0.35x0.42mm Thickness Phosphor Bronze,

Gold Plated Over Nickel on Contact Area,

Tin Lead Plated Over Nickel on Solder Area.

Shield:Bronze Plated Nickel.

Copper Plate

Without Copper Plate

Copper Plate With Mylar Inside

Order Information

S 2 3 2

- 8 P

Number of position

(8P)

8 C

Number of contact (8C)

-

Gold Plating

GA:6u"

GB:15u"

GC:30u"

GD:50u"

X

1:Without Copper Plate

2:Copper Plate Inside

3:Copper Plate with

Mylar Inside

-

L

B:Black Insulator

L:RoHS + P.B.T

Modular Jack Shielded Side Entry H=13.5 W=18.3

Material&Finish

Housing:P.B.T, UL 94V-0, Black

Contact :0.35mm Thickness Phosphor Bronze,

Gold Plated Over Nickel on Contact Area.

Shield:Bronze Plated Nickel.

Positions

Contacts

6P

Order Information

S 2 5 3 E - X P

N um b er of Positions

(6P ,8P )

8P

2C/4C/6C

8C

A

15.75

17.75

B

13.90

16.00

C

9.90

11.93

D

10.16

11.43

E

13.70

15.65

X C

-

G old P lated

G A :G o ld 6 u "

G B :G old 15u"

G C :G old 30u"

G D :G old 50u"

X

B

-

L :R oH S + P B T

D

E

L

N um be r o f Con ta cts

(2C,4C ,6 C ,8C )

B :B lack Insulator

www.amtek-co.com.tw

8-21
