FFM1V101M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> FFM1V101M

FFM1V101M: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 35V, 20% +Tol, 20% -Tol, 100uF; CategoryPassive components capacitor; File Size309KB，2 Pages; ManufacturerGemmy Electronics Co., Ltd.

Download Datasheet Parametric View All

FFM1V101M Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 35V, 20% +Tol, 20% -Tol, 100uF

FFM1V101M Parametric

Parameter Name	Attribute value
Objectid	1215515504
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	100 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	8 mm
dielectric materials	ALUMINUM
length	9 mm
Manufacturer's serial number	FFM(35V)
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
series	FFM(35V)
Terminal pitch	3.5 mm

Preview

Download Datasheet

View All

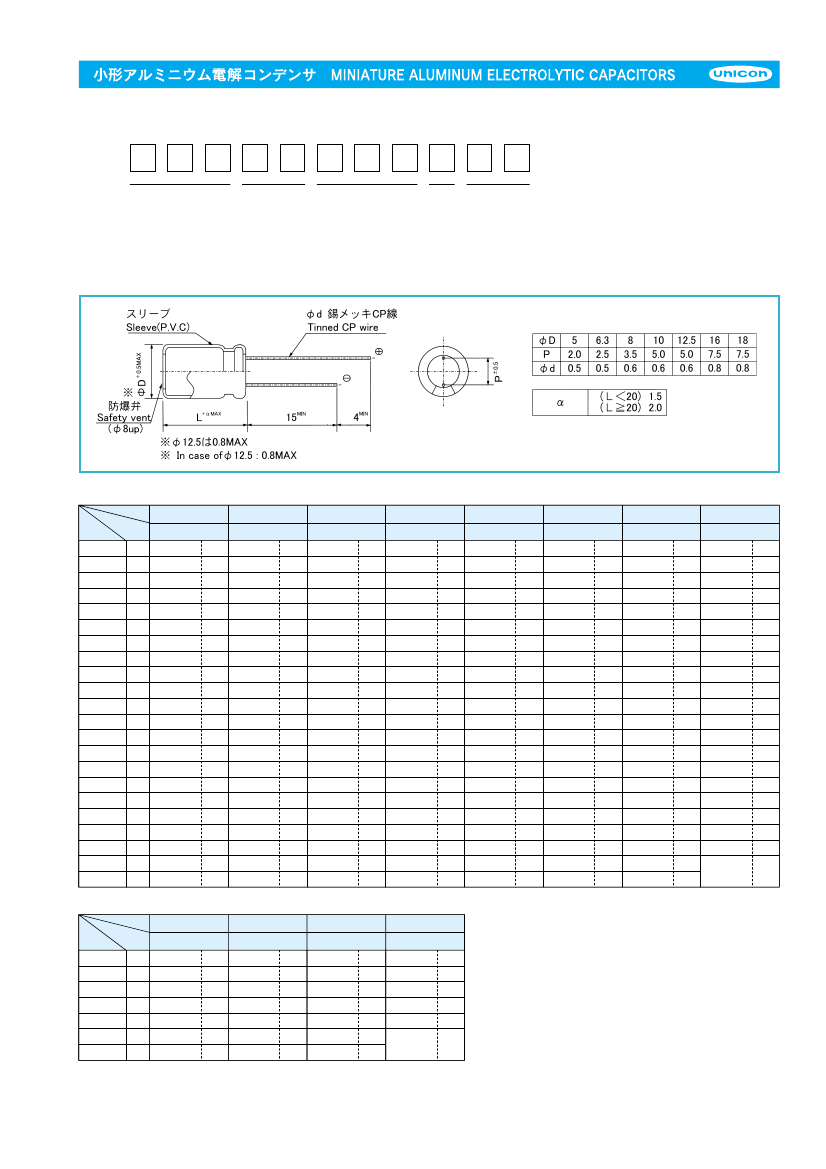

FFM

04 ½偏平標準品（85℃）

RADIAL TYPE LOW PROFILE

シリーズ

SERIES

偏平標準品

Low Profile Standard

■

特長 FEATURES

・

½品の高さを½くした偏平標準品

Standard size for flat and compact.

・

自動挿入用テーピング品を各種用意

Available in taping configuration for automatic insertion.

・

85℃ 2000 時間保証

Load Life : 85℃ 2000 hours.

■

仕様 SPECIFICATIONS

項目 Items

½ 用温度範囲

Operating Temperature Range

定格電圧範囲

Rated Voltage Range

静電容量範囲

Nominal Capacitance Range

静電容量許容差

Capacitance Tolerance

特性

Characteristics

−40∼＋85℃

6.3 400V.DC

∼

0.1 10000μF

∼

±20％（20℃，120Hz)

6.3∼100W.V.

160∼400W.V.

I=0.03CV 又は4μAのいずれか大きい値以下(1分値) I=0.04CV ＋ 100μA以下(1分値)

I=0.03CV or 4μA whichever is greater, after

I=0.04CV ＋ 100μA or less after 1 minute

1 minute application of rated voltage.

application of rated voltage.

=0.01CV 又は 3μAのいずれか大きい値以下(2分値)

I=0.01CV or 3μA whichever is greater, after

2 minutes application of rated voltage.

定格電圧(V)

6.3

100 160∼250 400

Rated Voltage

tanδ(MAX)

0.28

0.24

0.20

0.16

0.14

0.12

0.10

0.08

0.20

0.25

1000μFを越えるものについては、1000μFを増す毎に0.02を加えた値とする。120Hz,20℃）

（

For capacitance of more than 1000μF, add 0.02 for every increase of 1000μF．

インピーダンス比 Impedance Ratio (120Hz)

定格電圧(V)

100 160∼250 400

6.3

Rated Voltage

Z(-25℃)/Z(20℃)

Z(-40℃)/Z(20℃)

85℃2000時間定格電圧印加後、下記規格を満足する。

After 2000 hours application of rated voltage at 85℃, capacitors meet the characteristics

requirements mentioned below.

静電容量変化率初期値の±20％以内

Capacitance Change Within ±20％ of initial value.

損失角の正接初期規格値の200％以下

Dissipation Factor

200％ or less of initial specified value.

漏れ電流初期規格値以下

Leakage Current

Initial specified value or less.

85℃1000時間無負荷放½後、上記高温負荷特性の規格を満足する。

（½し、JIS C-5102 4.4項の電圧処理後）

After leaving capacitors under no load at 85℃ for 1000 hours and applying voltage according to

JIS C-5102 4.4, they meet the specified value for load life characteristics listed above.

黒色チューブに½色印刷

White print on black sleeve.

JIS C-5141 特性Ｗ

Characteristics Ｗ of JIS C-5141.

漏れ電流

Leakage Current

損失角の正接

Dissipation Factor

温度特性

Temperature Characteristics

高温負荷特性

Load Life

高温無負荷特性

Shelf Life

表示

Marking
