MEMS 1XN OPTICAL SWITCH
DiCon’s MEMS 1xN Optical Switch is a compact, single mode,
fi
ber optic switch configurable for port counts up to 1x48. It utilizes
DiCon’s proprietary MEMS technology to achieve reliable optical
performance and excellent durability; DiCon’s optical switches have
been shown to last for over 1 billion switch cycles and are qualified
to Telcordia GR-1221 environmental standards.
FEATURES
Reliable Optical Performance
Excellent Durability
Compact Form Factor
Low Power Consumption
APPLICATIONS
Optical Communications
Fiber Optic Sensing
Bio-medical Instrumentation
RF Distribution over Fiber
Specifications subject to change. Copyright © 2015 DiCon Fiberoptics, Inc. All rights reserved.
OPTICAL SPECIFICATIONS
1,2
PARAMETER
25≤N≤32
Insertion
3,4
Loss
33≤N≤48
Crosstalk
Back Reflection
Switching Time
TDL
25≤N≤32
WDL
5
33≤N≤48
PDL
6
Repeatability
7
Durability
Optical Power
Operating Temp
Storage Temp
RATING
1.5 dB max.
1.9 dB max.
-50 dB max.
-50 dB max.
30 ms max.
0.40 dB max.
0.30 dB max.
0.40 dB max.
0.10 dB max.
0.04 dB max.
10
9
cycles min.
500 mW max.
-5 to 70
o
C
-40 to 85
o
C
MS3
ORDERING INFORMATION
MS3
Product Code
MEMS Switch
Switch Configuration
1xN
1xN, Specify N≤48
I
2
C
RS232
TTL
Control Interface
I2C
RS2
TTL
Wavelength Range
13
15
16
13/15
15/16
9/BF
9/LT
1290 - 1330 nm
1530 - 1570 nm
1570 - 1610 nm
1290 - 1330 & 1530 - 1570 nm
1530 - 1570 & 1570 - 1610 nm
Corning SMF-28, Bare fiber
Corning SMF-28, Loose-tube
Fiber and Jacket Type
1. Specifications are without connectors.
2. Specifications only guaranteed in defined switch states.
3. IL is measured at CWL, 23
o
C.
4. IL is for single-band. Dual-band adds 0.2 dB.
5. WDL is measured in a +/- 20nm range at 23
o
C.
6. PDL is for single-band. Dual-band adds 0.05 dB.
7. Repeatability is defined after 100 cycles.
Or other equivalent 9
m
Singlemode
Connector Type
FC/SPC FC/SPC
FC/APC FC/APC
N
NONE
Also Available: SC, SC/UPC, SC/APC, ST, ST/UPC, LC

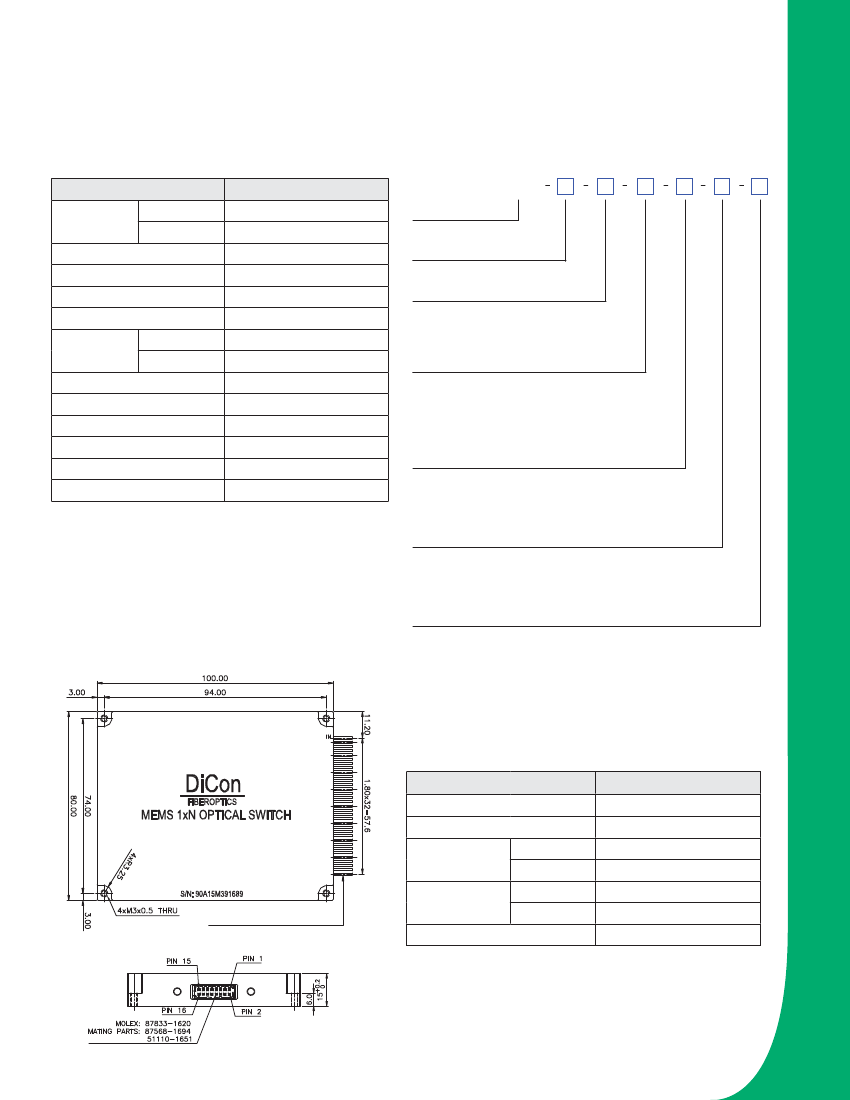

MECHANICAL DIMENSIONS
(Units: mm)
Pigtail Length
1
X
1 Meter
Specify X Meters
Top View
Tolerance is +/- 0.05 m
ELECTRICAL SPECIFICATIONS
PARAMETER
Latching Type
Control Type
Vcc
I
2
C, RS232
Voltage
TTL
Power
I
2
C, RS232
Consumption TTL
Connector Type
RATING
non-latching
I
2
C, RS232 or TTL
12 VDC
5 VDC
700 mW max.
1.5 W max.
Molex 87833-1620
BARE FIBER OR LOOSE TUBE
Left Side View
DiCon Fiberoptics, Inc. 1689 Regatta Blvd. Richmond, CA 94804 Tel. (510) 620-5000 Fax. (510) 620-4100 www.diconfiberoptics.com
0196D
MEMS 1XN OPTICAL SWITCH
SPECIFICATIONS / ORDERING INFORMATION
