7332-1572-005 datasheet, PDF - EEWORLD Datasheet

7332-1572-005: DescriptionCONNECTOR, PANEL MOUNT, CABLE TERMINATED, FEMALE, RF CONNECTOR, CRIMP, PLUG; CategoryThe connector The connector; File Size989KB，1 Pages; ManufacturerApplied Engineering Products (AEP)

Download Datasheet Parametric View All

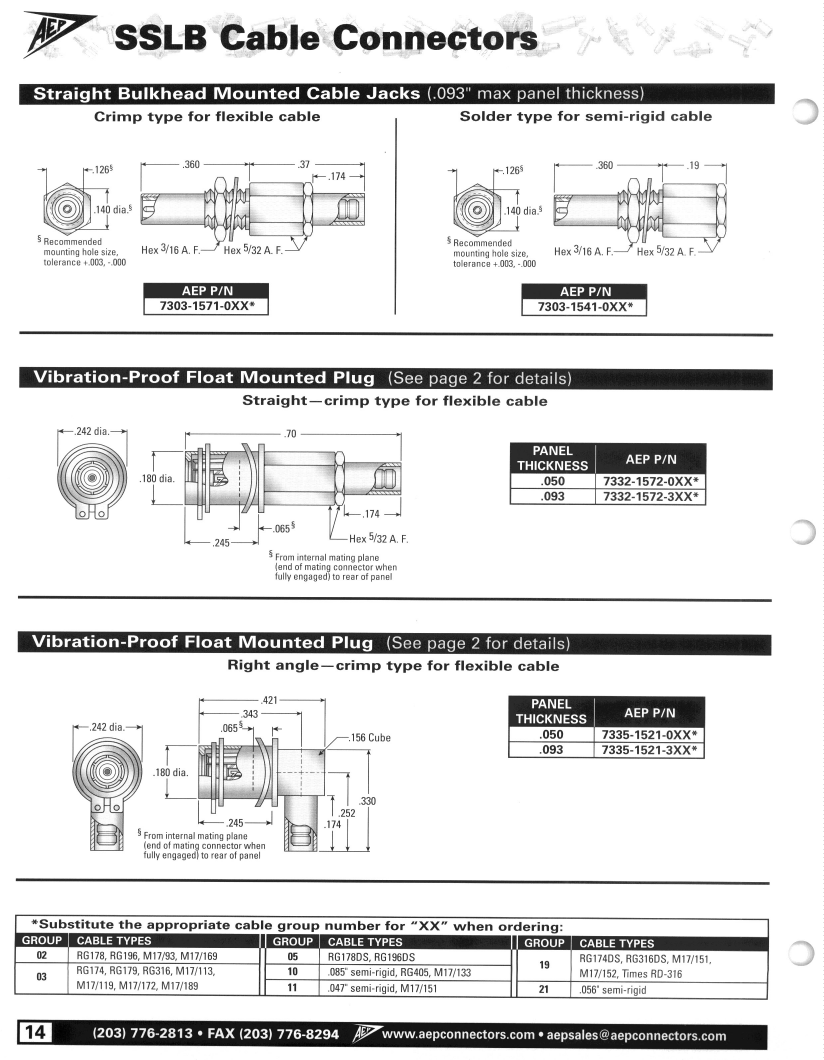

7332-1572-005 Overview

CONNECTOR, PANEL MOUNT, CABLE TERMINATED, FEMALE, RF CONNECTOR, CRIMP, PLUG

Parameter Name	Attribute value
Objectid	1923278346
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: MIL-PRF-39012, APPLICABLE CABLES: RG178DS; RG196DS, INSERTION LOSS MAX AT 1.5 GHZ
subject depth	0.245 inch
Body diameter	0.242 inch
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SSLB CONNECTOR
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.3 dB
insulator material	POLYTETRAFLUOROETHYLENE
JESD-609 code	e4
MIL compliance	YES
Installation method	STRAIGHT
Installation type	CABLE AND PANEL
Maximum operating frequency	12.4 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP
Total number of contacts	1
voltage standing wave ratio	1.5
