54LS365DMQB datasheet, PDF - EEWORLD Datasheet

54LS365DMQB: DescriptionBus Driver, 1-Func, 6-Bit, True Output, TTL, CDIP16,; Categorylogic logic; File Size248KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

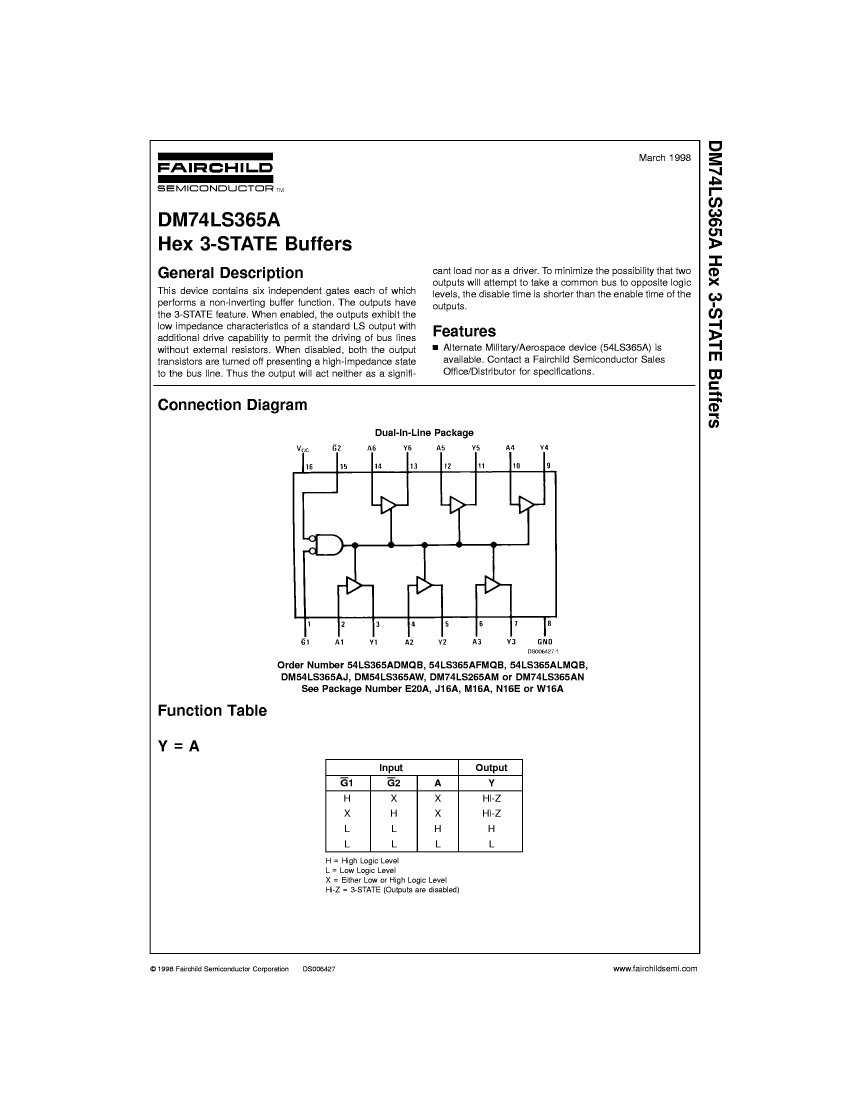

54LS365DMQB Overview

Bus Driver, 1-Func, 6-Bit, True Output, TTL, CDIP16,

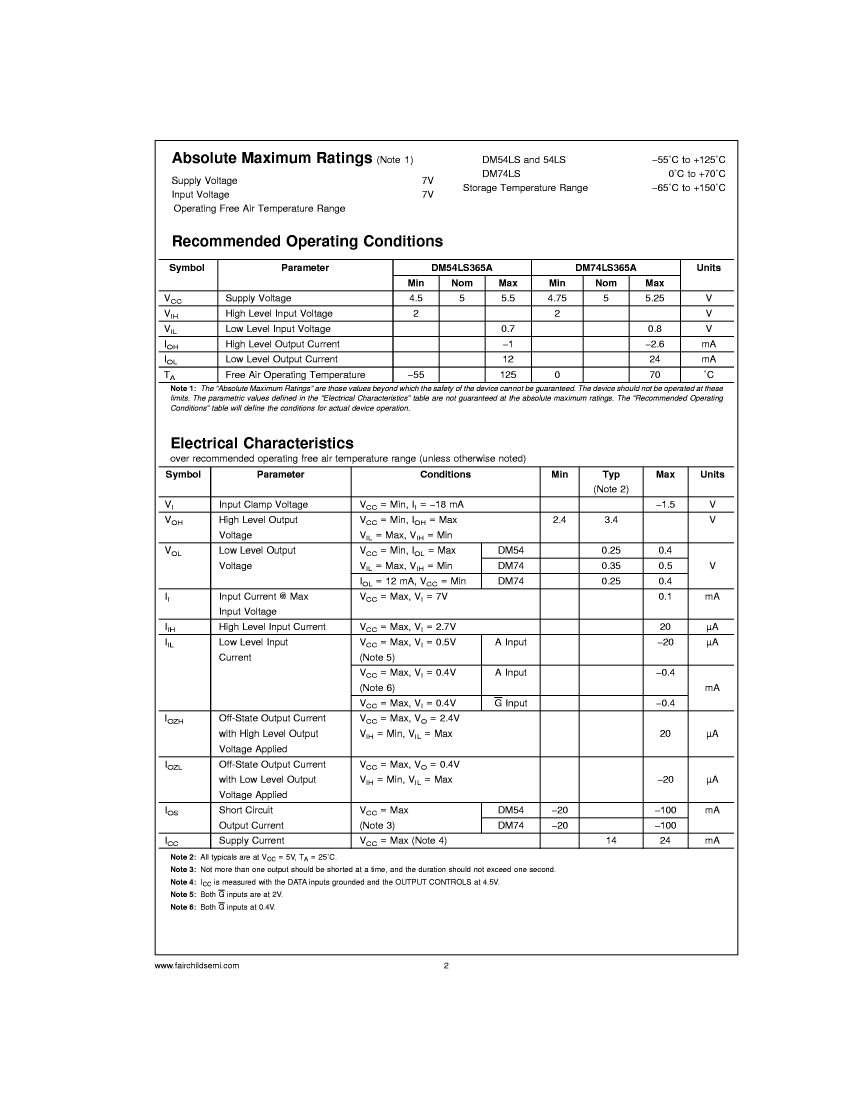

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1436008148
package instruction	DIP, DIP16,.3
Reach Compliance Code	compliant
Control type	ENABLE LOW
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Logic integrated circuit type	BUS DRIVER
Number of digits	6
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE

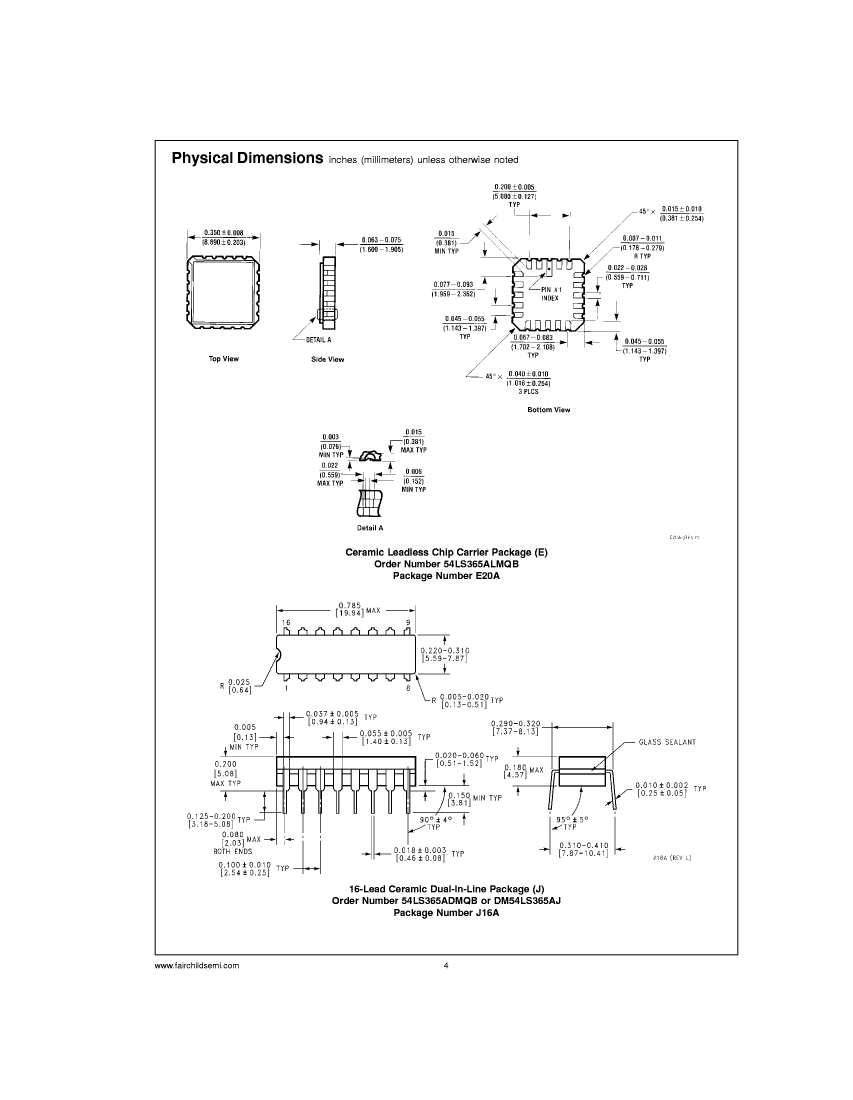

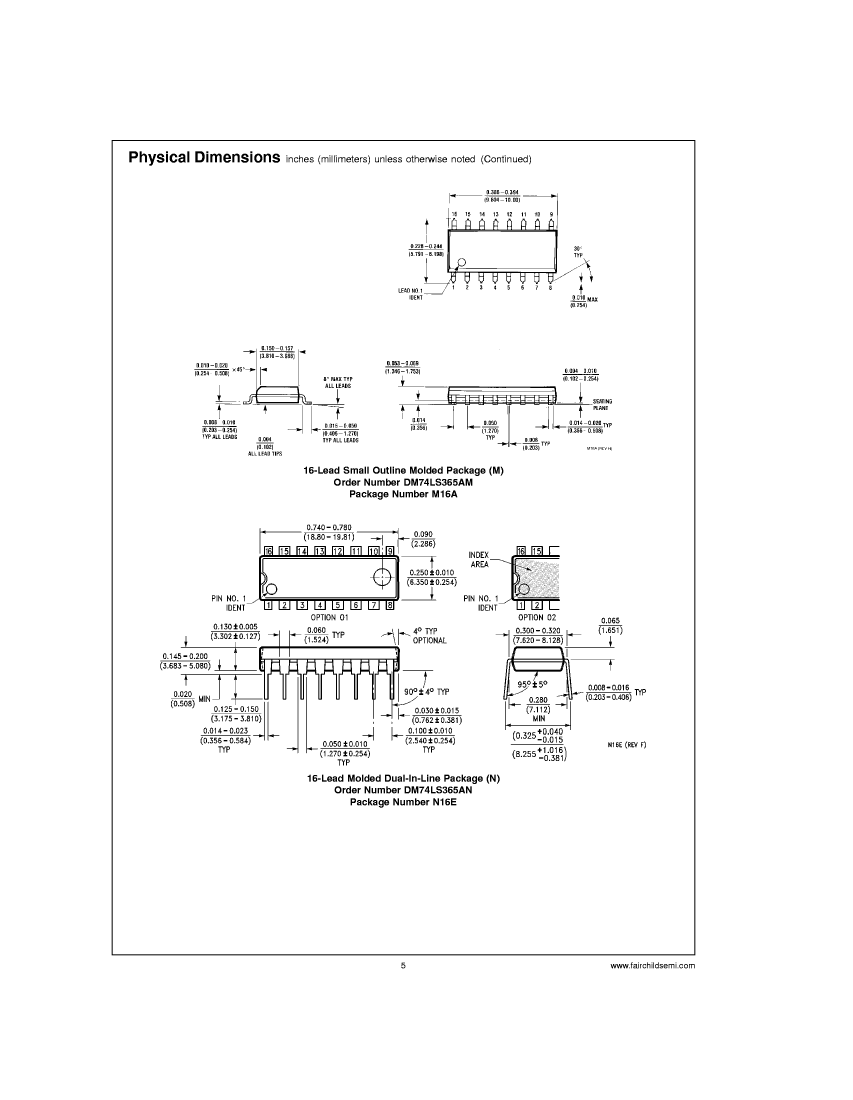

Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
