BAR141E6327XT

Description
Pin Diode, Silicon, ROHS COMPLIANT PACKAGE-3
CategoryDiscrete semiconductor    diode
File Size839KB，7 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Download Datasheet Parametric Compare View All

BAR141E6327XT Overview

Pin Diode, Silicon, ROHS COMPLIANT PACKAGE-3

BAR141E6327XT Parametric

Parameter NameAttribute value
MakerInfineon
package instructionR-PDSO-G3
Contacts3
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresLOW DISTORTION
applicationATTENUATOR; SWITCHING
ConfigurationSERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Maximum diode capacitance0.5 pF
Diode component materialsSILICON
Maximum diode forward resistance12 Ω
Diode typePIN DIODE
frequency bandHIGH FREQUENCY
JESD-30 codeR-PDSO-G3
Minority carrier nominal lifetime1 µs
Number of components2
Number of terminals3
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Maximum power dissipation0.25 W
GuidelineAEC-Q101
surface mountYES
technologyPOSITIVE-INTRINSIC-NEGATIVE
Terminal formGULL WING
Terminal locationDUAL
Base Number Matches1

Preview

Download Datasheet

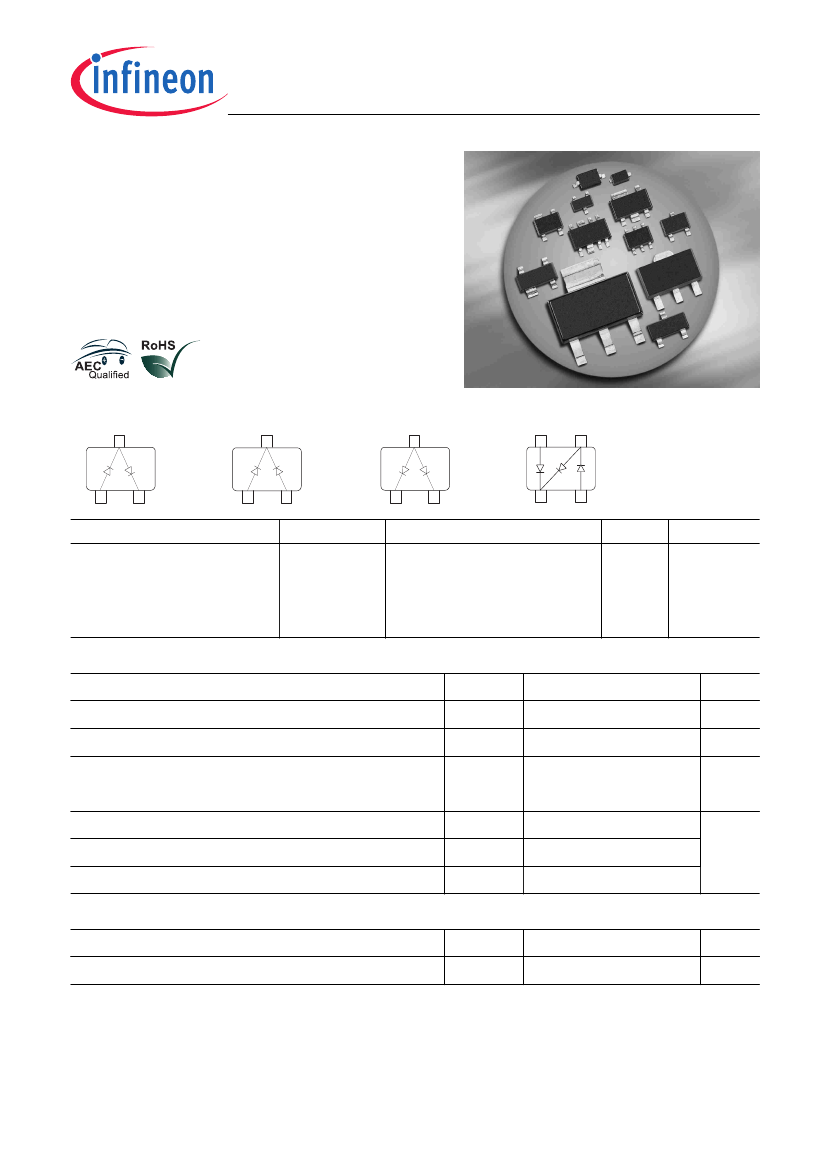

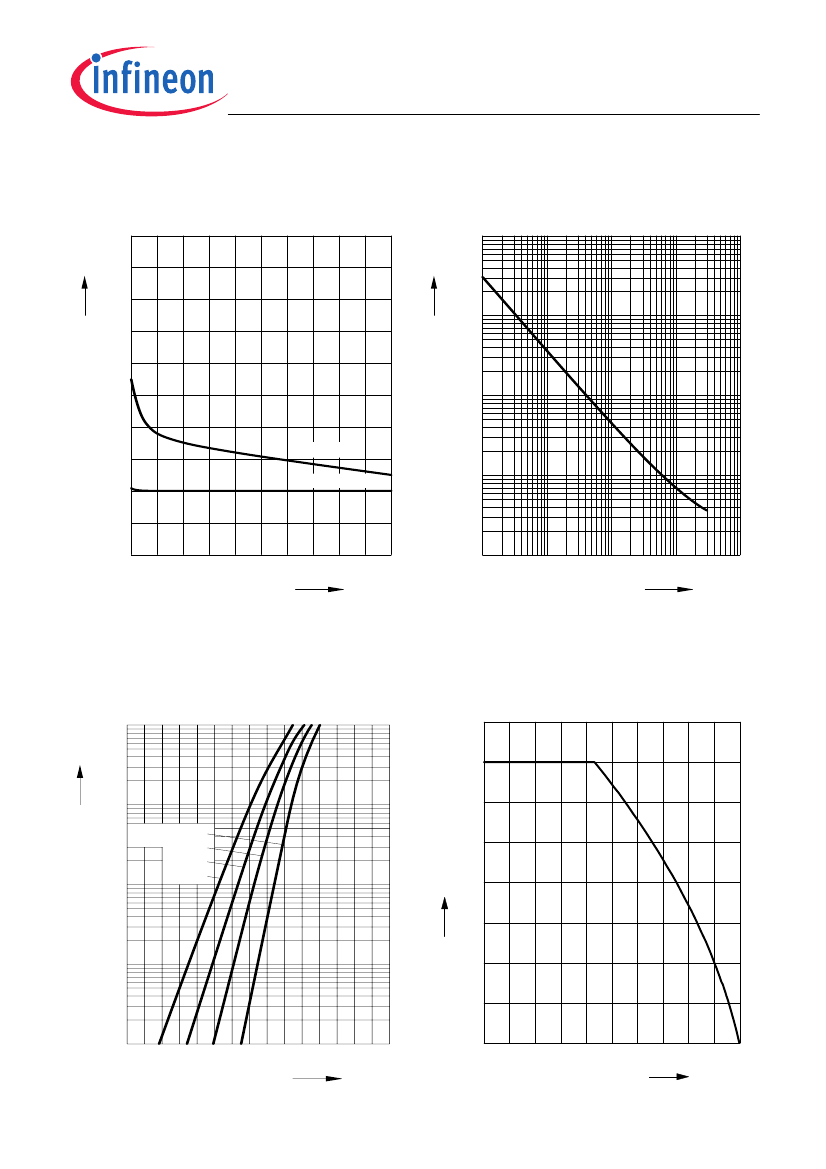

BAR1.../BAR61...
Silicon PIN Diode
•
RF switch, RF attenuator for frequencies
above 10 MHz
•
Low distortion faktor
•
Long-term stability of electrical characteristics
•
Pb-free (RoHS compliant) package
•
Qualified according AEC Q101
BAR14-1
!
BAR15-1
!
BAR16-1
!
BAR61
"
,
!
, !
,
,
,
,
,
,
,




Type
BAR14-1
BAR15-1
BAR16-1
BAR61

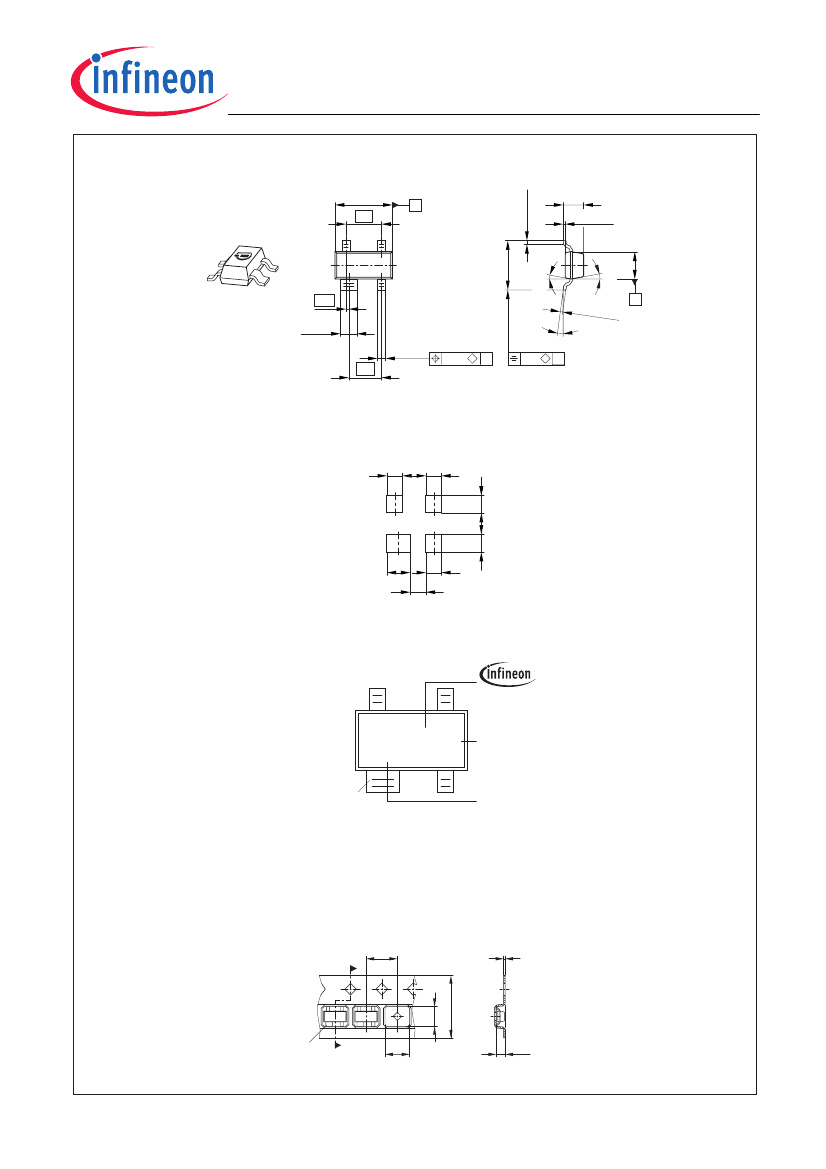

Package
SOT23
SOT23
SOT23
SOT143
Configuration
series
common cathode
common anode
PI element
L
S
(nH)
1.8
1.8
1.8
2
Marking
L7s
L8s
L9s
61s
Maximum Ratings
at
T
A
= 25°C, unless otherwise specified
Symbol
Parameter
Diode reverse voltage
Forward current
Total power dissipation
T
S
≤
65°C
Junction temperature
Operating temperature range
Storage temperature
Thermal Resistance
Parameter
Junction - soldering point
1)
1
For
Value
100
140
250
150
-55 ... 125
-55 ... 150
Unit
V
mA
mW
°C
V
R
I
F
P
tot
T
j
T
op
T
stg
Symbol
R
thJS
Value
≤
340
Unit
K/W
calculation of
R
thJA
please refer to Application Note Thermal Resistance
1
2007-04-19

BAR141E6327XT Related Products

BAR141E6327XT BAR61 BAR15-1 BAR161E6327HTSA1 BAR151E6327HTSA1
Description Pin Diode, Silicon, ROHS COMPLIANT PACKAGE-3 100 V, SILICON, PIN DIODE 100 V, SILICON, PIN DIODE DIODE RF DUAL 100V 140MA SOT-23 DiodePINAttenuator/Switch100VAutomotive3-PinSOT-23T/R
Maker Infineon Infineon Infineon Infineon Infineon
package instruction R-PDSO-G3 ROHS COMPLIANT PACKAGE-4 R-PDSO-G3 R-PDSO-G3 R-PDSO-G3
Reach Compliance Code compliant compli compliant unknown compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99
Other features LOW DISTORTION LOW DISTORTION LOW DISTORTION LOW DISTORTION LOW DISTORTION
application ATTENUATOR; SWITCHING ATTENUATOR; SWITCHING ATTENUATOR; SWITCHING ATTENUATOR; SWITCHING ATTENUATOR; SWITCHING
Configuration SERIES CONNECTED, CENTER TAP, 2 ELEMENTS COMPLEX COMMON CATHODE, 2 ELEMENTS COMMON ANODE, 2 ELEMENTS COMMON CATHODE, 2 ELEMENTS
Maximum diode capacitance 0.5 pF 0.5 pF 0.5 pF 0.5 pF 0.5 pF
Diode component materials SILICON SILICON SILICON SILICON SILICON
Maximum diode forward resistance 12 Ω 12 Ω 12 Ω 12 Ω 12 Ω
Diode type PIN DIODE PIN DIODE PIN DIODE PIN DIODE PIN DIODE
frequency band HIGH FREQUENCY HIGH FREQUENCY HIGH FREQUENCY HIGH FREQUENCY HIGH FREQUENCY
JESD-30 code R-PDSO-G3 R-PDSO-G4 R-PDSO-G3 R-PDSO-G3 R-PDSO-G3
Minority carrier nominal lifetime 1 µs 1 µs 1 µs 1 µs 1 µs
Number of components 2 3 2 2 2
Number of terminals 3 4 3 3 3
Maximum operating temperature 125 °C 150 °C 150 °C 150 °C 150 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Maximum power dissipation 0.25 W 0.25 W 0.25 W 0.25 W 0.25 W
surface mount YES YES YES YES YES
technology POSITIVE-INTRINSIC-NEGATIVE POSITIVE-INTRINSIC-NEGATIVE POSITIVE-INTRINSIC-NEGATIVE POSITIVE-INTRINSIC-NEGATIVE POSITIVE-INTRINSIC-NEGATIVE
Terminal form GULL WING GULL WING GULL WING GULL WING GULL WING
Terminal location DUAL DUAL DUAL DUAL DUAL
Contacts 3 4 3 - -
Base Number Matches 1 - 1 1 1
Is it Rohs certified? - conform to conform to - conform to
Minimum breakdown voltage - 100 V 100 V 100 V 100 V
Humidity sensitivity level - 1 1 - 1
Peak Reflow Temperature (Celsius) - NOT SPECIFIED NOT SPECIFIED - NOT SPECIFIED
Maximum time at peak reflow temperature - NOT SPECIFIED NOT SPECIFIED - NOT SPECIFIED
