5962R9662601VEC datasheet, PDF

5962R9662601VEC: Description4000/14000/40000 SERIES, SYN POSITIVE EDGE TRIGGERED 5-BIT UP RING COUNTER, CDIP16, CERAMIC, DIP-16; Categorylogic logic; File Size322KB，9 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric View All

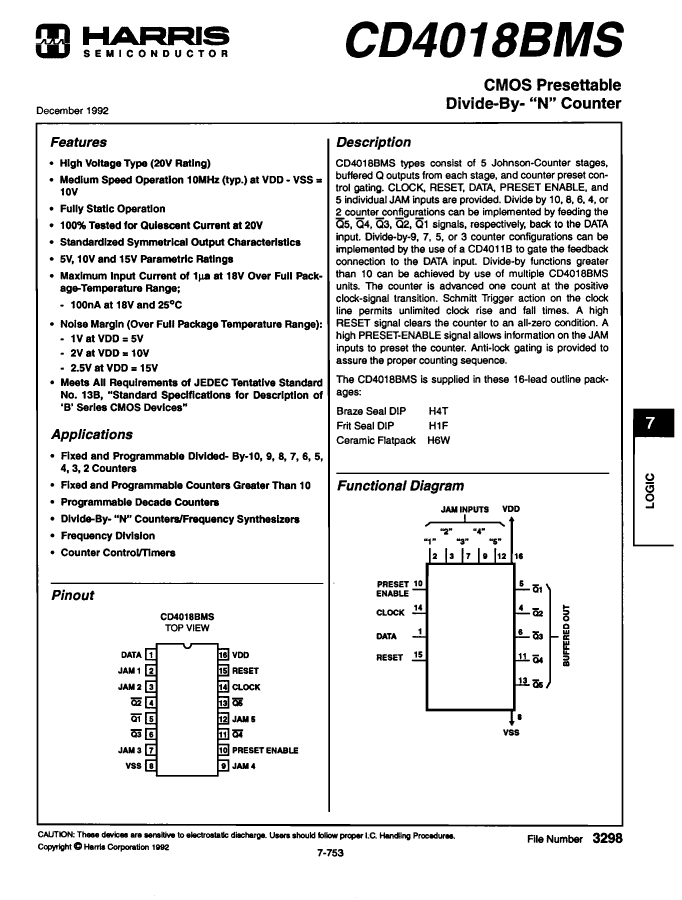

5962R9662601VEC Overview

4000/14000/40000 SERIES, SYN POSITIVE EDGE TRIGGERED 5-BIT UP RING COUNTER, CDIP16, CERAMIC, DIP-16

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknow
Other features	JOHNSON COUNTER, PROGRAMMABLE WITH EXT CONNECTIONS; SCHMITT TRIGGER ON CLOCK INPUT; INVERTED O/PS
Counting direction	UP
series	4000/14000/40000
JESD-30 code	R-CDIP-T16
JESD-609 code	e4
length	19.05 mm
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	RING COUNTER
Maximum Frequency@Nom-Su	2220000 Hz
MaximumI(ol)	0.00064 A
Operating mode	SYNCHRONOUS
Number of digits	5
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/15 V

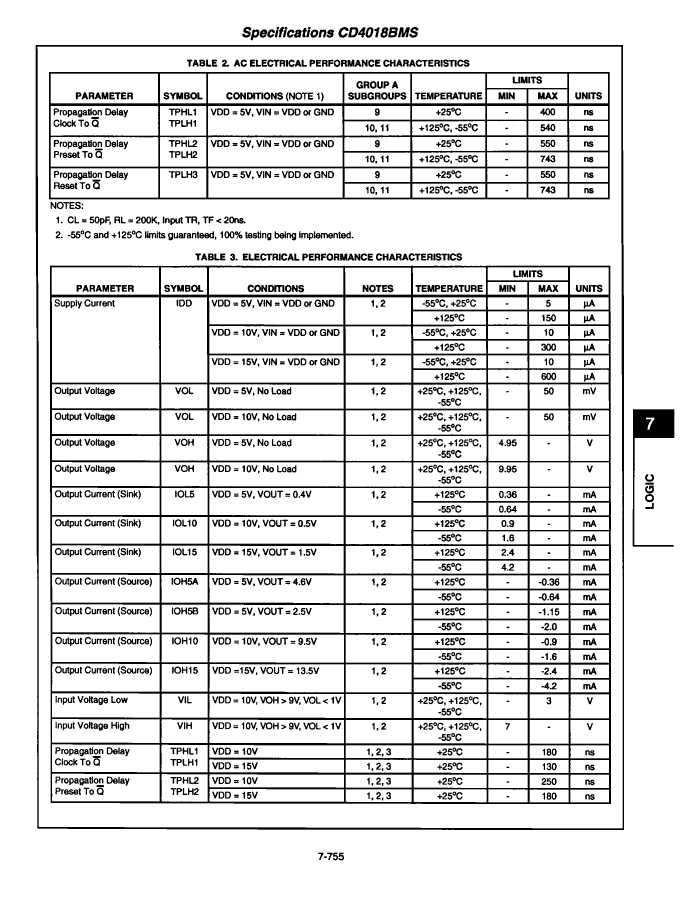

Prop。Delay @ Nom-Su	540 ns
propagation delay (tpd)	540 ns
Certification status	Not Qualified

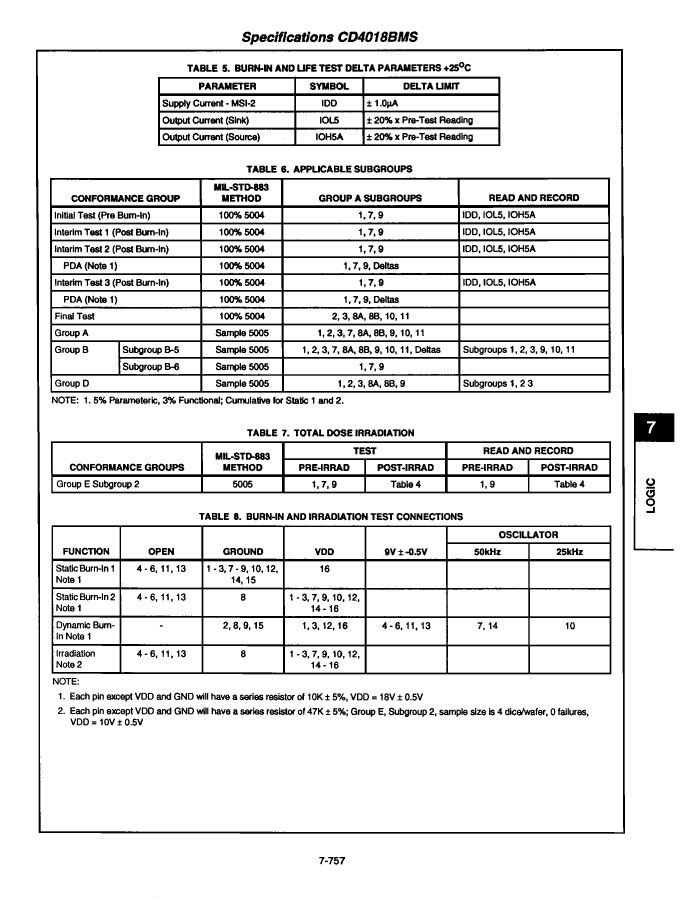

Filter level	MIL-PRF-38535 Class V
Maximum seat height	5.08 mm

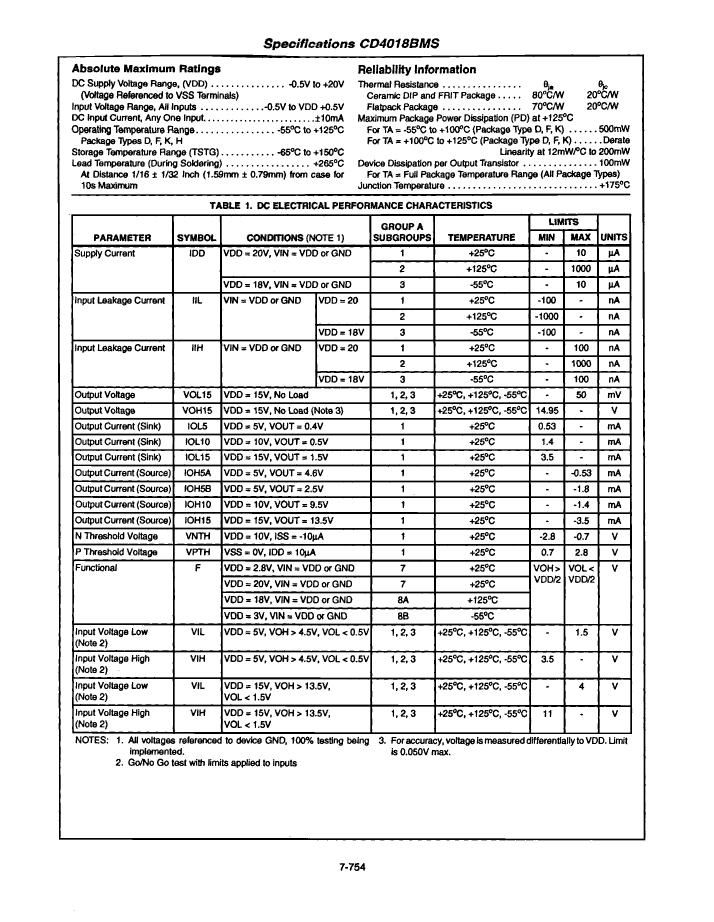

Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

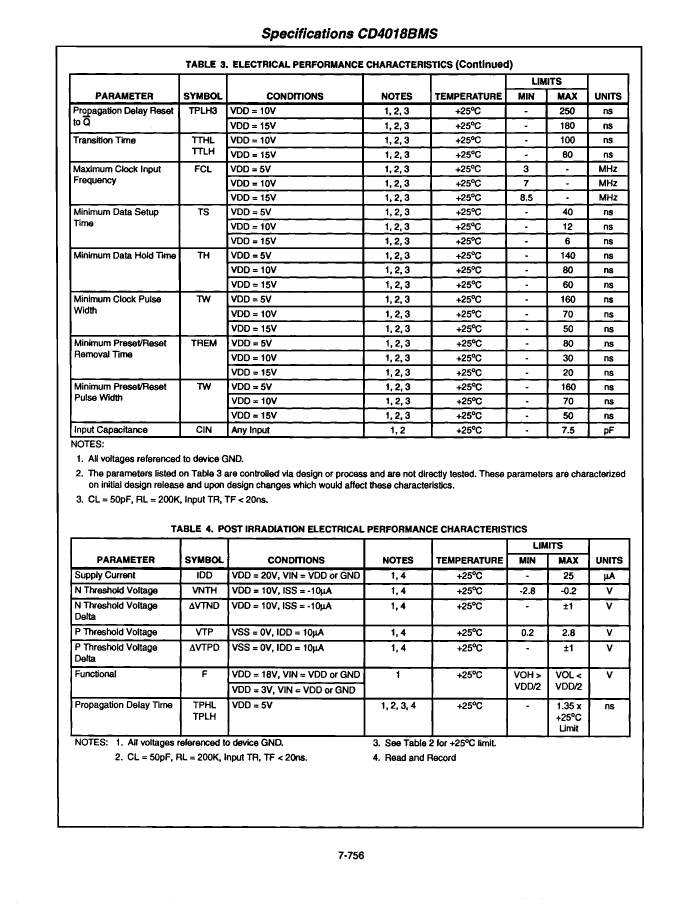

total dose	100k Rad(Si) V
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	8.5 MHz
Base Number Matches	1
