302U30A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 302U30A

302U30A: DescriptionRectifier Diode, 1 Phase, 1 Element, 300A, 300V V(RRM), Silicon, DO-205AB, DO-9, 1 PIN; CategoryDiscrete semiconductor diode; File Size136KB，7 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

302U30A Overview

Rectifier Diode, 1 Phase, 1 Element, 300A, 300V V(RRM), Silicon, DO-205AB, DO-9, 1 PIN

302U30A Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Parts packaging code	DO-9
package instruction	DO-9, 1 PIN
Contacts	1
Reach Compliance Code	_compli
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V
JEDEC-95 code	DO-205AB
JESD-30 code	O-MUPM-H1
Maximum non-repetitive peak forward current	6850 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
Maximum output current	300 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	300 V
surface mount	NO
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

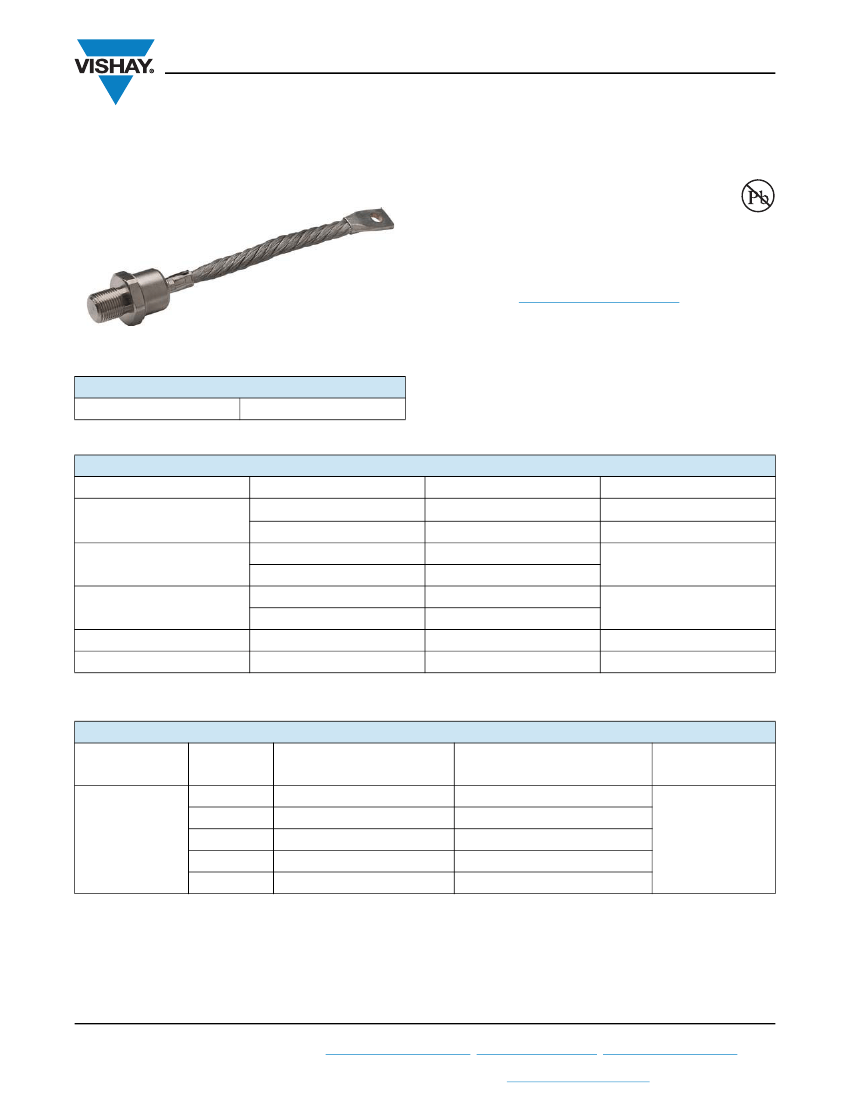

300U(R) Series

www.vishay.com

Vishay Semiconductors

Standard Recovery Diodes

(Stud Version), 300 A

FEATURES

• Alloy diode

• Popular series for rough service

• Stud cathode and stud anode version

• Designed and qualified for industrial level

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

DO-205AB (DO-9)

RoHS

COMPLIANT

TYPICAL APPLICATIONS

• Welders

• Power supplies

PRODUCT SUMMARY

F(AV)

300 A

• Motor controls

• Battery chargers

• General industrial current rectification

MAJOR RATINGS AND CHARACTERISTICS

PARAMETER

F(AV)

TEST CONDITIONS

VALUES

300

50 Hz

FSM

60 Hz

50 Hz

60 Hz

RRM

Range

150

6550

6850

214

195

100 to 600

- 65 to 200

°C

UNITS

°C

ELECTRICAL SPECIFICATIONS

VOLTAGE RATINGS

TYPE NUMBER

VOLTAGE

CODE

300U(R)

RRM

, MAXIMUM REPETITIVE

PEAK REVERSE VOLTAGE

100

200

300

400

600

RSM

, MAXIMUM NON-REPETITIVE

PEAK REVERSE VOLTAGE

200

300

400

500

700

RRM

MAXIMUM

AT T

= 175 °C

Revision: 09-Apr-13

Document Number: 93508

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

302U30A Related Products

	302U30A	302U60A	302UR20A	302U10A	302U40A	302UR30A	302UR10A	302UR40A	302U20A
Description	Rectifier Diode, 1 Phase, 1 Element, 300A, 300V V(RRM), Silicon, DO-205AB, DO-9, 1 PIN	Rectifier Diode, 1 Phase, 1 Element, 300A, 600V V(RRM), Silicon, DO-205AB, ROHS COMPLIANT, DO-9, 1 PIN	Rectifier Diode, 1 Phase, 1 Element, 300A, 200V V(RRM), Silicon, DO-205AB, ROHS COMPLIANT, DO-9, 1 PIN	Rectifier Diode, 1 Phase, 1 Element, 300A, 100V V(RRM), Silicon, DO-205AB, ROHS COMPLIANT, DO-9, 1 PIN	Rectifier Diode, 1 Phase, 1 Element, 300A, 400V V(RRM), Silicon, DO-205AB, ROHS COMPLIANT, DO-9, 1 PIN	Rectifier Diode, 1 Phase, 1 Element, 300A, 300V V(RRM), Silicon, DO-205AB, ROHS COMPLIANT, DO-9, 1 PIN	Rectifier Diode, 1 Phase, 1 Element, 300A, 100V V(RRM), Silicon, DO-205AB, ROHS COMPLIANT, DO-9, 1 PIN	Rectifier Diode, 1 Phase, 1 Element, 300A, 400V V(RRM), Silicon, DO-205AB, ROHS COMPLIANT, DO-9, 1 PIN	Rectifier Diode, 1 Phase, 1 Element, 300A, 200V V(RRM), Silicon, DO-205AB, ROHS COMPLIANT, DO-9, 1 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	DO-9	DO-9	DO-9	DO-9	DO-9	DO-9	DO-9	DO-9	DO-9
package instruction	DO-9, 1 PIN	ROHS COMPLIANT, DO-9, 1 PIN	ROHS COMPLIANT, DO-9, 1 PIN	ROHS COMPLIANT, DO-9, 1 PIN	O-MUPM-H1	O-MUPM-H1	ROHS COMPLIANT, DO-9, 1 PIN	ROHS COMPLIANT, DO-9, 1 PIN	ROHS COMPLIANT, DO-9, 1 PIN
Contacts	1	1	1	1	1	1	1	1	1
Reach Compliance Code	_compli	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	ANODE	CATHODE	CATHODE	ANODE	ANODE	ANODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V	1.4 V	1.4 V	1.4 V	1.4 V	1.4 V	1.4 V	1.4 V	1.4 V
JEDEC-95 code	DO-205AB	DO-205AB	DO-205AB	DO-205AB	DO-205AB	DO-205AB	DO-205AB	DO-205AB	DO-205AB
JESD-30 code	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1
Maximum non-repetitive peak forward current	6850 A	6850 A	6850 A	6850 A	6850 A	6850 A	6850 A	6850 A	6850 A
Number of components	1	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1	1	1	1
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	300 A	300 A	300 A	300 A	300 A	300 A	300 A	300 A	300 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	300 V	600 V	200 V	100 V	400 V	300 V	100 V	400 V	200 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	1	1	1	1	1	1	1
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
