2450BP39C100BE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 2450BP39C100BE

2450BP39C100BE: Descriptionsignal conditioning 2.4ghz bpf; CategoryPassive components; File Size102KB，2 Pages; ManufacturerJohanson Technology; Websitehttp://www.johansontechnology.com; Environmental Compliance

Download Datasheet Parametric View All

2450BP39C100BE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2450BP39C100BE	-	-	View	Buy Now

2450BP39C100BE Overview

signal conditioning 2.4ghz bpf

2450BP39C100BE Parametric

Parameter Name	Attribute value
Manufacture	Johans
Product Category	Signal Conditioning
RoHS	Yes
Produc	Band Pass Filters
Frequency	2.45 GHz
Frequency Range	2450 MHz
Bandwidth	2450 MHz
Impedance	50 Ohms
Termination Style	SMD/SMT
Package / Case	1008 (2520 metric)
Operating Temperature Range	- 40 C to + 85 C
Packaging	Reel
Insertion Loss	1.8 dB
Factory Pack Quantity	3000
Type	High Frequency Ceramic Band Pass Filte

Preview

Download Datasheet

View All

“High Frequency Ceramic Solutions”

2.45 GHz Band Pass Filter

Part

Number

2450BP39C100B_

P/N 2450BP39C100B

Detail Specification Page 1 of 2

Return

Loss

9.5 dB min.

Frequency

(MHz)

2450 ± 50

Insertion

Loss

1.8 dB max

Attenuation (min.)

30 dB @ 880 - 915 MHz

30 dB @ 1710 - 1785 MHz

25 dB @ 1850 - 1910 MHz

25 dB @ 4800 - 5000 MHz

20 dB @ 7200 - 7500 MHz

Ripple

0.7 dB min.

Input Power

500 mWatt max

Group Delay

5 nsec max

Impedance

Ω

Operating Temperature Range

-40 to +85°C

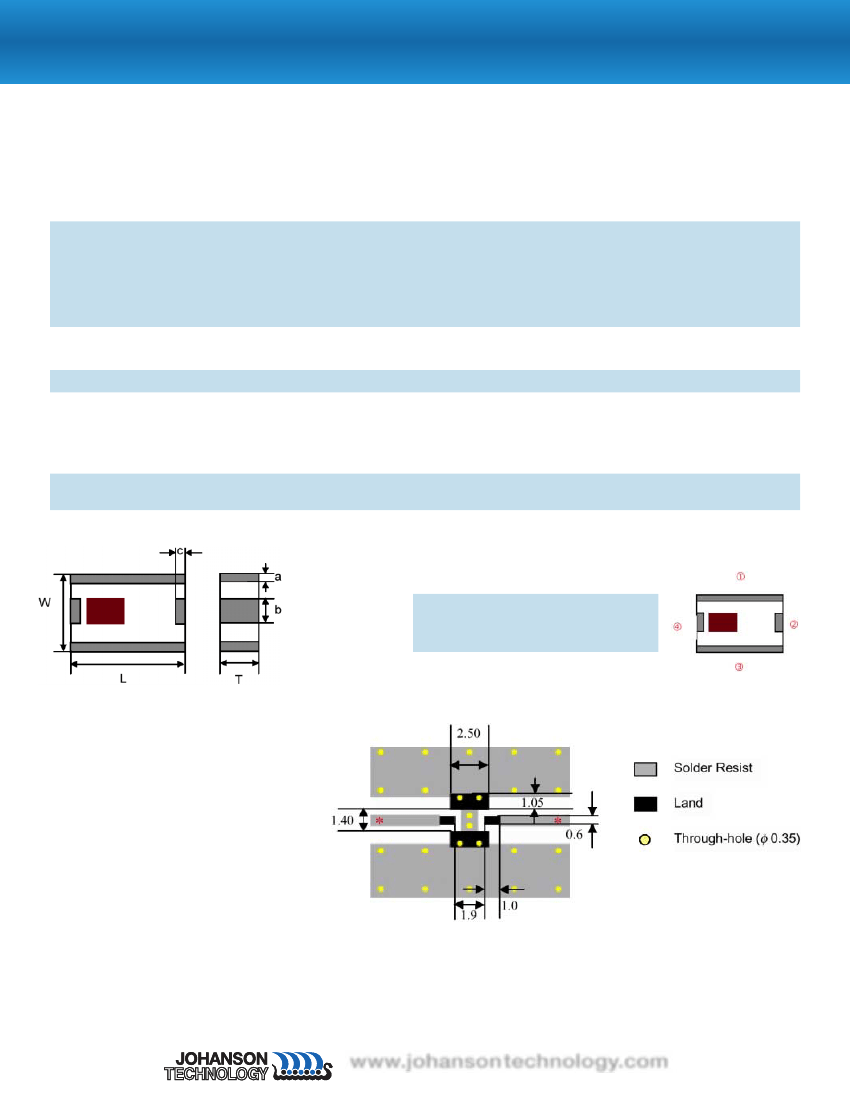

Mechanical Dimensions

Inches

0.098 ± .008

2.5 ± 0.2

0.079 ± .008

2.0 ± 0.2

0.035 ± .004

0.9 ± 0.1

0.012 ± .008

0.3 ± 0.2

0.024 ± .008

0.6 ± 0.2

0.012 ± .008

0.30 ± 0.2

Terminal Configuration

No.

Function

GND

OUT

No.

Function

GND

Mounting Considerations

Line width should be designed to provide 50Ω

impedance matching characteristics.

Johanson Technology, Inc. reserves the right to make design changes without notice.

All sales are subject to Johanson Technology, Inc. terms and conditions.

www.johanson technology.com

931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
