"High Frequency Ceramic Solutions"
5.4 GHz Balun
Detail Specification: 05/16/05
P/N 5400BL15K050
Page 1 of 2

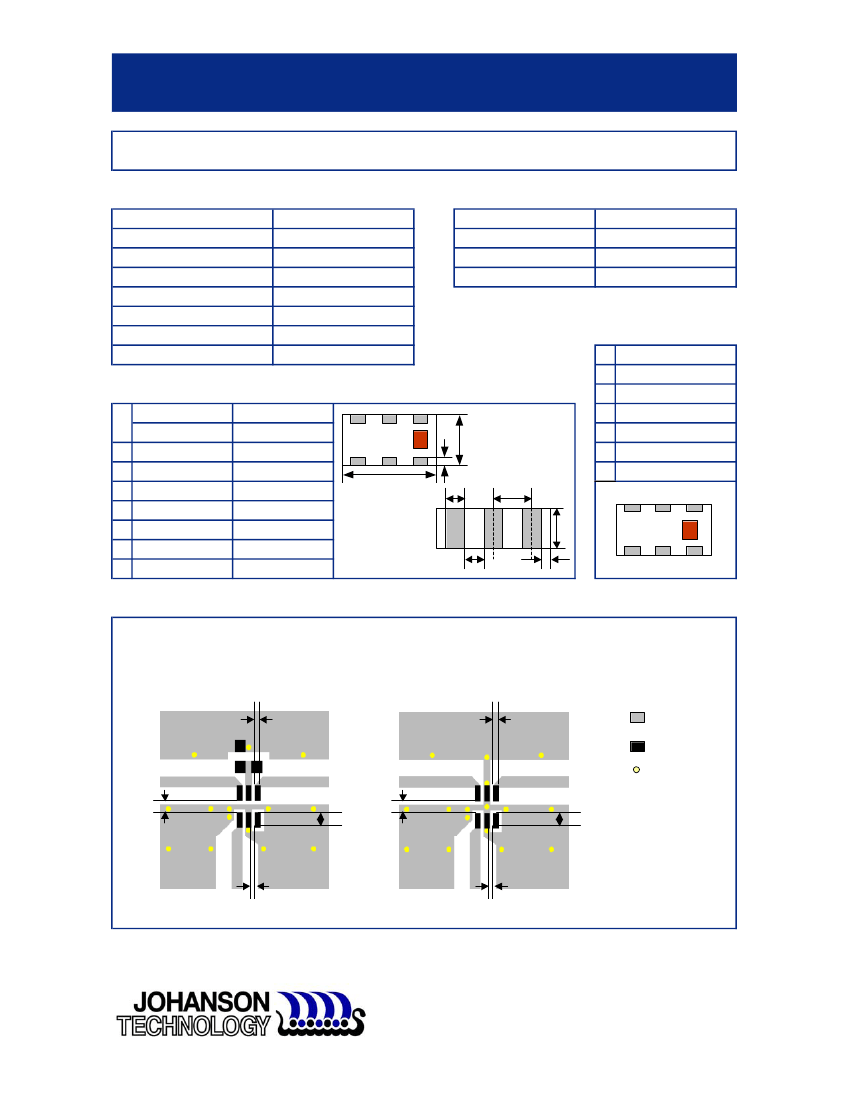

General Specifications
Part Number
Frequency (MHz)
Unbalanced Impedence
Differential Balanced Imp.
Insertion Loss
Return Loss
Phase Difference (degree)
5400BL15K050
4900 - 5875
50
Ω
50
Ω
1.2 dB max.
8.5 dB min.
180 ± 10
2.0 dB max.
Operating Temperature
Operating Temperature
-40 to +85°C
-40 to +85°C
4,000
3 Watts max.
Reel Quanity
Power Capacity
Terminal Configuration
No.
Amplitude Difference
Function
Unbalanced Port (IN)
GND or DC feed+RF GND
1
Mechanical Dimensions
In
L
0.079 ± 0.004
W
0.049 ± 0.004
T
0.037 ± 0.004
a
0.012 ± 0.004
b
0.008 ± 0.004
c
0.012
+.004/-.008
g
0.014 ± 0.004
p
0.026 ± 0.002
mm
2.00 ± 0.10
1.25 ± 0.10
0.95 ± 0.10
0.30 ± 0.10
0.20 ± 0.10
0.30
+0.1/-0.2
0.35 ± 0.10
0.65 ± 0.05
g
b
L
c
a
p
2
3
W
4
5
6
Balanced Port (OUT1)
Balanced Port (OUT2)
GND
NC
3
2
1
T
4
5
6
Mounting Considerations
Mount these devices with brown mark facing up.
* Line width should be designed to provide proper impedance matching characteristics.
Units: mm
With DC feed
0.35
Without DC feed
0.35
Solder
i
Land
*
0.8
*
1.0
0.8
*
*
1.0
Through-hole
(φ0.3)
*
0.30
*
0.30
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
"High Frequency Ceramic Solutions"
5.4 GHz Balun
Detail Specification: 05/16/05
P/N 5400BL15K050
Page 2 of 2

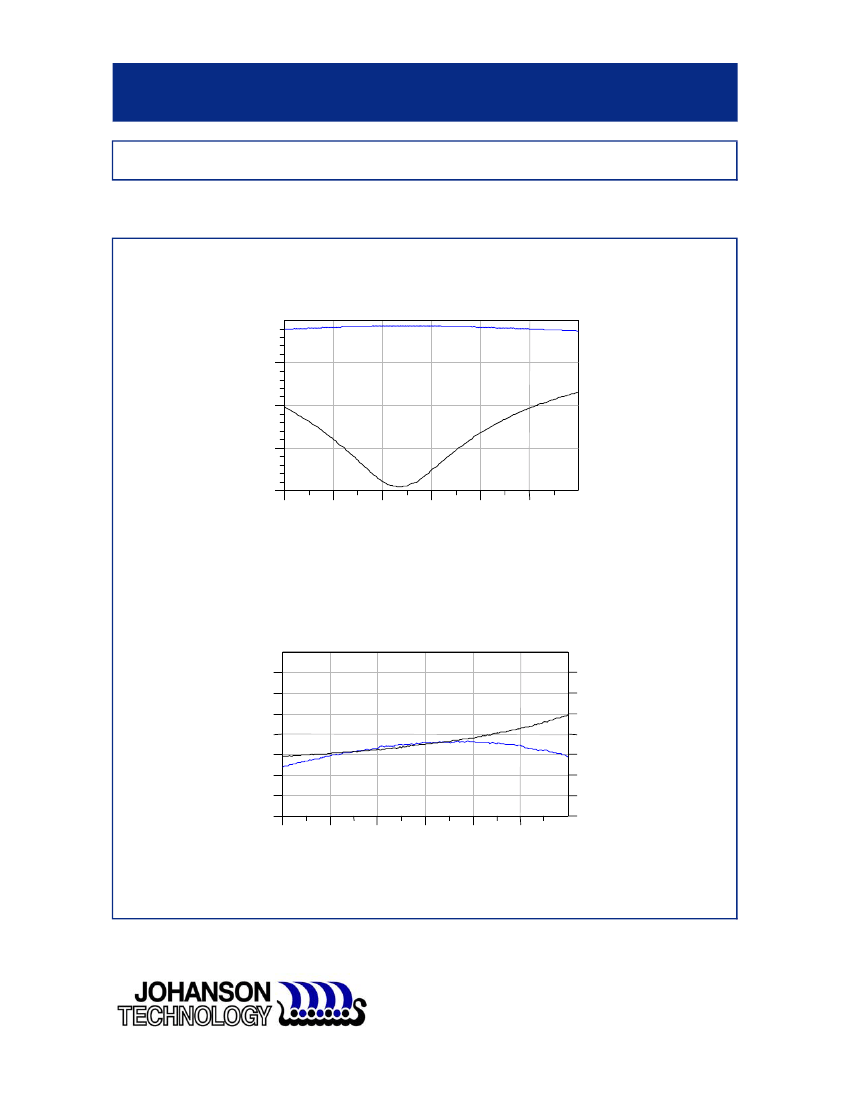

Typical Electrical Performance (T=25°C)
)
)
)
)
)
)
)
Insertion and Return Loss
0
)
dB(IL)
-5
-10
dB(RL)
-15
-20
4.8
5.0
5.2
5.4
freq, GHz
)
5.6
5.8
6.0
)
Amplitude and Phase Balance
)
2.0
1.5
200
195
)
(dif_amplitude)
(dB)
1.0
0.5
0.0
-0.5
-1.0
-1.5
-2.0
4.8
5.0
5.2
190
185
180
175
170
165
160
(dB)
(dif_phase)
5.4
freq, GHz
5.6
5.8
6.0
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
