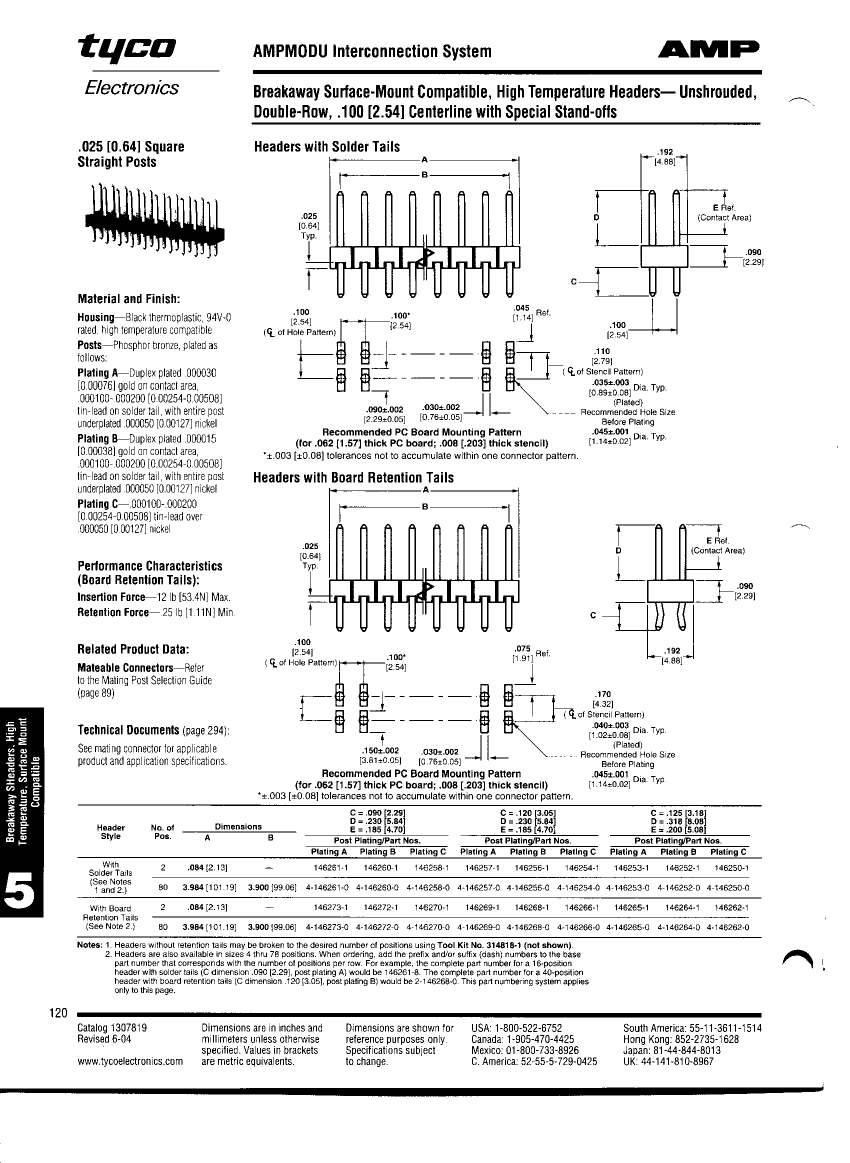

Preview

4-146269-0: Description80 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size48KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

4-146269-0 Overview

80 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

4-146269-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	AMPMODU
body width	0.192 inch
subject depth	0.09 inch
body length	3.984 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	146269
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	80
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

4-146269-0 Related Products

	4-146269-0	146268-1	146258-1	146272-1	146265-1	146262-1	146250-1	146254-1	146252-1
Description	80 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	2 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	2 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	HEADER CONNECTOR,PCB MNT,RECEPT,2 CONTACTS,PIN,PC TAIL W/RETNN TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,2 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,2 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,2 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,2 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,BLACK	2 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	compli	compli	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	AU ON NI	AU ON NI	SN-PB ON NI	SN-PB ON NI	SN-PB ON NI	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2
Termination type	SOLDER	SOLDER	SOLDER	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER	SOLDER	SOLDER
Total number of contacts	80	2	2	2	2	2	2	2	2
Other features	AMPMODU	AMPMODU	AMPMODU	H. TEMP., WITH BOARD STANDOFF	-	-	-	-	AMPMODU
body width	0.192 inch	-	0.192 inch	0.192 inch	0.192 inch	0.192 inch	0.192 inch	0.192 inch	0.192 inch
subject depth	0.09 inch	-	0.09 inch	-	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch
body length	3.984 inch	-	0.084 inch	0.084 inch	0.084 inch	0.084 inch	0.084 inch	0.084 inch	0.084 inch
Body/casing type	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
contact mode	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	750VAC V	-	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V
Insulation resistance	5000000000 Ω	-	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	-	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	THERMOPLASTIC	-	THERMOPLASTIC	LIQUID CRYSTAL POLYMER (LCP)	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	146269	146268	146258	146272	1462	1462	1462	-	146252
Plug contact pitch	0.1 inch	-	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Number of connectors	ONE	-	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	-	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	-	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-65 °C	-	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
PCB contact pattern	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Plating thickness	30u inch	-	100u inch	15u inch	30u inch	100u inch	100u inch	100u inch	15u inch
Rated current (signal)	3 A	-	3 A	-	3 A	3 A	3 A	3 A	3 A
Guideline	UL, CSA	-	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.12 inch	-	0.09 inch	-	0.125 inch	0.125 inch	0.125 inch	0.12 inch	0.125 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Base Number Matches	1	1	1	1	1	1	1	1	-
