8340-3121 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 8340-3121

8340-3121: DescriptionIC Socket, SIP12, 12 Contact(s), 2.54mm Term Pitch, Solder; CategoryThe connector socket; File Size188KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

8340-3121 Overview

IC Socket, SIP12, 12 Contact(s), 2.54mm Term Pitch, Solder

8340-3121 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.1 inch
subject depth	0.167 inch
body length	1.196 inch
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD
Contact material	BE-CU
Contact style	RND PIN-SKT
Device slot type	IC SOCKET
Type of equipment used	SIP12
Shell material	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	8340
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	12
PCB contact pattern	RECTANGULAR
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

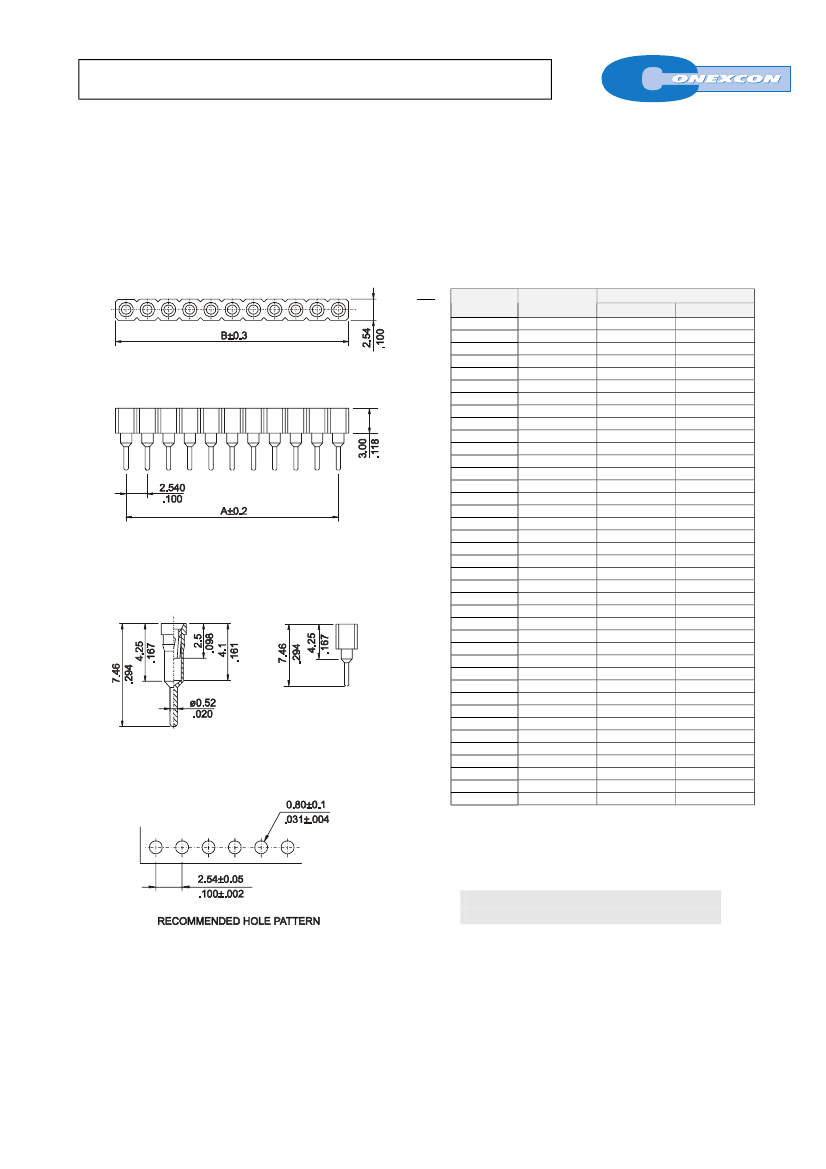

SINGLE IN LINE ZIP SOCKET

SERIES.

8340 SERIES

2.54mm(0.100”). For PCB Solder

Features

Available in 2 through 40 circuits

Insulation Material: PPS UL 94V-0

Contact Material: Gold plated beryllium copper

Sleeve Material: Tin lead plated copper alloy

High reliability turned terminal with multiple finger contact

Seal and prevent flux wicking

For other options consult the Sales Office

Ordering and Dimensional Information

Dimensional Information

Unit:

mm.

Inch.

Circuit Size

Part Number

8340-T021

8340-T031

8340-T041

8340-T051

8340-T061

8340-T071

8340-T081

8340-T091

8340-T101

8340-T111

8340-T121

8340-T131

8340-T141

8340-T151

8340-T161

8340-T171

8340-T181

8340-T191

8340-T201

8340-T211

8340-T221

8340-T231

8340-T241

8340-T251

8340-T261

8340-T271

8340-T281

8340-T291

8340-T301

8340-T311

8340-T321

8340-T331

8340-T341

8340-T351

8340-T361

8340-T371

8340-T381

8340-T391

8340-T401

Dimensions

2,54(0,100)

5,08(0,200)

7,62(0,300)

10,16(0,400)

12,70(0,500)

15,24(0,600)

17,78(0,700)

20,32(0,800)

22,86(0,900)

25,40(1,000)

27,94(1,100)

30,48(1,200)

33,02(1,300)

35,56(1,400)

38,10(1,500)

40,64(1,600)

43,18(1,700)

45,72(1,800)

48,26(1,900)

50,80(2,000)

53,34(2,100)

55,88(2,200)

58,42(2,300)

60,96(2,400)

63,50(2,500)

66,04(2,600)

68,58(2,700)

71,12(2,800)

73,66(2,900)

76,20(3,000)

78,74(3,100)

81,28(3,200)

83,82(3,300)

86,36(3,400)

88,90(3,500)

91,44(3,600)

93,98(3,700)

96,52(3,800)

99,06(3,900)

4,98(0,196)

7,52(0,296)

10,06(0,396)

12,60(0,496)

15,14(0,596)

17,68(0,696)

20,22(0,796)

22,76(0,896)

25,30(0,996)

27,84(1,096)

30,38(1,196)

32,92(1,296)

35,46(1,396)

38,00(1,496)

40,54(1,596)

43,08(1,696)

45,62(1,796)

48,16(1,896)

50,70(1,996)

53,24(2,096)

55,78(2,196)

58,32(2,296)

60,86(2,396)

63,40(2,496)

65,94(2,596)

68,48(2,696)

71,02(2,796)

73,56(2,896)

76,10(2,996)

78,64(3,096)

81,18(3,196)

83,72(3,296)

86,26(3,396)

88,80(3,496)

91,34(3,596)

93,88(3,696)

96,42(3,796)

98,96(3,896)

101,50(3,996)

Pin detail

T = Contact Plating

T =

Gold flash over 50µ” nickel

T =

10µ” gold over 50µ” nickel

Recommended Finish

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

CONEXCON

Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation

8340-3121 Related Products

	8340-3121	8340-3131	8340-3021	8340-3081	8340-3041	8340-3031	8340-3051
Description	IC Socket, SIP12, 12 Contact(s), 2.54mm Term Pitch, Solder	IC Socket, SIP13, 13 Contact(s), 2.54mm Term Pitch, Solder	IC Socket, SIP2, 2 Contact(s), 2.54mm Term Pitch, Solder	IC Socket, SIP8, 8 Contact(s), 2.54mm Term Pitch, Solder	IC Socket, SIP4, 4 Contact(s), 2.54mm Term Pitch, Solder	IC Socket, SIP3, 3 Contact(s), 2.54mm Term Pitch, Solder	IC Socket, SIP5, 5 Contact(s), 2.54mm Term Pitch, Solder
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
subject depth	0.167 inch	0.167 inch	0.167 inch	0.167 inch	0.167 inch	0.167 inch	0.167 inch
body length	1.196 inch	1.296 inch	0.196 inch	0.796 inch	0.396 inch	0.296 inch	0.496 inch
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN/LEAD	TIN/LEAD	TIN/LEAD	TIN/LEAD	TIN/LEAD	TIN/LEAD	TIN/LEAD
Contact material	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	SIP12	SIP13	SIP2	SIP8	SIP4	SIP3	SIP5
Shell material	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	8340	8340	8340	8340	8340	8340	8340
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	12	13	2	8	4	3	5
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Maker	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	-	-
Base Number Matches	1	1	1	1	1	-	-
