53291-1219 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53291-1219

53291-1219: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size70KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

53291-1219 Overview

Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking

53291-1219 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
body width	0.146 inch
subject depth	0.236 inch
body length	1.279 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	53291
Plug contact pitch	0.098 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	12
Base Number Matches	1

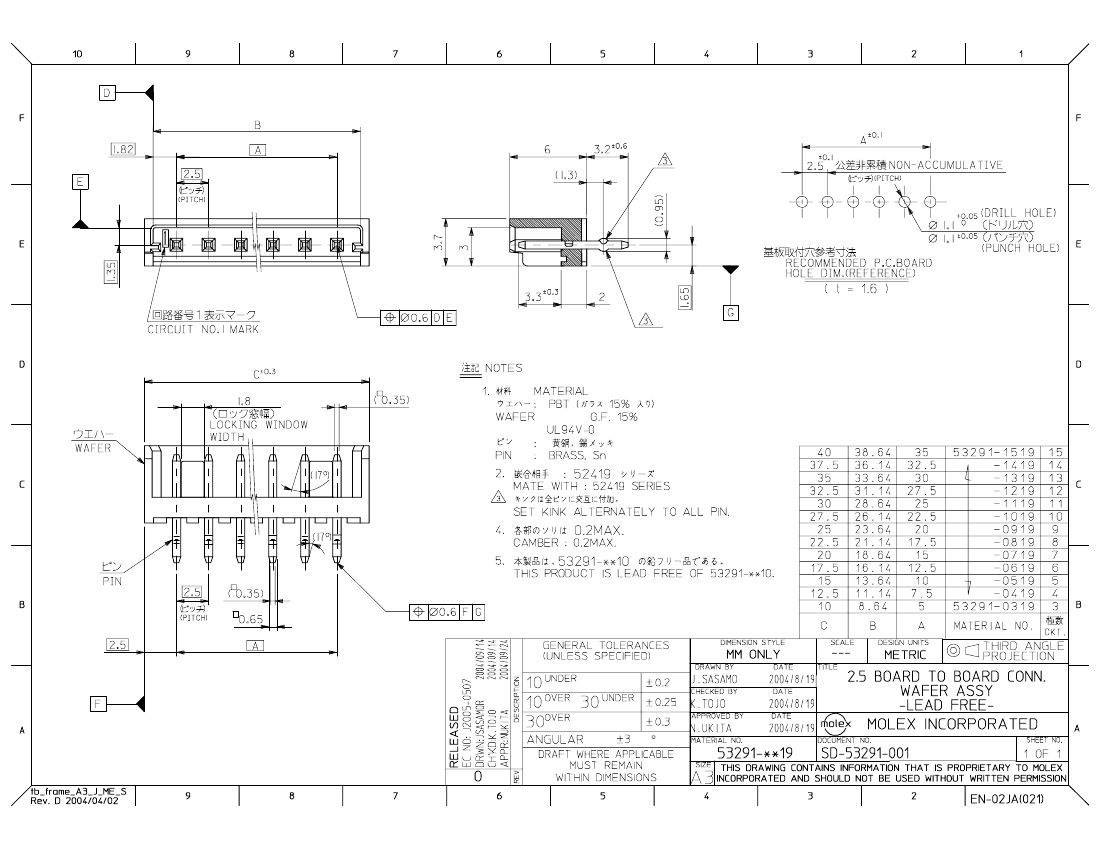

Preview

Download Datasheet

View All

53291-1219 Related Products

	53291-1219	53291-1519	53291-1319	53291-0519	53291-0419
Description	Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking	Board Connector, 15 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking	Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking	Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking	Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
body width	0.146 inch	0.146 inch	0.146 inch	0.146 inch	0.146 inch
subject depth	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch
body length	1.279 inch	1.575 inch	1.378 inch	0.591 inch	0.492 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	53291	53291	53291	53291	53291
Plug contact pitch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1
Number of rows loaded	1	1	1	1	1
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch
Terminal pitch	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	12	15	13	5	4
ECCN code	-	EAR99	EAR99	EAR99	EAR99
Objectid	-	-	313786144	313786136	313786135
