Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
1U low profile 30mm
Optional conformal coating models (RSP-200-
□
CC)
LED indicator for power on
3 years warranty
Bauar t gepruft
Sicherheit
egel ma ge
od
o s
be wac
g
www. tuv.com
ID 2000000000
S&E
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
VOLTAGE ADJ. RANGE
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
RSP-200-2.5
2.5V
40A
0 ~ 40A
100W
2.35 ~ 2.85V
±0.5%
±1.5%
8ms at full load
R33100
RoHS
RSP-200-3.3
3.3V
40A
0 ~ 40A
132W
100mVp-p
2.97 ~ 3.8V
±2.0%
±0.5%
±1.5%
230VAC /115VAC
RSP-200-4
4V
40A
0 ~ 40A
160W
100mVp-p
3.7 ~ 4.3V
±2.0%
±0.5%
±1.0%
RSP-200-5
5V
40A
0 ~ 40A
200W
150mVp-p
4.5 ~ 5.5V
±2.0%
±0.5%
±1.0%
RSP-200-7.5
7.5V
26.7A
0 ~ 26.7A
200.25W
150mVp-p
6 ~ 9V
±2.0%
±0.5%
±1.0%
RSP-200-12
12V
16.7A
0 ~ 16.7A
200.4W
150mVp-p
10 ~ 13.2V
±1.0%
±0.3%
±0.5%
RIPPLE & NOISE (max.)
Note.2
100mVp-p
VOLTAGE TOLERANCE
Note.3
±2.0%
1500ms, 50ms/230VAC
3000ms, 50ms/115VAC at full load
Note.4
88 ~ 264VAC
VOLTAGE RANGE
FREQUENCY RANGE
47 ~ 63Hz
124 ~ 370VDC
PF>0.98/115VAC at full load
84%
85.5%
2.5A/115VAC
89%
1.3A/230VAC
89%
POWER FACTOR (Typ.)
INPUT
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
LEAKAGE CURRENT
OVERLOAD
PROTECTION
OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
PF>0.95/230VAC
79.5%
2A/115VAC
20A/115VAC
<1mA / 240VAC
81.5%
1.1A/230VAC
40A/230VAC
105 ~ 135% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
2.88 ~ 3.5V
3.8 ~ 4.62V
4.5 ~ 5.6V
5.75 ~ 7V
9.4 ~ 10.9V
Protection type : Shut down o/p voltage, re-power on to recover
Shut down o/p voltage, recovers automatically after temperature goes down
-30 ~ +70
℃
(Refer to "Derating Curve")
13.8 ~ 16.2V
20 ~ 90% RH non-condensing
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
-40 ~ +85
℃
, 10 ~ 95% RH
TEMP. COEFFICIENT
±
0.03%/
℃
(0 ~ 45
℃
)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY STANDARDS
SAFETY & WITHSTAND VOLTAGE
ISOLATION RESISTANCE
EMC
(Note 5)
EMC EMISSION
EMC IMMUNITY
MTBF
OTHERS
NOTE
UL60950-1, TUV EN60950-1,
EAC TP TC 004,
CCC GB4943 .1, BSMI CNS14336-1 approved
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
℃
/ 70% RH
Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020, CNS13438,
GB9254
Class B
, GB17625.1
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A, EAC TP TC 020
224.5K hrs min.
MIL-HDBK-217F (25
℃
)
215*115*30mm (L*W*H)
0.72Kg; 15pcs/11.8Kg/0.78CUFT
DIMENSION
PACKING
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on
a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to
perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com)
6. For charging related applications, please consult Mean Well for details.
7. Strongly recommended that external output capacitance should not exceed 5000uF. (Only for: RSP-200-2.5/-3.3/-4/-5/-7.5/-12/-13.5/-15)
8. The ambient temperature derating of 3.5
℃
/1000m with fanless models and of 5
℃
/1000m with fan models for operating altitude higher than 2000m(6500ft).
File Name:RSP-200-SPEC 2018-11-05

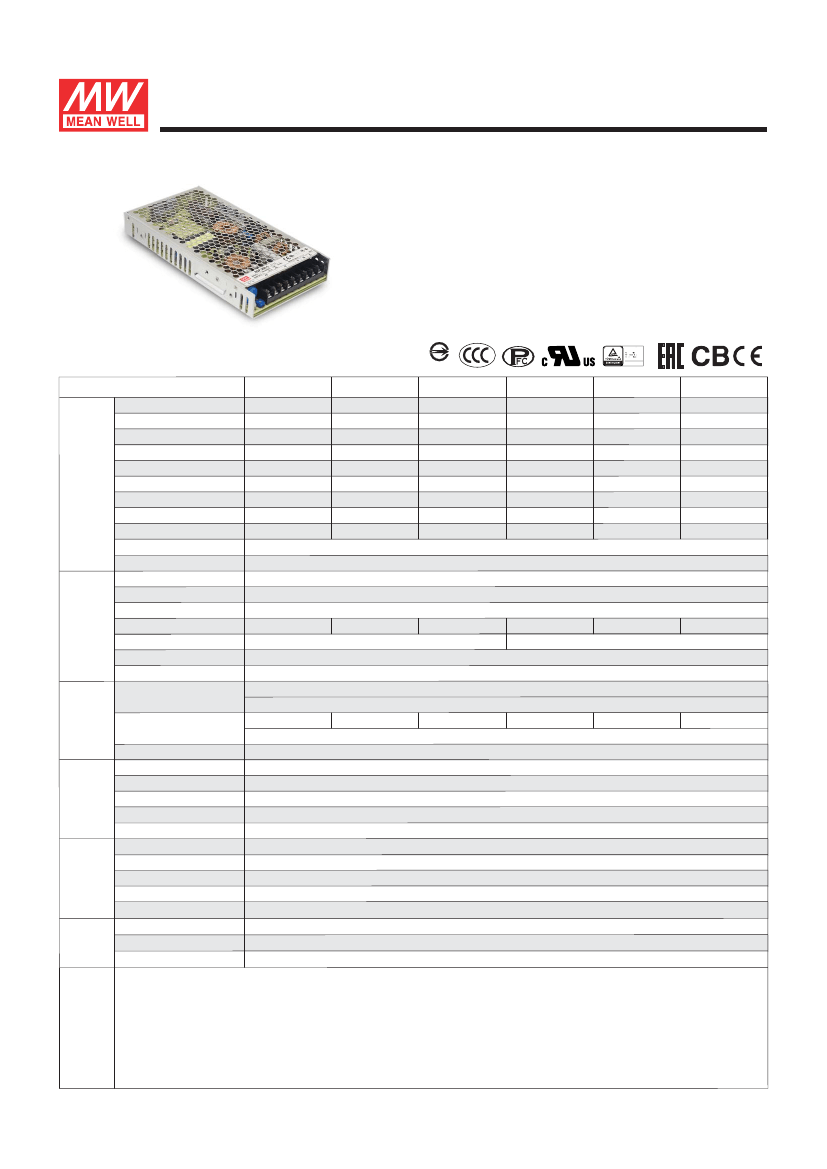

200W Single Output with PFC Function
RSP-200
series
■
Features :
Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 90%
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
1U low profile 30mm
Optional conformal coating models (RSP-200-
□
CC)
LED indicator for power on
3 years warranty
Bauar t gepruft
Sicherheit
egel ma ge
od
o s
be wac
g
www. tuv.com
ID 2000000000
S&E
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
VOLTAGE ADJ. RANGE
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
RSP-200-13.5
13.5V
14.9A
0 ~ 14.9A
201.15W
12 ~ 15V
±0.3%
±0.5%
8ms at full load
R33100
RoHS
RSP-200-15
15V
13.4A
0 ~ 13.4A
201W
150mVp-p
13.5 ~ 18V
±1.0%
±0.3%
±0.5%
230VAC /115VAC
RSP-200-24
24V
8.4A
0 ~ 8.4A
201.6W
150mVp-p
20 ~ 26.4V
±1.0%
±0.2%
±0.5%
RSP-200-27
27V
7.5A
0 ~ 7.5A
202.5W
200mVp-p
26 ~ 31.5V
±1.0%
±0.2%
±0.5%
RSP-200-36
36V
5.56A
0 ~ 5.56A
200.16W
220mVp-p
32.4 ~ 39.6V
±1.0%
±0.2%
±0.5%
RSP-200-48
48V
4.2A
0 ~ 4.2A
201.6W
240mVp-p
41 ~ 56V
±1.0%
±0.2%
±0.5%
RIPPLE & NOISE (max.)
Note.2
150mVp-p
VOLTAGE TOLERANCE
Note.3
±1.0%
1500ms, 50ms/230VAC
3000ms, 50ms/115VAC at full load
Note.4
88 ~ 264VAC
VOLTAGE RANGE
FREQUENCY RANGE
47 ~ 63Hz
124 ~ 370VDC
PF>0.98/115VAC at full load
89.5%
1.3A/230VAC
40A/230VAC
89.5%
89%
90%
90%
POWER FACTOR (Typ.)
INPUT
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
LEAKAGE CURRENT
OVERLOAD
PROTECTION
OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
PF>0.95/230VAC
89%
2.5A/115VAC
20A/115VAC
<1mA / 240VAC
105 ~ 135% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
15.7 ~ 18.4V
18.8 ~ 21.8V
27.6 ~ 32.4V
32.9 ~ 38.3V
41.4 ~ 48.6V
Protection type : Shut down o/p voltage, re-power on to recover
Shut down o/p voltage, recovers automatically after temperature goes down
-30 ~ +70
℃
(Refer to "Derating Curve")
58.4 ~ 68V
20 ~ 90% RH non-condensing
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
-40 ~ +85
℃
, 10 ~ 95% RH
TEMP. COEFFICIENT
±
0.03%/
℃
(0 ~ 45
℃
)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY STANDARDS
SAFETY & WITHSTAND VOLTAGE
ISOLATION RESISTANCE
EMC
(Note 5)
EMC EMISSION
EMC IMMUNITY
MTBF
OTHERS
NOTE
UL60950-1, TUV EN60950-1 ,
EAC TP TC 004,
CCC GB4943 .1, BSMI CNS14336-1 approved
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
℃
/ 70% RH
Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020, CNS13438,
GB9254
Class B
, GB17625.1
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A, EAC TP TC 020
224.5K hrs min.
MIL-HDBK-217F (25
℃
)
215*115*30mm (L*W*H)
0.72Kg; 15pcs/11.8Kg/0.78CUFT
DIMENSION
PACKING
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets
EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies.
(as available on http://www.meanwell.com)
6. For charging related applications, please consult Mean Well for details.
7. Strongly recommended that external output capacitance should not exceed 5000uF. (Only for: RSP-200-2.5/-3.3/-4/-5/-7.5/-12/-13.5/-15)
8. The ambient temperature derating of 3.5
℃
/1000m with fanless models and of 5
℃
/1000m with fan models for operating altitude higher than 2000m(6500ft).
