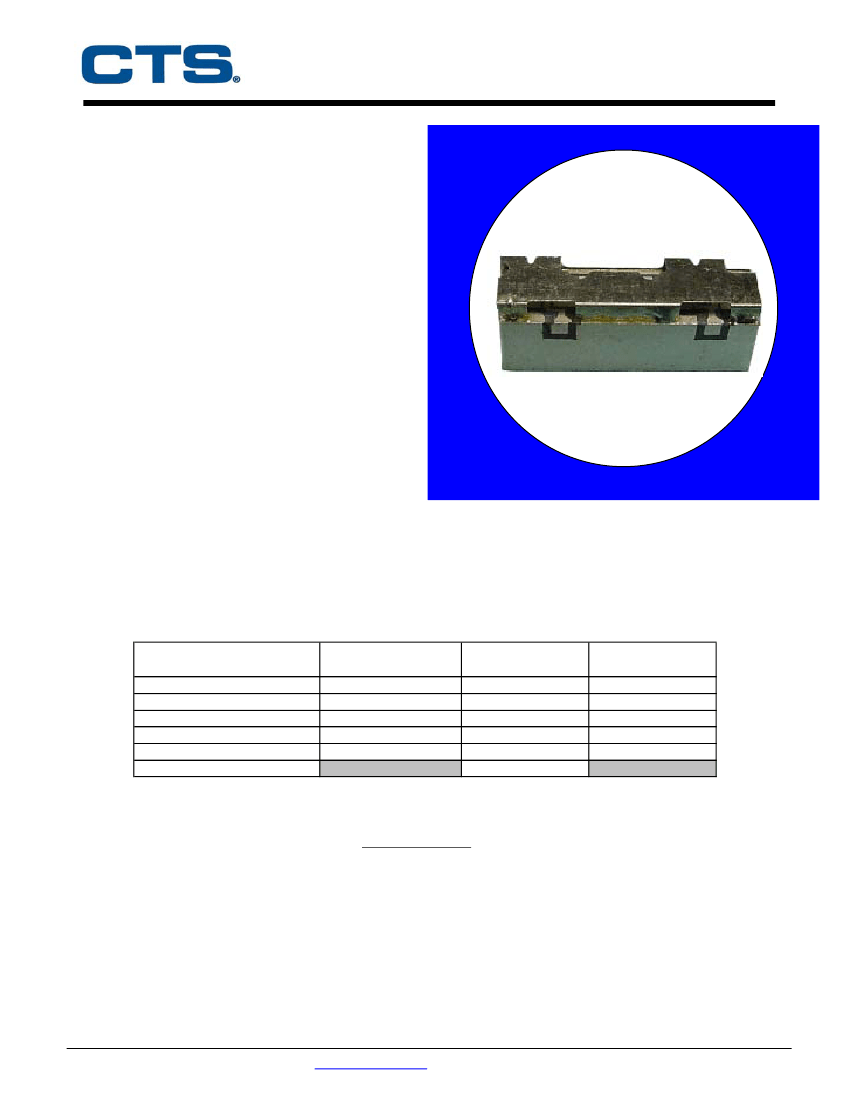

CER0171A
2140 MHz W-CDMA BPF
Rev 1 – Origin Date: July 11, 2005 – Revision Date: August 1, 2005
Features
• Extended Bandwidth
• Excellent Ripple
• High Rejection
Description
Surface mount, silver (Ag) coated ceramic
filter. Developed for use in W-CDMA
infrastructure applications.
Weight: 4.7 grams typical
Material: Filter is composed of a ceramic
block coated with Ag and a shield made of
nickel silver plated steel.
Filter complies with RoHS standards.
Electrical Specifications
Parameter
Passband Insertion Loss
Passband Ripple
Passband Return Loss
Attenuation:
Power into any port
Frequency (MHz) Typical @ 25ºC
2100 – 2180
1.85
2100 – 2180
0.8
2100 – 2180
15
2010
45
2210
36
2 Watt max.
Spec. over
-10ºC to +80ºC
2.4 dB max.
1.5 dB max.
10.0 dB min.
30.0 dB min.
30.0 dB min.
Note: Supplier shall test each filter to the critical electrical specifications of the above table. Any subsequent audits may deviate from in value due to measurement
repeatability among different test systems. Such deviations shall not exceed the following limits:
Specification Allowance
Insertion Loss
0.1 dB
Return Loss
1.0 dB
Stopbands
1.0 dB
•“This product is covered by one or more of the following U.S. and foreign patents including: US 4,692,726;US 4,742,562; US 4,800,348;US 4,829,274;US 5,146,193;EP 0573597;DE 0573597;FR 0573597;JP 508149/92;KR 142171;US 5,162,760;US
5,218,329;US 5,250,916;US 5,327,109;US 5,488,335;CA 2114029;FR 9306297;GB 2273393;JP 3205337;KR 115113;CN 93106228.4;US 5,512,866;EP 0706719;DE 0706719;FR 0706719;GB 0706719;CN 95190359.4;US 5,602,518;US
5,721,520;US 5,745,018;EP 0910875;DE 0910875;DK 0910875;FR 0910875;GB 0910875;IE 0910875;JP 505182/98;KR 10-323013;US 5,994,978;US 6,462,629;CN 00810420.4;US 6,559,735;US 6,650,202;US 6,834,429.Other US and foreign
patents pending.
•CTS Corporation 2006 reserves all copyrights in the layout, design and configuration of the patterns on this product.”
Document No. 008-0256-0
Page 1 of 2
Rev. X4VH
- CTS Electronic Components -
www.ctscorp.com
- 171 Covington Drive - Bloomingdale, IL 60108 -
