302002S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 302002S

302002S: DescriptionWire And Cable, 2 Conductor(s), 20AWG, 300V, Communication And Control Cable,; CategoryThe connector Connector bracket; File Size249KB，4 Pages; ManufacturerLapp Group; Environmental Compliance

Download Datasheet Parametric Compare View All

302002S Overview

Wire And Cable, 2 Conductor(s), 20AWG, 300V, Communication And Control Cable,

302002S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Lapp Group
Reach Compliance Code	compliant
ECCN code	EAR99
application	PROCESS CONTROL, ELECTRICAL EQUIPMENT, INDUSTRIAL MACHINERY
Certification	CSA; CUL; EAC; UL
conductor material	TINNED COPPER
Connector bracket type	WIRE AND CABLE
structure	STRANDED
diameter	6.3 mm
insulator material	POLYVINYL CHLORIDE
Jacket material	POLYVINYL CHLORIDE
Number of conductors	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Rated voltage	300 V
shield	YES
Wire gauge	20 AWG
Wire and Cable Names	COMMUNICATION AND CONTROL CABLE
Base Number Matches	1

Preview

Download Datasheet

View All

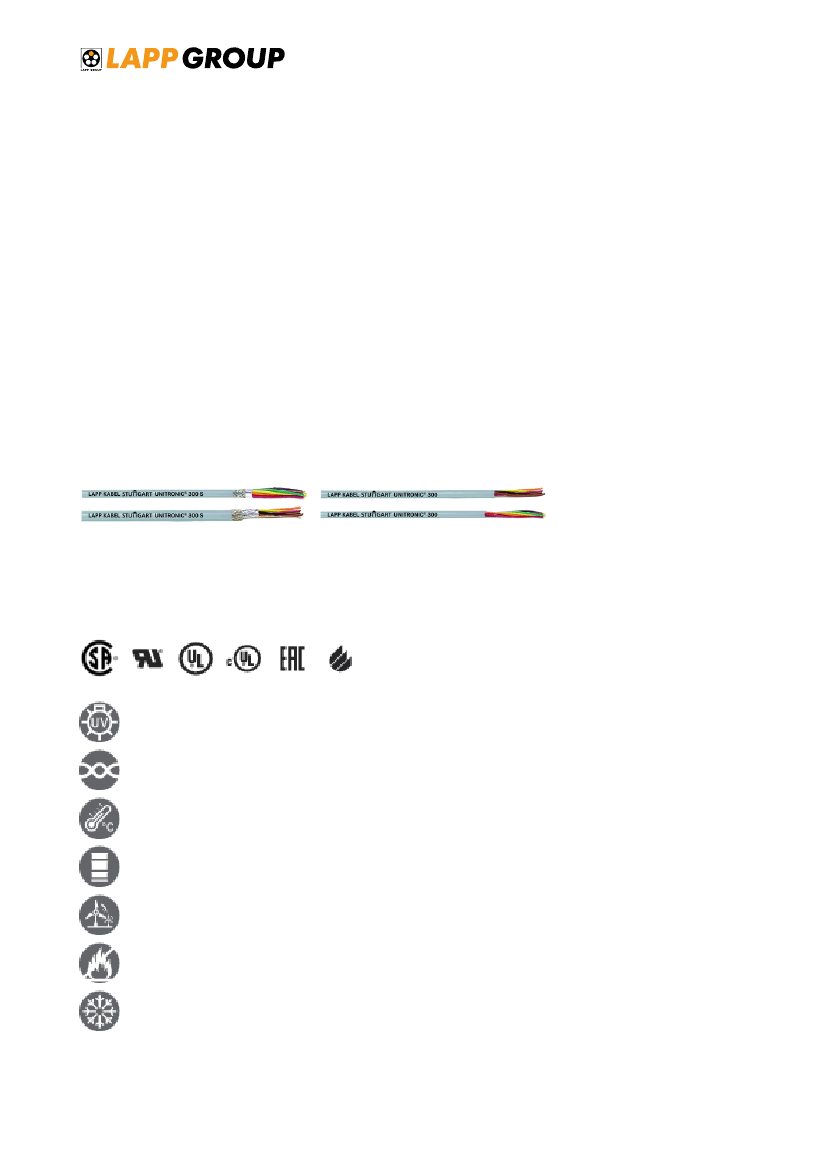

PRODUCT INFORMATION

UNITRONIC® 300 / UNITRONIC® 300 S

Control and signal cables with small cross sections - UL/CSA listed

UNITRONIC® 300/300 S: unscreened or screened Low-frequency PVC data cable, UL/CSA AWM, CMG, Further Tray Cable

listings for Cable tray installation, -25°C/105°C

Info

Designation of shielded version:

Formerly "UNITRONIC

300 CY",

now "UNITRONIC

300 S"

Other sizes on request

Especially for 20 AWG and 18 AWG: With standard core color code, up to 60 conductors producible/ With non-standard color

code, e.g., green-yellow grounding conductor, up to 100 cores

UV-resistant

Torsion-resistant

Temperature-resistant

Oil-resistant

Wind Energy

Flame-retardant

Cold-resistant

Last Update (22.11.2016)

Product Management www.lappkabel.de

You can find the current technical data in the corresponding data sheet.

PN 0456 / 02_03.16

PRODUCT INFORMATION

UNITRONIC® 300 / UNITRONIC® 300 S

Benefits

Wide application range due to multiple certifications

Cost-saving, easy installation due to omission of closed raceways (suitable for open wiring)

Application range

Control and signal cables for internal and external wiring

Process control; electrical equipment; industrial machinery; low-voltage control interconnect

For the North American market

Thanks to the DIRECT BURIAL approval, direct burial of versions with the nominal conductor cross sections 18 AWG and 16

AWG is normatively permitted in the USA

Product features

CMG (for USA and Canada) and PLTC (for USA) for tray use in North America (24 AWG has got no PLTC certification)

PLTC-ER & ITC-ER ("-ER" = Exposed Run: According to NEC/ NFPA 70 for unprotected transitions of the cable, each not

longer than 1.8 m or 6 ft., outside of trays and in the USA) for 18 AWG and 16 AWG

UV-resistant UL SUN RES

DIRECT BURIAL certification for 18 AWG & 16 AWG for normatively permitted, direct burial in the USA

Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Norm references / Approvals

UL: CMG per UL 444; PLTC-ER per UL 13 (18 AWG + 16 AWG); PLTC (not for 24 AWG); ITC-ER per UL 2250 (18 AWG + 16

AWG); UL AWM Style 2464

According to NEC/ NFPA 70, 2014 HANDBOOK, ARTICLE 501, II., 501.10, (B), (1), and apart from any kind of "Flexible

Connections", suitability for Class I, Division 2 in the USA, and that for all versions with ITC-ER as per NEC 2014 ARTICLE

727.4 and in conjunction with additional UL listed components as well as for all versions with PLTC or PLTC-ER in line with the

provisions of NEC 2014 ARTICLE 725 and in mandatory conjunction with tray use and additional, UL listed components

Canada: c(UL) CMG FT4, CSA AWM I/II A/B FT1

Oil-resistant according to UL OIL RES I

Product Make-up

Fine-wire strand made of tinned-copper wires

Core insulation made of PVC compound

UNITRONIC® 300 S: with overall foil tape wrapping, drain wire,

tin-plated copper braiding (75 % coverage)

Outer jacket: Specially Formulated PVC

Color of the outer jacket: Dark gray (similar to RAL 7005)

Last Update (22.11.2016)

Product Management www.lappkabel.de

You can find the current technical data in the corresponding data sheet.

PN 0456 / 02_03.16

302002S Related Products

	302002S	301606S	302004S	301802	301802S	301803S	302204
Description	Wire And Cable, 2 Conductor(s), 20AWG, 300V, Communication And Control Cable,	Wire And Cable, 6 Conductor(s), 16AWG, 300V, Communication And Control Cable,	Wire And Cable, 4 Conductor(s), 20AWG, 300V, Communication And Control Cable,	Wire And Cable, 2 Conductor(s), 18AWG, 300V, Communication And Control Cable,	Wire And Cable, 2 Conductor(s), 18AWG, 300V, Communication And Control Cable,	Wire And Cable, 3 Conductor(s), 18AWG, 300V, Communication And Control Cable,	Wire And Cable, 4 Conductor(s), 22AWG, 300V, Communication And Control Cable, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Lapp Group	Lapp Group	Lapp Group	Lapp Group	Lapp Group	Lapp Group	Lapp Group
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	PROCESS CONTROL, ELECTRICAL EQUIPMENT, INDUSTRIAL MACHINERY	PROCESS CONTROL, ELECTRICAL EQUIPMENT, INDUSTRIAL MACHINERY	PROCESS CONTROL, ELECTRICAL EQUIPMENT, INDUSTRIAL MACHINERY	PROCESS CONTROL, ELECTRICAL EQUIPMENT, INDUSTRIAL MACHINERY	PROCESS CONTROL, ELECTRICAL EQUIPMENT, INDUSTRIAL MACHINERY	PROCESS CONTROL, ELECTRICAL EQUIPMENT, INDUSTRIAL MACHINERY	PROCESS CONTROL, ELECTRICAL EQUIPMENT, INDUSTRIAL MACHINERY
Certification	CSA; CUL; EAC; UL	CSA; CUL; EAC; UL	CSA; CUL; EAC; UL	CSA; CUL; EAC; UL	CSA; CUL; EAC; UL	CSA; CUL; EAC; UL	CSA; CUL; EAC; UL
conductor material	TINNED COPPER	TINNED COPPER	TINNED COPPER	TINNED COPPER	TINNED COPPER	TINNED COPPER	TINNED COPPER
Connector bracket type	WIRE AND CABLE	WIRE AND CABLE	WIRE AND CABLE	WIRE AND CABLE	WIRE AND CABLE	WIRE AND CABLE	WIRE AND CABLE
structure	STRANDED	STRANDED	STRANDED	STRANDED	STRANDED	STRANDED	STRANDED
diameter	6.3 mm	9.9 mm	7.3 mm	6.1 mm	6.8 mm	7.3 mm	5 mm
insulator material	POLYVINYL CHLORIDE	POLYVINYL CHLORIDE	POLYVINYL CHLORIDE	POLYVINYL CHLORIDE	POLYVINYL CHLORIDE	POLYVINYL CHLORIDE	POLYVINYL CHLORIDE
Jacket material	POLYVINYL CHLORIDE	POLYVINYL CHLORIDE	POLYVINYL CHLORIDE	POLYVINYL CHLORIDE	POLYVINYL CHLORIDE	POLYVINYL CHLORIDE	POLYVINYL CHLORIDE
Number of conductors	2	6	4	2	2	3	4
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Rated voltage	300 V	300 V	300 V	300 V	300 V	300 V	300 V
shield	YES	YES	YES	NO	YES	YES	NO
Wire gauge	20 AWG	16 AWG	20 AWG	18 AWG	18 AWG	18 AWG	22 AWG
Wire and Cable Names	COMMUNICATION AND CONTROL CABLE	COMMUNICATION AND CONTROL CABLE	COMMUNICATION AND CONTROL CABLE	COMMUNICATION AND CONTROL CABLE	COMMUNICATION AND CONTROL CABLE	COMMUNICATION AND CONTROL CABLE	COMMUNICATION AND CONTROL CABLE
