470-040-0040H

Description
RF Connector, Female, Board Mount, Solder Terminal, Jack
CategoryThe connector    The connector
File Size67KB,3 Pages
ManufacturerWinchester Electronics
Download Datasheet Parametric View All

470-040-0040H Overview

RF Connector, Female, Board Mount, Solder Terminal, Jack

470-040-0040H Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
ECCN codeEAR99
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderFEMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial numberMMCX
Installation methodRIGHT ANGLE
Installation typeBOARD
Maximum operating frequency6 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeSOLDER
Base Number Matches1
MMCX:
MATERIALS:

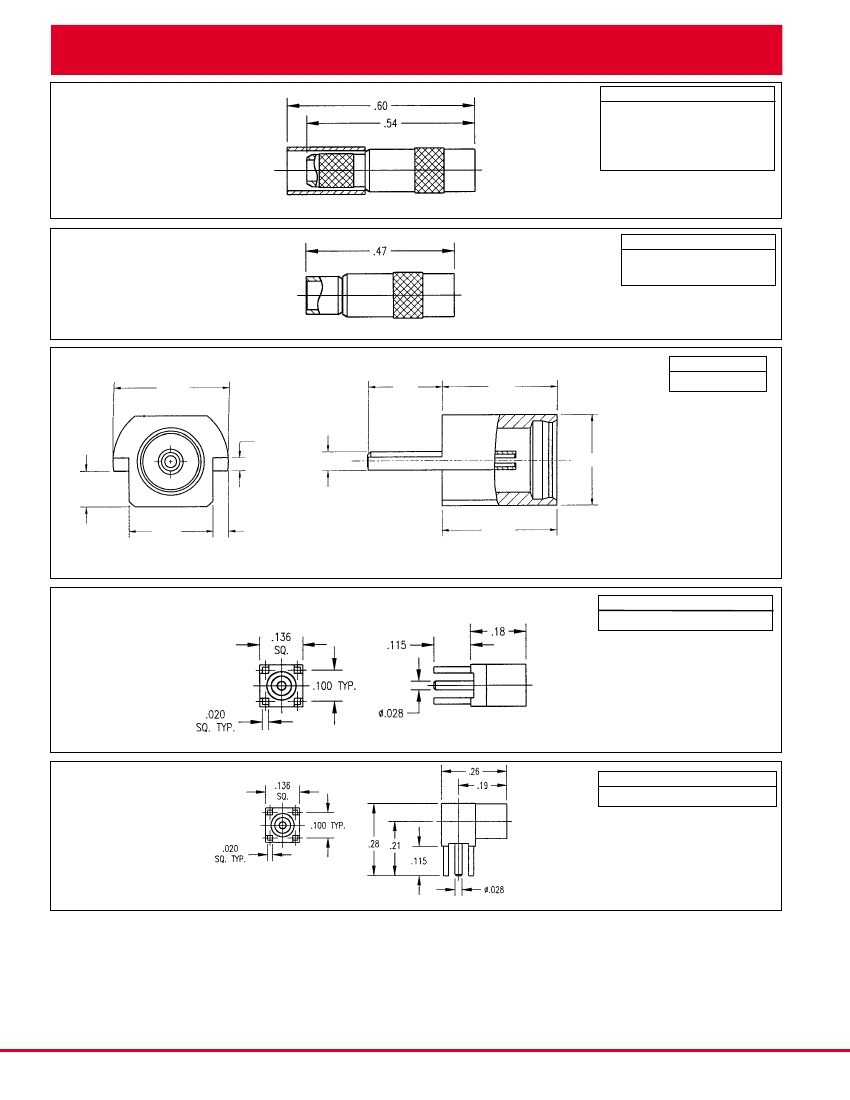

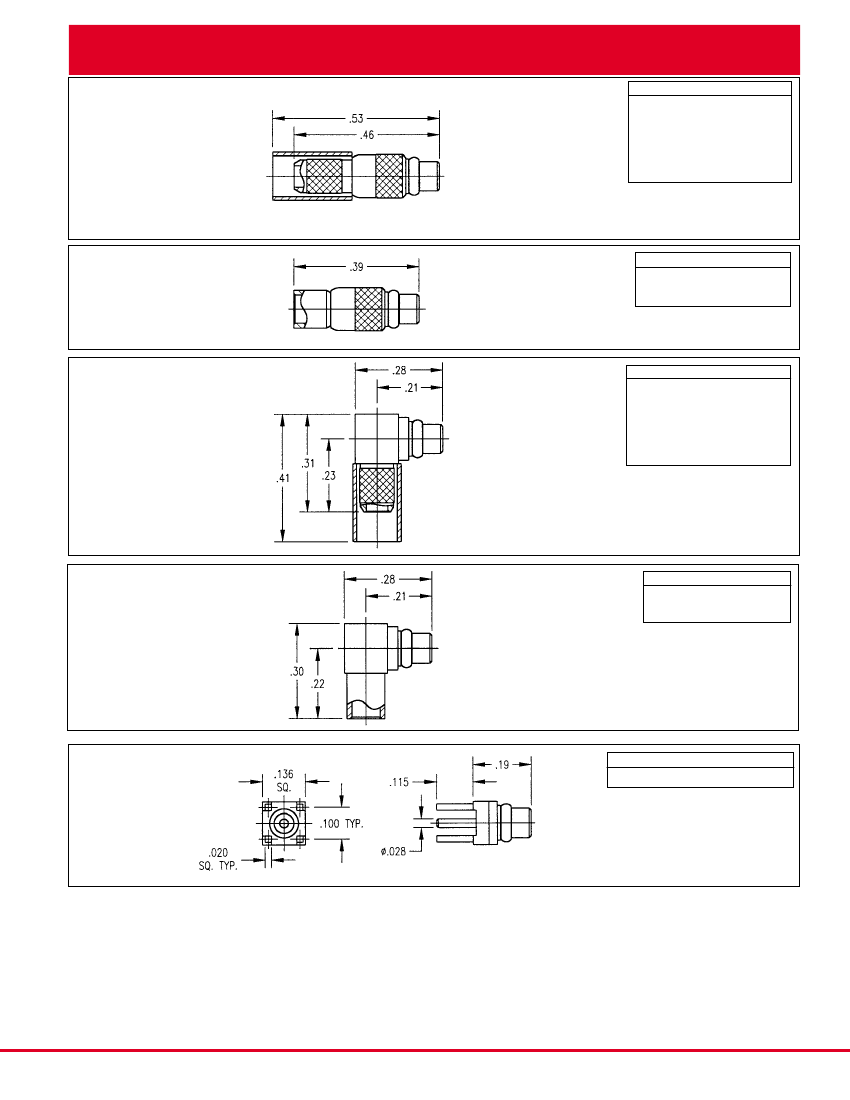

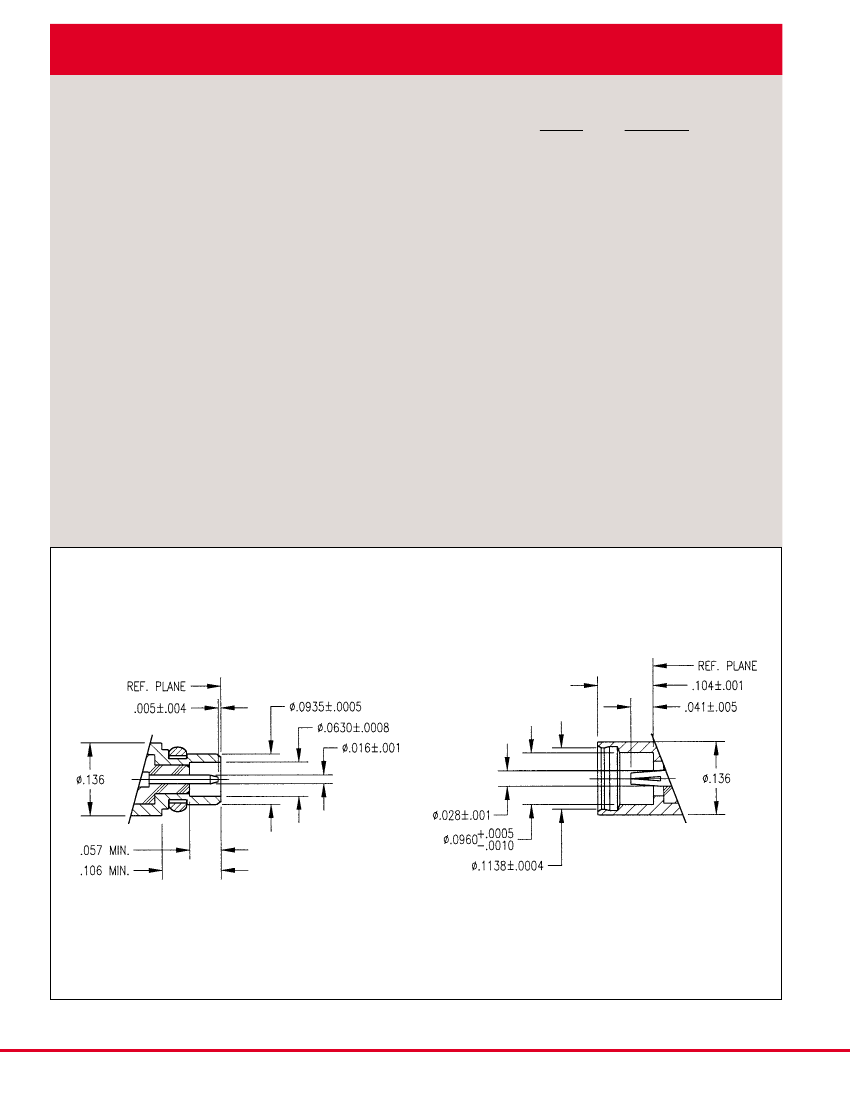

Specifications & Interface Dimensions
Electrical Continued
Voltage Standing Wave Ratio:
Straight
RG-196 Braided
RG-316 Braided
1.20+ .025F
1.20+ .02F
500
750
190 Minimum
250 Minimum
Plug Body, Body Components: Brass per ASTM B16
Receptacle Body, Body Components: Brass per ASTM
B16
Male and Female Contacts: Beryllium Copper per
ASTM B196
Spring Ring: Beryllium Copper per ASTM B196
Insulators: PTFE (Teflon) per ASTM B196
Crimp Ferrule: Annealed Copper Alloy
Finish:
Center Contacts: Gold Plated per MIL-G-45204
Other Metal Parts: Gold or Nickel Plated to Meet the
Corrosion Requirements of CECC 22340
Right Angle
1.25+ .03F
1.25+ .03F
Dielectric Withstanding Voltage (DWV): @ Sea Level
Connectors For RG-196
Connectors For RG-316
Corona Level: Volts @ 70K Ft
Connectors For RG-196
Connectors For RG-316
RF High Potential Withstanding Voltage
Frequency: 5 MHz
Leakage Current: N/A
Connectors For RG-196
Connectors For RG-316
400 VRMS
600 VRMS
MATING CHARACTERISTICS
Engagement Forces: 3.4 lbs. Maximum
Disengagement Forces: 1.4 lbs. Minimum
Durability: 500 Cycles
Contact Captivation: 2.3 lbs. Minimum
R.F. Leakage: -55 dB Minimum @ 1 GHz
ENVIRONMENTAL
Temperature Rating: -65ºC to +165ºC
Corrosion (Salt Spray): MIL-STD-202, Method 101, Condition B.
Vibration, High Frequency: MIL-STD-202, Method 204,
Condition D.
Shock: MIL-STD-202, Method 102, Test Condition C.
ELECTRICAL
Impedance: 50 Ohms Nominal
Frequency Range: 0 to 6.0 GHz
Insulation Resistance: 5000 Megohms Minimum
Contact resistance: (Milliohms Maximum)
Center Contact
Outer Contact
5.0
2.5
Note: Dimensions shown in inches.
Winchester/Retconn
RF/50
400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950• Internet: http://www.litton-wed.com
