B-Series
B-Series
CIRCUIT BREAKER
Carling Technologies’ B-Series hydraulic magnetic circuit breakers are specifically designed for applications
requiring extra insulation and tongue and groove half-shell constructions. The B-Series carries global regulatory
safety approvals for spacing requirements and are ideal for use as general purpose as well as full load amp
applications. Available with various choices of time delays, terminals, actuator styles, with a wide range of
standard colors and imprinting.
1-6 poles; ratings from 0.02 to 50 amps, up to 277VAC or 80VDC; UL recognized, CSA, VDE -0642, TUV,
UL-1500, UL489A Listed
Product Highlights:
Meet CSA Standard 22.2 No. 100 for the
Generator & Welder markets
Extra insulation and tongue & groove half-shell
constructions
UL Recognized - UL Standard 508, 1077, 1500
UL Listed - UL Standard 489, 489A
CSA Accepted
TUV Certified
VDE Certified
Typical Applications:
Power Supplies
Medical Equipment
Generators & Welders
Office Equipment
Control Panels
Marine
Military
Carling Technologies, Inc.
60 Johnson Avenue, Plainville, CT
06062
Email:
sales
@
carlingtech.com
Application Support:
team2
@
carlingtech.com
Phone:
860.793.9281
Fax:
860.793.9231
www.carlingtech.com
2 |
B-Series Circuit Breaker - General Specifications
Electrical
277VAC 50/60 Hz, 80VDC
Standard current coils: 0.100,
0.250, 0.500, 0.750, 1.00, 2.50,
5.00, 7.50, 10.0, 15.0, 20.0, 25.0,
30.0, 35.0, 40.0 and 50.0 amps.
Other ratings available, see
ordering scheme.
Standard Voltage Coils DC - 6V, 12V; AC - 120V, other
ratings available, see ordering
scheme.
Auxiliary Switch Rating SPDT; 10.1 AMPS - 250VAC,1.0A
65 VDC or 0.5A 80 VDC, 0.1 Amps
- 125VAC (with gold contacts).
VDE-1.0 Amp - 125VAC.
Insulation Resistance
Minimum of 100 Megohms at 500
VDC.
Dielectric Strength
UL, CSA-1500 V 50/60 Hz for one
minute between all electrically
isolated terminals. B-Series circuit
breakers comply with the 8mm
spacing and 3750V 50/60 Hz
dielectric requirements from
hazardous voltage to operator
accessible surfaces, between
adjacent poles and from main
circuits to auxiliary circuits per
Publications EN 60950 and VDE
0805.
Resistance, Impedance Values from Line to Load Terminal
- based on Series Trip Circuit
Breaker.
RESISTANCE PER POLE VALUES
from Line to Load Terminals
(Values Based on Series Trip Circuit Breaker)
Maximum Voltage
Current Ratings
Endurance
Trip Free
Mechanical
Trip Indication
10,000 ON-OFF operations @ 6 per
minute; with rated Current and
Voltage.
All B-Series Circuit Breakers will
trip on overload, even when Handle
is forcibly held in the ON position.
The operating Handle moves
positively to the OFF position when
an overload causes the breaker to
trip.
Number of Poles
Internal Circuit Config.
Physical
Weight
Standard Colors
1 - 6 poles at 30 Amps or less. 1
and 2 poles at 31 Amps thru 50
Amps.
Series, (with or without auxiliary
switch), Shunt and Relay with
current or voltage trip coils, Dual
Coil, Switch Only (with or without
auxiliary switch).
Approximately 65 grams/pole.
(Approximately 2.32 ounces/pole.)
Housing- Black; Actuator - See
Ordering Scheme.
Environmental
Shock
Designed and tested in accordance with requirements of
specification MIL-PRF-55629 & MIL-STD-202 as follows:
CURRENT
(AMPS)
TOLERANCE
(%)
0.10 - 5.0
5.1 - 20.0
20.1 - 50.0
15
25
35
Pulse Tolerance Curves
Withstands 100 Gs, 6ms, sawtooth
while carrying rated current per
Method 213, Test Condition “I”.
Instantaneous and ultra-short
curves tested @ 90% of rated
current.
Vibration
Withstands 0.060” excursion from
10-55 Hz, and 10 Gs 55-500 Hz,
at rated current per Method 204C,
Test Condition A. Instantaneous
and ultrashort curves tested at 90%
of rated current.
Moisture Resistance
Method 106D, i.e., ten 24-hour
cycles @ + 25°C to +65°C, 80-98%
RH.
Salt Spray
Method 101, Condition A (90-95%
RH @ 5% NaCl Solution, 96 hrs).
Thermal Shock
Method 107D, Condition A (Five
cycles @ -55°C to +25°C to +85°C
to +25°C).
Operating Temperature -40° C to +85° C
*Manufacturer reserves the right to change product specification without prior notice.
Email: sales
@
carlingtech.com Application Support: team2@carlingtech.com
Phone: (860) 793–9281 Fax: (860) 793–9231
www.carlingtech.com
4 |
B-Series Circuit Breaker - General Specifications

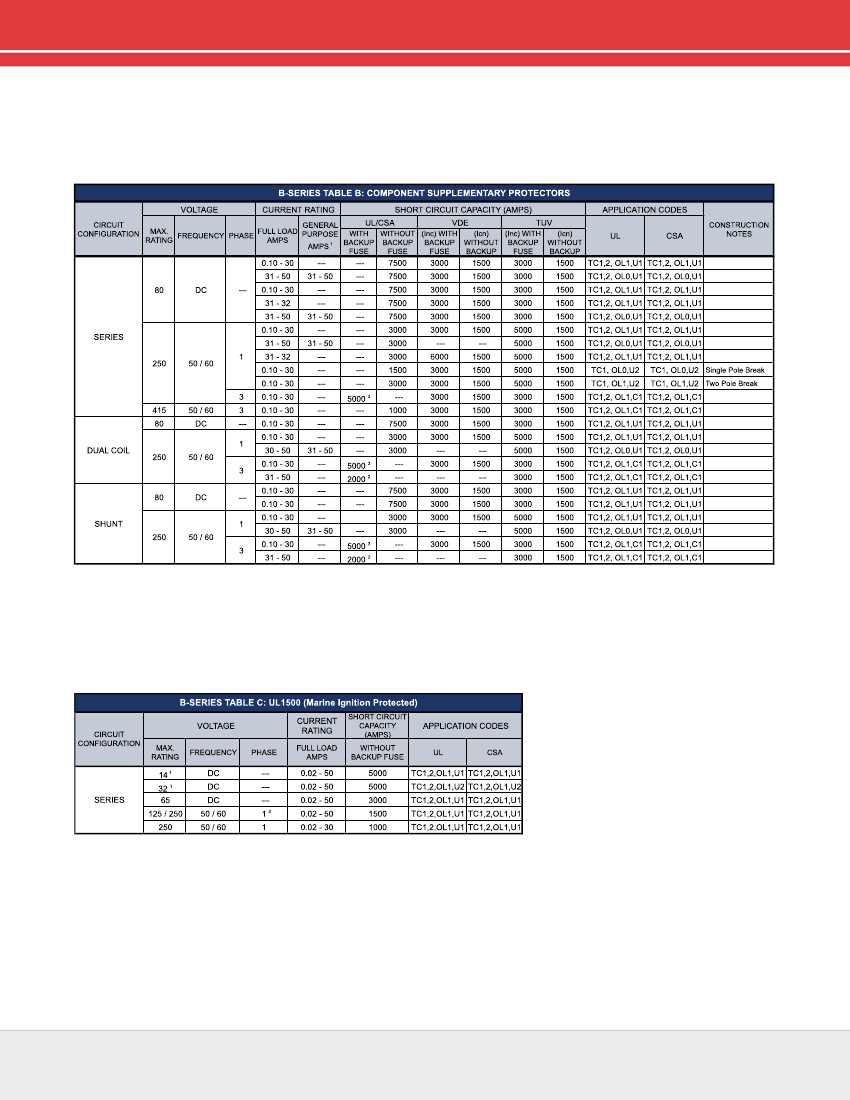

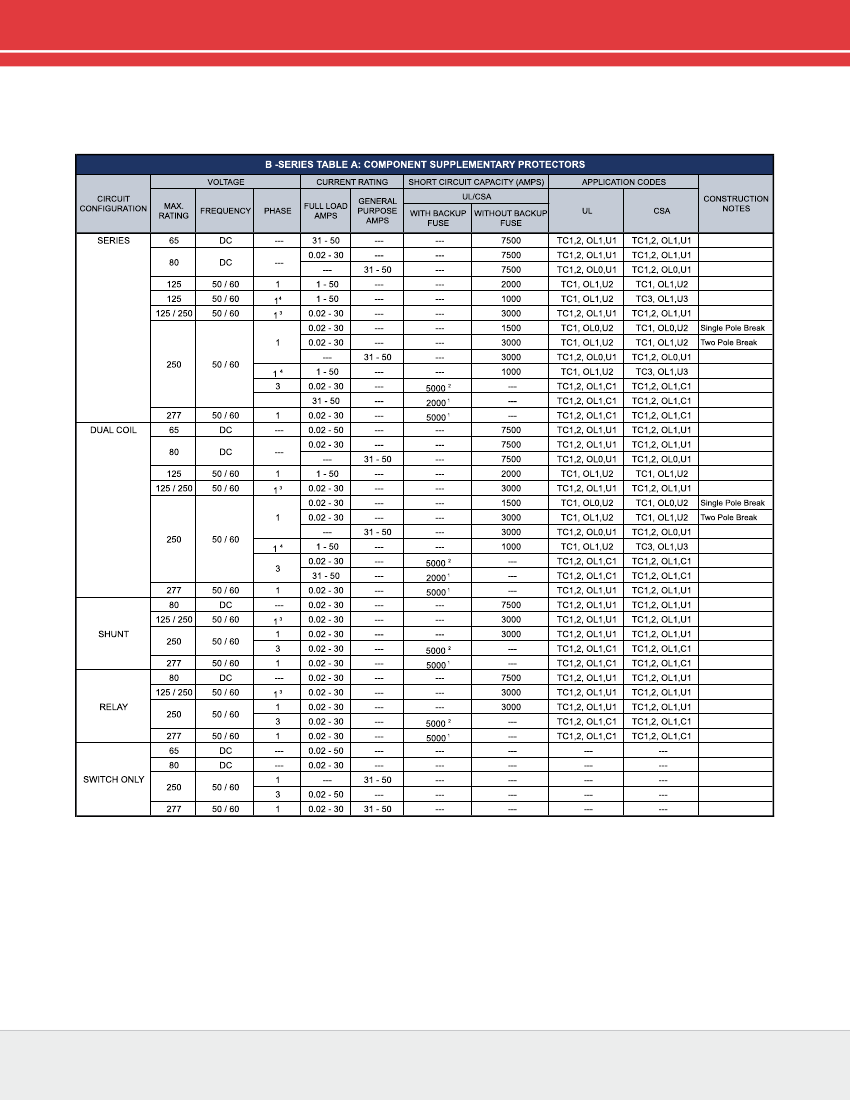

Electrical Tables
Table B:
Lists UL Recognized, CSA, VDE & TUV Certified configurations & performance capabilities as a Component Supplementary
Protector.
Notes:
1
General Purpose Ratings for UL/CSA Only.
2
Requires branch circuit backup with a UL LISTED Type K5 or RK5 fuse (15A minimum) at no more than 4 times the rating of the protector.
3
Same as note 1, except that backup fuse is limited to 80 A maximum.
Table C:
Lists UL Recognized, CSA Certified configurations and performance capabilities as Protectors, Supplementary for Marine
Electrical and Fuel Systems (CCN/Guide PEQZ2, File E75596). Ignition Protected per UL 1500. UL Classified Small Craft Electrical Devices,
Marine in accordance with ISO 8846 (CCN/Guide UZMK, File MQ1515) as Marine Supplementary Protectors.
Notes:
1
Available with special catalog number only (consult factory).
2
2 pole protector required (with one pole per power line) for: 250/125 VAC, 125/250 VAC and 208Y/120 VAC Power Systems. 1 pole protector required for : 125 VAC, 1Ø Power System.
Email: sales
@
carlingtech.com Application Support: team2@carlingtech.com
Phone: (860) 793–9281 Fax: (860) 793–9231
www.carlingtech.com
B-Series Circuit Breaker - General Specifications
| 5
Table D:
Lists UL Listed configurations and performance capabilities as Circuit Breakers for use in Communications Equipment (CCN/
Guide DITT, File E189195), under UL489A
Notes:
1
Parallel Pole Construction
Table E:
Lists UL Listed (489) configuration and performance capabilities as a Molded Case Circuit Breaker.
B SERIES TABLE E : UL489 LISTED BRANCH CIRCUIT BREAKERS
VOLTAGE
CIRCUIT
CONFIGURATION MAX. RATING FREQUENCY PHASE
CURRENT RATING
INTERRUPTING
CAPACITY (AMPS)
CONSTRUCTION NOTES
FULL LOAD AMPS
WITHOUT BACKUP
FUSE
120
SERIES
50 / 60
50 / 60
50 / 60
50 / 60
50 / 60
50 / 60
1
1
1
1
1
1
0.10 - 30
0.10 - 30
0.10 - 30
0.10 - 30
0.10 - 30
0.10 - 30
5,000
5,000
5,000
5,000
5,000
5,000
1 Pole
2 Poles
2 or 3 Poles (1 Pole of a 3 Pole Unit is for Neutral Break)
1 Pole
2 Poles
2 or 3 Poles (1 Pole of a 3 Pole Unit is for Neutral Break)
120 / 240
120 / 240
120
SHUNT TRIP
DUAL COIL
120 / 240
120 / 240
Agency Certifications
UL Recognized
UL Standard 1077
Component Recognition Program
as Protectors Supplementary
(Guide CCN/QVNU2, File E75596)
Switches, Industrial Control
(Guide CCN/NRNT2, File E148683)
Protectors, Supplementary for
Marine Electrical & Fuel Systems
(Guide PEQZ2, File E75596)
Ignition Protection
Circuit Breakers, Molded Case,
(Guide DIVQ, File E129899)
Communications Equipment
(Guide CCN/DITT, File E189195)
CSA Accepted
Component Supplementary
Protector under Class 3215 30,
FIle 047848 0 000 CSA
Standard C22.2 No. 235
EN60934, under License No.
R72103448
EN60934, VDE 0642 under File
No. 10537
UL Standard 508
UL Standard 1500
TUV Certified
VDE Certified
UL Listed
UL Standard 489
UL Standard 489A
Email: sales
@
carlingtech.com Application Support: team2@carlingtech.com
Phone: (860) 793–9281 Fax: (860) 793–9231
www.carlingtech.com
