7062022101000

Description
Board Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Receptacle
CategoryThe connector    The connector
File Size202KB,2 Pages
ManufacturerW+P Products GmbH
Download Datasheet Parametric View All

7062022101000 Overview

Board Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Receptacle

7062022101000 Parametric

Parameter NameAttribute value
MakerW+P Products GmbH
Reach Compliance Codecompliant
Board mount optionsPEG
body width0.174 inch
subject depth0.128 inch
body length0.566 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1400VAC V
Insulation resistance10000000000 Ω
insulator materialTHERMOPLASTIC
Manufacturer's serial number7062
Plug contact pitch0.05 inch
Match contact row spacing0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing5.2578 mm
Plating thickness10u inch
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch1.27 mm
Termination typeSURFACE MOUNT
Total number of contacts22
Base Number Matches1
7062
SMT Stiftleisten RM 1,27 x 2,54mm - 2-reihig - Präzisionskontakt
SMT Pin Header Strips - Pitch 1,27x2,54mm - Double Row - Screw Machined Contact
Technische Daten /Technical
Data
Isolierkörper
Thermoplastischer Kunststoff, nach UL94 V-0
Insulator
Thermoplastic, rated UL94 V-0
Kontaktmaterial
Rundstift Ø 0,43mm, Messing gedreht
Contact Material
Round pin Ø 0,43mm, screw machined brass
Kontaktoberfläche
Lt. Oberflächenoptionen, über Ni (1,3 ... 2,5µm)
Contact Surface
Acc. to options (see below), over Ni (1,3 ... 2,5µm)
Lötbarkeit
IEC512-12A
Solderability
IEC512-12A
Durchgangswiderstand
< 20mΩ
Contact Resistance
< 20mΩ
10
Isolationswiderstand
> 10
10
Insulation Resistance
> 10
Spannungsfestigkeit
1000V
RMS
Test Voltage
1000V
RMS
Nennstrom
1A
Current Rating
1A
Temperaturbereich
-55°C ... +125°C
Temperature Range
-55°C ... +125°C
Verarbeitung
Reflow-Lötverfahren; weitere Informationen in Kapitel T
Processing
Reflow-soldering, detailed information in ch. T

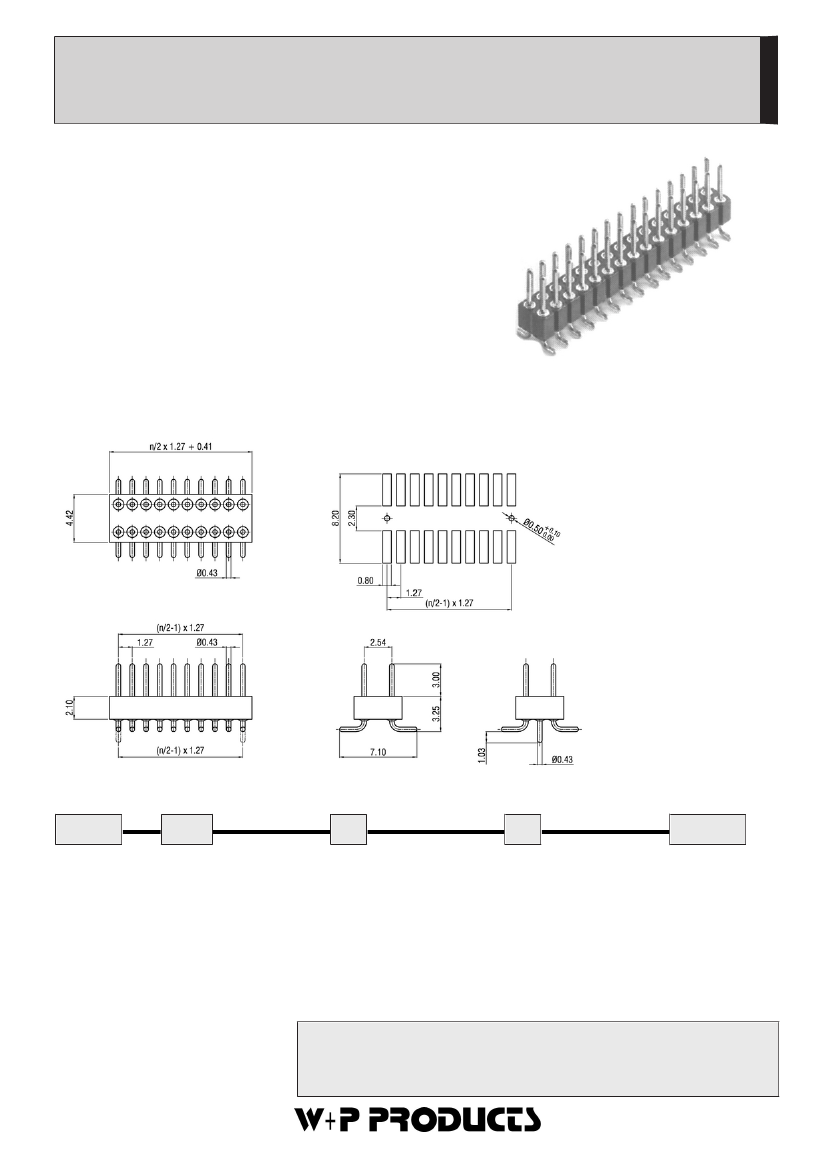

Abb. ähnlich; bitte Zng. beachten
Img. similar; plese refer to drawing for actual
layout
Passende Buchsenleisten Serie:
Mates with Female Headers Series:
1552
Series
Contacts
*
Plating
Locating Peg
*
Packing
*
7062
100
004-100
Zweireihig
Double row
10
10
0,25µm Gold
0,25µm gold plated
00
00
Ohne Pos.hilfe
W/o loc. peg
10
Mit Pos.hilfe
With loc. peg
PPST
00
ST
PPST
(PPTR)
(
*
Bestellbeispiel - Bitte durch Ihre
Spezifikationen ersetzen.
*
Order example - To be replaced by your
specifications.)
TEL.: +49 5223 98507-0
FAX.: +49 5223 98507-50
Lieferformen /
Packing Options:
00
= Schüttgut ohne PP-Pad /
Bulk good w/o PP-Pad
ST
= In Stangen ohne PP-Pad /
In tubes w/o PP-Pad
PPST
= In Stangen mit PP-Pad /
In tubes with PP-Pad
(PPTR)
= Tape & Reel auf Anfrage /
Tape & Reel by request
E-MAIL: sales@wppro.com
INTERNET: www.wppro.com
