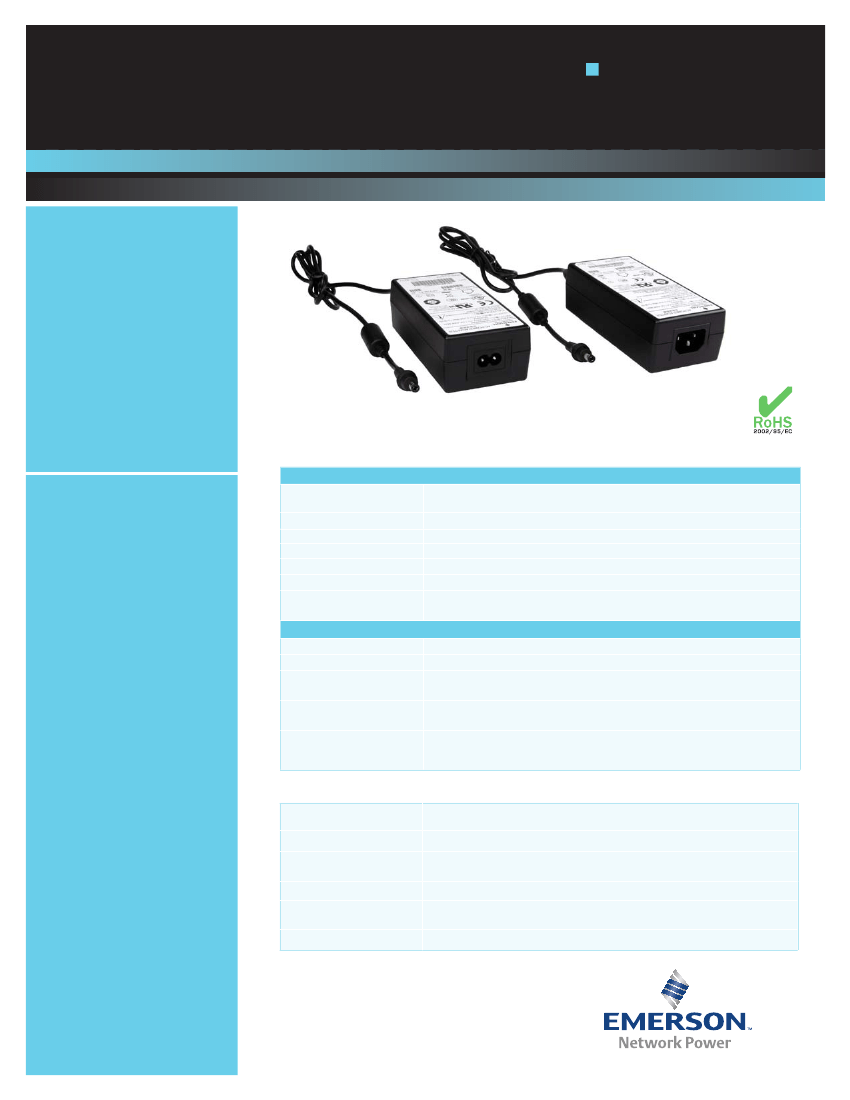

DP40
40 Watts
Total Power:
Input Voltage:
# of Outputs:
40 Watts
90 - 264 Vac
127 - 300 Vdc
Single
Rev. 03.31.11_75
DP40
1 of 2
Electrical Specifications
Input
Special Features
• Medical and ITE safeties
• Universal AC input
• Fully regulated output
• Overload and short circuit
protection
• Constant voltage
• High efficiency
• High MTBF
• IEC320 AC input receptacle
3 pin (type C14) Class I
2 pin (type C8) Class II
• Built in EMI filter
(CISPR 22 Class B)
• LED power good indicator
• Input power < 49 watts
• Complies with EN61000-3-2
• Meets Energy Star Efficiency
Level V
• CE Mark EMC, LVD & ErP 2011
• Less than 300 mW No-Load
power consumption
Input ra nge:
Frequency:
Inrush current:
Input current:
Efficiency:
EMI/RFI:
Safety ground
leakage current:
90 - 264 Vac (wide range)
127 - 300 Vdc
47 - 63 Hz
< 50A @ 230 Vac, cold start @ 25 °C
< 0.5 A rms @ 115 Vac; < 0.25 A @ 230 Vac
84% @ full load typical, @115 Vac
FCC Part 15, Subpart B Class B & EN55022 (CISPR 22) Class B
300 µA @ 50/60 Hz, 264 Vac input for 3 pin model
100 µA @ 50/60 Hz, 264 Vac input for 2 pin model
40 W
10 ms. typical at full load @ 115 Vac
20% - 45% above nominal output maximum
Latching type, recycle AC to reset.
Output short circuit protection auto recover
Overload protected @ 110 - 160% above peak rating
1.2 m DC cable with 2.5 mm I.D, 5.5 mm O.D center plug
DC plug center +v
DC plug outer -v
Output
Maximum Power (Po):
Hold-up time:
Overvoltage protection:
Overload protection:
Cable/connector:
Environmental Specifications
Operating temperature:
Storage temperature:
Electromagnetic
susceptibility:
Humidity:
Vibration:
MTBF demonstrated:
0 ° to +40 °C ambient. Derate each output as 2.5% per degree from
40 °C to 60 °C. -20 °C start up
-40 °C to +85 °C
Designed to meet EN61000-4, -2, -3, -4, -5, -6, -8, -11, Level 3
Operating; non-condensing 10% to 90% RH
Three orthogonal axes, 3 sweeps per axe at 1 oct/min. 2G peak 8Hz
to 500Hz, operational
> 550,000 hours at full load and 25 °C ambient conditions
Safety
• UL
• cUL
• TUV
• CE
• CB
• CCC
60950-1, 60601-1
60950-1, 60601-1
60950-1, 60601-1
EMC, LVD & ErP 2011
Certificate and report
China Approval
Embedded Power for
Business-Critical Continuity
Ordering Information
Model Number Output Voltage Maximum Load
Peak Load
1
Regulation
2
Ripple
P/P (PARD)
3
DP4009N2M
9 V
4.44 A
5.4 A
± 8%
90 mV
DP4009N3M
9 V
4.44 A
5.4 A
± 8%
90 mV
DP4012N2M
12 V
3.33 A
4.4 A
± 5%
120 mV
DP4012N3M
12 V
3.33 A
4.4 A
± 5%
120 mV
DP4015N2M
15 V
2.67 A
3.5 A
± 5%
150 mV
DP4015N3M
15 V
2.67 A
3.5 A
± 5%
150 mV
DP4018N2M
18 V
2.22 A
3.0 A
± 5%
150 mV
DP4018N3M
18 V
2.22 A
3.0 A
± 5%
150 mV
DP4024N2M
24 V
1.67 A
2.2 A
± 5%
240 mV
DP4024N3M
24 V
1.67 A
2.2 A
± 5%
240 mV
DP4048N2M
48 V
0.84 A
1.2 A
± 5%
480 mV
DP4048N3M
48 V
0.84 A
1.2 A
± 5%
480 mV
1. Peak current lasting < 15 seconds with a maximum 10% duty cycle.
2. At 25 ºC including initial tolerance, line voltage, load currents and output voltages adjusted to factory settings.
3. Peak-to-peak with 20 MHz bandwidth and 10 µF (tantalum capacitor) in parallel with a 0.1 µF capacitor at rated line
voltage and load ranges.
Americas
5810 Van Allen Way
Carlsbad, CA 92008
USA
Telephone: +1 760 930 4600
Facsimile: +1 760 930 0698
Rev. 03.31.11_75
DP40
2 of 2
Europe (UK)
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
Telephone: +44 (0) 1384 842 211
Facsimile: +44 (0) 1384 843 355
Asia (HK)

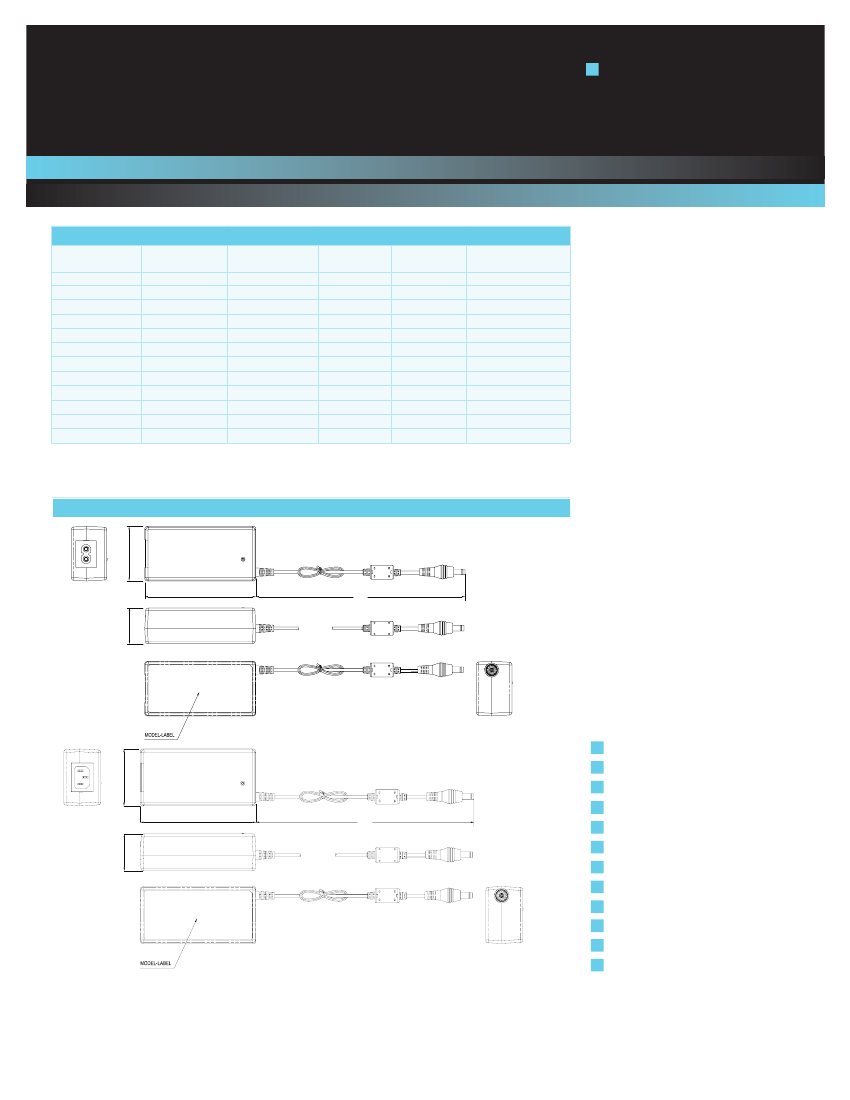

Mechanical Drawing
2.4"
(61.0)
14/F, Lu Plaza
2 Wing Yip Street
Kwun Tong, Kowloon
Hong Kong
Telephone: +852 2176 3333
Facsimile: +852 2176 3888
For global contact, visit:
www.Emerson.com/EmbeddedPower
4.88"
(124.0)
48"
(1219 ± 20)
techsupport.embeddedpower
@emerson.com
While every precaution has been taken to ensure
accuracy and completeness in this literature, Emerson
Network Power assumes no responsibility, and disclaims
all liability for damages resulting from use of this
information or for any errors or omissions.
1.55"
(39.5)
Emerson Network Power.
The global leader in enabling
business-critical continuity.
AC Power
2.4"
(61.0)
Connectivity
DC Power
4.88"
(124.0)
48"
(1219 ± 20)
Embedded Computing
Embedded Power
Monitoring
Outside Plant
Power Switching & Controls
Precision Cooling
Racks & Integrated Cabinets
Services
Surge Protection
EmersonNetworkPower.com
Emerson Network Power and the Emerson
Network Power logo are trademarks and
service marks of Emerson Electric Co.
©2011 Emerson Electric Co.
Notes:
1. Specifications subject to change without notice.
2. All dimensions in inches (mm), tolerance is
±
0.02” (± 0.5 mm)
3. Warranty: 2 year
4. Weight: 0.55 lb./ .25 kg
5. AC input power cord sold separately.
6. Specifications are for convection rating at factory settings at 115 Vac input, 25 °C unless otherwise stated
1.55"
(39.5)
