54F174/BEA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F174/BEA

54F174/BEA: DescriptionIC F/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDIP16, CERAMIC, DIP-16, FF/Latch; Categorylogic logic; File Size109KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

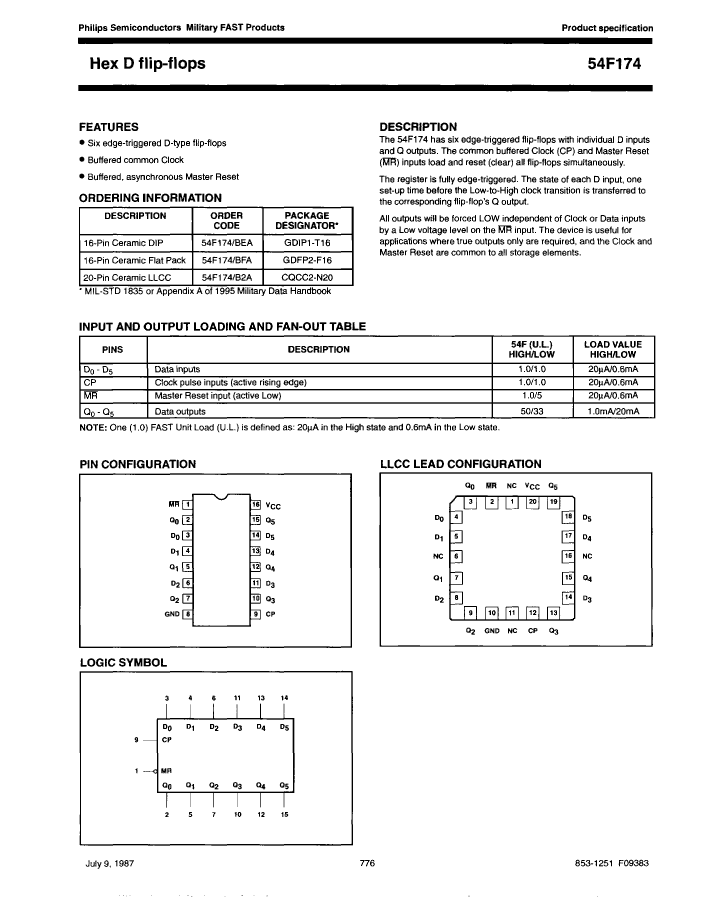

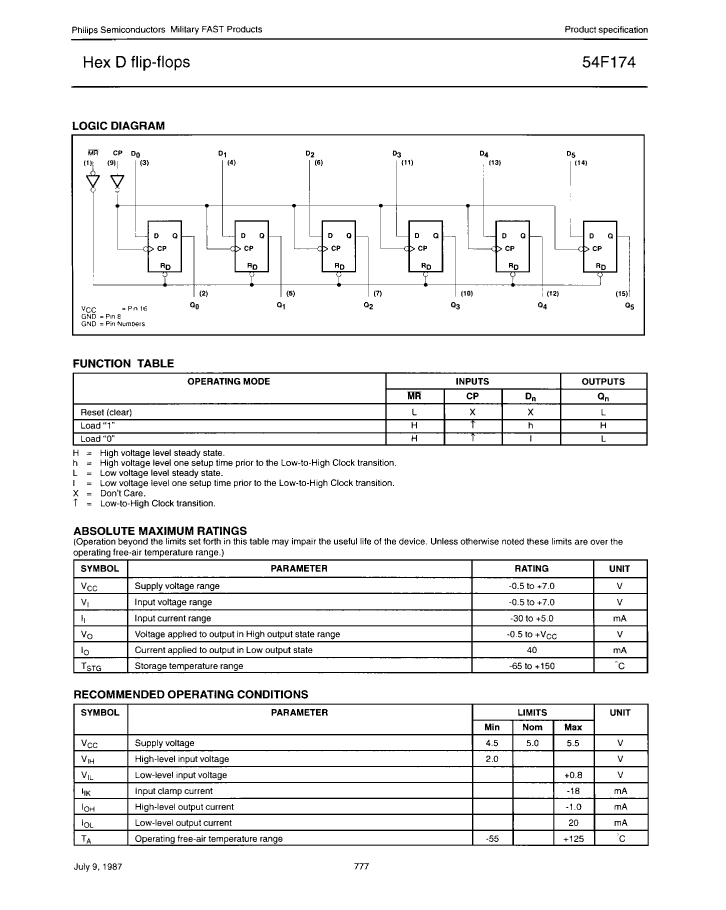

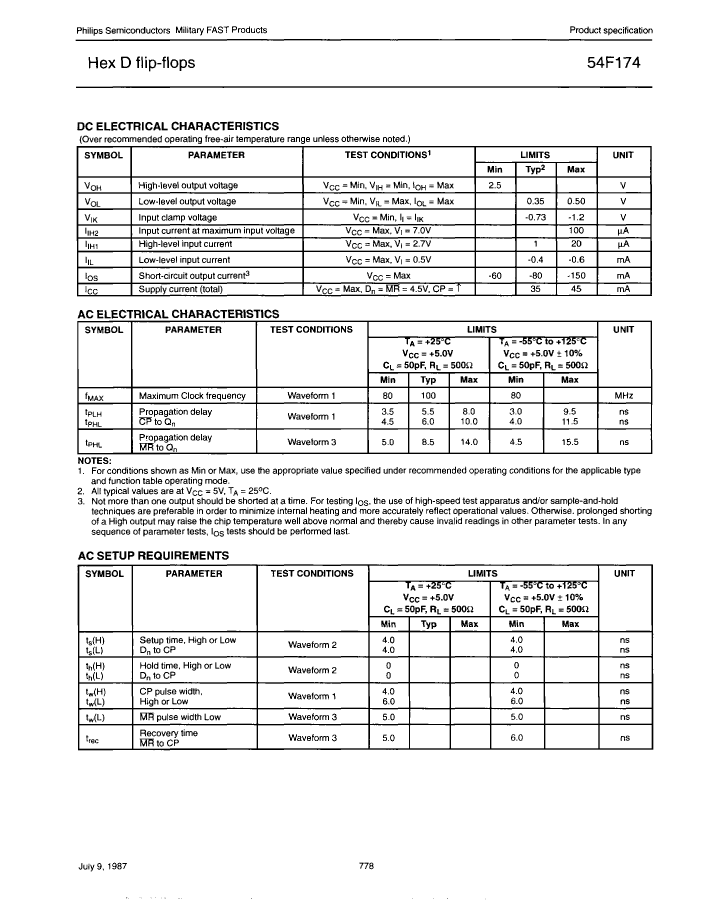

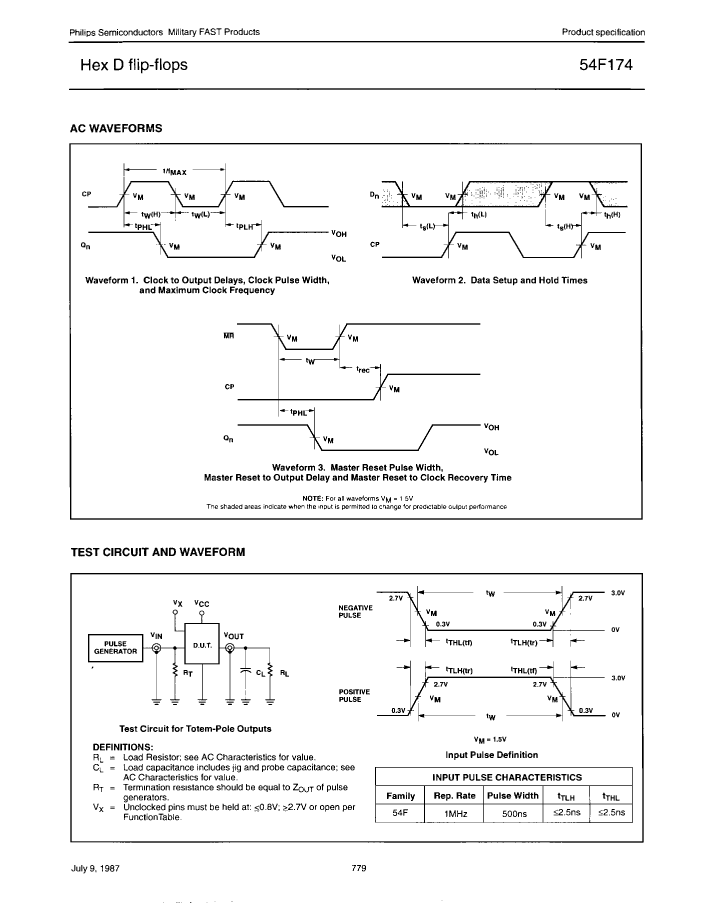

54F174/BEA Overview

IC F/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDIP16, CERAMIC, DIP-16, FF/Latch

54F174/BEA Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknow
series	F/FAST
JESD-30 code	R-GDIP-T16
length	19.05 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	D FLIP-FLOP
Number of digits	6
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	45 mA
propagation delay (tpd)	11.5 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	80 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

54F174/BEA Related Products

	54F174/BEA	N54F174/B2A	N54F174/BFA	54F174/B2A	54F174/BFA
Description	IC F/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDIP16, CERAMIC, DIP-16, FF/Latch	IC F/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CQCC20, CERAMIC, LLCC-20, FF/Latch	IC F/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDFP16, CERAMIC, FP-16, FF/Latch	IC F/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CQCC20, CERAMIC, LLCC-20, FF/Latch	IC F/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDFP16, CERAMIC, FP-16, FF/Latch
Parts packaging code	DIP	QLCC	DFP	QLCC	DFP
package instruction	DIP,	QCCN,	DFP,	QCCN,	DFP,
Contacts	16	20	16	20	16
Reach Compliance Code	unknow	unknow	unknown	unknown	unknown
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	R-GDIP-T16	S-CQCC-N20	R-CDFP-F16	S-CQCC-N20	R-CDFP-F16
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
Number of digits	6	6	6	6	6
Number of functions	1	1	1	1	1
Number of terminals	16	20	16	20	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	QCCN	DFP	QCCN	DFP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	FLATPACK	CHIP CARRIER	FLATPACK
Maximum supply current (ICC)	45 mA	45 mA	45 mA	45 mA	45 mA
propagation delay (tpd)	11.5 ns	11.5 ns	11.5 ns	11.5 ns	11.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	1.905 mm	2.159 mm	1.905 mm	2.159 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD	FLAT	NO LEAD	FLAT
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL	QUAD	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	7.62 mm	8.89 mm	6.731 mm	8.89 mm	6.731 mm
minfmax	80 MHz	80 MHz	80 MHz	80 MHz	80 MHz
Base Number Matches	1	1	1	1	1
length	19.05 mm	8.89 mm	-	8.89 mm	-
