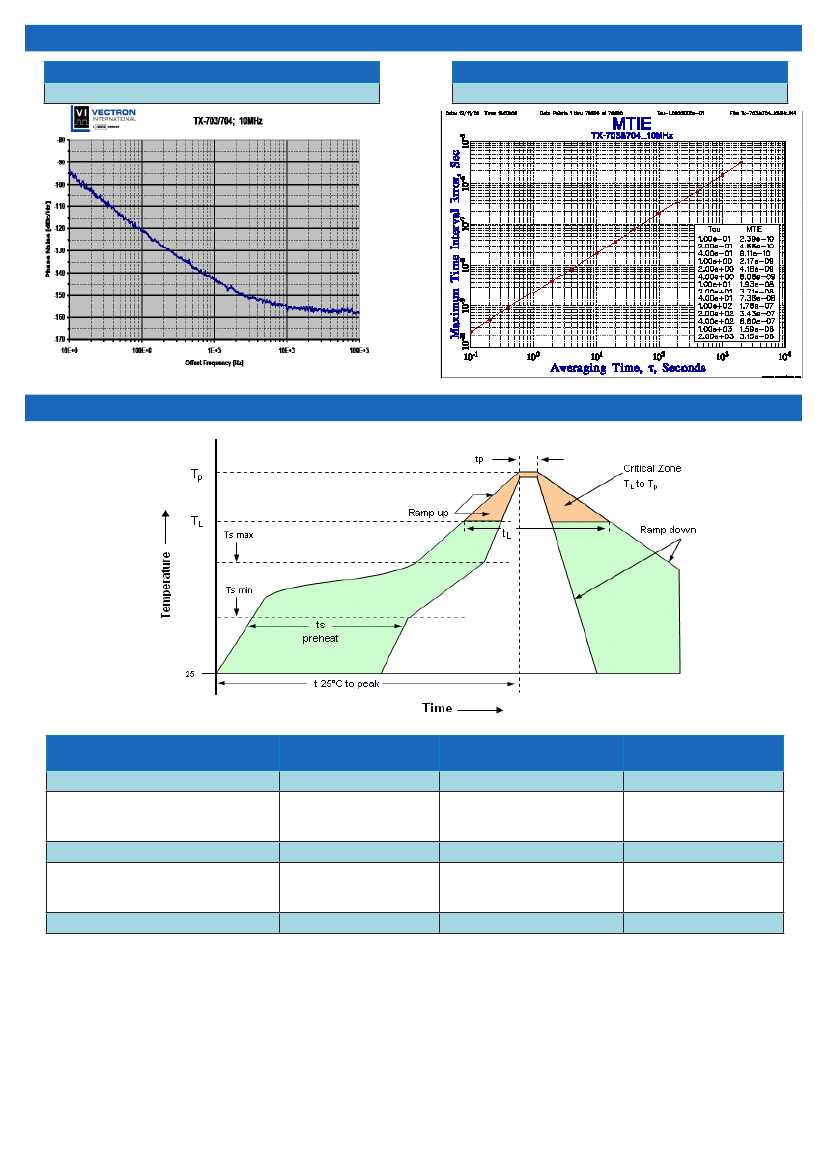

All temperatures refer to topside of the package, measured on the package body surface.
Page 4 of 5
Ordering Information
1, 5
TX-70X 0 - E A J - 287 0 - 10M0000000
Model Code
703: Enclosure G298
704: Enclosure G290
Height
0: 1.8mm
Frequency
Frequency Control
0: No Tuning
1: EFC: ±5.0 to 20ppm
2: Enable
3: Enable & EFC: ±5.0 to ±20ppm (only avail-
able for TX-704, 10-pin verion)
Supply Voltage
E: 3.3V
RF Output Code
A: HCMOS
F: Clipped Sinewave
Temperature Range & Stability Code
E-287: -40°C to +85°C, ±0.28ppm
J-287: -20°C to +70°C, ±0.28ppm
P-147: 0°C to +50°C, ±0.14ppm
Notes:
1. Contact factory for improved stabilities or additional product options. Not all options and codes are available at all
frequencies.
2. Unless other stated all values are valid after warm-up time and refer to typical conditions for supply voltage, frequency
control voltage, load, temperature (25°C).
3. Phase noise degrades with increasing output frequency.
4. Subject to technical modification.
5. Contact factory for availability.
For Additional Information, Please Contact
Vectron International
267 Lowell Road
Hudson, NH 03051
Tel: 1.888.328.7661
Fax: 1.888.329.8328
USA:
Vectron International
Landstrasse, D-74924
Neckarbischofsheim, Germany
Tel: +49 (0) 7268.801.100
Fax: +49 (0) 7268.801.281
Europe:
Vectron International
1589 Century Avenue, the 19th Floor
Chamtime International Financial Center
Shanghai, China
Tel: 86.21.6081.2888
Fax: 86.21.6163.3598
Asia:
Disclaimer
Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is assumed as a result of their use or application.
No rights under any patent accompany the sale of any such product(s) or information.
