54F51/BCA datasheet, PDF - EEWORLD Datasheet

54F51/BCA: DescriptionAND-OR-Invert Gate, F/FAST Series, 2-Func, 6-Input, TTL, CDIP14; Categorylogic logic; File Size107KB，3 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

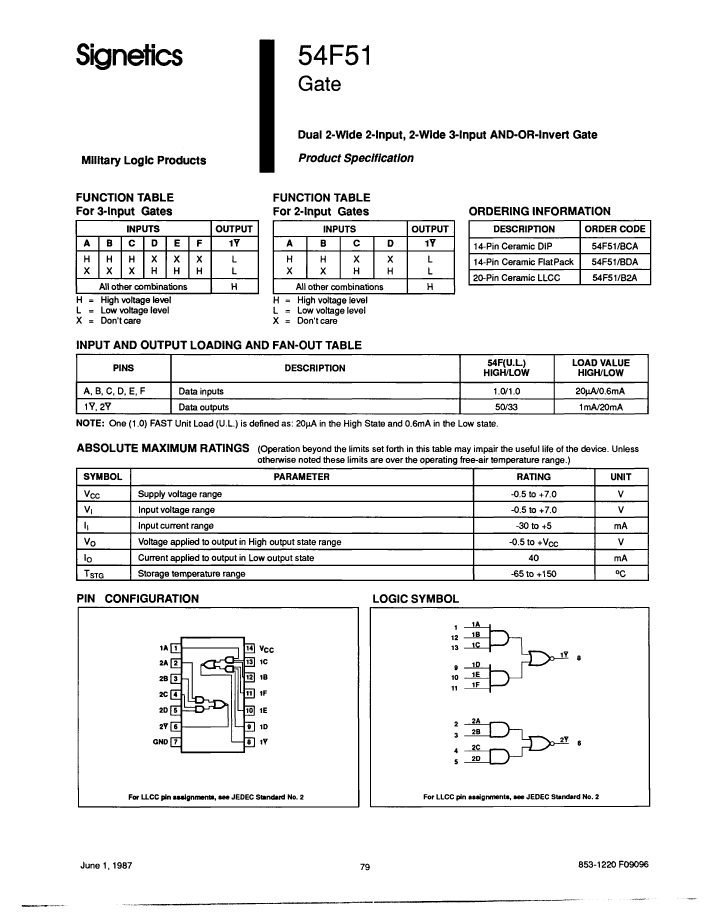

54F51/BCA Overview

AND-OR-Invert Gate, F/FAST Series, 2-Func, 6-Input, TTL, CDIP14

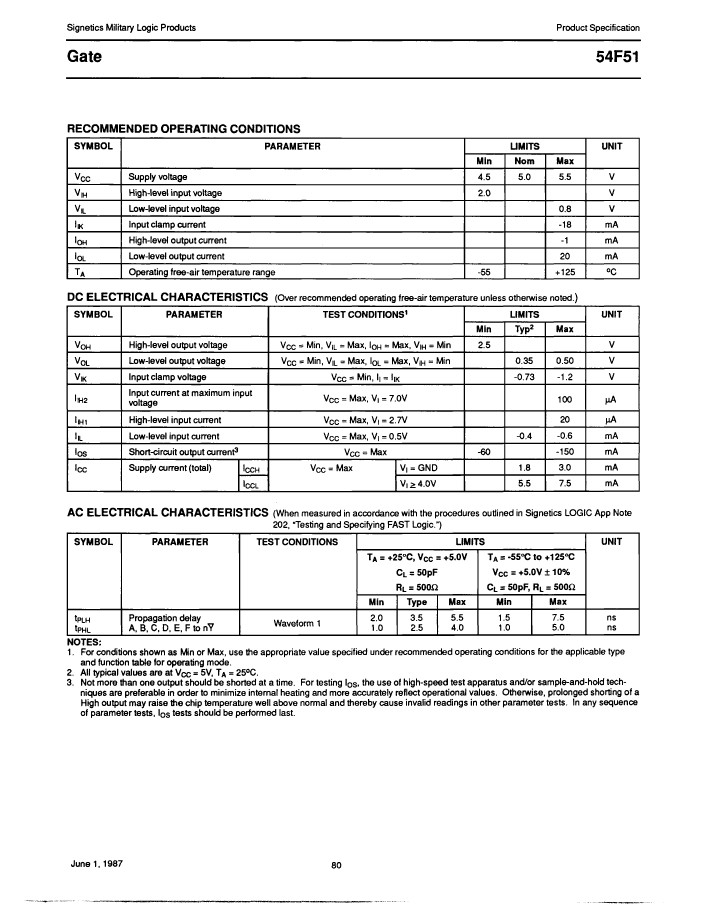

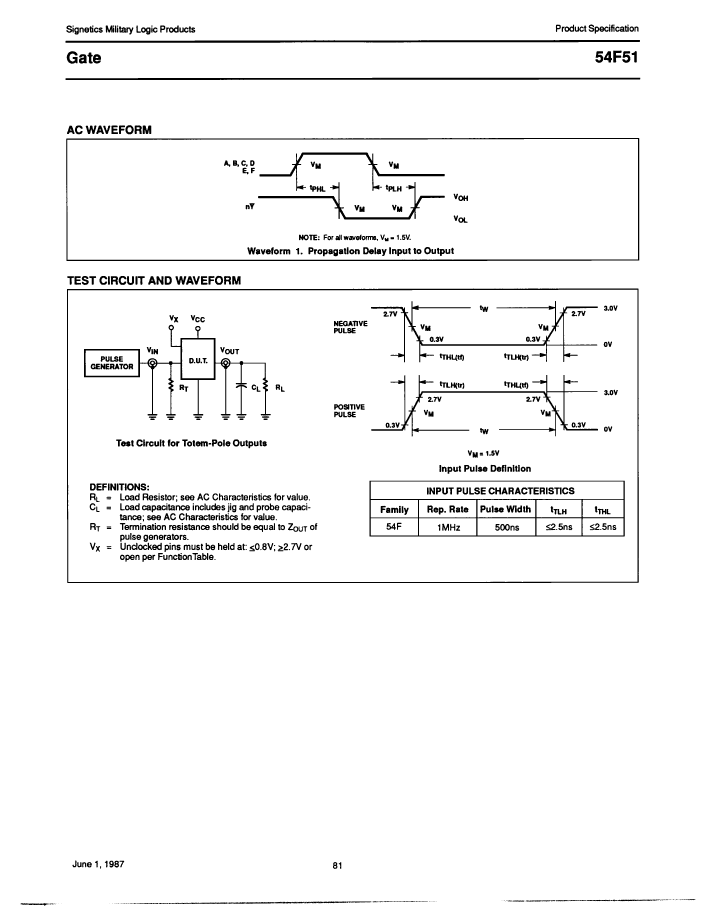

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
Other features	ASYMMETRICAL I/P\'S
series	F/FAST
JESD-30 code	R-CDIP-T14
Load capacitance (CL)	50 pF
Logic integrated circuit type	AND-OR-INVERT GATE
Number of functions	2
Number of entries	6
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	7.5 mA
propagation delay (tpd)	5 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

	54F51/BCA	54F51/BDA	54F51/B2A
Description	AND-OR-Invert Gate, F/FAST Series, 2-Func, 6-Input, TTL, CDIP14	AND-OR-Invert Gate, F/FAST Series, 2-Func, 6-Input, TTL, CDFP14	AND-OR-Invert Gate, F/FAST Series, 2-Func, 6-Input, TTL, CQCC20
Reach Compliance Code	unknown	unknown	unknown
Other features	ASYMMETRICAL I/P\'S	ASYMMETRICAL I/P\'S	ASYMMETRICAL I/P\'S
series	F/FAST	F/FAST	F/FAST
JESD-30 code	R-CDIP-T14	R-CDFP-F14	S-CQCC-N20
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	AND-OR-INVERT GATE	AND-OR-INVERT GATE	AND-OR-INVERT GATE
Number of functions	2	2	2
Number of entries	6	6	6
Number of terminals	14	14	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	FLATPACK	CHIP CARRIER
Maximum supply current (ICC)	7.5 mA	7.5 mA	7.5 mA
propagation delay (tpd)	5 ns	5 ns	5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	FLAT	NO LEAD
Terminal location	DUAL	DUAL	QUAD
Maker	YAGEO	-	YAGEO
Base Number Matches	1	1	-
