BUS-65142-883B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> BUS-65142-883B

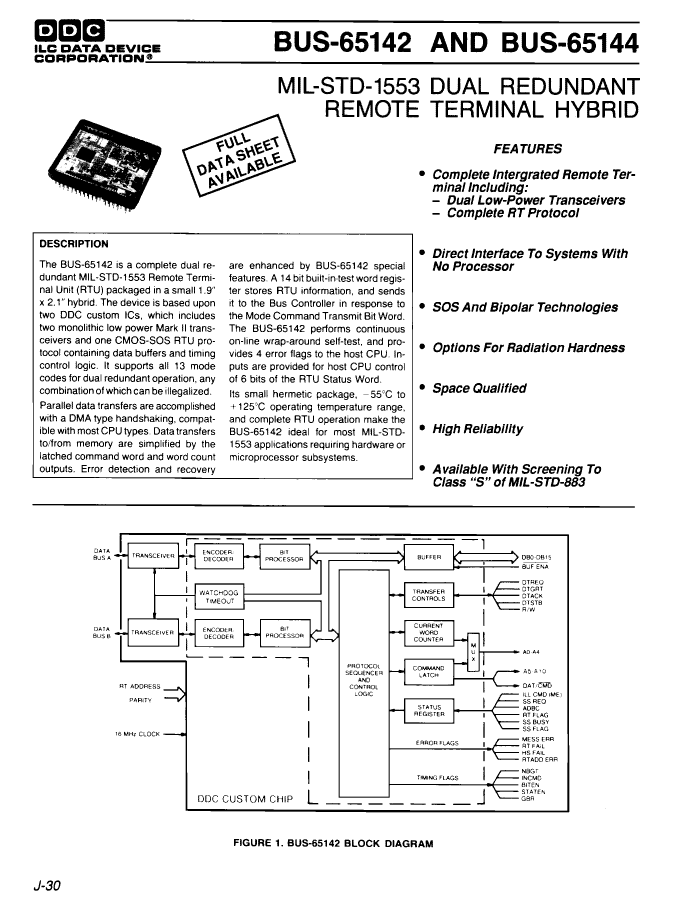

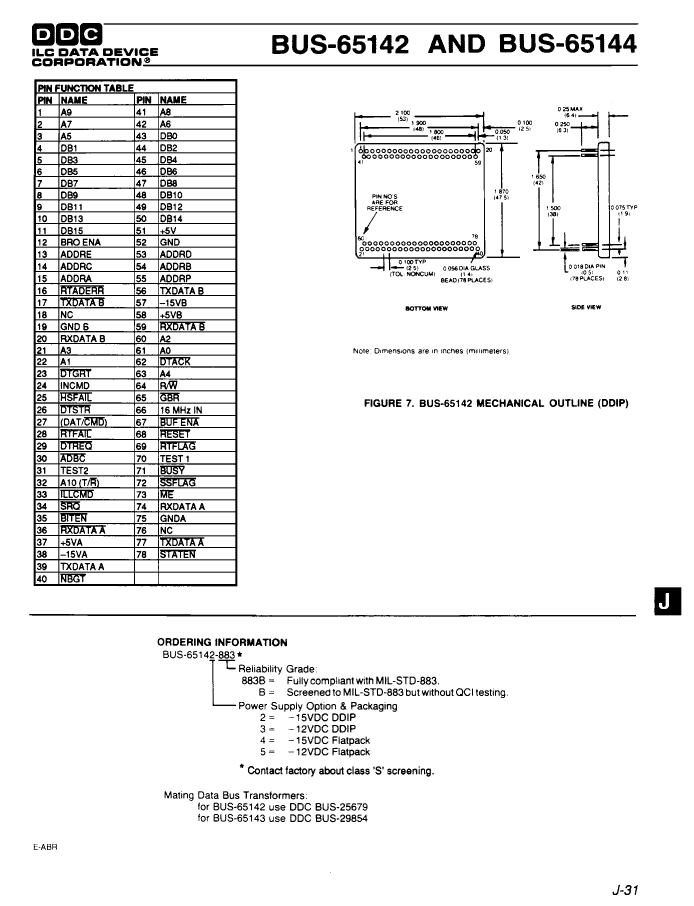

BUS-65142-883B: DescriptionMil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CQIP78, 1.900 X 2.100 INCH, HERMETIC SEALED, DDIP-78; CategoryThe embedded processor and controller Microcontrollers and processors; File Size77KB，2 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric Compare View All

BUS-65142-883B Overview

Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CQIP78, 1.900 X 2.100 INCH, HERMETIC SEALED, DDIP-78

BUS-65142-883B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Data Device Corporation
Parts packaging code	QIP
package instruction	QIP, QUIP78B,1.5/1.7
Contacts	78
Reach Compliance Code	unknown
Other features	ADDITIONAL POWER SUPPLY -15V
Address bus width	11
boundary scan	NO
maximum clock frequency	16 MHz
letter of agreement	MIL-STD-1553B
Data encoding/decoding methods	BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate	0.125 MBps
External data bus width	16
JESD-30 code	R-CQIP-P78
JESD-609 code	e0
length	53 mm
Number of DMA channels
Number of I/O lines
Number of serial I/Os	2
Number of terminals	78
On-chip data RAM width
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QIP
Encapsulate equivalent code	QUIP78B,1.5/1.7
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,-15 V
Certification status	Not Qualified
RAM (number of words)	0
Filter level	38535Q/M;38534H;883B
Maximum seat height	6.4 mm
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	41.91 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
Base Number Matches	1

Preview

Download Datasheet

View All

BUS-65142-883B Related Products

	BUS-65142-883B	BUS-65144-883B	BUS-65145-B	BUS-65143-B	BUS-65142-B	BUS-65143-883B	BUS-65144-B	BUS-65145-883B
Description	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CQIP78, 1.900 X 2.100 INCH, HERMETIC SEALED, DDIP-78	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, FP-78	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, FP-78	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CQIP78, DDIP-78	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CQIP78, 1.900 X 2.100 INCH, HERMETIC SEALED, DDIP-78	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CQIP78, DDIP-78	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, FP-78	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, FP-78
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	QIP	DFP	DFP	QIP	QIP	QIP	DFP	DFP
package instruction	QIP, QUIP78B,1.5/1.7	FP-78	DFP, FL82,1.6	QIP, QUIP78B,1.5/1.7	QIP, QUIP78B,1.5/1.7	QIP, QUIP78B,1.5/1.7	DFP, FL82,1.6	FP-78
Contacts	78	78	78	78	78	78	78	78
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	ADDITIONAL POWER SUPPLY -15V	ADDITIONAL POWER SUPPLY -15V	ADDITIONAL POWER SUPPLY -12V	ADDITIONAL POWER SUPPLY -12V	ADDITIONAL POWER SUPPLY -15V	ADDITIONAL POWER SUPPLY -12V	ADDITIONAL POWER SUPPLY -15V	ADDITIONAL POWER SUPPLY -12V
Address bus width	11	11	11	11	11	11	11	11
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO
maximum clock frequency	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz
letter of agreement	MIL-STD-1553B	MIL-STD-1553B	MIL-STD-1553B	MIL-STD-1553B	MIL-STD-1553B	MIL-STD-1553B	MIL-STD-1553B	MIL-STD-1553B
Data encoding/decoding methods	BIPH-LEVEL(MANCHESTER)	BIPH-LEVEL(MANCHESTER)	BIPH-LEVEL(MANCHESTER)	BIPH-LEVEL(MANCHESTER)	BIPH-LEVEL(MANCHESTER)	BIPH-LEVEL(MANCHESTER)	BIPH-LEVEL(MANCHESTER)	BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps
External data bus width	16	16	16	16	16	16	16	16
JESD-30 code	R-CQIP-P78	R-XDFP-F78	R-XDFP-F78	R-CQIP-P78	R-CQIP-P78	R-CQIP-P78	R-XDFP-F78	R-XDFP-F78
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Number of serial I/Os	2	2	2	2	2	2	2	2
Number of terminals	78	78	78	78	78	78	78	78
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	UNSPECIFIED
encapsulated code	QIP	DFP	DFP	QIP	QIP	QIP	DFP	DFP
Encapsulate equivalent code	QUIP78B,1.5/1.7	FL82,1.6	FL82,1.6	QUIP78B,1.5/1.7	QUIP78B,1.5/1.7	QUIP78B,1.5/1.7	FL82,1.6	FL82,1.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	FLATPACK	IN-LINE	IN-LINE	IN-LINE	FLATPACK	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5,-15 V	5,-15 V	5,-12 V	5,-12 V	5,-15 V	5,-12 V	5,-15 V	5,-12 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	MIL-STD-883 Class B (Modified)	MIL-STD-883 Class B (Modified)	MIL-STD-883 Class B (Modified)	38535Q/M;38534H;883B	MIL-STD-883 Class B (Modified)	38535Q/M;38534H;883B
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	FLAT	FLAT	PIN/PEG	PIN/PEG	PIN/PEG	FLAT	FLAT
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	QUAD	QUAD	QUAD	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
Maker	Data Device Corporation	Data Device Corporation	-	Data Device Corporation	Data Device Corporation	Data Device Corporation	Data Device Corporation	Data Device Corporation
