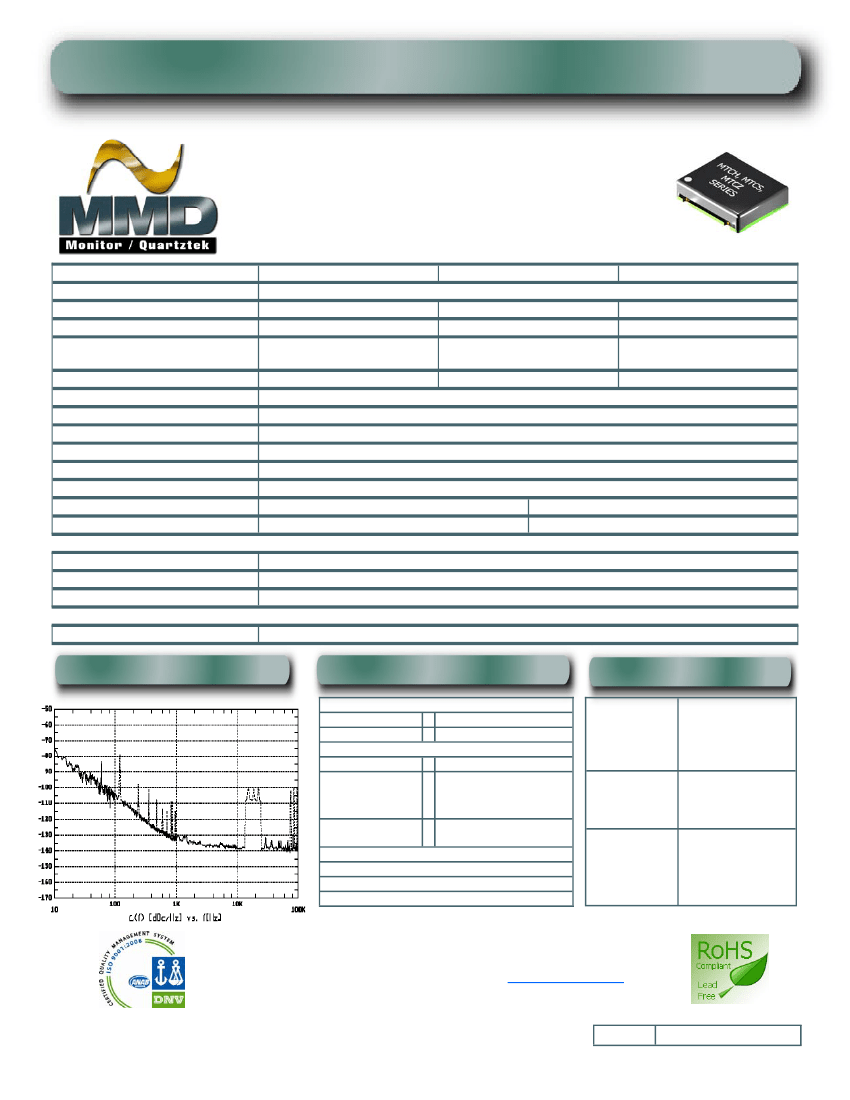

MTCH, MTCS, & MTCZ SERIES TCXO
11.7 X 9.6 SMD Package
Voltage Control Option
Wide Frequency Range
RoHS Compliant Available
Output
Frequency Range
Load
Supply Current
Output Level
Symmetry
Freq. Stability vs Temp (Note 1)
Freq. Stability vs Aging
Freq. Stability vs Voltage
Freq. Stability vs Load
Operature Temperature
Storage Temperature
Supply Voltage (Vdd)
Control Voltage with VC option
Pin 1 Connection
No Connection
VC Option
Mechanical Trimmer
HCMOS
Clipped Sinewave
9.600MHZ to 50.000MHZ
10k Ohms // 15pF
3mA max
Sinewave
10k Ohms // 15pF
50 Ohms
35mA max
25mA max
Logic “1” = 90% of Vdd min
0.8V p-p min
7 dBm
Logic “0” = 10% of Vdd max
See Part Number Guide
N/A
N/A
(See Frequency Stability vs Temperature Table)
±1 ppm per year max
±0.3 ppm with a 5% change in Vdd
±0.3 ppm with a 10% change in Load
(See Frequency Stability vs Temperature Table)
-40°C to +85°C
+3.3VDC ±5%
+5.0VDC ±5%
+1.65VDC ±1.50VDC Positive Slope
+2.50VDC ±2.00VDC Positive Slope
No Connection
±10 ppm min
±3 ppm min
Phase Noise
Marking Detail
Line 1 = MXXXXX
M
XXXXX
Line 2 = SYYWWL
S
YYWW
L
= MMD
= Frequency in MHZ
= Internal Code
=
4 Digit Date Code
(Year / Week)
= Denotes RoHS Compli-
ant
Envir & Mech Detail
Shock
MIL-STD-883,
Method 2002,
Condition B
MIL-STD-883,
Method 2003
MIL-STD-883,
Method 2007,
Condition A
Solderability
Line 3 = XXXXX
Internal use only
May vary with lots
Black dot to denote Pin 1
Vibration
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Revision:
Revisions only with customer approval
MTCH011011L
Pg 1 of 2
Part Number Guide
MT
9.6 x 11.7 SMD
C
Frequency
Series Option
C = C series (w/ trimmer)
Output
H = HCMOS
S = Clipped Sinewave
Z = Sinewave
Height Option
A = 3.00 [.118] max
B = 5.00 [.197] max
RoHS Compliant
Blank = Not Compliant
F = is Compliant
Supply Voltage
5 = +5 VDC
3 = +3.3 VDC
2 = +2.5 VDC
Packaging
Blank = Bulk
T = Tape and Reel
Frequency
Stability
10 = ±1.0 ppm
15 = ±1.5 ppm
20 = ±2.0 ppm
25 = ±2.5 ppm
30 = ±3.0 ppm
50 = ±5.0 ppm
Operating
Temperature
A = 0°C to +50°C
C = -20°C to +70°C
D = -30°C to +70°C
E = -30°C to +80°C
F = -40°C to +85°C
G = 0°C to +70°C
Pin 1 Connection
Blank = No Connect
V = Voltage Control
Symmetry
Blank = 40/60%
A = 45/55%
Please Consult with MMD Sales Department for any other Parameters or Options
Frequency Stability vs Temperature Table
Code
A
G
C
D
F
Stability
10
Temp
±1.0ppm
0°C TO +50°C
●
0°C TO +70°C
-20°C TO +70°C
-30°C TO +70°C
-40°C TO +85°C
●
= Available
15
±1.5ppm
●
●
20
±2.0ppm
●
●
●
25
30
50
±2.5ppm
±3.0ppm
±5.0ppm
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
= Consult with the Manufacturer

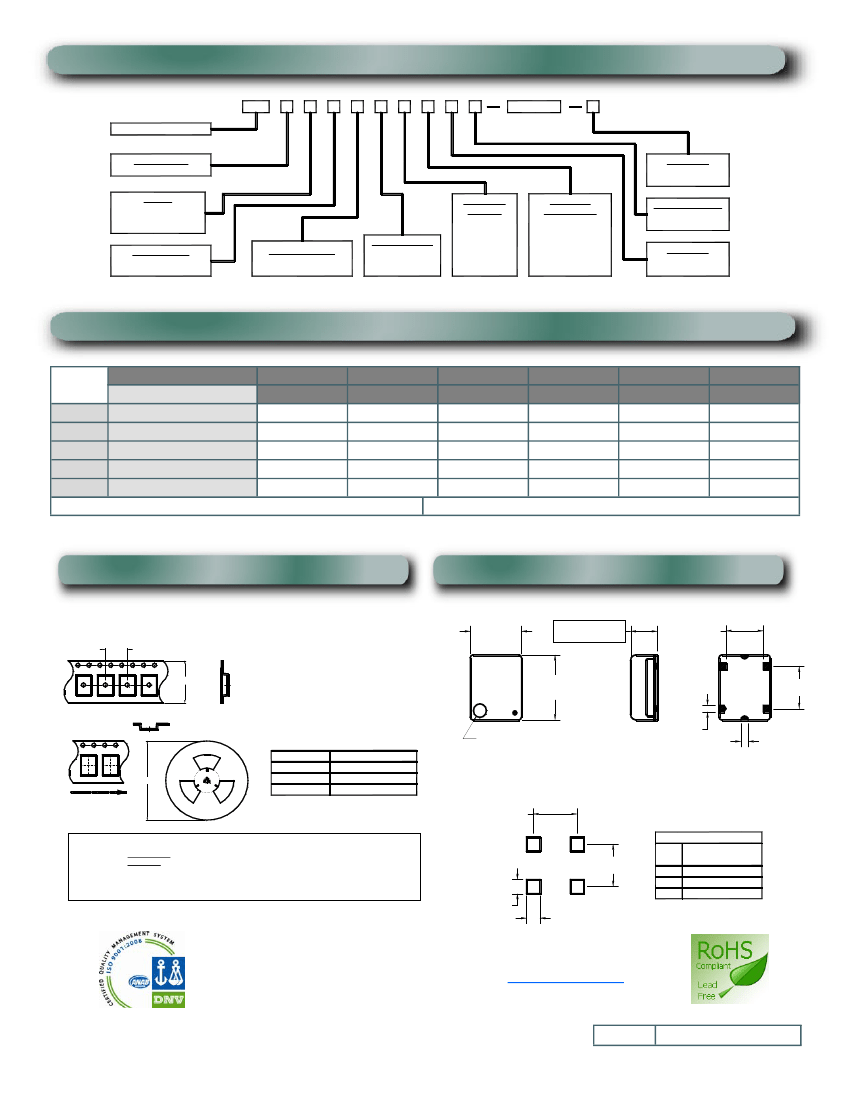

Tape & Reel Dimensions
9.61 [.378]
MAX
PITCH
Mechanical Details
A = 3.00 [.118] MAX
B = 5.00 [.197] MAX
7.00 [.276]
Tape Width
MXXXXX
SYYWWL
XXXXX
7
11.70 [0.461]
MAX
1
1.20 [.047]
8
7.62 [.300]
14
TRIMMER ACCESS
Q1 Q2
Q3 Q4
Q1 Q2
Q3 Q4
REEL DIA
1.40 [.055]
DIMENSION IN BRACKETS ARE IN INCHES
EXTERNAL BYPASS CAPACITOR IS RECOMMENDED
UNIT IS NOT HERMETICALLY SEALED
PITCH
TAPE WIDTH
REEL DIA
PIN 1 ORIENT.
12.00 [.471]
24.00 [.945]
330 [13.0]
Q1
8.26 [.325]
DIRECTION OF FEED
NOTES: UNLESS OTHERWISE SPECIFIED
1. Applicable Standards / Specifications
ANSI Y14.5M, Dimensions and Tolerances
EIA-481-B, 8 mm through 200mm Embossed Carrier Taping and 8 mm and 12 mm
Punched Carrier Taping of Surface Mount Components for Automatic Handling.
2. Dimensions are in millimeters [inch].
3. Tolerances are ±0.1 [.004] mm unless otherwise specified.
4. Do not scale drawing.
PIN CONNECTIONS
PIN 1
7.62 [.300]
PIN 7
PIN 8
PIN 14
VOLTAGE CONTROL
OR NO CONNECTION
CASE GROUND
OUTPUT
SUPPLY VOLTAGE
2.54 [.100]
2.54 [.100]
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Revision:
Revisions only with customer approval
MTCH011011L
Pg 2 of 2
