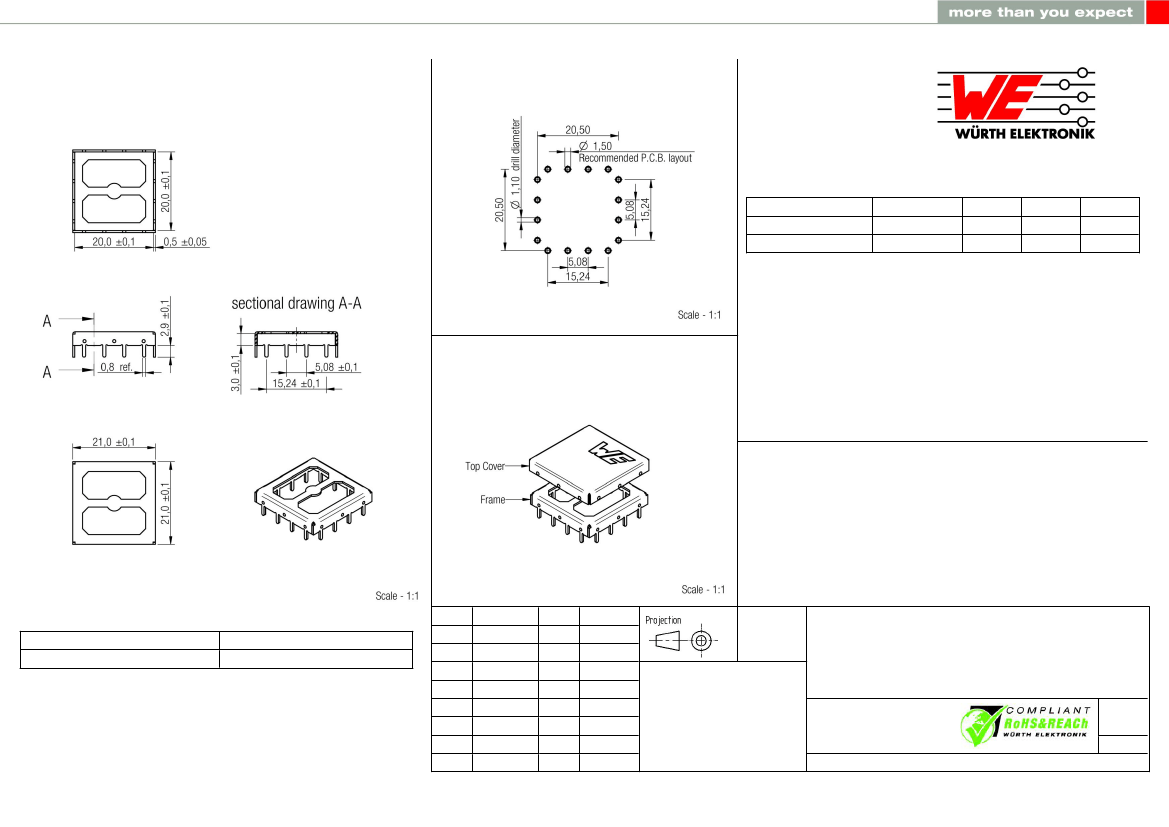

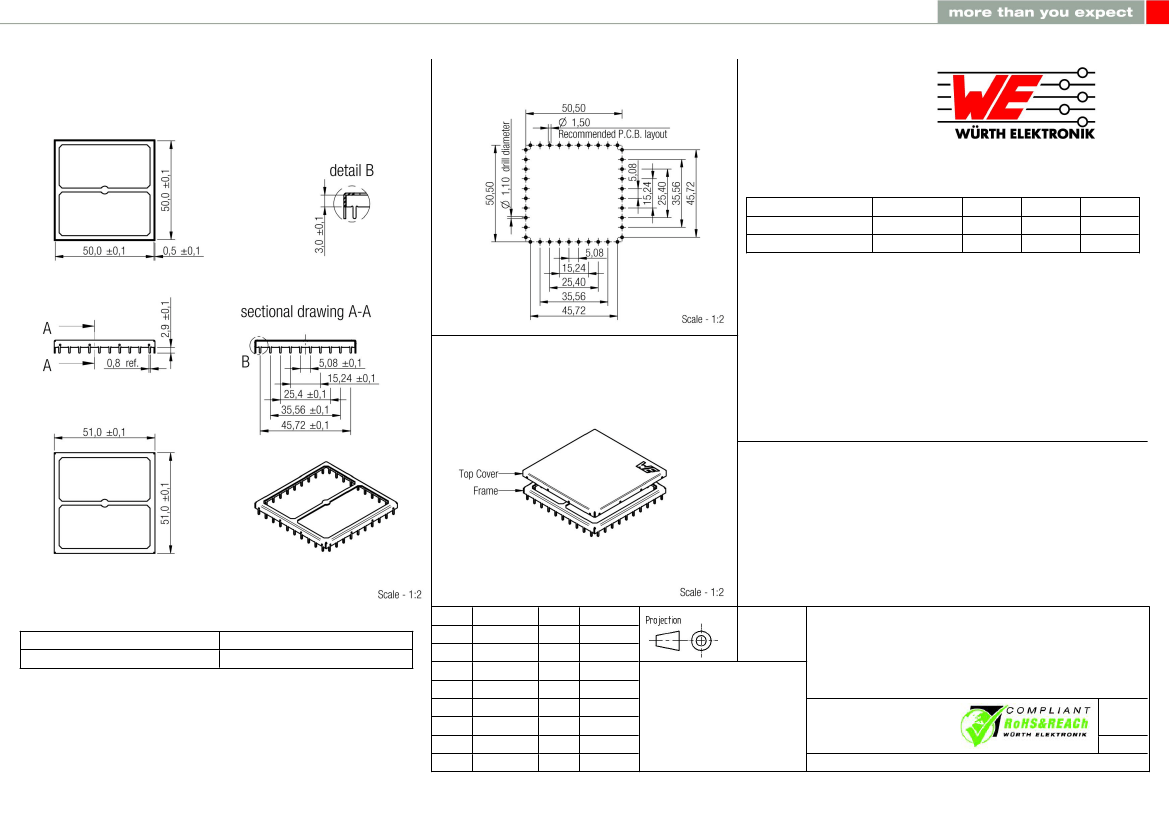

A Dimensions: [mm]
B Recommended hole pattern: [mm]
D Properties:
Properties
Shielding Effectiveness
Hardness
Test conditions
500MHz - 3GHz
HR30TM
Value
60
58.03
Unit
dB
Tol.
max.
C Assembly with THT Frame:
E General information:
Storage Temperature: -20°C to 60°C
Operating Temperature: -40°C to 125°C
Shielding effectiveness based on MIL-STD-225
Test conditions of Electrical Properties: 25°C, 33% RH
if not specified differently
DESCRIPTION
Basic material
Surface material
tin plate
tin-plated surface
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WE-SHC Shielding Cabinet
3.1
3.0
2.0
REV
2012-12-04
2012-11-26
2010-06-18
DATE
SSt
SSt
WJ
BY
CHECKED
SSt
WJ
Order.- No.
SIZE
A4
36503505
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use.
Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before
the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
F Typical Shielding Effectiveness:
measurement based on assembeled top cover with THT frame according to IEEE STD 299
