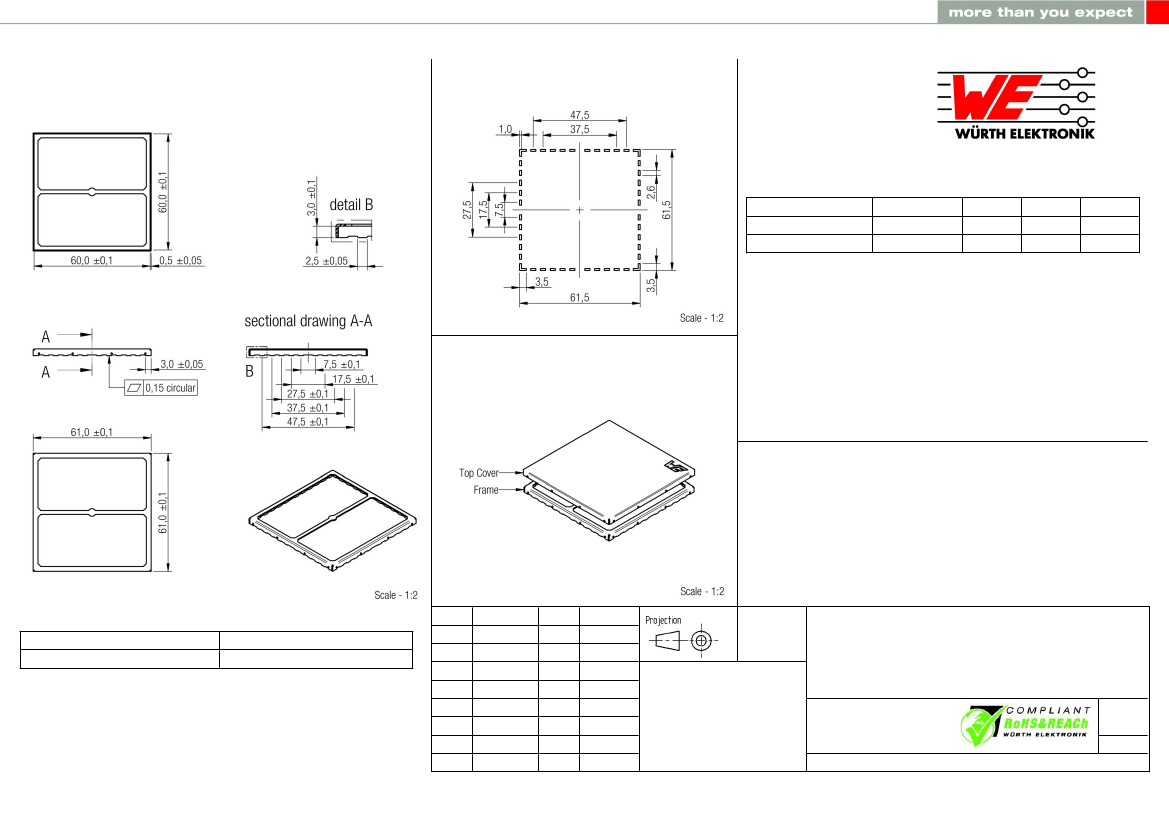

A Dimensions: [mm]
B Recommended land pattern: [mm]
D Properties:
Properties
Shielding Effectiveness
Hardness
Test conditions
500MHz - 3GHz
HR30TM
Value
60
58.03
Unit
dB
Tol.
max.
C Assembly with SMD Frame:
E General information:
Storage Temperature: -20°C to 60°C
Operating Temperature: -40°C to 125°C
Shielding effectiveness based on MIL-STD-225
Test conditions of Electrical Properties: 25°C, 33% RH
if not specified differently
DESCRIPTION
Basic material
Surface material
tin plate
tin-plated surface
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WE-SHC Shielding Cabinet
3.1
3.0
2.0
REV
2012-12-04
2012-11-26
2010-06-18
DATE
SSt
SSt
WJ
BY
CHECKED
SSt
WJ
Order.- No.
SIZE
A4
36103605
