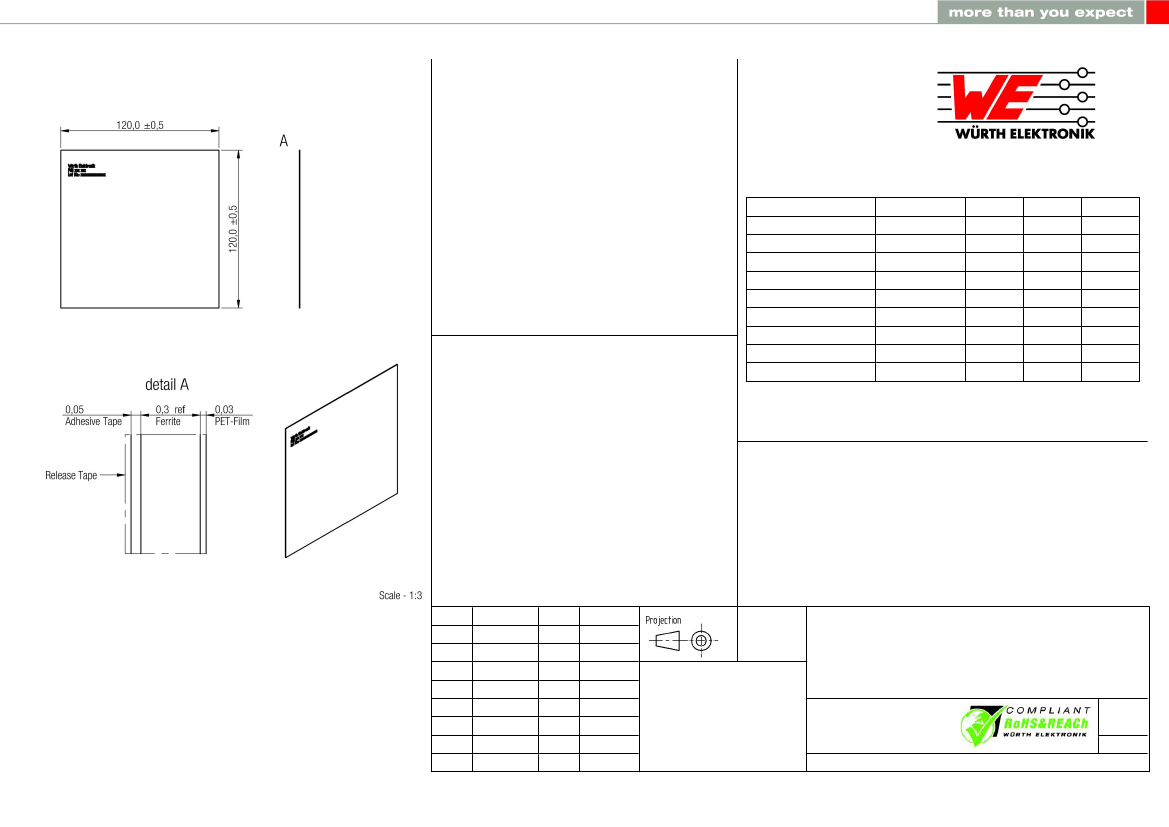

A Dimensions: [mm]
D Properties:
Properties
Complex Permeability
Complex Permeability
Complex Permeability
Complex Permeability
PET thickness
Adhesive Thickness
Surface Resistance
Isolation Resistance
Peel adhesion over steel
RS
RIso
Test conditions
1 MHz
1 MHz
13.56 MHz
13.56 MHz
µ'
µ''
µ'
µ''
Value
110
<2
120
2
< 0.03
< 0.05
>1
>1
>6
mm
mm
GΩ
GΩ
N/cm
Unit
1) Surface resistance measured over the PET surface. Method ASTM D257-07
2) Isolation Resistance measured between the top PET layer and the bottom Adhesive later. Method ASTM D257-07
E General information:
•Storage Temperature: -40°C to 85°C
•Operating Temperature: -40°C to 85°C
•Test conditions of Electrical Properties: 25°C, 33% RH
if not specified differently
DESCRIPTION
WE-FSFS Flexible Sintered Ferrite Sheet
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
Order.- No.
SIZE
A4
1.0
REV
2013-09-03
DATE
SSt
BY
JoV
CHECKED
364003
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use.
Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before
the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

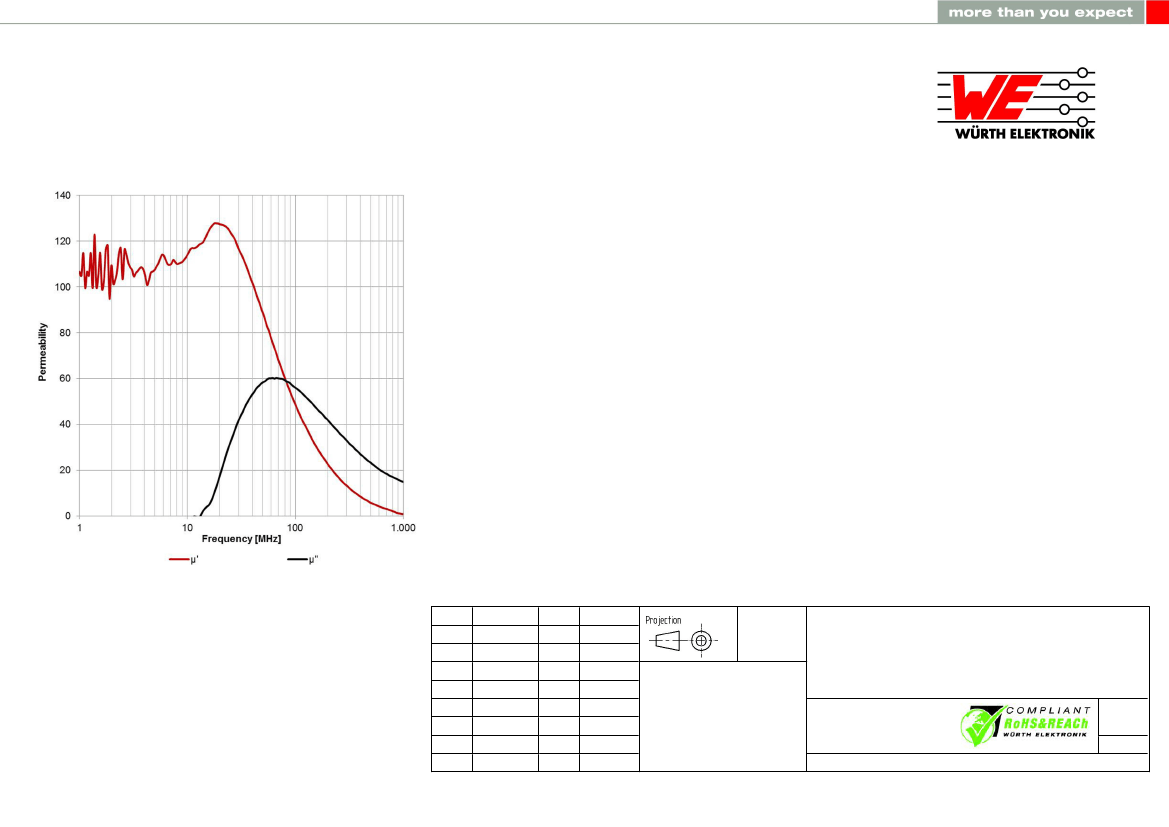

F: Permeability vs. Frequency:
