ULTRA MINIATURE CERAMIC GLASS SEALED SMD CRYSTAL
ABM8G
FEATURES:
• Low in height; suitable for thin equipment.
• Glass sealed package assures high reliability
and high temperature operation
• Tight tolerance and stability available.
• IR reflow capable
• Low cost version of ABM8 crystal
Pb in glass exemption 7 (c)-I per
RoHS II 2011/65/EU Annex
Compliant
RoHS
3.2 x 2.5 x 1.0mm
| | | | | | | | | | | | | |
|
APPLICATIONS:
• High density applications.
• Modems, communication and test equipment.
• PMCIA, Wireless applications
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N
Frequency Range
Operation Mode
Operating Temperature
Storage Temperature
Frequency Tolerance at +25°C
Frequency Stability over the
Operating Temp. (Ref. to +25°C )
Equivalent Series Resistance
Shunt Capacitance C0
Load Capacitance CL
Drive Level
Aging (first year) at 25°C ± 3°C
Insulation Resistance
ABM8G Series
12.000MHz - 50.000MHz
Fundamental
-10°C to + 60°C (see options)
-55°C to +125°C
± 50ppm max. (see options)
± 50ppm max. (see options)
See table 1
5.0pF max
10pF (see options)
100µW max., 10µW Typical
±3ppm max.
500 M
Ω
min. at 100 Vdc
±15V
TABLE 1- Standard ESR
Frequency (MHz)
12.000
12.001 - 20.000
20.001 - 28.00
28.001 - 50.00
ESR( ) max
120
80
60
50
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
ABM8G -
MHz -
-R
-
-
-
-
Pac kag ing
Bla nk: Bulk
T: Ta pe & Re e l (1kpcs )
T3: Tap e & Re e l (3kpcs)
Fre qu e ncy in MHz
e.g. 24.576MHz
14.31818MHz
26.000MHz
Load Capac itance
Please specify CL in pF or
S for Series (Minimum 7pF)
Please contact ABRACON for
values under 10pF
ESR
Specify a value in Ω
Ope rating Te mp.
E: 0°C ~ +70 °C
B: -20°C ~ +70°C
C: -30 °C ~ +70°C
N: -30 °C ~ +85°C
D: -40 °C ~ +85°C
Fre q. To le ranc e
1: ± 10 ppm
7: ± 15 ppm
2: ± 20 ppm
3: ± 25 ppm
4: ± 30 ppm
Fre q. Stability
U: ± 10 pp m (*)
G: ± 15 ppm (**)
X: ± 20 pp m
W:
± 25 pp m
Y: ± 30 pp m
H:
± 35 pp m
Q: ± 10 0 ppm
(*) -10°C to +60°C only. Contact ABRACON for tighter freq. stability.
(**) -10°C to +60°C option E,B,C,N only
ABRACON IS
ISO 9001 : 2008
ISO 9001 / QS 9000
CE RTIFIED
Revised: 05.06.14
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001|
www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
ULTRA MINIATURE CERAMIC GLASS SEALED SMD CRYSTAL
ABM8G

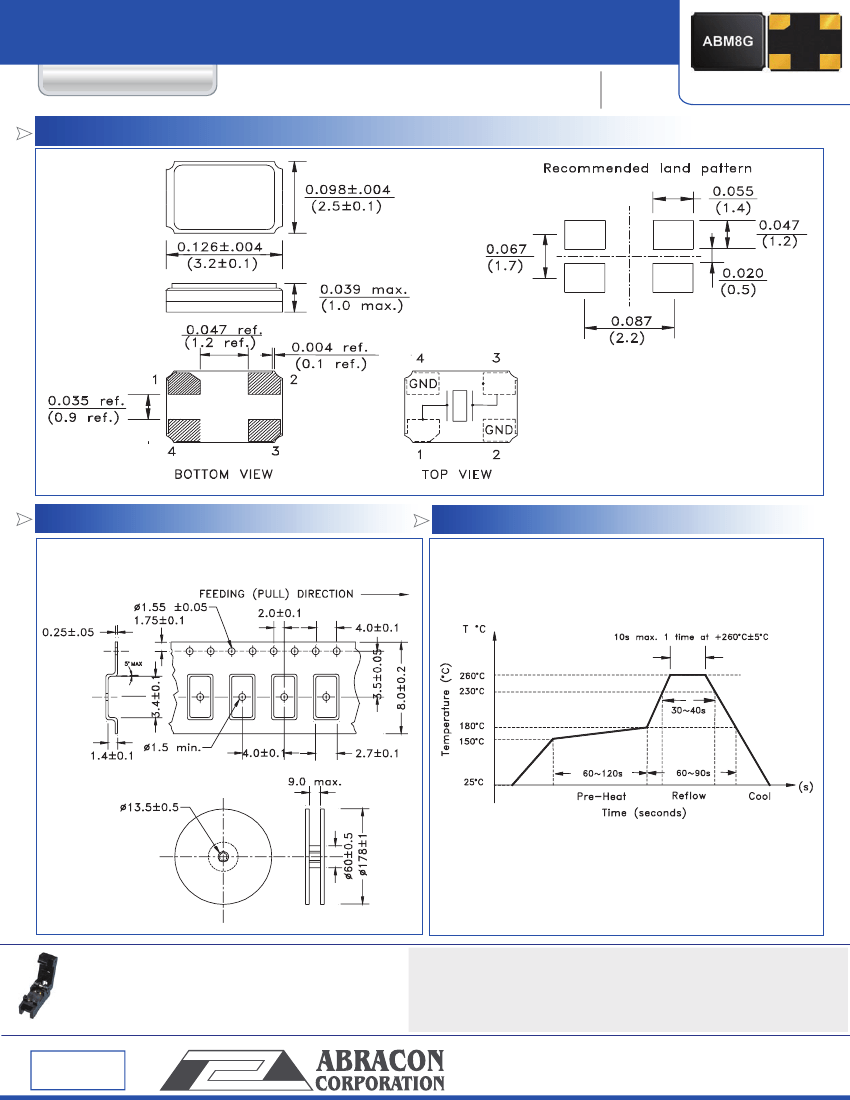

OUTLINE DRAWING:
Pb in glass exemption 7 (c)-I per
RoHS II 2011/65/EU Annex
Compliant
RoHS
3.2 x 2.5 x 1.0mm
| | | | | | | | | | | | | |
|
Note: Due to the availability of raw materials,
this part may be manufactured with the
chamfer on pin 4. Be advised that this does
not affect the electrical characteristics of
the crystal in any way.
Per the Top Marking from left to right, Pin 1 is
always located on the bottom left.
Dimensions: Inch (mm)
TAPE & REEL:
Tape and reel (1,000pcs/reel)
Tape and reel (3,000pcs/reel)
REFLOW PROFILE:
Dimensions: mm
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for
Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not
-
specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application
requiring high reliability where component failure could result in loss of life and/or property. For applications
requiring high reliability and/or presenting an extreme operating environment, written consent and authoriza-
tion from Abracon Corporation is required. Please contact Abracon Corporation for more information.
Need a test socket for the ABM8G Series? To view
compatible
PRECISION TEST & BURN-IN SOCKETS
for these parts,
click here.
ABRACON IS
ISO 9001: 2008
ISO 9001 / QS 9000
CE RTIFIED
Revised: 05.06.14
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000| fax 949-546-8001|
www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
