ABLS-LR-27.000MHZ-F-T: Descriptioncrystals 27.000mhz 0C +70c 50ppm Fd 10 ohms esr; CategoryPassive components; File Size122KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABLS-LR-27.000MHZ-F-T Overview

crystals 27.000mhz 0C +70c 50ppm Fd 10 ohms esr

ABLS-LR-27.000MHZ-F-T Parametric

Parameter Name	Attribute value
Manufacture	ABRACON
Product Category	Crystals
RoHS	Yes
Frequency	27 MHz
Tolerance	50 PPM
Frequency Stability	50 PPM
Load Capacitance	18 pF
Termination Style	SMD/SMT
Package / Case	HC-49/US
Operating Temperature Range	0 C to + 70 C
Dimensions	4.8 mm W x 11.5 mm L x 4.2 mm H
Packaging	Reel
ESR	10 Ohms
Mounting Style	SMD/SMT
Factory Pack Quantity	1000
Type	Ultra Low ESR SMD Low Profile Crystal

Preview

Download Datasheet

View All

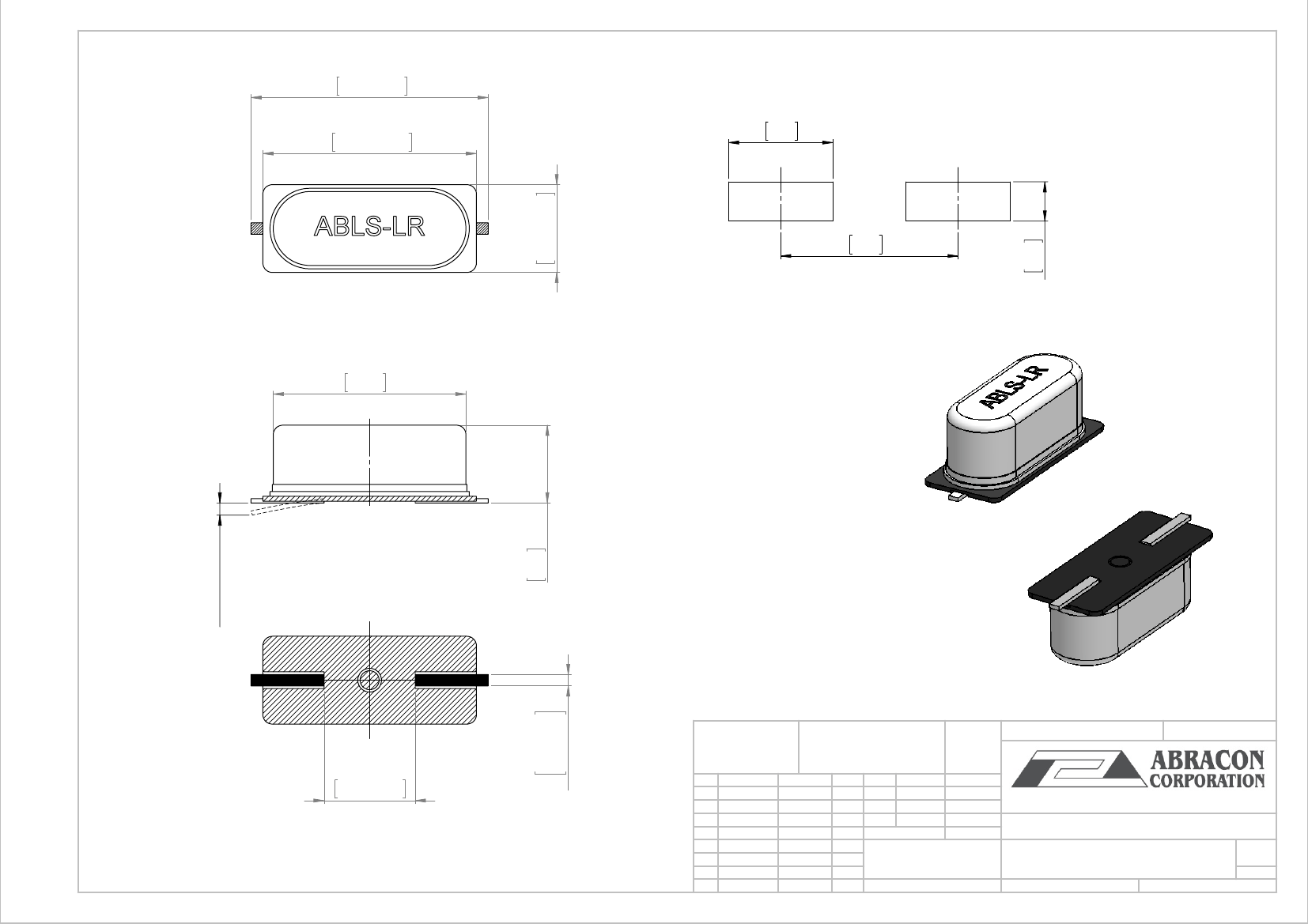

0.500±0.02

12.7±0.6

0.45±0.006

11.4±0.15

0.19±0.006

4.7±0.15

Recommended Land Pattern

0.22

5.6

0.406 Max.

10.3

0.004[0.1] Max.

0.000[0.0]Min.

(Both sides)

0.008

0.024+0.004

-

+0.2

0.6 - 0.1

0.16 Max.

4.2

0.192±0.008

4.88±0.2

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCH(MM)

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

NAME

DRAWN

CHK'D

APPV'D

MFG

Q.A

SAAZVAT

XXXXXX

FINISH:

DEBUR AND

BREAK SHARP

EDGES

0.083

2.1

0.374

9.5

DO NOT SCALE DRAWING

REVISION

-

SIGNATURE

DATE

30332 Esperanza, Rancho Santa margarita, California 92688

TITLE:

CRYSTAL

MATERIAL:

DWG NO.

ABLS-LR

SHEET 1 OF 1

A3

WEIGHT: 0.00

SCALE:6:1
