234865 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 234865

234865: DescriptionD Subminiature Connector, 15 Contact(s), Male, Solder Terminal, M3, Receptacle,; CategoryThe connector The connector; File Size68KB，1 Pages; ManufacturerProvertha Connectors Cables & Solutions GmbH; Environmental Compliance

Download Datasheet Parametric View All

234865 Overview

D Subminiature Connector, 15 Contact(s), Male, Solder Terminal, M3, Receptacle,

234865 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Provertha Connectors Cables & Solutions GmbH
Reach Compliance Code	compliant
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch
subject depth	0.248 inch
body length	1.547 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation option 1	M3
Installation option 2	SCREW
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Terminal length	0.106 inch
Terminal pitch	2.7432 mm
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N
Base Number Matches	1

Preview

Download Datasheet

View All

Verpackt in Tray

Verpackungseinheit 36 St.

+0,3

6,3

5 x 18 = 90

max. 138

tray packaging

packaging unit 36 pcs

14,8

5,8

3,2

2,7

Variante 1

version 1

0,6

Leiterplatte

Bestückung kraftlos

powerless assembly

Pin 1

46,2

5 x 46,2 = 231

pcb

hood only on version 1

Ansaughaube nur bei Version 1

25,1

39,3

-0,4

+0,2

max. 325

Sonstige Angaben siehe Zeichnung 204628 /

Additional indications according to drawing 204628

Verpackt in Gurtverpackung

Tape on Reel Packaging

Verpackungseinheit: 75 Stück -

Packaging unit: 75 pcs

Abspulrichtung -

Reel

Variante 2

Bestückung mit Kraft

off Direction

21,2

Pin 1

version 2

assembly with force

12,6

±0,3

+0,2

13,8

8,25

150

33,3

±0,1

56,5

330

ohne /

without

max. Einschraubtiefe 3,7 mm

Mutter /

nut

Bolzen /

bolt

Layoutvorschlag:

3,7

thread depth max. 3,7 mm

max. Einschraubtiefe 5,5 mm

thread depth max. 5,5 mm

recommended layout:

7 x 2,74 = 19,18

-0,06

+0,09

(15x)

0,05

2,84

Gewinde

/ thread

/ #4-40

Gewinde

/ thread

/ #4-40

0,05

Pin 1

2,74

6,4

3,2

±0,1

1,37

2,74

6 x 2,74 = 16,44

33,3

±0,05

Beschriftung nach Bedruckungsvorschrift 174538

0,05

Part marking according to specification 174538

M 1:1

Sonstige Angaben siehe Zeichnung 204625 /

Additional indications according to drawing 204625

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to the production documentation

Proprietary notice pursuant to ISO 16016 to be observed.

234857 234862 234867

234861 234866 224783

234860 234865 234869

Anschlussbereich verzinnt

#4-40

ohne

Mutter

Bolzen Bemerkung

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

terminal area tin plating

Anforderungsstufe: 2

234859 234864 234171

234858 234863 234868

part-no.

tape &reel

Variante 1

Ident-Nr.

Ident.-Nr.

Variante 1

class: 2

part-no.

tray

Ident.-Nr.

Variante 2

part-no.

tray

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

30.11.2009

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

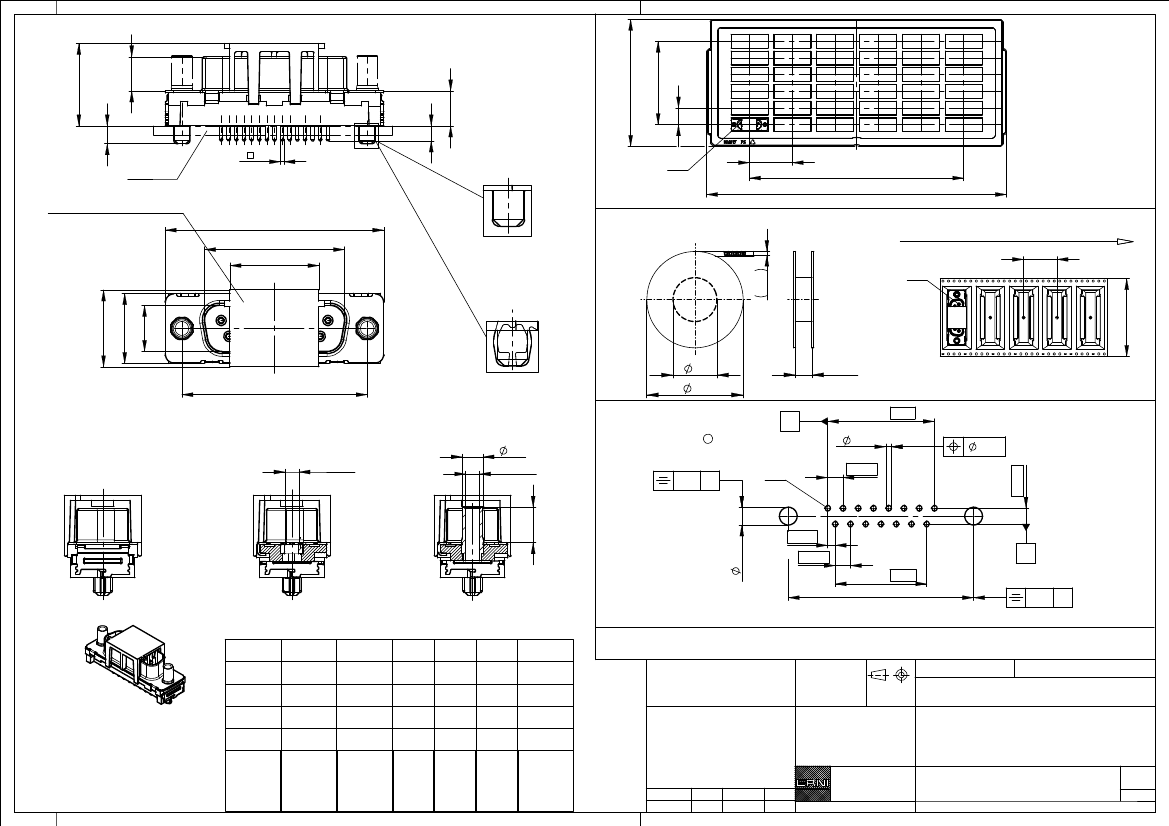

TMC-P 15-THR-2,7-6,3-BA8

TMC-P 15-THR-2,7-6,3-type 8

without

thread

bolt

remark

www.ERNI.com

Class

144975

TMCP

version 1

version 2
