1
4
MULTILAYER CHIP BEAD INDUCTORS FOR POWER LINES(BK SERIES P TYPE)
WAVE＊
MULTILAYER CHIP BEAD INDUCTORS FOR POWER LINES (BK SERIES P TYPE)
REFLOW
＊Except for BKP0603, BKP1005
■PARTS
NUMBER
*Operating Temp. : -55½+85℃
B
K P
①
1
6
②
0
8
H
③
S
1
8 1
④
－ T △
⑤ ⑥ ⑦
△＝Blank space
①Series name
Code
BKP
Series name
Multilayer chip bead inductor for power line
②Dimensions（L×W）
Code
0603
1005
1608
2125
③Material
Code
HS
HM
TS
TM
EM
Type（inch）
0603（0201）
1005（0402）
1608（0603）
2125（0805）
Dimensions
（L×W）［mm½
0.6×0.3
1.0×0.5
1.6×0.8
2.0×1.25
④Nominal impedance
Code
（example）
330
101
391
⑤Characteristics
Code
－
⑥Packaging
Code
T
⑦Internal code
Code
△
Nominal impedance［Ω½
33
100
390
Characteristics
Standard
NOISE SUPPRESSION COMPONENTS FERRITE BEAD INDUCTORS
Material

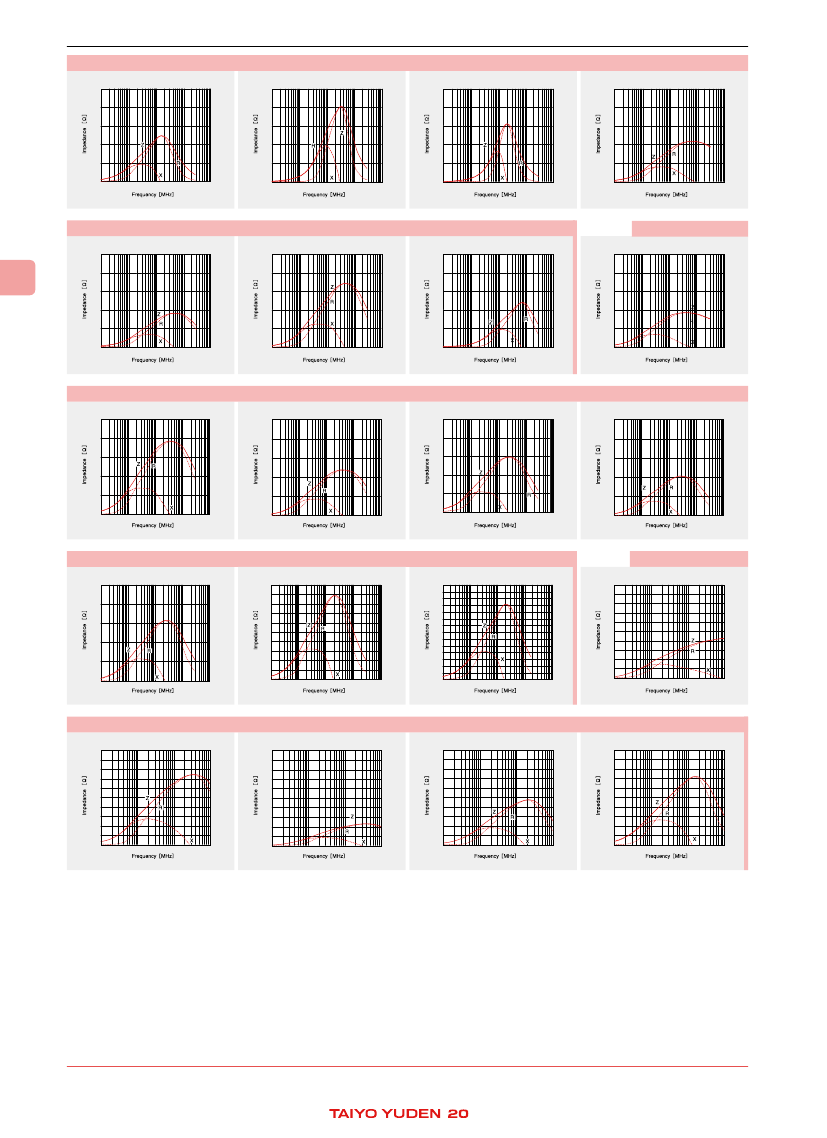

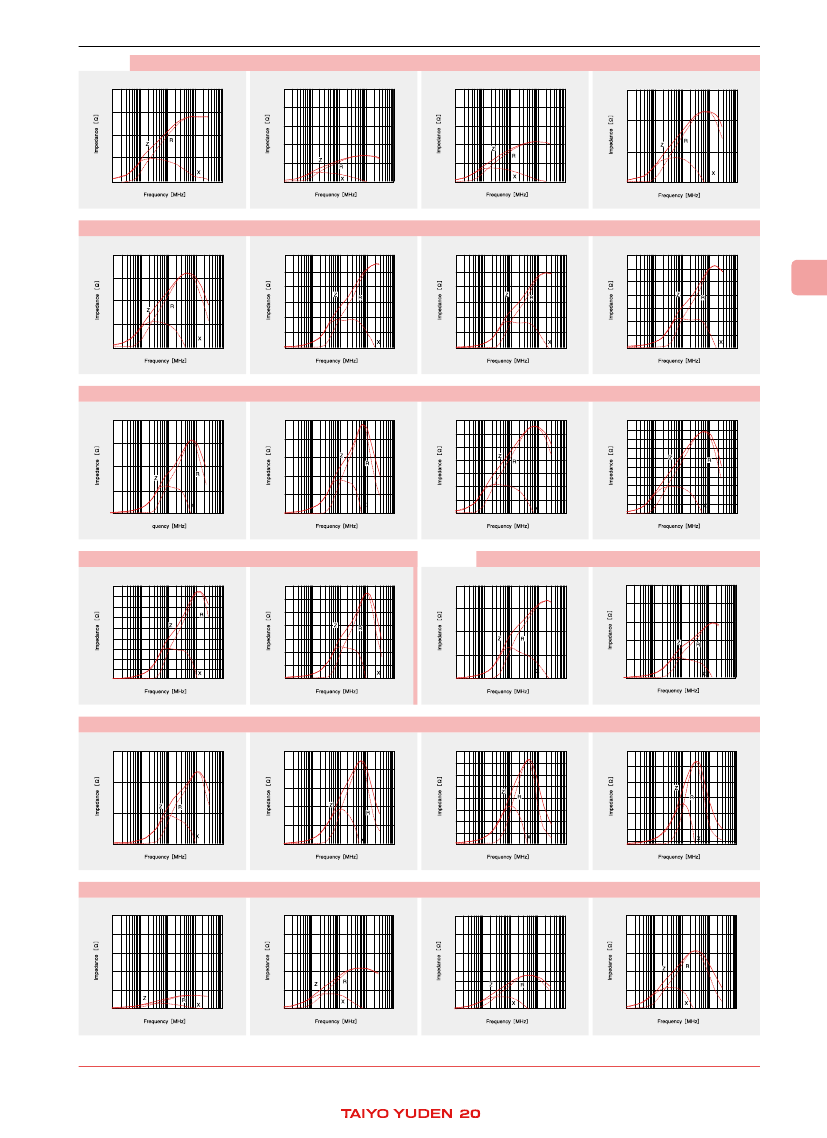

Refer to impedance curves
for material differences
Packaging
Taping
Internal code
Standard

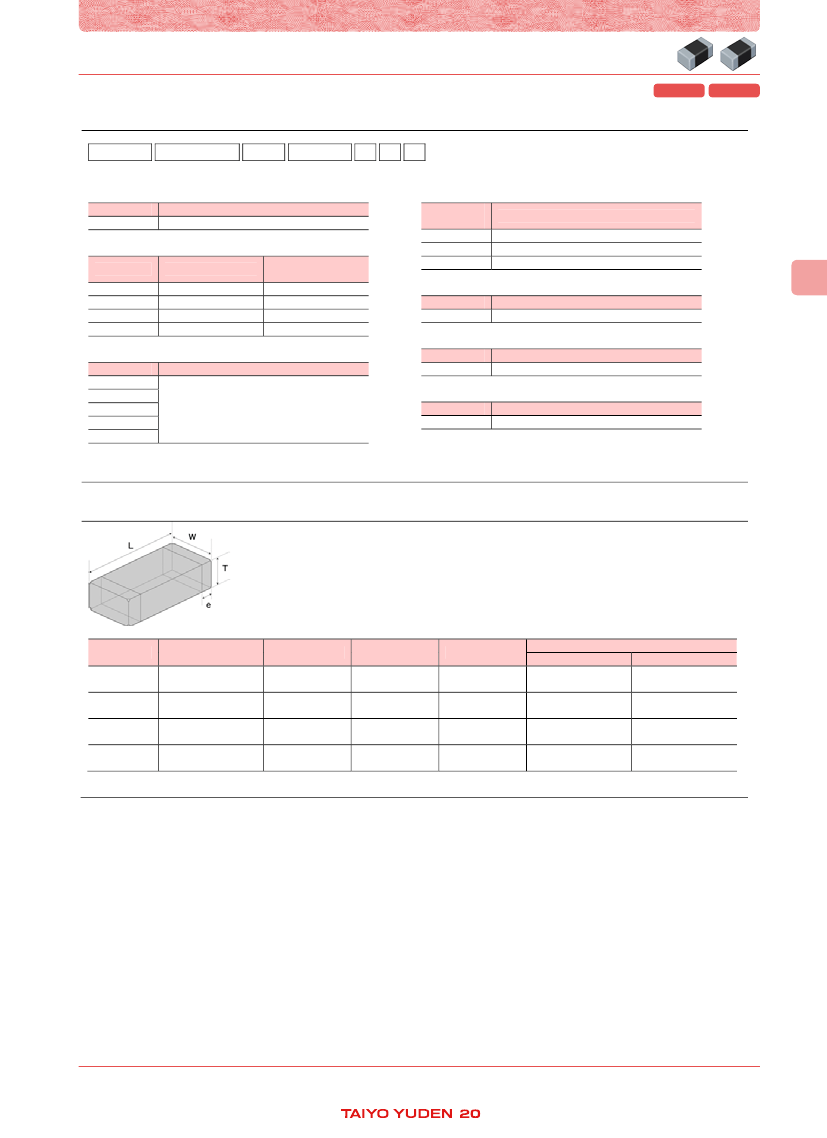

■STANDARD
EXTERNAL DIMENSIONS / STANDARD QUANTITY
／
Type
BKP0603
（0201）
BKP1005
（0402）
BKP1608
（0603）
BKP2125
（0805）
L
0.6±0.03
（0.024±0.001）
1.0±0.05
（0.039±0.002）
1.6±0.15
（0.063±0.006）
2.0＋0.3/－0.1
（0.079＋0.012/－0.004）
W
0.3±0.03
（0.012±0.001）
0.5±0.05
（0.020±0.002）
0.8±0.15
（0.031±0.006）
1.25±0.2
（0.049±0.008）
T
0.3±0.03
（0.012±0.001）
0.5±0.05
（0.020±0.002）
0.8±0.15
（0.031±0.006）
0.85±0.2
（0.033±0.008）
e
0.15±0.05
（0.006±0.002）
0.25±0.1
（0.010±0.004）
0.3±0.2
（0.012±0.008）
0.5±0.3
（0.020±0.012）
Standard quantity [pcs]
Paper tape
Embossed tape
15000
10000
4000
4000
－
－
－
－
Unit：mm（inch）
i_mlci_BKP_e-E02R01
▶
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) .
