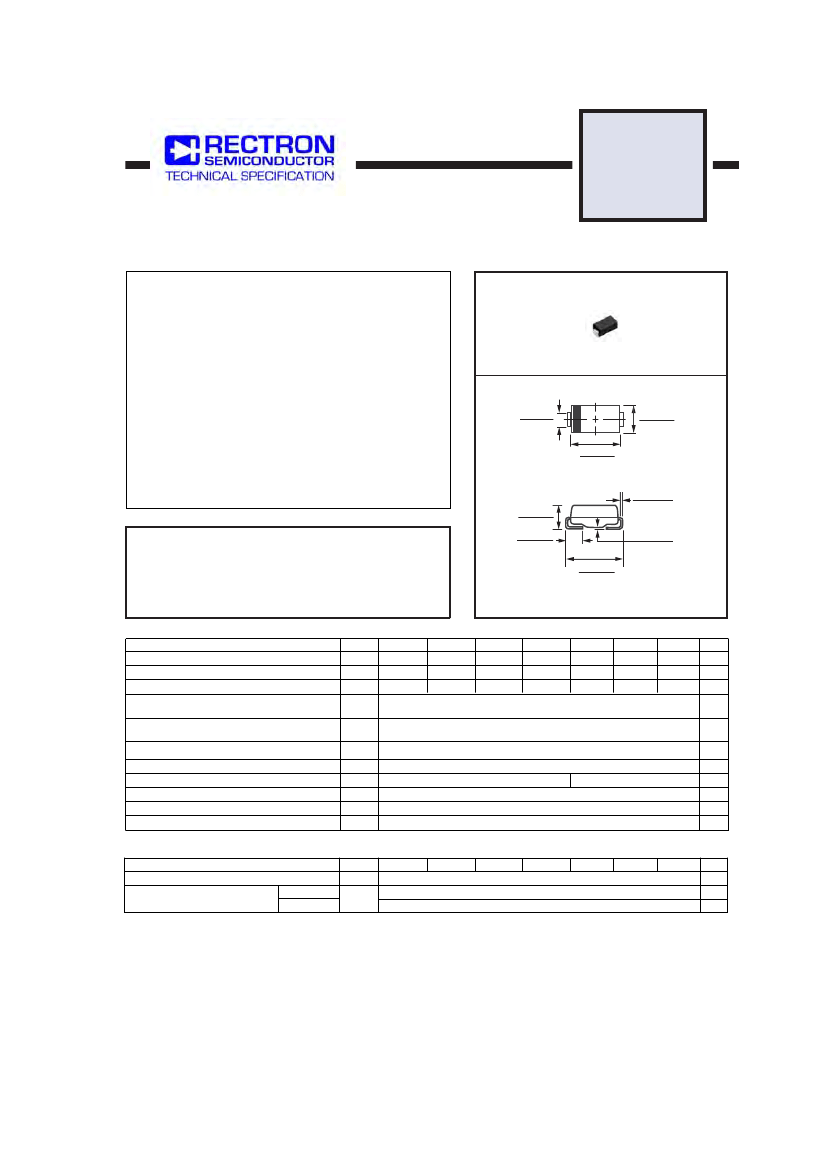

VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.0 Ampere
FEATURES
*
*
*
*
*
*
Glass passivated device
Ideal for surface mounted applications
Low leakage current
Metallurgically bonded construction
Mounting position: Any
Weight: 0.057 gram
SURFACE MOUNT
GLASS PASSIVATED SILICON RECTIFIER
FM4001
THRU
FM4007
DO-214AC
MECHANICAL DATA
* Epoxy : Device has UL flammability classification 94V-0
0.067 (1.70 )
0.051 (1.29 )
0.110 ( 2.79 )
0.086 ( 2.18 )
0.180 ( 4.57 )
0.160 ( 4.06 )
0.012 ( 0.305 )
0.006 ( 0.152 )
0.091 ( 2.31 )
0.067 ( 1.70 )
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
resistive or inductive load.
0.059 ( 1.50 )
0.035 ( 0.89 )
0.008 ( 0.203 )
0.004 ( 0.102 )
0.209 ( 5.31 )
0.185 ( 4.70 )
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
(@ T
A
=25
O
C unless otherwise noted)
RATINGS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
at Ambient Temperature
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Current Squarad Time
Typical Thermal Resistance (Note 1)
Typical Thermal Resistance (Note 1)
Typical Junction Capacitance (Note 2)
Operating Temperature Range
Storage Temperature Range
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
I
2
t
R
q
JA
R
q
JL
C
J
T
J
T
STG
27
15
150
-55 to + 150
FM4001
FM4002
FM4003
FM4004
FM4005
FM4006
FM4007
UNITS
Volts
Volts
Volts
Amps
Amps
A
2
/Sec
0
50
35
50
100
70
100
200
140
200
400
280
400
1.0
30
3.7
80
600
420
600
800
560
800
1000
700
1000
C/W
C/W
pF
0
0
30
0
C
C
ELECTRICAL CHARACTERISTICS
(@T
A
=25
O
C unless otherwise noted)
CHARACTERISTICS
Maximum Instantaneous Forward Voltage at 1.0A DC
Maximum Average Reverse Current
at Rated DC Blocking Voltage
@T
A
= 25 C
@T
A
= 100 C
o
o
SYMBOL
V
F
I
R
FM4001
FM4002
FM4003
FM4004
FM4005
FM4006
FM4007
UNITS
Volts
mA
mA
2009-09
REV:B
1.1
5.0
100
NOTES : 1. Thermal Resistance :Mounted on PCB.
2. Measured at 1 MHz and applied reverse voltage of 4.0 volts.
3. "Fully ROHS compliant","100% Sn plating (Pb-free)".
RATING AND CHARACTERISTICS CURVES ( FM4001 THRU FM4007 )
2.0
INSTANTANEOUS FORWARD CURRENT, (mA)
AVERAGE FORWARD CURRENT, (A)
1000
100
T
A
= 100
O
C
1.5
1.0
10
T = 75
O
C
A
1.0
0.1
0.01
0
T
A
= 25
O
C
0.5
Single Phase Half Wave 60Hz
Resistive or Inductive Load
0.375" (9.5mm) Lead Length
0
0
25
50
75
100
O
125
150
175
20
40
60
80
100
120
140
Lead Temperature ( C)
PERCENT OF RATED PEAK REVERSE VOLTAGE, (%)
INSTANTANEOUS REVERSE CURRENT, (A)
10
C
J
, JUNCTION CAPACITANCE, (pF)
20

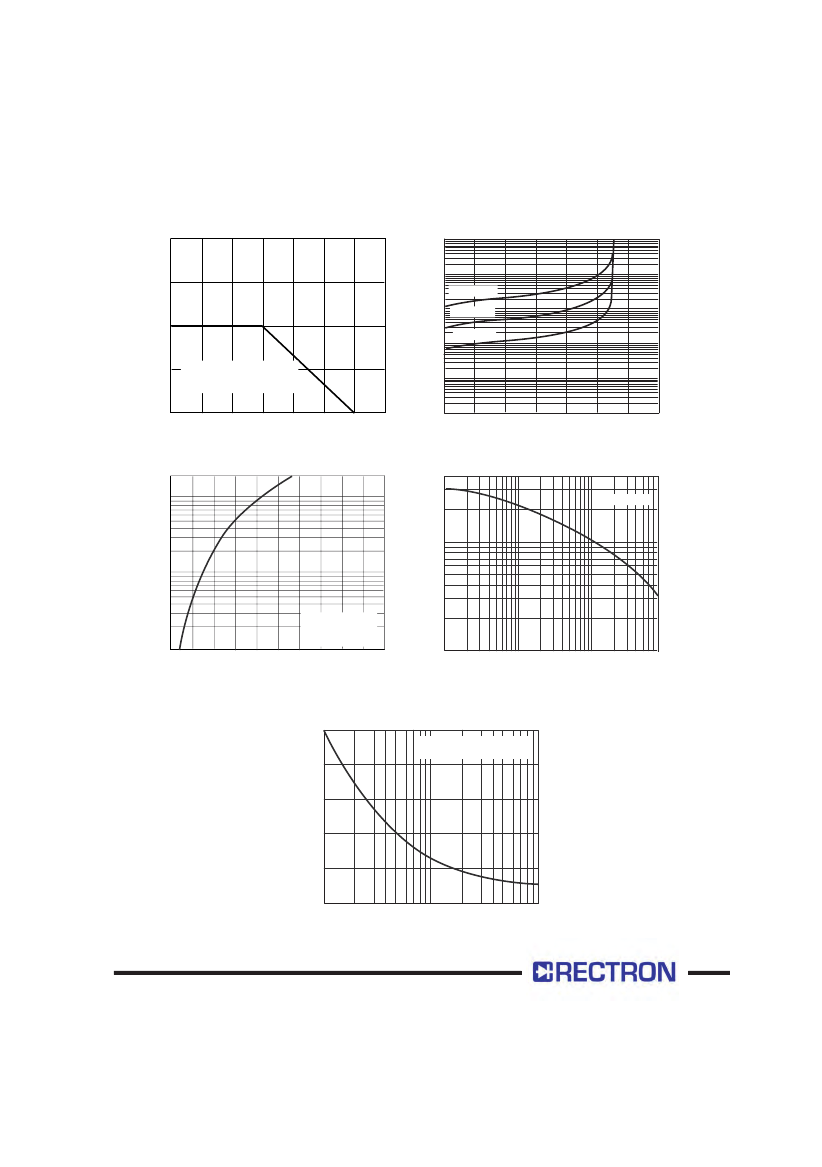

FIG.1 TYPICAL FORWARD CURRENT
DERATING CURVE
40
20
10
8
6
4
2
1
FIG.2 TYPICAL REVERSE
CHARACTERISTICS
T
J
= 25
O
C
1.0
0.1
T
J
= 25
O
C
Pulse width=300mS
1% Duty Cycle
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
0.1
0.4
1.0
4
10
40 80
INSTANTANEOUS FORWARD VOLTAGE, (V)
REVERSE VOLTAGE, (V)
FIG.3 TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
PEAK FORWARD SURGE CURRENT, (A)
FIG.4 TYPICAL JUNCTION CAPACITANCE
30
25
20
15
10
0
1
8.3mS Single Half Sine-Wave
JEDEC Method
2
4
6
8 10
20
40
80 100
NUMBER OF CYCLES AT 60Hz
FIG.5 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
